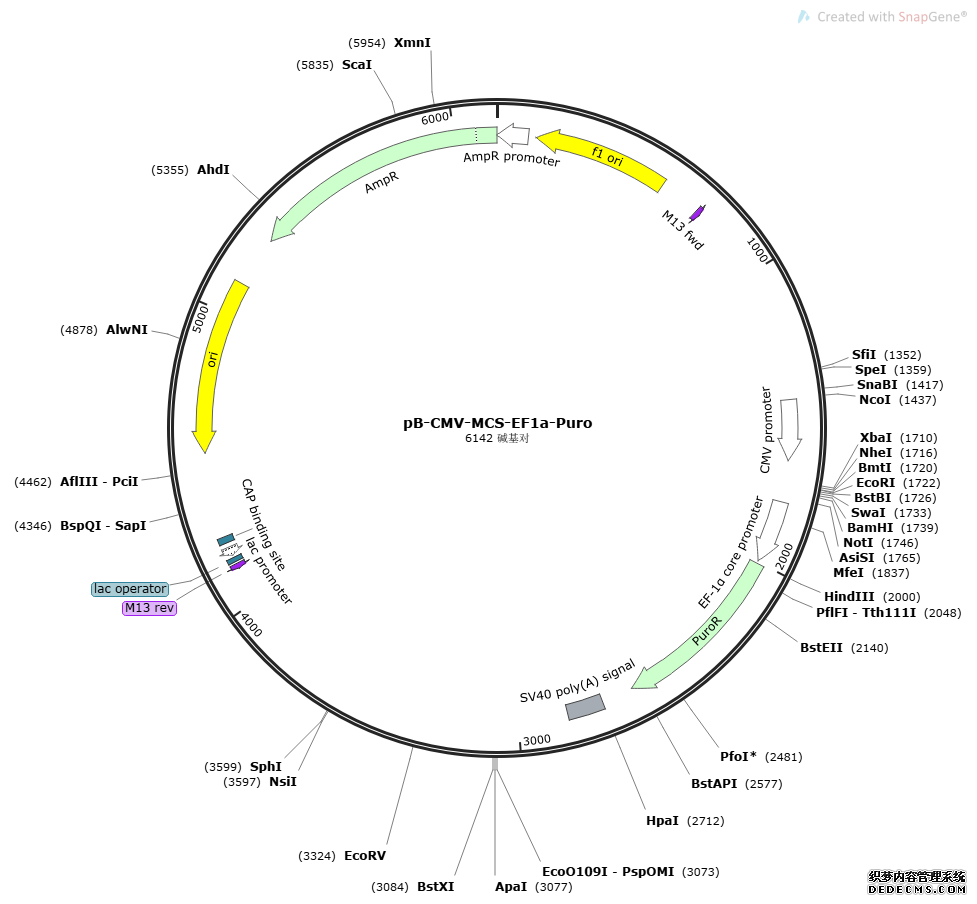

pB-CMV-MCS-EF1a-Puro

LOCUS       pB-CMV-MCS-EF1a-Puro                  6142 bp DNA     circular SYN 24-JUN-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6142)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 24, 2024 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6142
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        complement(1..105)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(131..586)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     728..744
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        1442..1645
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        1785..1996
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     CDS             2006..2605
                     /codon_start=1
                     /gene="pac from Streptomyces alboniger"
                     /product="puromycin N-acetyltransferase"
                     /label=PuroR
                     /note="confers resistance to puromycin"
                     /translation="MTEYKPTVRLATRDDVPRAVRTLAAAFADYPATRHTVDPDRHIER
                     VTELQELFLTRVGLDIGKVWVADDGAAVAVWTTPESVEAGAVFAEIGPRMAELSGSRLA
                     AQQQMEGLLAPHRPKEPAWFLATVGVSPDHQGKGLGSAVVLPGVEAAERAGVPAFLETS
                     APRNLPFYERLGFTVTADVEVPEGPRTWCMTRKPGA"
     polyA_signal    2713..2834
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4121..4137)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4145..4161
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4169..4199)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4214..4235
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4523..5111)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5282..6142)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
ORIGIN
        1 actcttcctt tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata
       61 catatttgaa tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa
      121 agtgccacct aaattgtaag cgttaatatt ttgttaaaat tcgcgttaaa tttttgttaa
      181 atcagctcat tttttaacca ataggccgaa atcggcaaaa tcccttataa atcaaaagaa
      241 tagaccgaga tagggttgag tgttgttcca gtttggaaca agagtccact attaaagaac
      301 gtggactcca acgtcaaagg gcgaaaaacc gtctatcagg gcgatggccc actacgtgaa
      361 ccatcaccct aatcaagttt tttggggtcg aggtgccgta aagcactaaa tcggaaccct
      421 aaagggagcc cccgatttag agcttgacgg ggaaagccgg cgaacgtggc gagaaaggaa
      481 gggaagaaag cgaaaggagc gggcgctagg gcgctggcaa gtgtagcggt cacgctgcgc
      541 gtaaccacca cacccgccgc gcttaatgcg ccgctacagg gcgcgtccca ttcgccattc
      601 aggctgcgca actgttggga agggcgatcg gtgcgggcct cttcgctatt acgccagctg
      661 gcgaaagggg gatgtgctgc aaggcgatta agttgggtaa cgccagggtt ttcccagtca
      721 cgacgttgta aaacgacggc cagtgagcgc gcctcgttca ttcacgtttt tgaacccgtg
      781 gaggacgggc agactcgcgg tgcaaatgtg ttttacagcg tgatggagca gatgaagatg
      841 ctcgacacgc tgcagaacac gcagctagat taaccctaga aagataatca tattgtgacg
      901 tacgttaaag ataatcatgc gtaaaattga cgcatgtgtt ttatcggtct gtatatcgag
      961 gtttatttat taatttgaat agatattaag ttttattata tttacactta catactaata
     1021 ataaattcaa caaacaattt atttatgttt atttatttat taaaaaaaaa caaaaactca
     1081 aaatttcttc tataaagtaa caaaactttt atgagggaca gccccccccc aaagccccca
     1141 gggatgtaat tacgtccctc ccccgctagg gggcagcagc gagccgcccg gggctccgct
     1201 ccggtccggc gctccccccg catccccgag ccggcagcgt gcggggacag cccgggcacg
     1261 gggaaggtgg cacgggatcg ctttcctctg aacgcttctc gctgctcttt gagcctgcag
     1321 acacctgggg ggatacgggg aaaaggcctc caaggcctac tagtattatg cccagtacat
     1381 gaccttatgg gactttccta cttggcagta catctacgta ttagtcatcg ctattaccat
     1441 ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag cggtttgact cacggggatt
     1501 tccaagtctc caccccattg acgtcaatgg gagtttgttt tggcaccaaa atcaacggga
     1561 ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa atgggcggta ggcgtgtacg
     1621 gtgggaggtt tatataagca gagctcgttt agtgaaccgt cagatcgcct ggagacgcca
     1681 tccacgctgt tttgacctcc atagaagatt ctagagctag cgaattcgaa tttaaatcgg
     1741 atccgcggcc gcaaggatct gcgatcgctc cggtgcccgt cagtgggcag agcgcacatc
     1801 gcccacagtc cccgagaagt tggggggagg ggtcggcaat tgaacgggtg cctagagaag
     1861 gtggcgcggg gtaaactggg aaagtgatgt cgtgtactgg ctccgccttt ttcccgaggg
     1921 tgggggagaa ccgtatataa gtgcagtagt cgccgtgaac gttctttttc gcaacgggtt
     1981 tgccgccaga acacagctga agcttatgac cgagtacaag cccacggtgc gcctcgccac
     2041 ccgcgacgac gtccccaggg ccgtacgcac cctcgccgcc gcgttcgccg actaccccgc
     2101 cacgcgccac accgtcgatc cggaccgcca catcgagcgg gtcaccgagc tgcaagaact
     2161 cttcctcacg cgcgtcgggc tcgacatcgg caaggtgtgg gtcgcggacg acggcgccgc
     2221 ggtggcggtc tggaccacgc cggagagcgt cgaagcgggg gcggtgttcg ccgagatcgg
     2281 cccgcgcatg gccgagttga gcggttcccg gctggccgcg cagcaacaga tggaaggcct
     2341 cctggcgccg caccggccca aggagcccgc gtggttcctg gccaccgtcg gcgtctcgcc
     2401 cgaccaccag ggcaagggtc tgggcagcgc cgtcgtgctc cccggagtgg aggcggccga
     2461 gcgcgccggg gtgcccgcct tcctggagac ctccgcgccc cgcaacctcc ccttctacga
     2521 gcggctcggc ttcaccgtca ccgccgacgt cgaggtgccc gaaggaccgc gcacctggtg
     2581 catgacccgc aagcccggtg cctgaaatca acctctggat tacaaaattt gtgaaagatt
     2641 gactggtatt cttaactatg ttgctccttt tacgctatgt ggatacgctg ctttaatgcc
     2701 tttgtatcag ttaacttgtt tattgcagct tataatggtt acaaataaag caatagcatc
     2761 acaaatttca caaataaagc atttttttca ctgcattcta gttgtggttt gtccaaactc
     2821 atcaatgtat cttatcatgt ctggaattga ctcaaatgat gtcaattagt ctatcagaag
     2881 ctatctggtc tcccttccgg gggacaagac atccctgttt aatatttaaa cagcagtgtt
     2941 cccaaactgg gttcttatat cccttgctct ggtcaaccag gttgcagggt ttcctgtcct
     3001 cacaggaacg aagtccctaa agaaacagtg gcagccaggt ttagccccgg aattgactgg
     3061 attccttttt tagggcccat tggtatggct ttttccccgt atccccccag gtgtctgcag
     3121 gctcaaagag cagcgagaag cgttcagagg aaagcgatcc cgtgccacct tccccgtgcc
     3181 cgggctgtcc ccgcacgctg ccggctcggg gatgcggggg gagcgccgga ccggagcgga
     3241 gccccgggcg gctcgctgct gccccctagc gggggaggga cgtaattaca tccctggggg
     3301 ctttgggggg gggctgtccc tgatatctat aacaagaaaa tatatatata ataagttatc
     3361 acgtaagtag aacatgaaat aacaatataa ttatcgtatg agttaaatct taaaagtcac
     3421 gtaaaagata atcatgcgtc attttgactc acgcggtcgt tatagttcaa aatcagtgac
     3481 acttaccgca ttgacaagca cgcctcacgg gagctccaag cggcgactga gatgtcctaa
     3541 atgcacagcg acggattcgc gctatttaga aagagagagc aatatttcaa gaatgcatgc
     3601 gtcaatttta cgcagactat ctttctaggg ttaatctagc tgcatcagga tcatatcgtc
     3661 gggtcttttt tccggctcag tcatcgccca agctggcgct atctgggcat cggggaggaa
     3721 gaagcccgtg ccttttcccg cgaggttgaa gcggcatgga aagagtttgc cgaggatgac
     3781 tgctgctgca ttgacgttga gcgaaaacgc acgtttacca tgatgattcg ggaaggtgtg
     3841 gccatgcacg cctttaacgg tgaactgttc gttcaggcca cctgggatac cagttcgtcg
     3901 cggcttttcc ggacacagtt ccggatggtc agcccgaagc gcatcagcaa cccgaacaat
     3961 accggcgaca gccggaactg ccgtgccggt gtgcagatta atgacagcgg tgcggcgctg
     4021 ggatattacg tcagcgagga cgggtatcct ggctggatgc cgcagaaatg gacatggata
     4081 ccccgtgagt tacccggcgg gcgcgcttgg cgtaatcatg gtcatagctg tttcctgtgt
     4141 gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata aagtgtaaag
     4201 cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca ctgcccgctt
     4261 tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc gcggggagag
     4321 gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg
     4381 ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat
     4441 caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta
     4501 aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa
     4561 atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc
     4621 cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt
     4681 ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca
     4741 gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg
     4801 accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat
     4861 cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta
     4921 cagagttctt gaagtggtgg cctaactacg gctacactag aaggacagta tttggtatct
     4981 gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac
     5041 aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa
     5101 aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa
     5161 actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt
     5221 taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca
     5281 gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca
     5341 tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc
     5401 ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa
     5461 accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc
     5521 agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca
     5581 acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat
     5641 tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag
     5701 cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac
     5761 tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt
     5821 ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt
     5881 gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc
     5941 tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat
     6001 ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca
     6061 gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga
     6121 cacggaaatg ttgaatactc at
//
