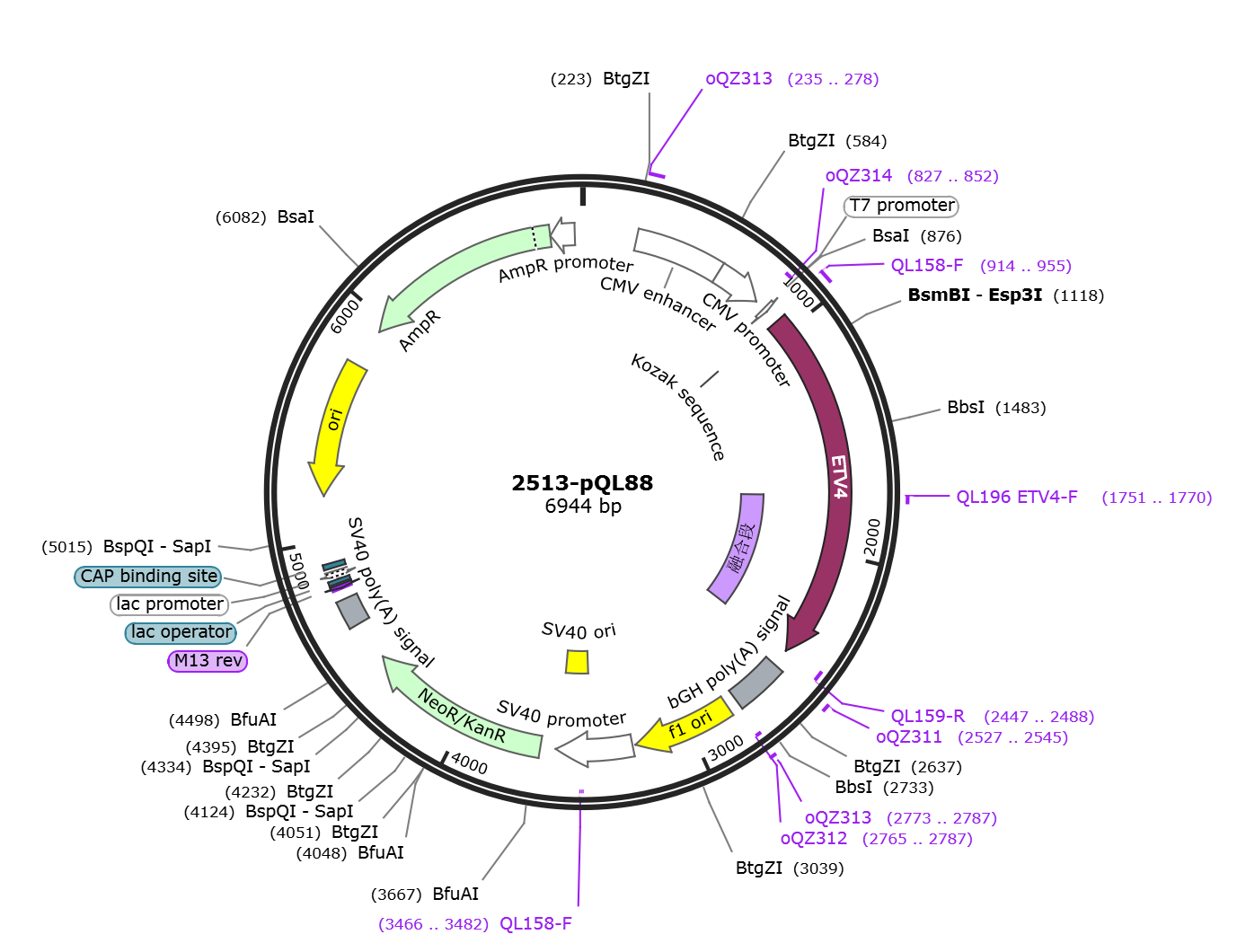

pQL88

LOCUS       pQL88        6944 bp DNA     circular SYN 26-APR-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6944)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6944
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..955
                     /label=QL158-F
     regulatory      935..944
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             941..2467
                     /codon_start=1
                     /label=ETV4
                     /translation="MERRMKAGYLDQQVPYTFSSKSPGNGSLREALIGPLGKLMDPGSL
                     PPLDSEDLFQDLSHFQETWLAEAQVPDSDEQFVPDFHSENLAFHSPTTRIKKEPQSPRT
                     DPALSCSRKPPLPYHHGEQCLYSSAYDPPRQIAIKSPAPGALGQSPLQPFPRAEQRNFL
                     RSSGTSQPHPGHGYLGEHSSVFQQPLDICHSFTSQGGGREPLPAPYQHQLSEPCPPYPQ
                     QSFKQEYHDPLYEQAGQPAVDQGGVNGHRYPGAGVVIKQEQTDFAYDSDVTGCASMYLH
                     TEGFSGPSPGDGAMGYGYEKPLRPFPDDVCVVPEKFEGDIKQEGVGAFREGPPYQRRGA
                     LQLWQFLVALLDDPTNAHFIAWTGRGMEFKLIEPEEVARLWGIQKNRPAMNYDKLSRSL
                     RYYYEKGIMQKVAGERYVYKFVCEPEALFSLAFPDNQRPALKAEFDRPVSEEDTVPLSH
                     LDESPAYLPELAGPAQPFGPKGGYSYGSDYKDHDGDYKDHDIDYKDDDDK"
     misc_feature    1751..2467
                     /label=融合段
     primer_bind     1751..1770
                     /label=QL196 ETV4-F
     CDS             2399..2464
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     primer_bind     complement(2447..2488)
                     /label=QL159-R
     primer_bind     2527..2545
                     /label=oQZ311
     polyA_signal    2544..2768
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2765..2787)
                     /label=oQZ312
     primer_bind     2773..2787
                     /label=oQZ313
     rep_origin      2814..3242
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3256..3585
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3436..3571
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(3466..3482)
                     /label=QL158-F
     CDS             3652..4446
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4620..4741
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4790..4806)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4814..4830
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4838..4868)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4883..4904
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5192..5777)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5948..6808)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6809..6913)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atggagcgga ggatgaaagc
      961 cggatacttg gaccagcaag tgccctacac cttcagcagc aaatcgcccg gaaatgggag
     1021 cttgcgcgaa gcgctgatcg gcccgctggg gaagctcatg gacccgggct ccctgccgcc
     1081 cctcgactct gaagatctct tccaggatct aagtcacttc caggagacgt ggctcgctga
     1141 agctcaggta ccagacagtg atgagcagtt tgttcctgat ttccattcag aaaacctagc
     1201 tttccacagc cccaccacca ggatcaagaa ggagccccag agtccccgca cagacccggc
     1261 cctgtcctgc agcaggaagc cgccactccc ctaccaccat ggcgagcagt gcctttactc
     1321 cagtgcctat gaccccccca gacaaatcgc catcaagtcc cctgcccctg gtgcccttgg
     1381 acagtcgccc ctacagccct ttccccgggc agagcaacgg aatttcctga gatcctctgg
     1441 cacctcccag ccccaccctg gccatgggta cctcggggaa catagctccg tcttccagca
     1501 gcccctggac atttgccact ccttcacatc tcagggaggg ggccgggaac ccctcccagc
     1561 cccctaccaa caccagctgt cggagccctg cccaccctat ccccagcaga gctttaagca
     1621 agaataccat gatcccctgt atgaacaggc gggccagcca gccgtggacc agggtggggt
     1681 caatgggcac aggtacccag gggcgggggt ggtgatcaaa caggaacaga cggacttcgc
     1741 ctacgactca gatgtcaccg ggtgcgcatc aatgtacctc cacacagagg gcttctctgg
     1801 gccctctcca ggtgacgggg ccatgggcta tggctatgag aaacctctgc gaccattccc
     1861 agatgatgtc tgcgttgtcc ctgagaaatt tgaaggagac atcaagcagg aaggggtcgg
     1921 tgcatttcga gaggggccgc cctaccagcg ccggggtgcc ctgcagctgt ggcaatttct
     1981 ggtggccttg ctggatgacc caacaaatgc ccatttcatt gcctggacgg gccggggaat
     2041 ggagttcaag ctcattgagc ctgaggaggt cgccaggctc tggggcatcc agaagaaccg
     2101 gccagccatg aattacgaca agctgagccg ctcgctccga tactattatg agaaaggcat
     2161 catgcagaag gtggctggtg agcgttacgt gtacaagttt gtgtgtgagc ccgaggccct
     2221 cttctctttg gccttcccgg acaatcagcg tccagctctc aaggctgagt ttgaccggcc
     2281 tgtcagtgag gaggacacag tccctttgtc ccacttggat gagagccccg cctacctccc
     2341 agagctggct ggccccgccc agccatttgg ccccaagggt ggctactctt acggatccga
     2401 ctacaaagac catgacggtg attataaaga tcatgacatc gactacaagg atgacgatga
     2461 caagtaggaa ttctgcagat atccagcaca gtggcggccg ctcgagtcta gagggcccgt
     2521 ttaaacccgc tgatcagcct cgactgtgcc ttctagttgc cagccatctg ttgtttgccc
     2581 ctcccccgtg ccttccttga ccctggaagg tgccactccc actgtccttt cctaataaaa
     2641 tgaggaaatt gcatcgcatt gtctgagtag gtgtcattct attctggggg gtggggtggg
     2701 gcaggacagc aagggggagg attgggaaga caatagcagg catgctgggg atgcggtggg
     2761 ctctatggct tctgaggcgg aaagaaccag ctggggctct agggggtatc cccacgcgcc
     2821 ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg cgcagcgtga ccgctacact
     2881 tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct tcctttctcg ccacgttcgc
     2941 cggctttccc cgtcaagctc taaatcgggg gctcccttta gggttccgat ttagtgcttt
     3001 acggcacctc gaccccaaaa aacttgatta gggtgatggt tcacgtagtg ggccatcgcc
     3061 ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg ttctttaata gtggactctt
     3121 gttccaaact ggaacaacac tcaaccctat ctcggtctat tcttttgatt tataagggat
     3181 tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt taacaaaaat ttaacgcgaa
     3241 ttaattctgt ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc cccagcaggc
     3301 agaagtatgc aaagcatgca tctcaattag tcagcaacca ggtgtggaaa gtccccaggc
     3361 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac catagtcccg
     3421 cccctaactc cgcccatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat
     3481 ggctgactaa ttttttttat ttatgcagag gccgaggccg cctctgcctc tgagctattc
     3541 cagaagtagt gaggaggctt ttttggaggc ctaggctttt gcaaaaagct cccgggagct
     3601 tgtatatcca ttttcggatc tgatcaagag acaggatgag gatcgtttcg catgattgaa
     3661 caagatggat tgcacgcagg ttctccggcc gcttgggtgg agaggctatt cggctatgac
     3721 tgggcacaac agacaatcgg ctgctctgat gccgccgtgt tccggctgtc agcgcagggg
     3781 cgcccggttc tttttgtcaa gaccgacctg tccggtgccc tgaatgaact gcaggacgag
     3841 gcagcgcggc tatcgtggct ggccacgacg ggcgttcctt gcgcagctgt gctcgacgtt
     3901 gtcactgaag cgggaaggga ctggctgcta ttgggcgaag tgccggggca ggatctcctg
     3961 tcatctcacc ttgctcctgc cgagaaagta tccatcatgg ctgatgcaat gcggcggctg
     4021 catacgcttg atccggctac ctgcccattc gaccaccaag cgaaacatcg catcgagcga
     4081 gcacgtactc ggatggaagc cggtcttgtc gatcaggatg atctggacga agagcatcag
     4141 gggctcgcgc cagccgaact gttcgccagg ctcaaggcgc gcatgcccga cggcgaggat
     4201 ctcgtcgtga cccatggcga tgcctgcttg ccgaatatca tggtggaaaa tggccgcttt
     4261 tctggattca tcgactgtgg ccggctgggt gtggcggacc gctatcagga catagcgttg
     4321 gctacccgtg atattgctga agagcttggc ggcgaatggg ctgaccgctt cctcgtgctt
     4381 tacggtatcg ccgctcccga ttcgcagcgc atcgccttct atcgccttct tgacgagttc
     4441 ttctgagcgg gactctgggg ttcgaaatga ccgaccaagc gacgcccaac ctgccatcac
     4501 gagatttcga ttccaccgcc gccttctatg aaaggttggg cttcggaatc gttttccggg
     4561 acgccggctg gatgatcctc cagcgcgggg atctcatgct ggagttcttc gcccacccca
     4621 acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa
     4681 ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt
     4741 atcatgtctg tataccgtcg acctctagct agagcttggc gtaatcatgg tcatagctgt
     4801 ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc ggaagcataa
     4861 agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg ttgcgctcac
     4921 tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg
     4981 cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact gactcgctgc
     5041 gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta atacggttat
     5101 ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag caaaaggcca
     5161 ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc cctgacgagc
     5221 atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta taaagatacc
     5281 aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg
     5341 gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta
     5401 ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg
     5461 ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac ccggtaagac
     5521 acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg aggtatgtag
     5581 gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga agaacagtat
     5641 ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt agctcttgat
     5701 ccggcaaaca aaccaccgct ggtagcggtt tttttgtttg caagcagcag attacgcgca
     5761 gaaaaaaagg atctcaagaa gatcctttga tcttttctac ggggtctgac gctcagtgga
     5821 acgaaaactc acgttaaggg attttggtca tgagattatc aaaaaggatc ttcacctaga
     5881 tccttttaaa ttaaaaatga agttttaaat caatctaaag tatatatgag taaacttggt
     5941 ctgacagtta ccaatgctta atcagtgagg cacctatctc agcgatctgt ctatttcgtt
     6001 catccatagt tgcctgactc cccgtcgtgt agataactac gatacgggag ggcttaccat
     6061 ctggccccag tgctgcaatg ataccgcgag acccacgctc accggctcca gatttatcag
     6121 caataaacca gccagccgga agggccgagc gcagaagtgg tcctgcaact ttatccgcct
     6181 ccatccagtc tattaattgt tgccgggaag ctagagtaag tagttcgcca gttaatagtt
     6241 tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg
     6301 cttcattcag ctccggttcc caacgatcaa ggcgagttac atgatccccc atgttgtgca
     6361 aaaaagcggt tagctccttc ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt
     6421 tatcactcat ggttatggca gcactgcata attctcttac tgtcatgcca tccgtaagat
     6481 gcttttctgt gactggtgag tactcaacca agtcattctg agaatagtgt atgcggcgac
     6541 cgagttgctc ttgcccggcg tcaatacggg ataataccgc gccacatagc agaactttaa
     6601 aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt
     6661 tgagatccag ttcgatgtaa cccactcgtg cacccaactg atcttcagca tcttttactt
     6721 tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa
     6781 gggcgacacg gaaatgttga atactcatac tcttcctttt tcaatattat tgaagcattt
     6841 atcagggtta ttgtctcatg agcggataca tatttgaatg tatttagaaa aataaacaaa
     6901 taggggttcc gcgcacattt ccccgaaaag tgccacctga cgtc
//
