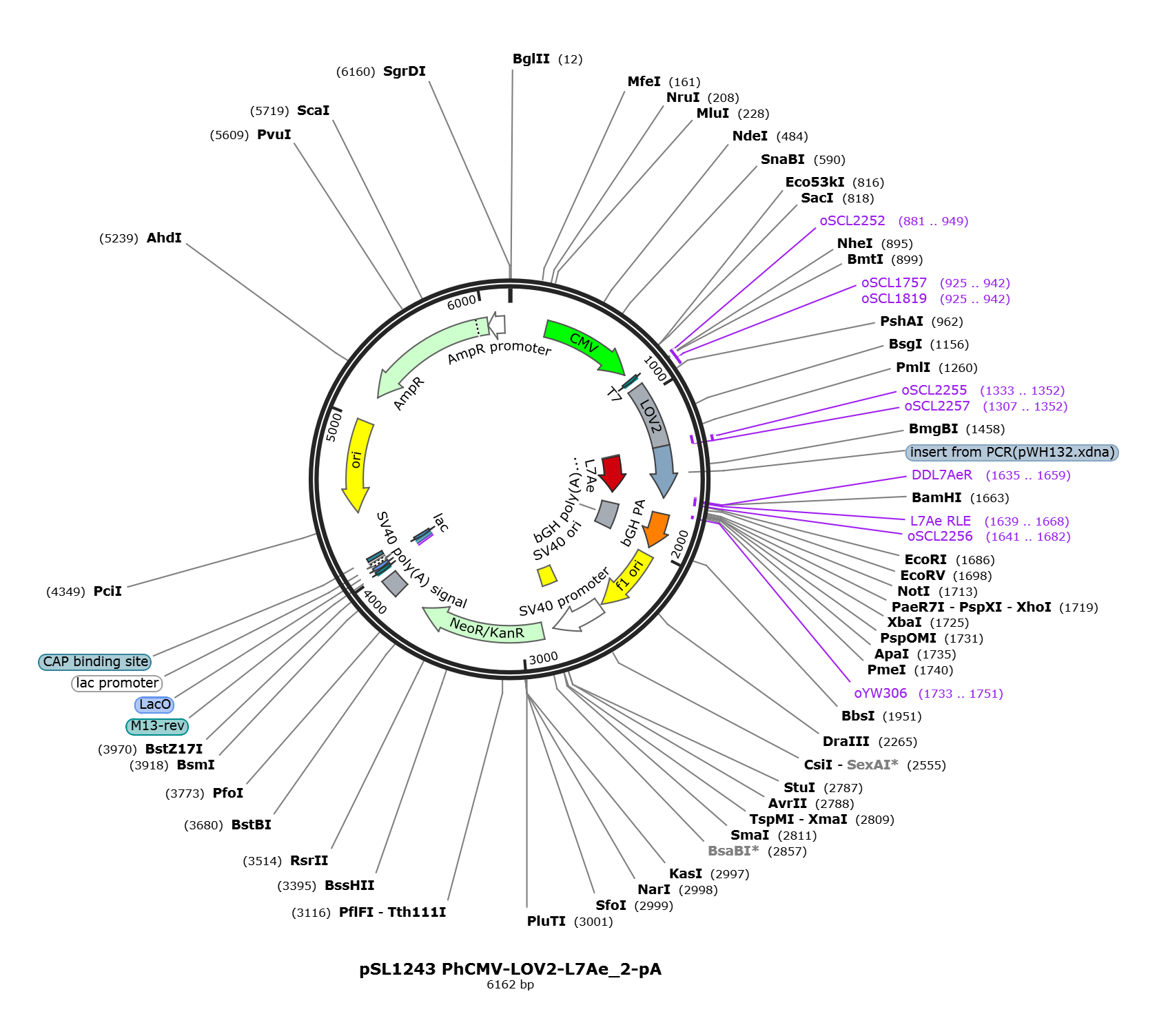

pSL1243

LOCUS       pSL1243              6162 bp DNA     circular SYN 05-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6162)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 28, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6162
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     881..949
                     /label=oSCL2252
     misc_feature    925..1332
                     /label=LOV2
     primer_bind     925..942
                     /label=oSCL1757
     primer_bind     925..942
                     /label=oSCL1819
     primer_bind     complement(1307..1352)
                     /label=oSCL2257
     CDS             1324..1332
                     /codon_start=1
                     /label=linker
                     /translation="PAA"
     misc_feature    1333..1659
                     /label=L7Ae
     misc_feature    1333..1659
                     /direction=RIGHT

                     /note="note=""Fragment extracted from PCR(pWH132.xdna) [363
                      nt] : (BamHI[6] / XbaI[373])"
     primer_bind     1333..1352
                     /label=oSCL2255
     primer_bind     complement(1635..1659)
                     /label=DDL7AeR
                     /note="EcoRI"
     primer_bind     complement(1639..1668)
                     /label=L7Ae RLE
     primer_bind     complement(1641..1682)
                     /label=oSCL2256
     primer_bind     complement(1733..1751)
                     /label=oYW306
     terminator      1759..1986
                     /label=bGH PA
     polyA_signal    1762..1986
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2032..2460
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2474..2803
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2654..2789
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    2654..2731
                     /label=SV40 ORI
     CDS             2870..3664
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3838..3959
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4004..4024)
                     /label=M13-rev
     primer_bind     complement(4008..4024)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4030..4052)
                     /label=LacO
     protein_bind    4032..4048
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4056..4086)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4057..4086)
                     /label=lac
     protein_bind    4101..4122
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4410..4995)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5166..6026)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6027..6131)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gccaccatgt ttttggcaac aaccttggaa cgtatcgaaa agaattttgt catcacggac
      961 ccgcgtctgc ccgacaatcc gattatcttc gcgtcagact ctttcttaca actgactgag
     1021 tatagtagag aggagatatt ggggcgtaac tgtagatttc ttcaggggcc agaaactgat
     1081 cgggctaccg ttcgcaagat acgtgacgca atagacaacc agaccgaggt gacggtgcag
     1141 ctgattaact acacaaagtc tgggaagaag ttctggaacc tgtttcattt acaacctatg
     1201 agggaccaaa aaggtgacgt tcaatatttc atcggggttc agttagatgg gactgagcac
     1261 gtgagagatg cagcagaaag agagggtgta atgcttatta aaaaaacagc cgagaatatc
     1321 gaccccgccg ctatgcagaa cgaggccctg agcctgctgg aaaaagtgcg cgagagcggc
     1381 aaagtgaaga agggcaccaa cgaaaccacc aaggccgtgg aacggggcct ggccaagctg
     1441 gtgtatatcg ccgaggacgt ggaccccccc gagattgtgg cccatctgcc cctgctgtgc
     1501 gaagagaaga acgtgcccta catctacgtg aagtccaaga acgacctggg cagagccgtg
     1561 ggcatcgagg tgccatgtgc ctctgccgcc atcatcaacg agggcgagct gcggaaagaa
     1621 ctgggcagcc tggtggaaaa gatcaagggc ctgcagaagt aaggatccac tagtccagtg
     1681 tggtggaatt ctgcagatat ccagcacagt ggcggccgct cgagtctaga gggcccgttt
     1741 aaacccgctg atcagcctcg actgtgcctt ctagttgcca gccatctgtt gtttgcccct
     1801 cccccgtgcc ttccttgacc ctggaaggtg ccactcccac tgtcctttcc taataaaatg
     1861 aggaaattgc atcgcattgt ctgagtaggt gtcattctat tctggggggt ggggtggggc
     1921 aggacagcaa gggggaggat tgggaagaca atagcaggca tgctggggat gcggtgggct
     1981 ctatggcttc tgaggcggaa agaaccagct ggggctctag ggggtatccc cacgcgccct
     2041 gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg
     2101 ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg
     2161 gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac
     2221 ggcacctcga ccccaaaaaa cttgattagg gtgatggttc acgtagtggg ccatcgccct
     2281 gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt
     2341 tccaaactgg aacaacactc aaccctatct cggtctattc ttttgattta taagggattt
     2401 tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt
     2461 aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc cagcaggcag
     2521 aagtatgcaa agcatgcatc tcaattagtc agcaaccagg tgtggaaagt ccccaggctc
     2581 cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca tagtcccgcc
     2641 cctaactccg cccatcccgc ccctaactcc gcccagttcc gcccattctc cgccccatgg
     2701 ctgactaatt ttttttattt atgcagaggc cgaggccgcc tctgcctctg agctattcca
     2761 gaagtagtga ggaggctttt ttggaggcct aggcttttgc aaaaagctcc cgggagcttg
     2821 tatatccatt ttcggatctg atcaagagac aggatgagga tcgtttcgca tgattgaaca
     2881 agatggattg cacgcaggtt ctccggccgc ttgggtggag aggctattcg gctatgactg
     2941 ggcacaacag acaatcggct gctctgatgc cgccgtgttc cggctgtcag cgcaggggcg
     3001 cccggttctt tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc aggacgaggc
     3061 agcgcggcta tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc tcgacgttgt
     3121 cactgaagcg ggaagggact ggctgctatt gggcgaagtg ccggggcagg atctcctgtc
     3181 atctcacctt gctcctgccg agaaagtatc catcatggct gatgcaatgc ggcggctgca
     3241 tacgcttgat ccggctacct gcccattcga ccaccaagcg aaacatcgca tcgagcgagc
     3301 acgtactcgg atggaagccg gtcttgtcga tcaggatgat ctggacgaag agcatcaggg
     3361 gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc atgcccgacg gcgaggatct
     3421 cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg gtggaaaatg gccgcttttc
     3481 tggattcatc gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca tagcgttggc
     3541 tacccgtgat attgctgaag agcttggcgg cgaatgggct gaccgcttcc tcgtgcttta
     3601 cggtatcgcc gctcccgatt cgcagcgcat cgccttctat cgccttcttg acgagttctt
     3661 ctgagcggga ctctggggtt cgaaatgacc gaccaagcga cgcccaacct gccatcacga
     3721 gatttcgatt ccaccgccgc cttctatgaa aggttgggct tcggaatcgt tttccgggac
     3781 gccggctgga tgatcctcca gcgcggggat ctcatgctgg agttcttcgc ccaccccaac
     3841 ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat
     3901 aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat
     3961 catgtctgta taccgtcgac ctctagctag agcttggcgt aatcatggtc atagctgttt
     4021 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     4081 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     4141 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
     4201 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
     4261 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
     4321 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
     4381 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
     4441 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
     4501 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
     4561 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
     4621 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
     4681 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
     4741 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
     4801 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag aacagtattt
     4861 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
     4921 ggcaaacaaa ccaccgctgg tagcggtttt tttgtttgca agcagcagat tacgcgcaga
     4981 aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac
     5041 gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc
     5101 cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct
     5161 gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca
     5221 tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct
     5281 ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca
     5341 ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc
     5401 atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg
     5461 cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct
     5521 tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa
     5581 aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta
     5641 tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc
     5701 ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg
     5761 agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa
     5821 gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg
     5881 agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc
     5941 accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg
     6001 gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat
     6061 cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa taaacaaata
     6121 ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg tc
//
