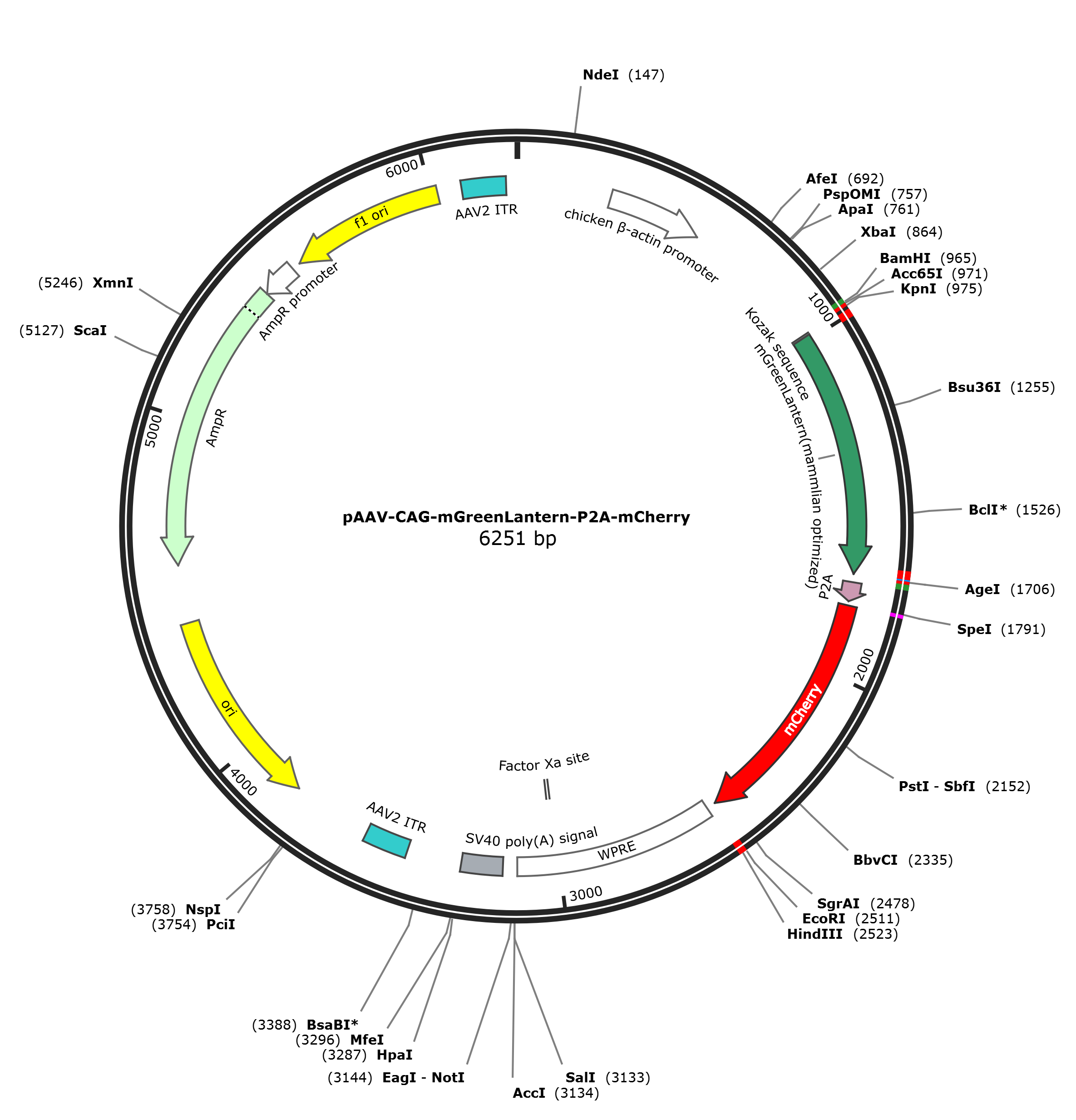

pAAV-CAG-mGreenLantern-P2A-mCherry

LOCUS       pAAV-CAG-mGreenLantern-P2A-mCherry              6251 bp DNA     circular SYN 01-NOV-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6251)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jul 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6251
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     primer_bind     951..1008
                     /label=0901-LANTERN-F
     misc_feature    981..986
                     /label=Kozak sequence
     CDS             987..1703
                     /codon_start=1
                     /label=mGreenLantern(mammlian optimized)
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTL
                     KFICTTGKLPVPWPTLVTTLGYGVACFARYPDHMKQHDFFKSAMPEGYVQERTISFKDD
                     GTYKTRAEVKFEGDTLVNRIVLKGIDFKEDGNILGHKLEYNFNSHKVYITADKQKNGIK
                     ANFKTRHNVEDGGVQLADHYQQNTPIGDGPVLLPDNHYLSHQSKLSKDPNEKRDHMVLK
                     ERVTAAGITHDMDELYK"
     primer_bind     complement(1678..1731)
                     /label=0901-LANTERN-R
     CDS             1728..1784
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             1797..2507
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     misc_feature    2535..3123
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(3006..3017)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3166..3287
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     repeat_region   3449..3578
                     /label=AAV2 ITR
     rep_origin      complement(3815..4403)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4574..5434)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5435..5539)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(5565..6020)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     repeat_region   6092..6221
                     /label=AAV2 ITR
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccctaa gccaccatgg tctccaaggg tgaagagctg ttcactggcg
     1021 tggtgcctat cttggtggaa ctcgacggtg atgtgaacgg ccataagttc tccgtcagag
     1081 gtgaaggcga gggtgacgct actaacggca agttgacact gaagttcatc tgcactacag
     1141 gtaagctgcc tgtgccatgg ccaacactgg tgacaacctt gggctatggt gtggcctgct
     1201 ttgctagata tccagatcac atgaagcagc atgacttctt caagtccgca atgcctgagg
     1261 gatacgtgca agagcggact atctctttca aagacgacgg cacctacaag acaagggcag
     1321 aagtgaagtt tgagggtgac actctcgtga acagaatcgt gctgaagggc atcgacttta
     1381 aagaagacgg caacattctt ggccacaagc tggagtataa cttcaacagc cataaggtgt
     1441 acatcacagc tgacaagcag aagaacggca ttaaggcaaa cttcaagacc aggcataacg
     1501 tggaagacgg tggagtgcag ctggctgatc attaccagca gaacacacct atcggagatg
     1561 gaccagtgct tctgcctgat aaccactatc tgagccatca gagcaagttg tccaaagatc
     1621 caaacgagaa gagagaccac atggtgctga aagagcgggt gactgctgct ggtatcacac
     1681 acgatatgga cgagttgtac aagcgaccgg ttcacgtggg aagtggggct acaaacttct
     1741 cactgctgaa acaggccggg gatgtggagg aaaacccagg accacacgtg actagtatgg
     1801 tgagcaaggg cgaggaggat aacatggcca tcatcaagga gttcatgcgc ttcaaggtgc
     1861 acatggaggg ctccgtgaac ggccacgagt tcgagatcga gggcgagggc gagggccgcc
     1921 cctacgaggg cacccagacc gccaagctga aggtgaccaa gggtggcccc ctgcccttcg
     1981 cctgggacat cctgtcccct cagttcatgt acggctccaa ggcctacgtg aagcaccccg
     2041 ccgacatccc cgactacttg aagctgtcct tccccgaggg cttcaagtgg gagcgcgtga
     2101 tgaacttcga ggacggcggc gtggtgaccg tgacccagga ctcctccctg caggacggcg
     2161 agttcatcta caaggtgaag ctgcgcggca ccaacttccc ctccgacggc cccgtaatgc
     2221 agaagaagac catgggctgg gaggcctcct ccgagcggat gtaccccgag gacggcgccc
     2281 tgaagggcga gatcaagcag aggctgaagc tgaaggacgg cggccactac gacgctgagg
     2341 tcaagaccac ctacaaggcc aagaagcccg tgcagctgcc cggcgcctac aacgtcaaca
     2401 tcaagttgga catcacctcc cacaacgagg actacaccat cgtggaacag tacgaacgcg
     2461 ccgagggccg ccactccacc ggcggcatgg acgagctgta caagtagtaa gaattcgata
     2521 tcaagcttat cgataatcaa cctctggatt acaaaatttg tgaaagattg actggtattc
     2581 ttaactatgt tgctcctttt acgctatgtg gatacgctgc tttaatgcct ttgtatcatg
     2641 ctattgcttc ccgtatggct ttcattttct cctccttgta taaatcctgg ttgctgtctc
     2701 tttatgagga gttgtggccc gttgtcaggc aacgtggcgt ggtgtgcact gtgtttgctg
     2761 acgcaacccc cactggttgg ggcattgcca ccacctgtca gctcctttcc gggactttcg
     2821 ctttccccct ccctattgcc acggcggaac tcatcgccgc ctgccttgcc cgctgctgga
     2881 caggggctcg gctgttgggc actgacaatt ccgtggtgtt gtcggggaaa tcatcgtcct
     2941 ttccttggct gctcgcctgt gttgccacct ggattctgcg cgggacgtcc ttctgctacg
     3001 tcccttcggc cctcaatcca gcggaccttc cttcccgcgg cctgctgccg gctctgcggc
     3061 ctcttccgcg tcttcgcctt cgccctcaga cgagtcggat ctccctttgg gccgcctccc
     3121 cgcatcgata ccgtcgaccc gggcggccgc ttcgagcaga catgataaga tacattgatg
     3181 agtttggaca aaccacaact agaatgcagt gaaaaaaatg ctttatttgt gaaatttgtg
     3241 atgctattgc tttatttgta accattataa gctgcaataa acaagttaac aacaacaatt
     3301 gcattcattt tatgtttcag gttcaggggg agatgtggga ggttttttaa agcaagtaaa
     3361 acctctacaa atgtggtaaa atcgataagg atcttcctag agcatggcta cgtagataag
     3421 tagcatggcg ggttaatcat taactacaag gaacccctag tgatggagtt ggccactccc
     3481 tctctgcgcg ctcgctcgct cactgaggcc gggcgaccaa aggtcgcccg acgcccgggc
     3541 tttgcccggg cggcctcagt gagcgagcga gcgcgcagct gcattaatga atcggccaac
     3601 gcgcggggag aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc
     3661 tgcgctcggt cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt
     3721 tatccacaga atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg
     3781 ccaggaaccg taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg
     3841 agcatcacaa aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat
     3901 accaggcgtt tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta
     3961 ccggatacct gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct
     4021 gtaggtatct cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc
     4081 ccgttcagcc cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa
     4141 gacacgactt atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg
     4201 taggcggtgc tacagagttc ttgaagtggt ggcctaacta cggctacact agaagaacag
     4261 tatttggtat ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt
     4321 gatccggcaa acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta
     4381 cgcgcagaaa aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc
     4441 agtggaacga aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca
     4501 cctagatcct tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa
     4561 cttggtctga cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat
     4621 ttcgttcatc catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct
     4681 taccatctgg ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt
     4741 tatcagcaat aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat
     4801 ccgcctccat ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta
     4861 atagtttgcg caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg
     4921 gtatggcttc attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt
     4981 tgtgcaaaaa agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg
     5041 cagtgttatc actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg
     5101 taagatgctt ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc
     5161 ggcgaccgag ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa
     5221 ctttaaaagt gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac
     5281 cgctgttgag atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt
     5341 ttactttcac cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg
     5401 gaataagggc gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa
     5461 gcatttatca gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata
     5521 aacaaatagg ggttccgcgc acatttcccc gaaaagtgcc acctaaattg taagcgttaa
     5581 tattttgtta aaattcgcgt taaatttttg ttaaatcagc tcatttttta accaataggc
     5641 cgaaatcggc aaaatccctt ataaatcaaa agaatagacc gagatagggt tgagtgttgt
     5701 tccagtttgg aacaagagtc cactattaaa gaacgtggac tccaacgtca aagggcgaaa
     5761 aaccgtctat cagggcgatg gcccactacg tgaaccatca ccctaatcaa gttttttggg
     5821 gtcgaggtgc cgtaaagcac taaatcggaa ccctaaaggg agcccccgat ttagagcttg
     5881 acggggaaag ccggcgaacg tggcgagaaa ggaagggaag aaagcgaaag gagcgggcgc
     5941 tagggcgctg gcaagtgtag cggtcacgct gcgcgtaacc accacacccg ccgcgcttaa
     6001 tgcgccgcta cagggcgcgt cccattcgcc attcaggctg cgcaactgtt gggaagggcg
     6061 atcggtgcgg gcctcttcgc tattacgcca gctgcgcgct cgctcgctca ctgaggccgc
     6121 ccgggcaaag cccgggcgtc gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc
     6181 gcgcagagag ggagtggcca actccatcac taggggttcc ttgtagttaa tgattaaccc
     6241 gccatgctac t
//
