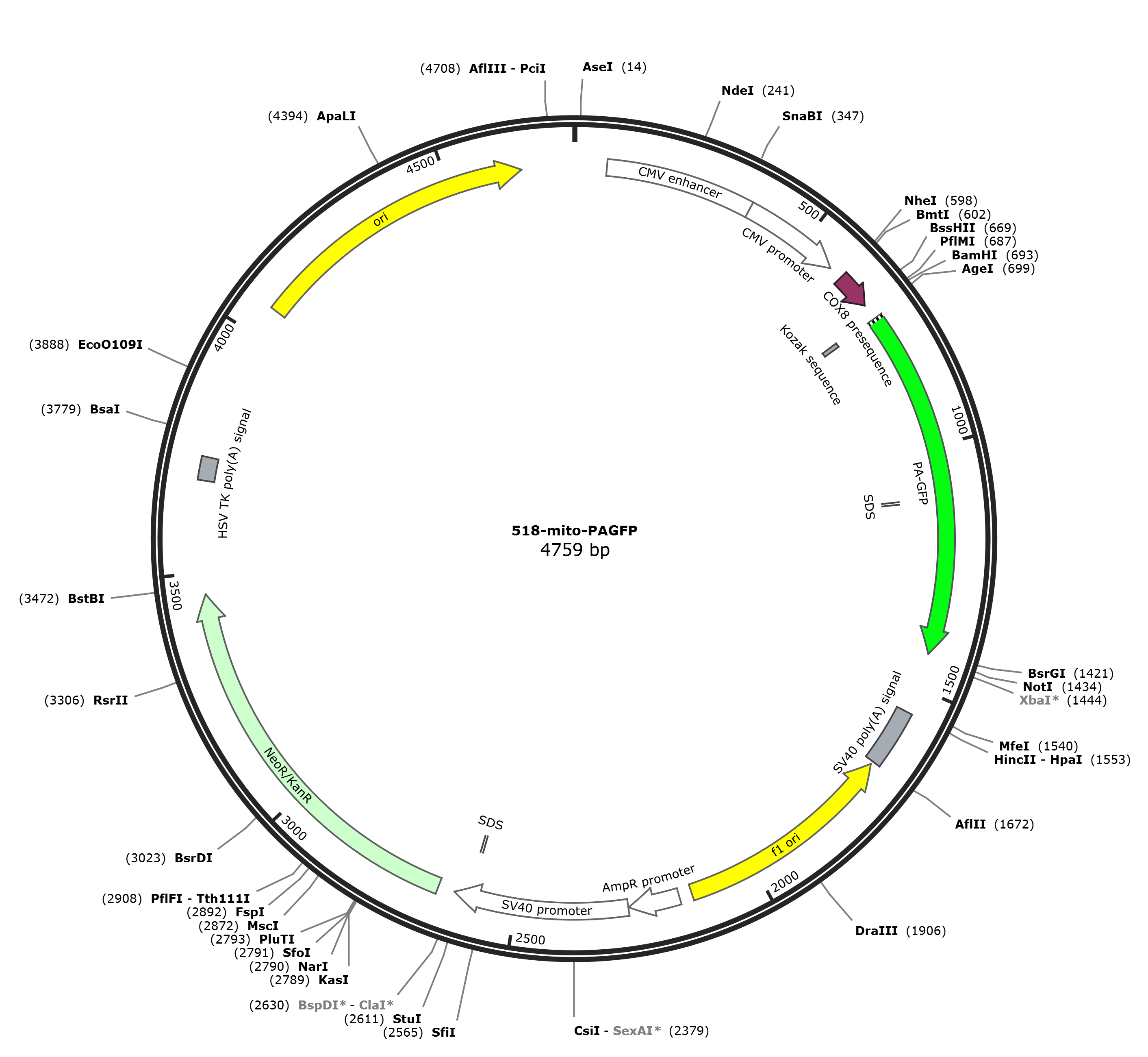

mito-PAGFP

LOCUS       mito-PAGFP             4759 bp DNA     circular SYN 23-MAY-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4759)
  AUTHORS   Stavrini Papadaki
  TITLE     Direct Submission
  JOURNAL   Exported Jul 16, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4759
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        68..371
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        372..575
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             604..678
                     /codon_start=1
                     /product="mitochondrial presequence of human cytochrome c
                     oxidase subunit VIII (Rizutto et al., 1989)"
                     /label=COX8 presequence
                     /translation="MSVLTPLLLRGLTGSARRLPVPRAK"
     regulatory      706..715
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             712..1428
                     /codon_start=1
                     /product="photoactivatable GFP variant (Patterson et al.,
                     2002)"
                     /label=PA-GFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTFSYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     ANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSHQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     misc_feature    1106..1111
                     /label=SDS
     polyA_signal    1554..1675
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1682..2137)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2164..2268
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2270..2627
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     misc_feature    2594..2599
                     /label=SDS
     CDS             2662..3456
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3688..3735
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4064..4652
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 catgcattag ttattaatag taatcaatta cggggtcatt agttcatagc ccatatatgg
       61 agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc aacgaccccc
      121 gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg actttccatt
      181 gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat caagtgtatc
      241 atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc tggcattatg
      301 cccagtacat gaccttatgg gactttccta cttggcagta catctacgta ttagtcatcg
      361 ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag cggtttgact
      421 cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt tggcaccaaa
      481 atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa atgggcggta
      541 ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt cagatccgct
      601 agcatgtccg tcctgacgcc gctgctgctg cggggcttga caggctcggc ccggcggctc
      661 ccagtgccgc gcgccaagat ccattcgttg ggggatccac cggtcgccac catggtgagc
      721 aagggcgagg agctgttcac cggggtggtg cccatcctgg tcgagctgga cggcgacgta
      781 aacggccaca agttcagcgt gtccggcgag ggcgagggcg atgccaccta cggcaagctg
      841 accctgaagt tcatctgcac caccggcaag ctgcccgtgc cctggcccac cctcgtgacc
      901 accttcagct acggcgtgca gtgcttcagc cgctaccccg accacatgaa gcagcacgac
      961 ttcttcaagt ccgccatgcc cgaaggctac gtccaggagc gcaccatctt cttcaaggac
     1021 gacggcaact acaagacccg cgccgaggtg aagttcgagg gcgacaccct ggtgaaccgc
     1081 atcgagctga agggcatcga cttcaaggag gacggcaaca tcctggggca caagctggag
     1141 tacaactaca acagccacaa cgtctatatc atggccgaca agcagaagaa cggcatcaag
     1201 gccaacttca agatccgcca caacatcgag gacggcagcg tgcagctcgc cgaccactac
     1261 cagcagaaca cccccatcgg cgacggcccc gtgctgctgc ccgacaacca ctacctgagc
     1321 caccagtccg ccctgagcaa agaccccaac gagaagcgcg atcacatggt cctgctggag
     1381 ttcgtgaccg ccgccgggat cactctcggc atggacgagc tgtacaagta aagcggccgc
     1441 gactctagat cataatcagc cataccacat ttgtagaggt tttacttgct ttaaaaaacc
     1501 tcccacacct ccccctgaac ctgaaacata aaatgaatgc aattgttgtt gttaacttgt
     1561 ttattgcagc ttataatggt tacaaataaa gcaatagcat cacaaatttc acaaataaag
     1621 catttttttc actgcattct agttgtggtt tgtccaaact catcaatgta tcttaaggcg
     1681 taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta aatcagctca
     1741 ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga atagaccgag
     1801 atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa cgtggactcc
     1861 aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga accatcaccc
     1921 taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc taaagggagc
     1981 ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga agggaagaaa
     2041 gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg cgtaaccacc
     2101 acacccgccg cgcttaatgc gccgctacag ggcgcgtcag gtggcacttt tcggggaaat
     2161 gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta tccgctcatg
     2221 agacaataac cctgataaat gcttcaataa tattgaaaaa ggaagagtcc tgaggcggaa
     2281 agaaccagct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc tccccagcag
     2341 gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga aagtccccag
     2401 gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accatagtcc
     2461 cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat tctccgcccc
     2521 atggctgact aatttttttt atttatgcag aggccgaggc cgcctcggcc tctgagctat
     2581 tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaagat cgatcaagag
     2641 acaggatgag gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc
     2701 gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat
     2761 gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg
     2821 tccggtgccc tgaatgaact gcaagacgag gcagcgcggc tatcgtggct ggccacgacg
     2881 ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta
     2941 ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta
     3001 tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc
     3061 gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc
     3121 gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg
     3181 ctcaaggcga gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg
     3241 ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt
     3301 gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc
     3361 ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc
     3421 atcgccttct atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga
     3481 ccgaccaagc gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg
     3541 aaaggttggg cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg
     3601 atctcatgct ggagttcttc gcccacccta gggggaggct aactgaaaca cggaaggaga
     3661 caataccgga aggaacccgc gctatgacgg caataaaaag acagaataaa acgcacggtg
     3721 ttgggtcgtt tgttcataaa cgcggggttc ggtcccaggg ctggcactct gtcgataccc
     3781 caccgagacc ccattggggc caatacgccc gcgtttcttc cttttcccca ccccaccccc
     3841 caagttcggg tgaaggccca gggctcgcag ccaacgtcgg ggcggcaggc cctgccatag
     3901 cctcaggtta ctcatatata ctttagattg atttaaaact tcatttttaa tttaaaagga
     3961 tctaggtgaa gatccttttt gataatctca tgaccaaaat cccttaacgt gagttttcgt
     4021 tccactgagc gtcagacccc gtagaaaaga tcaaaggatc ttcttgagat cctttttttc
     4081 tgcgcgtaat ctgctgcttg caaacaaaaa aaccaccgct accagcggtg gtttgtttgc
     4141 cggatcaaga gctaccaact ctttttccga aggtaactgg cttcagcaga gcgcagatac
     4201 caaatactgt tcttctagtg tagccgtagt taggccacca cttcaagaac tctgtagcac
     4261 cgcctacata cctcgctctg ctaatcctgt taccagtggc tgctgccagt ggcgataagt
     4321 cgtgtcttac cgggttggac tcaagacgat agttaccgga taaggcgcag cggtcgggct
     4381 gaacgggggg ttcgtgcaca cagcccagct tggagcgaac gacctacacc gaactgagat
     4441 acctacagcg tgagctatga gaaagcgcca cgcttcccga agggagaaag gcggacaggt
     4501 atccggtaag cggcagggtc ggaacaggag agcgcacgag ggagcttcca gggggaaacg
     4561 cctggtatct ttatagtcct gtcgggtttc gccacctctg acttgagcgt cgatttttgt
     4621 gatgctcgtc aggggggcgg agcctatgga aaaacgccag caacgcggcc tttttacggt
     4681 tcctggcctt ttgctggcct tttgctcaca tgttctttcc tgcgttatcc cctgattctg
     4741 tggataaccg tattaccgc
//
