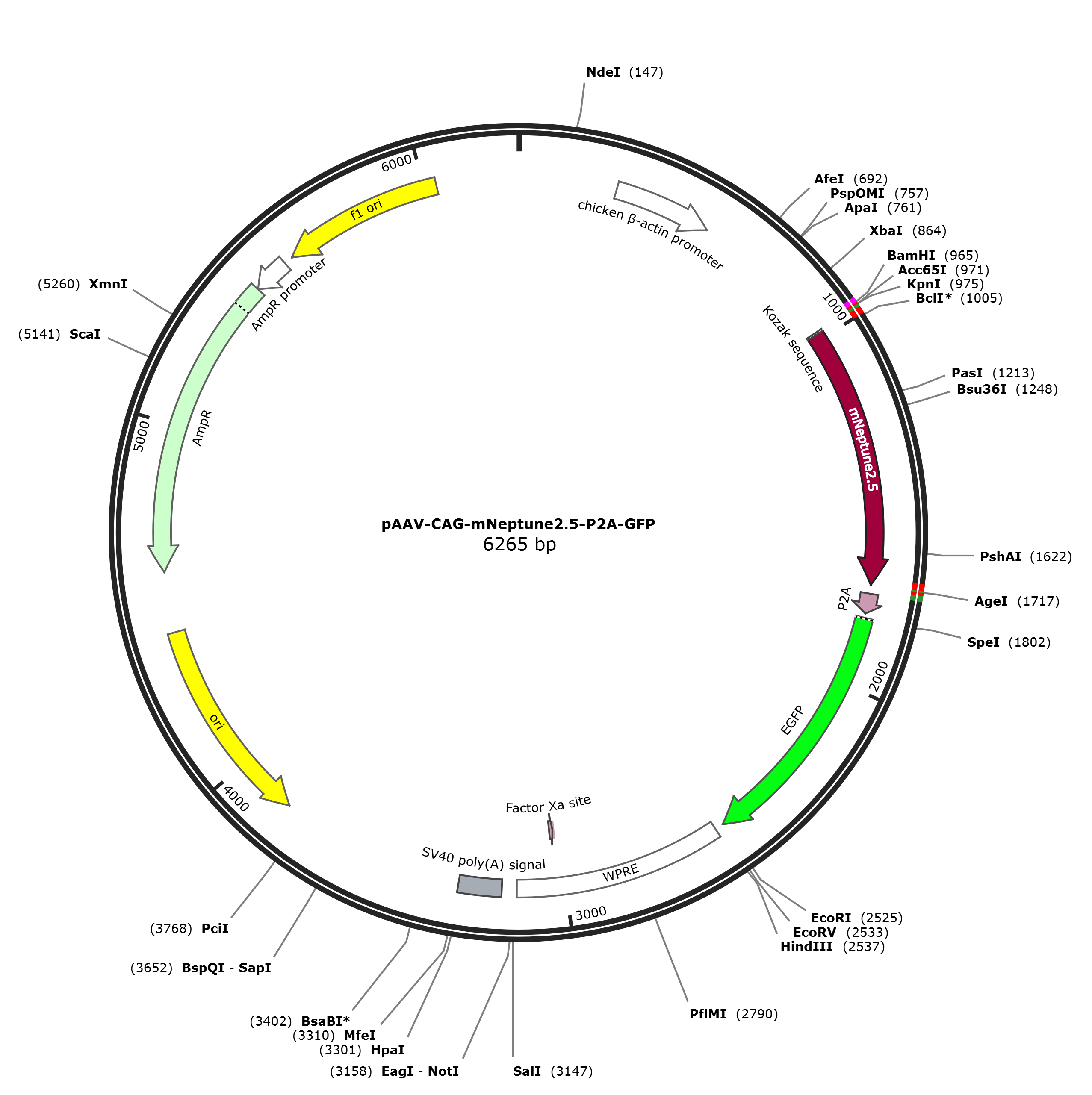

pAAV-CAG-mNeptune2.5-P2A-GFP

LOCUS       pAAV-CAG-mNeptune2.5-P2A-GFP                6265 bp DNA     circular SYN 27-MAY-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6265)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jun 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6265
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     regulatory      977..982
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             983..1714
                     /codon_start=1
                     /product="brighter version of the far-red fluorescent
                     protein mNeptune2 with slightly blue-shifted spectra"
                     /label=mNeptune2.5
                     /translation="MVSKGEELIKENMHTKLYMEGTVNNHHFKCTHEGEGKPYEGTQTN
                     RIKVVEGGPLPFAFDILATCFMYGSKTFINHTQGIPDFFKQSFPEGFTWERVTTYEDGG
                     VLTVTQDTSLQDGCLIYNVKLRGVNFPSNGPVMQKKTLGWEASTETLYPADGGLEGRCD
                     MALKLVGGGHLHCNLKTTYRSKKPAKNLKMPGVYFVDRRLERIKEADNETYVEQHEVAV
                     ARYCDLPSKLGHKLNGMDELYK"
     primer_bind     complement(1694..1737)
                     /label=1108-P2A-mNeptune2.5-R
     CDS             1739..1795
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             1808..2524
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     primer_bind     complement(1879..1897)
                     /label=EGFP-R
     primer_bind     complement(2501..2521)
                     /label=1108-P2A-mNeptune2.5-R
     misc_feature    2549..3137
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(3020..3031)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3180..3301
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(3829..4417)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4588..5448)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5449..5553)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(5579..6034)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccgcca ccatggtgag caagggcgag gagctgatca aggagaacat
     1021 gcacacgaag ctgtacatgg aaggcaccgt gaacaaccac cacttcaagt gcacccacga
     1081 aggggagggc aagccctacg agggcaccca gaccaacagg attaaggtgg tggagggagg
     1141 ccccctgccg ttcgcattcg acatcctggc cacctgcttt atgtacggga gcaagacctt
     1201 catcaaccac acccagggca tccccgattt ctttaagcag tccttccctg agggcttcac
     1261 atgggagaga gtcaccacat acgaagacgg gggcgtgctt accgttaccc aggacaccag
     1321 cctccaggac ggctgcttga tctacaacgt caagctcaga ggggtgaact tcccatccaa
     1381 cggccctgtg atgcagaaga aaacactcgg ctgggaggcc agtaccgaga ccctgtaccc
     1441 cgctgacggc ggcctggaag gcagatgcga catggccctg aagctcgtgg gcgggggcca
     1501 cctgcactgc aacctgaaga ccacatacag atccaagaaa cccgctaaga acctcaagat
     1561 gcccggcgtc tactttgtgg accgcagact ggaaagaatc aaggaggccg acaatgagac
     1621 ctacgtcgag cagcacgagg tggctgtggc cagatactgc gacctcccta gcaaactggg
     1681 gcacaaactt aatggcatgg acgagctgta caagcgaccg gttcacgtgg gaagtggggc
     1741 tacaaacttc tcactgctga aacaggccgg ggatgtggag gaaaacccag gaccacacgt
     1801 gactagtgtg agcaagggcg aggagctgtt caccggggtg gtgcccatcc tggtcgagct
     1861 ggacggcgac gtaaacggcc acaagttcag cgtgtccggc gagggcgagg gcgatgccac
     1921 ctacggcaag ctgaccctga agttcatctg caccaccggc aagctgcccg tgccctggcc
     1981 caccctcgtg accaccctga cctacggcgt gcagtgcttc agccgctacc ccgaccacat
     2041 gaagcagcac gacttcttca agtccgccat gcccgaaggc tacgtccagg agcgcaccat
     2101 cttcttcaag gacgacggca actacaagac ccgcgccgag gtgaagttcg agggcgacac
     2161 cctggtgaac cgcatcgagc tgaagggcat cgacttcaag gaggacggca acatcctggg
     2221 gcacaagctg gagtacaact acaacagcca caacgtctat atcatggccg acaagcagaa
     2281 gaacggcatc aaggtgaact tcaagatccg ccacaacatc gaggacggca gcgtgcagct
     2341 cgccgaccac taccagcaga acacccccat cggcgacggc cccgtgctgc tgcccgacaa
     2401 ccactacctg agcacccagt ccgccctgag caaagacccc aacgagaagc gcgatcacat
     2461 ggtcctgctg gagttcgtga ccgccgccgg gatcactctc ggcatggacg agctgtacaa
     2521 gtaagaattc gatatcaagc ttatcgataa tcaacctctg gattacaaaa tttgtgaaag
     2581 attgactggt attcttaact atgttgctcc ttttacgcta tgtggatacg ctgctttaat
     2641 gcctttgtat catgctattg cttcccgtat ggctttcatt ttctcctcct tgtataaatc
     2701 ctggttgctg tctctttatg aggagttgtg gcccgttgtc aggcaacgtg gcgtggtgtg
     2761 cactgtgttt gctgacgcaa cccccactgg ttggggcatt gccaccacct gtcagctcct
     2821 ttccgggact ttcgctttcc ccctccctat tgccacggcg gaactcatcg ccgcctgcct
     2881 tgcccgctgc tggacagggg ctcggctgtt gggcactgac aattccgtgg tgttgtcggg
     2941 gaaatcatcg tcctttcctt ggctgctcgc ctgtgttgcc acctggattc tgcgcgggac
     3001 gtccttctgc tacgtccctt cggccctcaa tccagcggac cttccttccc gcggcctgct
     3061 gccggctctg cggcctcttc cgcgtcttcg ccttcgccct cagacgagtc ggatctccct
     3121 ttgggccgcc tccccgcatc gataccgtcg acccgggcgg ccgcttcgag cagacatgat
     3181 aagatacatt gatgagtttg gacaaaccac aactagaatg cagtgaaaaa aatgctttat
     3241 ttgtgaaatt tgtgatgcta ttgctttatt tgtaaccatt ataagctgca ataaacaagt
     3301 taacaacaac aattgcattc attttatgtt tcaggttcag ggggagatgt gggaggtttt
     3361 ttaaagcaag taaaacctct acaaatgtgg taaaatcgat aaggatcttc ctagagcatg
     3421 gctacgtaga taagtagcat ggcgggttaa tcattaacta caaggaaccc ctagtgatgg
     3481 agttggccac tccctctctg cgcgctcgct cgctcactga ggccgggcga ccaaaggtcg
     3541 cccgacgccc gggctttgcc cgggcggcct cagtgagcga gcgagcgcgc agctgcatta
     3601 atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt ccgcttcctc
     3661 gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag ctcactcaaa
     3721 ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca tgtgagcaaa
     3781 aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt tccataggct
     3841 ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc gaaacccgac
     3901 aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc
     3961 gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg tggcgctttc
     4021 tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca agctgggctg
     4081 tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact atcgtcttga
     4141 gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta acaggattag
     4201 cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta actacggcta
     4261 cactagaaga acagtatttg gtatctgcgc tctgctgaag ccagttacct tcggaaaaag
     4321 agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt tttttgtttg
     4381 caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga tcttttctac
     4441 ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca tgagattatc
     4501 aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat caatctaaag
     4561 tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc
     4621 agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac
     4681 gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc
     4741 accggctcca gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg
     4801 tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag
     4861 tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc
     4921 acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac
     4981 atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag
     5041 aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac
     5101 tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg
     5161 agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg ataataccgc
     5221 gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact
     5281 ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg
     5341 atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa
     5401 tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt
     5461 tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg
     5521 tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccacctaa
     5581 attgtaagcg ttaatatttt gttaaaattc gcgttaaatt tttgttaaat cagctcattt
     5641 tttaaccaat aggccgaaat cggcaaaatc ccttataaat caaaagaata gaccgagata
     5701 gggttgagtg ttgttccagt ttggaacaag agtccactat taaagaacgt ggactccaac
     5761 gtcaaagggc gaaaaaccgt ctatcagggc gatggcccac tacgtgaacc atcaccctaa
     5821 tcaagttttt tggggtcgag gtgccgtaaa gcactaaatc ggaaccctaa agggagcccc
     5881 cgatttagag cttgacgggg aaagccggcg aacgtggcga gaaaggaagg gaagaaagcg
     5941 aaaggagcgg gcgctagggc gctggcaagt gtagcggtca cgctgcgcgt aaccaccaca
     6001 cccgccgcgc ttaatgcgcc gctacagggc gcgtcccatt cgccattcag gctgcgcaac
     6061 tgttgggaag ggcgatcggt gcgggcctct tcgctattac gccagctgcg cgctcgctcg
     6121 ctcactgagg ccgcccgggc aaagcccggg cgtcgggcga cctttggtcg cccggcctca
     6181 gtgagcgagc gagcgcgcag agagggagtg gccaactcca tcactagggg ttccttgtag
     6241 ttaatgatta acccgccatg ctact
//
