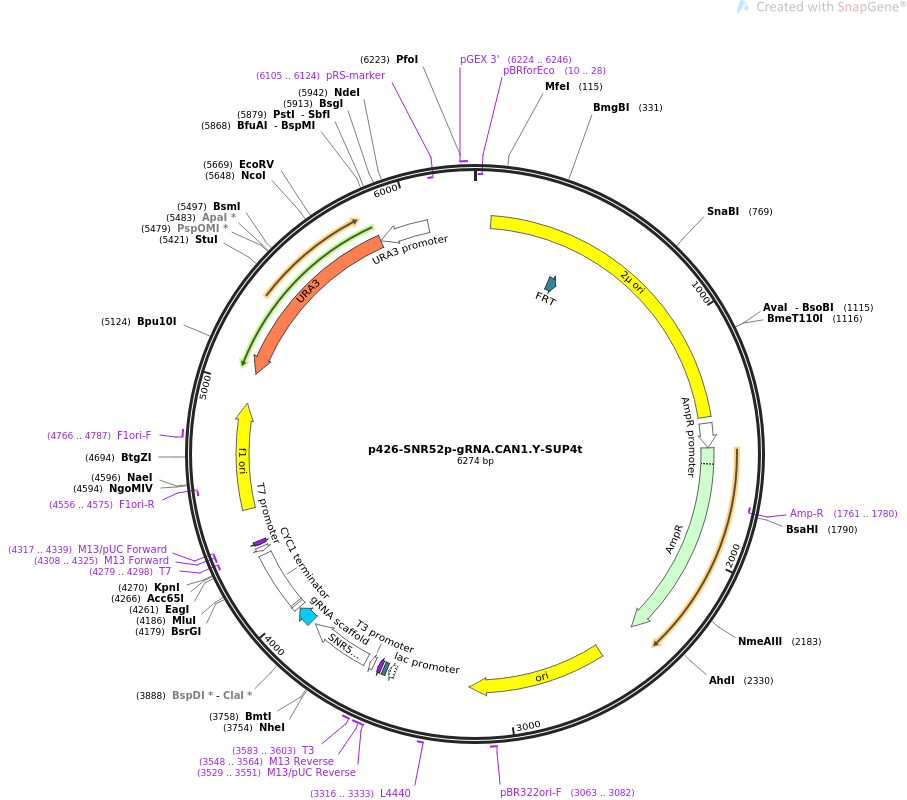

p426-SNR52p-gRNA.CAN1.Y-SUP4t

LOCUS       p426-SNR52p-gRNA.CAN1.Y-SUP4t                6274 bp ds-DNA     circular SYN 10-JAN-2018
DEFINITION  Encodes a gRNA that targets Can1.Y in yeast..
ACCESSION   .
VERSION     .
KEYWORDS    p426-SNR52p-gRNA.CAN1.Y-SUP4t
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6274)
  AUTHORS   Dicarlo JE, Norville JE, Mali P, Rios X, Aach J, Church GM.
  TITLE     Genome engineering in Saccharomyces cerevisiae using CRISPR-Cas
            systems.
  JOURNAL   Nucleic Acids Res
  PUBMED    23460208
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTNAME|p426-SNR52p-gRNA.CAN1.Y-SUP4t|
FEATURES             Location/Qualifiers
     source          1..6274
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(10..28)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     rep_origin      69..1411
                     /label=2u ori
                     /note="yeast 2u plasmid origin of replication"
     protein_bind    401..448
                     /label=FRT
                     /bound_moiety="FLP recombinase from the Saccharomyces
                     cerevisiae 2u plasmid"
                     /note="FLP-mediated recombination occurs in the 8-bp core
                     sequence TCTAGAAA (Turan and Bode, 2011)."
     promoter        1438..1542
                     /gene="bla"
                     /label=AmpR promoter
     CDS             1543..2403
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(1761..1780)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      2574..3162
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     3063..3082
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     3316..3333
                     /label=L4440
                     /note="L4440 vector, forward primer"
     promoter        3486..3516
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3524..3540
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     3529..3551
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     3548..3564
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     3548..3564
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     3583..3603
                     /label=T3
                     /note="T3 promoter, forward primer"
     promoter        3585..3603
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     promoter        3621..3889
                     /label=SNR52 promoter
                     /note="promoter for the S. cerevisiae small nucleolar RNA
                     gene SNR52"
     misc_RNA        3910..3984
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     terminator      3989..4008
                     /label=SUP4 terminator
                     /note="transcription terminator for the S. cerevisiae SUP4
                     tRNA gene"
     terminator      4014..4261
                     /gene="S. cerevisiae CYC1"
                     /label=CYC1 terminator
                     /note="transcription terminator for CYC1"
     primer_bind     complement(4279..4298)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(4280..4298)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(4308..4325)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4308..4324)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4317..4339)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     rep_origin      4469..4924
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4556..4575)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4766..4787
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     CDS             complement(5055..5858)
                     /codon_start=1
                     /gene="S. cerevisiae URA3"
                     /product="orotidine-5'-phosphate decarboxylase, required
                     for uracil biosynthesis"
                     /label=URA3
                     /note="yeast auxotrophic marker, counterselectable with
                     5-fluoroorotic acid (5-FOA)"
                     /translation="MSKATYKERAATHPSPVAAKLFNIMHEKQTNLCASLDVRTTKELL
                     ELVEALGPKICLLKTHVDILTDFSMEGTVKPLKALSAKYNFLLFEDRKFADIGNTVKLQ
                     YSAGVYRIAEWADITNAHGVVGPGIVSGLKQAAEEVTKEPRGLLMLAELSCKGSLSTGE
                     YTKGTVDIAKSDKDFVIGFIAQRDMGGRDEGYDWLIMTPGVGLDDKGDALGQQYRTVDD
                     VVSTGSDIIIVGRGLFAKGRDAKVEGERYRKAGWEAYLRRCGQQN"
     promoter        complement(5859..6074)
                     /gene="S. cerevisiae URA3"
                     /label=URA3 promoter
     primer_bind     complement(6105..6124)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     6224..6246
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
ORIGIN
        1 gacgaaaggg cctcgtgata cgcctatttt tataggttaa tgtcatgata ataatggttt
       61 cttagtatga tccaatatca aaggaaatga tagcattgaa ggatgagact aatccaattg
      121 aggagtggca gcatatagaa cagctaaagg gtagtgctga aggaagcata cgataccccg
      181 catggaatgg gataatatca caggaggtac tagactacct ttcatcctac ataaatagac
      241 gcatataagt acgcatttaa gcataaacac gcactatgcc gttcttctca tgtatatata
      301 tatacaggca acacgcagat ataggtgcga cgtgaacagt gagctgtatg tgcgcagctc
      361 gcgttgcatt ttcggaagcg ctcgttttcg gaaacgcttt gaagttccta ttccgaagtt
      421 cctattctct agaaagtata ggaacttcag agcgcttttg aaaaccaaaa gcgctctgaa
      481 gacgcacttt caaaaaacca aaaacgcacc ggactgtaac gagctactaa aatattgcga
      541 ataccgcttc cacaaacatt gctcaaaagt atctctttgc tatatatctc tgtgctatat
      601 ccctatataa cctacccatc cacctttcgc tccttgaact tgcatctaaa ctcgacctct
      661 acatttttta tgtttatctc tagtattact ctttagacaa aaaaattgta gtaagaacta
      721 ttcatagagt gaatcgaaaa caatacgaaa atgtaaacat ttcctatacg tagtatatag
      781 agacaaaata gaagaaaccg ttcataattt tctgaccaat gaagaatcat caacgctatc
      841 actttctgtt cacaaagtat gcgcaatcca catcggtata gaatataatc ggggatgcct
      901 ttatcttgaa aaaatgcacc cgcagcttcg ctagtaatca gtaaacgcgg gaagtggagt
      961 caggcttttt ttatggaaga gaaaatagac accaaagtag ccttcttcta accttaacgg
     1021 acctacagtg caaaaagtta tcaagagact gcattataga gcgcacaaag gagaaaaaaa
     1081 gtaatctaag atgctttgtt agaaaaatag cgctctcggg atgcattttt gtagaacaaa
     1141 aaagaagtat agattctttg ttggtaaaat agcgctctcg cgttgcattt ctgttctgta
     1201 aaaatgcagc tcagattctt tgtttgaaaa attagcgctc tcgcgttgca tttttgtttt
     1261 acaaaaatga agcacagatt cttcgttggt aaaatagcgc tttcgcgttg catttctgtt
     1321 ctgtaaaaat gcagctcaga ttctttgttt gaaaaattag cgctctcgcg ttgcattttt
     1381 gttctacaaa atgaagcaca gatgcttcgt tcaggtggca cttttcgggg aaatgtgcgc
     1441 ggaaccccta tttgtttatt tttctaaata cattcaaata tgtatccgct catgagacaa
     1501 taaccctgat aaatgcttca ataatattga aaaaggaaga gtatgagtat tcaacatttc
     1561 cgtgtcgccc ttattccctt ttttgcggca ttttgccttc ctgtttttgc tcacccagaa
     1621 acgctggtga aagtaaaaga tgctgaagat cagttgggtg cacgagtggg ttacatcgaa
     1681 ctggatctca acagcggtaa gatccttgag agttttcgcc ccgaagaacg ttttccaatg
     1741 atgagcactt ttaaagttct gctatgtggc gcggtattat cccgtattga cgccgggcaa
     1801 gagcaactcg gtcgccgcat acactattct cagaatgact tggttgagta ctcaccagtc
     1861 acagaaaagc atcttacgga tggcatgaca gtaagagaat tatgcagtgc tgccataacc
     1921 atgagtgata acactgcggc caacttactt ctgacaacga tcggaggacc gaaggagcta
     1981 accgcttttt tgcacaacat gggggatcat gtaactcgcc ttgatcgttg ggaaccggag
     2041 ctgaatgaag ccataccaaa cgacgagcgt gacaccacga tgcctgtagc aatggcaaca
     2101 acgttgcgca aactattaac tggcgaacta cttactctag cttcccggca acaattaata
     2161 gactggatgg aggcggataa agttgcagga ccacttctgc gctcggccct tccggctggc
     2221 tggtttattg ctgataaatc tggagccggt gagcgtgggt ctcgcggtat cattgcagca
     2281 ctggggccag atggtaagcc ctcccgtatc gtagttatct acacgacggg gagtcaggca
     2341 actatggatg aacgaaatag acagatcgct gagataggtg cctcactgat taagcattgg
     2401 taactgtcag accaagttta ctcatatata ctttagattg atttaaaact tcatttttaa
     2461 tttaaaagga tctaggtgaa gatccttttt gataatctca tgaccaaaat cccttaacgt
     2521 gagttttcgt tccactgagc gtcagacccc gtagaaaaga tcaaaggatc ttcttgagat
     2581 cctttttttc tgcgcgtaat ctgctgcttg caaacaaaaa aaccaccgct accagcggtg
     2641 gtttgtttgc cggatcaaga gctaccaact ctttttccga aggtaactgg cttcagcaga
     2701 gcgcagatac caaatactgt ccttctagtg tagccgtagt taggccacca cttcaagaac
     2761 tctgtagcac cgcctacata cctcgctctg ctaatcctgt taccagtggc tgctgccagt
     2821 ggcgataagt cgtgtcttac cgggttggac tcaagacgat agttaccgga taaggcgcag
     2881 cggtcgggct gaacgggggg ttcgtgcaca cagcccagct tggagcgaac gacctacacc
     2941 gaactgagat acctacagcg tgagctatga gaaagcgcca cgcttcccga agggagaaag
     3001 gcggacaggt atccggtaag cggcagggtc ggaacaggag agcgcacgag ggagcttcca
     3061 gggggaaacg cctggtatct ttatagtcct gtcgggtttc gccacctctg acttgagcgt
     3121 cgatttttgt gatgctcgtc aggggggcgg agcctatgga aaaacgccag caacgcggcc
     3181 tttttacggt tcctggcctt ttgctggcct tttgctcaca tgttctttcc tgcgttatcc
     3241 cctgattctg tggataaccg tattaccgcc tttgagtgag ctgataccgc tcgccgcagc
     3301 cgaacgaccg agcgcagcga gtcagtgagc gaggaagcgg aagagcgccc aatacgcaaa
     3361 ccgcctctcc ccgcgcgttg gccgattcat taatgcagct ggcacgacag gtttcccgac
     3421 tggaaagcgg gcagtgagcg caacgcaatt aatgtgagtt acctcactca ttaggcaccc
     3481 caggctttac actttatgct tccggctcct atgttgtgtg gaattgtgag cggataacaa
     3541 tttcacacag gaaacagcta tgaccatgat tacgccaagc gcgcaattaa ccctcactaa
     3601 agggaacaaa agctggagct tctttgaaaa gataatgtat gattatgctt tcactcatat
     3661 ttatacagaa acttgatgtt ttctttcgag tatatacaag gtgattacat gtacgtttga
     3721 agtacaactc tagattttgt agtgccctct tgggctagcg gtaaaggtgc gcattttttc
     3781 acaccctaca atgttctgtt caaaagattt tggtcaaacg ctgtagaagt gaaagttggt
     3841 gcgcatgttt cggcgttcga aacttctccg cagtgaaaga taaatgatcg atacgttctc
     3901 tatggaggag ttttagagct agaaatagca agttaaaata aggctagtcc gttatcaact
     3961 tgaaaaagtg gcaccgagtc ggtggtgctt tttttgtttt ttatgtcttc gagtcatgta
     4021 attagttatg tcacgcttac gttcacgccc tccccccaca tccgctctaa ccgaaaagga
     4081 aggagttaga caacctgaag tctaggtccc tatttatttt tttatagtta tgttagtatt
     4141 aagaacgtta tttatatttc aaatttttct tttttttctg tacagacgcg tgtacgcatg
     4201 taacattata ctgaaaacct tgcttgagaa ggttttggga cgctcgaagg ctttaatttg
     4261 cggccggtac ccaattcgcc ctatagtgag tcgtattacg cgcgctcact ggccgtcgtt
     4321 ttacaacgtc gtgactggga aaaccctggc gttacccaac ttaatcgcct tgcagcacat
     4381 ccccctttcg ccagctggcg taatagcgaa gaggcccgca ccgatcgccc ttcccaacag
     4441 ttgcgcagcc tgaatggcga atggcgcgac gcgccctgta gcggcgcatt aagcgcggcg
     4501 ggtgtggtgg ttacgcgcag cgtgaccgct acacttgcca gcgccctagc gcccgctcct
     4561 ttcgctttct tcccttcctt tctcgccacg ttcgccggct ttccccgtca agctctaaat
     4621 cgggggctcc ctttagggtt ccgatttagt gctttacggc acctcgaccc caaaaaactt
     4681 gattagggtg atggttcacg tagtgggcca tcgccctgat agacggtttt tcgccctttg
     4741 acgttggagt ccacgttctt taatagtgga ctcttgttcc aaactggaac aacactcaac
     4801 cctatctcgg tctattcttt tgatttataa gggattttgc cgatttcggc ctattggtta
     4861 aaaaatgagc tgatttaaca aaaatttaac gcgaatttta acaaaatatt aacgtttaca
     4921 atttcctgat gcggtatttt ctccttacgc atctgtgcgg tatttcacac cgcatagggt
     4981 aataactgat ataattaaat tgaagctcta atttgtgagt ttagtataca tgcatttact
     5041 tataatacag ttttttagtt ttgctggccg catcttctca aatatgcttc ccagcctgct
     5101 tttctgtaac gttcaccctc taccttagca tcccttccct ttgcaaatag tcctcttcca
     5161 acaataataa tgtcagatcc tgtagagacc acatcatcca cggttctata ctgttgaccc
     5221 aatgcgtctc ccttgtcatc taaacccaca ccgggtgtca taatcaacca atcgtaacct
     5281 tcatctcttc cacccatgtc tctttgagca ataaagccga taacaaaatc tttgtcgctc
     5341 ttcgcaatgt caacagtacc cttagtatat tctccagtag atagggagcc cttgcatgac
     5401 aattctgcta acatcaaaag gcctctaggt tcctttgtta cttcttctgc cgcctgcttc
     5461 aaaccgctaa caatacctgg gcccaccaca ccgtgtgcat tcgtaatgtc tgcccattct
     5521 gctattctgt atacacccgc agagtactgc aatttgactg tattaccaat gtcagcaaat
     5581 tttctgtctt cgaagagtaa aaaattgtac ttggcggata atgcctttag cggcttaact
     5641 gtgccctcca tggaaaaatc agtcaagata tccacatgtg tttttagtaa acaaattttg
     5701 ggacctaatg cttcaactaa ctccagtaat tccttggtgg tacgaacatc caatgaagca
     5761 cacaagtttg tttgcttttc gtgcatgata ttaaatagct tggcagcaac aggactagga
     5821 tgagtagcag cacgttcctt atatgtagct ttcgacatga tttatcttcg tttcctgcag
     5881 gtttttgttc tgtgcagttg ggttaagaat actgggcaat ttcatgtttc ttcaacacta
     5941 catatgcgta tatataccaa tctaagtctg tgctccttcc ttcgttcttc cttctgttcg
     6001 gagattaccg aatcaaaaaa atttcaagga aaccgaaatc aaaaaaaaga ataaaaaaaa
     6061 aatgatgaat tgaattgaaa agctgtggta tggtgcactc tcagtacaat ctgctctgat
     6121 gccgcatagt taagccagcc ccgacacccg ccaacacccg ctgacgcgcc ctgacgggct
     6181 tgtctgctcc cggcatccgc ttacagacaa gctgtgaccg tctccgggag ctgcatgtgt
     6241 cagaggtttt caccgtcatc accgaaacgc gcga
//
