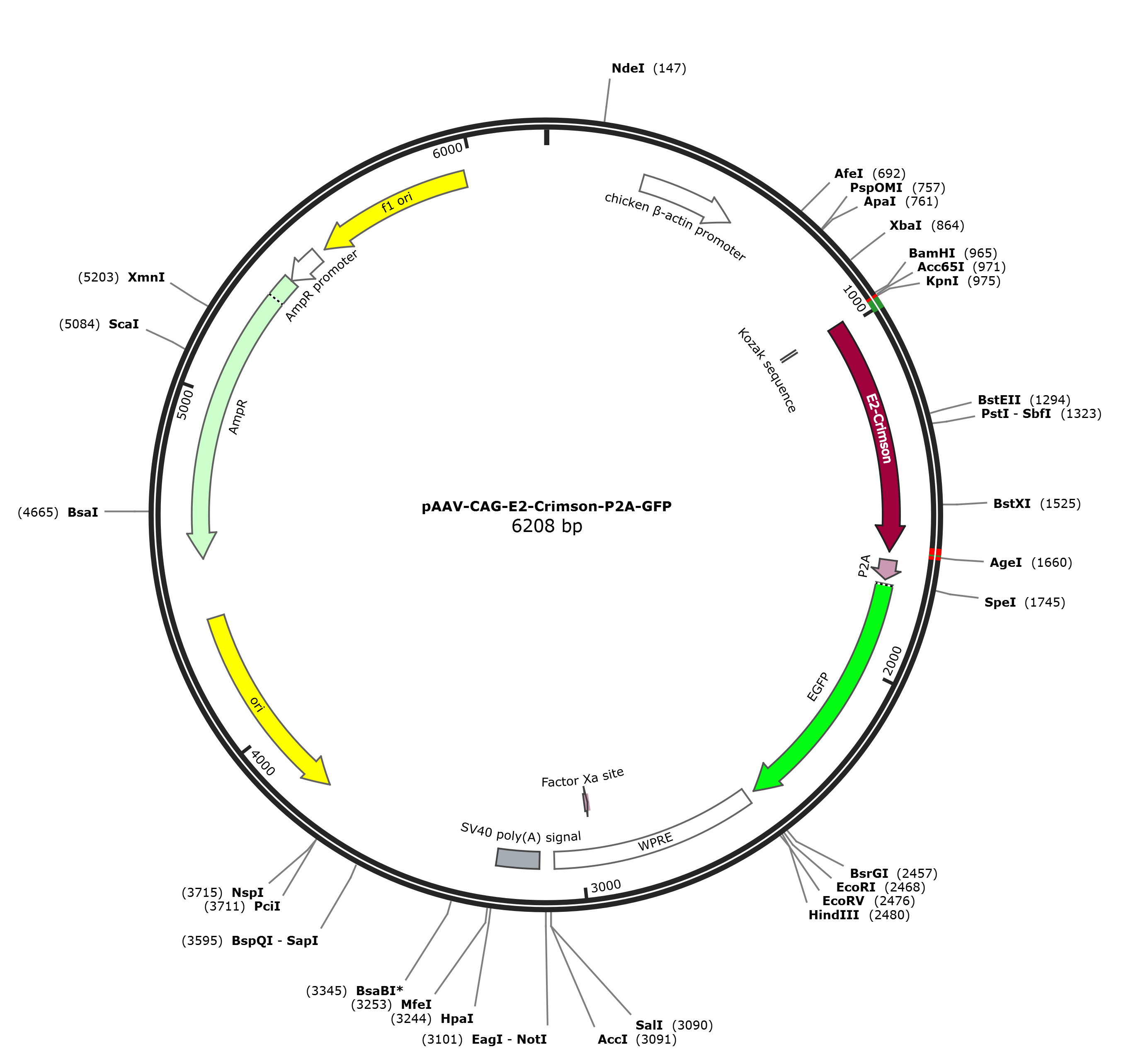

pAAV-CAG-E2-Crimson-P2A-GFP

LOCUS       pAAV-CAG-E2-Crimson-P2A-GFP           6208 bp DNA     circular SYN 27-MAY-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6208)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jun 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6208
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     primer_bind     962..1007
                     /label=0117-E2-Crimson-F
     regulatory      977..986
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             983..1657
                     /codon_start=1
                     /product="far-red noncytotoxic tetrameric variant of DsRed
                     fluorescent protein (Strack et al., 2009)"
                     /label=E2-Crimson
                     /note="mammalian codon-optimized"
                     /translation="MDSTENVIKPFMRFKVHMEGSVNGHEFEIEGVGEGKPYEGTQTAK
                     LQVTKGGPLPFAWDILSPQFFYGSKAYIKHPADIPDYLKQSFPEGFKWERVMNFEDGGV
                     VTVTQDSSLQDGTLIYHVKFIGVNFPSDGPVMQKKTLGWEPSTERNYPRDGVLKGENHM
                     ALKLKGGGHYLCEFKSIYMAKKPVKLPGYHYVDYKLDITSHNEDYTVVEQYERAEARHH
                     LFQ"
     primer_bind     complement(1638..1680)
                     /label=0117-E2-Crimson-R
     CDS             1682..1738
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             1751..2467
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELYK"
     primer_bind     complement(1822..1840)
                     /label=EGFP-R
     misc_feature    2492..3080
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(2559..2584)
                     /label=WPRE-R
     CDS             complement(2963..2974)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3123..3244
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(3772..4360)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4531..5391)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5392..5496)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(5522..5977)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccgcca ccatggatag cactgagaac gtcatcaagc ccttcatgcg
     1021 cttcaaggtg cacatggagg gctccgtgaa cggccacgag ttcgagatcg agggcgtggg
     1081 cgagggcaag ccctacgagg gcacccagac cgccaagctg caagtgacca agggcggccc
     1141 cctgcccttc gcctgggaca tcctgtcccc ccagttcttc tacggctcca aggcgtacat
     1201 caagcacccc gccgacatcc ccgactacct caagcagtcc ttccccgagg gcttcaagtg
     1261 ggagcgcgtg atgaacttcg aggacggcgg cgtggtgacc gtgacccagg actcctccct
     1321 gcaggacggc accctcatct accacgtgaa gttcatcggc gtgaacttcc cctccgacgg
     1381 ccccgtaatg cagaagaaga ctctgggctg ggagccctcc actgagcgca actacccccg
     1441 cgacggcgtg ctgaagggcg agaaccacat ggcgctgaag ctgaagggcg gcggccacta
     1501 cctgtgtgag ttcaagtcca tctacatggc caagaagccc gtgaagctgc ccggctacca
     1561 ctacgtggac tacaagctcg acatcacctc ccacaacgag gactacaccg tggtggagca
     1621 gtacgagcgc gccgaggccc gccaccacct gttccagcga ccggttcacg tgggaagtgg
     1681 ggctacaaac ttctcactgc tgaaacaggc cggggatgtg gaggaaaacc caggaccaca
     1741 cgtgactagt gtgagcaagg gcgaggagct gttcaccggg gtggtgccca tcctggtcga
     1801 gctggacggc gacgtaaacg gccacaagtt cagcgtgtcc ggcgagggcg agggcgatgc
     1861 cacctacggc aagctgaccc tgaagttcat ctgcaccacc ggcaagctgc ccgtgccctg
     1921 gcccaccctc gtgaccaccc tgacctacgg cgtgcagtgc ttcagccgct accccgacca
     1981 catgaagcag cacgacttct tcaagtccgc catgcccgaa ggctacgtcc aggagcgcac
     2041 catcttcttc aaggacgacg gcaactacaa gacccgcgcc gaggtgaagt tcgagggcga
     2101 caccctggtg aaccgcatcg agctgaaggg catcgacttc aaggaggacg gcaacatcct
     2161 ggggcacaag ctggagtaca actacaacag ccacaacgtc tatatcatgg ccgacaagca
     2221 gaagaacggc atcaaggtga acttcaagat ccgccacaac atcgaggacg gcagcgtgca
     2281 gctcgccgac cactaccagc agaacacccc catcggcgac ggccccgtgc tgctgcccga
     2341 caaccactac ctgagcaccc agtccgccct gagcaaagac cccaacgaga agcgcgatca
     2401 catggtcctg ctggagttcg tgaccgccgc cgggatcact ctcggcatgg acgagctgta
     2461 caagtaagaa ttcgatatca agcttatcga taatcaacct ctggattaca aaatttgtga
     2521 aagattgact ggtattctta actatgttgc tccttttacg ctatgtggat acgctgcttt
     2581 aatgcctttg tatcatgcta ttgcttcccg tatggctttc attttctcct ccttgtataa
     2641 atcctggttg ctgtctcttt atgaggagtt gtggcccgtt gtcaggcaac gtggcgtggt
     2701 gtgcactgtg tttgctgacg caacccccac tggttggggc attgccacca cctgtcagct
     2761 cctttccggg actttcgctt tccccctccc tattgccacg gcggaactca tcgccgcctg
     2821 ccttgcccgc tgctggacag gggctcggct gttgggcact gacaattccg tggtgttgtc
     2881 ggggaaatca tcgtcctttc cttggctgct cgcctgtgtt gccacctgga ttctgcgcgg
     2941 gacgtccttc tgctacgtcc cttcggccct caatccagcg gaccttcctt cccgcggcct
     3001 gctgccggct ctgcggcctc ttccgcgtct tcgccttcgc cctcagacga gtcggatctc
     3061 cctttgggcc gcctccccgc atcgataccg tcgacccggg cggccgcttc gagcagacat
     3121 gataagatac attgatgagt ttggacaaac cacaactaga atgcagtgaa aaaaatgctt
     3181 tatttgtgaa atttgtgatg ctattgcttt atttgtaacc attataagct gcaataaaca
     3241 agttaacaac aacaattgca ttcattttat gtttcaggtt cagggggaga tgtgggaggt
     3301 tttttaaagc aagtaaaacc tctacaaatg tggtaaaatc gataaggatc ttcctagagc
     3361 atggctacgt agataagtag catggcgggt taatcattaa ctacaaggaa cccctagtga
     3421 tggagttggc cactccctct ctgcgcgctc gctcgctcac tgaggccggg cgaccaaagg
     3481 tcgcccgacg cccgggcttt gcccgggcgg cctcagtgag cgagcgagcg cgcagctgca
     3541 ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc
     3601 ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc
     3661 aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc
     3721 aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag
     3781 gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc
     3841 gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt
     3901 tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct
     3961 ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg
     4021 ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct
     4081 tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat
     4141 tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg
     4201 ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa
     4261 aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg gtttttttgt
     4321 ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt tgatcttttc
     4381 tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg tcatgagatt
     4441 atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta aatcaatcta
     4501 aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg aggcacctat
     4561 ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg tgtagataac
     4621 tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc gagacccacg
     4681 ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg agcgcagaag
     4741 tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg aagctagagt
     4801 aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag gcatcgtggt
     4861 gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat caaggcgagt
     4921 tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc cgatcgttgt
     4981 cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc ataattctct
     5041 tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa ccaagtcatt
     5101 ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac gggataatac
     5161 cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt cggggcgaaa
     5221 actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc gtgcacccaa
     5281 ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa caggaaggca
     5341 aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca tactcttcct
     5401 ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat acatatttga
     5461 atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa aagtgccacc
     5521 taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta aatcagctca
     5581 ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga atagaccgag
     5641 atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa cgtggactcc
     5701 aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga accatcaccc
     5761 taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc taaagggagc
     5821 ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga agggaagaaa
     5881 gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg cgtaaccacc
     5941 acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt caggctgcgc
     6001 aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct gcgcgctcgc
     6061 tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg tcgcccggcc
     6121 tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag gggttccttg
     6181 tagttaatga ttaacccgcc atgctact
//
