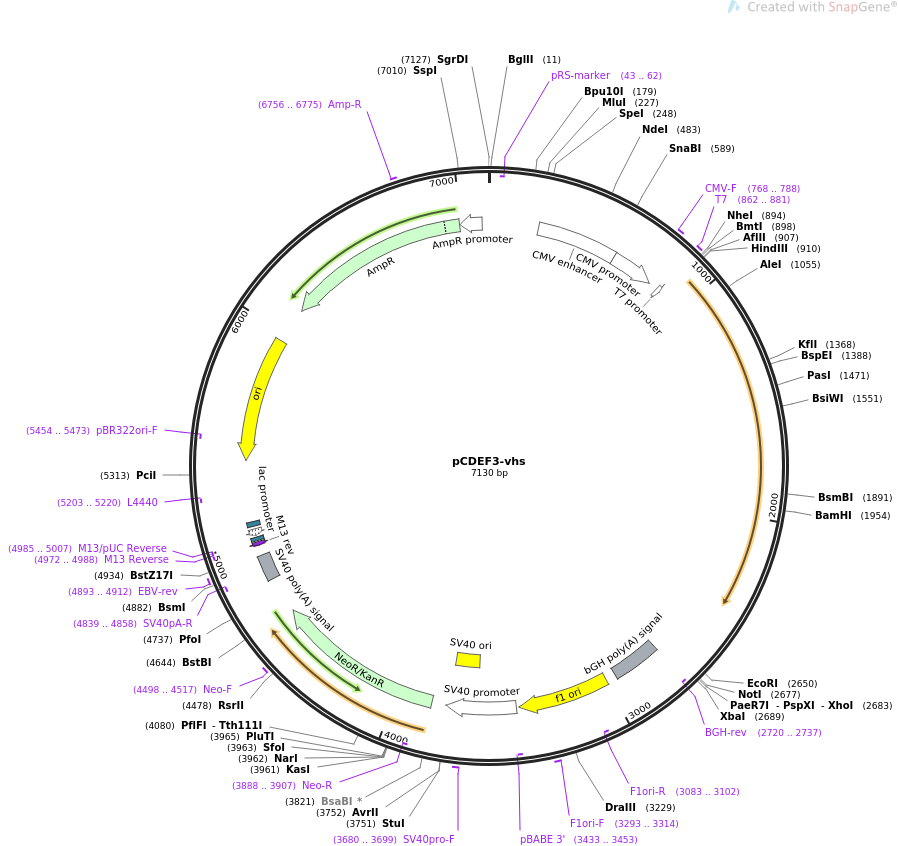

pCDEF3-vhs

LOCUS       pCDEF3-vhs                7130 bp ds-DNA     circular SYN 02-OCT-2019
DEFINITION  expresses vhs in mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    pCDEF3-vhs
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7130)
  TITLE     Xrn1 activity broadly represses RNA polymerase II occupancy at
            mammalian but not viral promoters during herpesvirus infection
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 7130)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Oct 2, 2019 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7130
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(43..62)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        234..613
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        614..817
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     768..788
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     862..881
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        862..880
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(2720..2737)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    2726..2950
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2996..3424
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3083..3102)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3293..3314
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(3433..3453)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3438..3767
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3618..3753
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3680..3699
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3834..4628
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3888..3907)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4498..4517
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    4802..4923
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4839..4858)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4893..4912
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(4972..4988)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4972..4988)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4985..5007)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4996..5012
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5020..5050)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5065..5086
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(5203..5220)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5374..5962)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5454..5473)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6133..6993)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6756..6775
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6994..7098)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 acggatcggg agatctcccg atcccctatg gtgcactctc agtacaatct gctctgatgc
       61 cgcatagtta agccagtatc tgctccctgc ttgtgtgttg gaggtcgctg agtagtgcgc
      121 gagcaaaatt taagctacaa caaggcaagg cttgaccgac aattgcatga agaatctgct
      181 tagggttagg cgttttgcgc tgcttcgcga tgtacgggcc agatatacgc gttgacattg
      241 attattgact agttattaat agtaatcaat tacggggtca ttagttcata gcccatatat
      301 ggagttccgc gttacataac ttacggtaaa tggcccgcct ggctgaccgc ccaacgaccc
      361 ccgcccattg acgtcaataa tgacgtatgt tcccatagta acgccaatag ggactttcca
      421 ttgacgtcaa tgggtggagt atttacggta aactgcccac ttggcagtac atcaagtgta
      481 tcatatgcca agtacgcccc ctattgacgt caatgacggt aaatggcccg cctggcatta
      541 tgcccagtac atgaccttat gggactttcc tacttggcag tacatctacg tattagtcat
      601 cgctattacc atggtgatgc ggttttggca gtacatcaat gggcgtggat agcggtttga
      661 ctcacgggga tttccaagtc tccaccccat tgacgtcaat gggagtttgt tttggcacca
      721 aaatcaacgg gactttccaa aatgtcgtaa caactccgcc ccattgacgc aaatgggcgg
      781 taggcgtgta cggtgggagg tctatataag cagagctctc tggctaacta gagaacccac
      841 tgcttactgg cttatcgaaa ttaatacgac tcactatagg gagacccaag ctggctagcg
      901 tttaaactta agcttggtac cgagctcgga catgggtttg ttcgggatga tgaagtttgc
      961 ccacacacac catctggtca agcgccaggg ccttggggcc ccggccgggt acttcacccc
     1021 catcgccgtg gacctgtgga acgtcatgta cacgttggtg gtcaaatatc agcgccgata
     1081 ccccagttac gaccgcgagg ccattacgct acactgcctc tgtcgcttat taaaggtgtt
     1141 tacccaaaag tcccttttcc ccatcttcgt taccgatcgc ggggtcaatt gtatggagcc
     1201 ggttgtgttt ggagccaagg ccatcctggc ccgcacgacg gcccaatgcc ggacggacga
     1261 ggaggccagt gacgtggacg cctctccacc gccttccccc atcaccgact ccagacccag
     1321 ctctgccttt tccaacatgc gccggcgcgg cacctctctg gcctcgggga cccgggggac
     1381 ggccgggtcc ggagccgcgc tgccgtccgc cgcgccctcg aagccggccc tgcgtctggc
     1441 gcatctgttc tgtattcgcg ttctccgggc cctggggtac gcctacatta actcgggtca
     1501 gctggaggcg gacgatgcct gcgccaacct ctatcacacc aacacggtcg cgtacgtgta
     1561 caccacagac actgacctcc tgttgatggg ctgtgatatt gtgttggata ttagcgcctg
     1621 ctacattccc acgatcaact gtcgcgatat actaaagtac tttaagatga gctaccccca
     1681 gttcctggcc ctctttgtcc gctgccacac cgacctccat cccaataaca cctacgcctc
     1741 cgtggaggat gtgctgcgcg aatgtcactg gacccccccg agtcgctctc agacccggcg
     1801 ggccatccgc cgggaacaca ccagctcgcg ctccacggaa accaggcccc ctttgccgcc
     1861 ggccgccggc ggcaccgaga tgcgcgtctc gtggaccgaa attctaaccc aacagatcgc
     1921 cggcggatac gaagacgacg aggacctccc cctggatccc cgggacgtta ccgggggcca
     1981 ccccggcccc aggtcgtcct cctcggagat actcaccccg cccgagctcg tccaggtccc
     2041 gaacgcgcag ctgctggaag agcaccgcag ttatgtggcc agccggcgac gccacgtcat
     2101 ccacgacgcc ccagagtccc tggactggct ccccgatccc atgaccatca ccgagctggt
     2161 ggaacaccgc tacattaagt acgtcatatc gcttatcggc cccaaggagc gggggccgtg
     2221 gactcttctg aaacgcctgc ctatctacca ggacatccgc gacgaaaacc tggcgcgatc
     2281 tattgtgacc cggcatatca cggcccctga tatcgccgac aggtttctgg agcagctgcg
     2341 gacccaggcc cccccacccg cgttctacaa ggacgtcctg gccaaattct gggacgagta
     2401 gcccaaacgt cagacgagcg cgcttgtccc cgaacaaacg acccaccaat aaaattatgg
     2461 tatcctatgc cctcagaatc tggacggacc tggttactgc tttttgcgcc gccttttatc
     2521 ctctcccacc cccgcgtccc tgacaagaat cacaatgaga cccaaagttt ggttcagagg
     2581 tttattatgg gcaaacacgg gtagaagcgc gccgcgaccc tcacagatcg ttagcttggt
     2641 accgagctcg aattctgcag atatccagca cagtggcggc cgctcgagtc tagagggccc
     2701 gtttaaaccc gctgatcagc ctcgactgtg ccttctagtt gccagccatc tgttgtttgc
     2761 ccctcccccg tgccttcctt gaccctggaa ggtgccactc ccactgtcct ttcctaataa
     2821 aatgaggaaa ttgcatcgca ttgtctgagt aggtgtcatt ctattctggg gggtggggtg
     2881 gggcaggaca gcaaggggga ggattgggaa gacaatagca ggcatgctgg ggatgcggtg
     2941 ggctctatgg cttctgaggc ggaaagaacc agctggggct ctagggggta tccccacgcg
     3001 ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca
     3061 cttgccagcg ccctagcgcc cgctcctttc gctttcttcc cttcctttct cgccacgttc
     3121 gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg atttagtgct
     3181 ttacggcacc tcgaccccaa aaaacttgat tagggtgatg gttcacgtag tgggccatcg
     3241 ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa tagtggactc
     3301 ttgttccaaa ctggaacaac actcaaccct atctcggtct attcttttga tttataaggg
     3361 attttgccga tttcggccta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg
     3421 aattaattct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc tccccagcag
     3481 gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga aagtccccag
     3541 gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accatagtcc
     3601 cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat tctccgcccc
     3661 atggctgact aatttttttt atttatgcag aggccgaggc cgcctctgcc tctgagctat
     3721 tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag ctcccgggag
     3781 cttgtatatc cattttcgga tctgatcaag agacaggatg aggatcgttt cgcatgattg
     3841 aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta ttcggctatg
     3901 actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg tcagcgcagg
     3961 ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa ctgcaggacg
     4021 aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg
     4081 ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg caggatctcc
     4141 tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca atgcggcggc
     4201 tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat cgcatcgagc
     4261 gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac gaagagcatc
     4321 aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gcgcatgccc gacggcgagg
     4381 atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa aatggccgct
     4441 tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag gacatagcgt
     4501 tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc
     4561 tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt
     4621 tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca acctgccatc
     4681 acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg
     4741 ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct tcgcccaccc
     4801 caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac
     4861 aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc
     4921 ttatcatgtc tgtataccgt cgacctctag ctagagcttg gcgtaatcat ggtcatagct
     4981 gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat
     5041 aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc
     5101 actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg
     5161 cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct
     5221 gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt
     5281 atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc
     5341 caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga
     5401 gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata
     5461 ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac
     5521 cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg
     5581 taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc
     5641 cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag
     5701 acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt
     5761 aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt
     5821 atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg
     5881 atccggcaaa caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac
     5941 gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca
     6001 gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac
     6061 ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac
     6121 ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt
     6181 tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt
     6241 accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt
     6301 atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc
     6361 cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa
     6421 tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg
     6481 tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt
     6541 gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc
     6601 agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt
     6661 aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg
     6721 gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac
     6781 tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc
     6841 gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt
     6901 tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg
     6961 aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat attattgaag
     7021 catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa
     7081 acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtcg
//
