pBBRMCS3载体基本信息

出品公司: --
载体名称: pBBR1MCS-3, pBBR1MCS3, pBBRMCS3
质粒类型: 广宿主蛋白表达或克隆载体质粒,广宿主载体质粒
高拷贝/低拷贝: 高拷贝
克隆方法: 限制性内切酶,多克隆位点
启动子: --
载体大小: 5.2 kb
5' 测序引物及序列: M13-F: TGTAAAACGACGGCCAGT
3' 测序引物及序列: M13-R: CAGGAAACAGCTATGAC
载体标签: --
载体抗性: 四环素
筛选标记: --
克隆菌株: DH5α 等
宿主细胞(系): 多种微生物物种,是广宿主质粒。
备注: 参考文献:
[1] Kovach ME, Phillips RW, Elzer PH, Roop RM, 2nd, Peterson KM. pBBR1MCS: a broad-host-range cloning vector. BioTechniques 1994;16:800-2.

[2] Kovach ME, Elzer PH, Hill DS, Robertson GT, Farris MA, Roop RM, 2nd, et al. Four new derivatives of the broad-host-range cloning vector pBBR1MCS, carrying different antibiotic-resistance cassettes. Gene 1995;166:175-6.

GenBank sequence:XXU25059
产品目录号: --
稳定性/瞬表达: 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

pBBRMCS3载体质粒图谱和多克隆位点信息

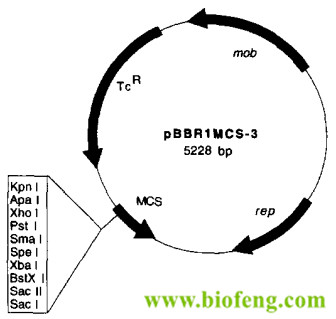

pBBRMCS3载体图谱

pBBRMCS3载体简介

pBBRMCS3载体序列

LOCUS       pBBR1MCS-3                5228 bp    DNA     linear   SYN 10-JAN-2005
DEFINITION  Cloning vector pBBR1MCS-3 REP and LacZ alpha peptide (lacZ alpha)
            genes, complete cds; and unknown gene.
ACCESSION   U25059
VERSION     U25059.1  GI:833817
KEYWORDS    .
SOURCE      Cloning vector pBBR1MCS-3
  ORGANISM  Cloning vector pBBR1MCS-3
            other sequences; artificial sequences; vectors.
REFERENCE   1  (bases 1 to 5228)
  AUTHORS   Kovach,M.E., Phillips,R.W., Elzer,P.H., Roop,R.M. II and
            Peterson,K.M.
  TITLE     pBBR1MCS: a broad-host-range cloning vector
  JOURNAL   BioTechniques 16 (5), 800-802 (1994)
   PUBMED   8068328
REFERENCE   2  (bases 1 to 5228)
  AUTHORS   Kovach,M.E., Elzer,P.H., Hill,D.S., Robertson,G.T., Farris,M.A.,
            Roop,R.M. II and Peterson,K.M.
  TITLE     Four new derivatives of the broad-host-range cloning vector
            pBBR1MCS, carrying different antibiotic-resistance cassettes
  JOURNAL   Gene 166 (1), 175-176 (1995)
   PUBMED   8529885
REFERENCE   3  (bases 1 to 5228)
  AUTHORS   Kovach,M.E.
  TITLE     Direct Submission
  JOURNAL   Submitted (13-APR-1995) Michael E. Kovach, Microbiology, Louisiana
            State University, 1501 Kings Highway, Shreveport, LA 71130, USA
FEATURES             Location/Qualifiers
     source          1..5228
                     /organism="Cloning vector pBBR1MCS-3"
                     /mol_type="genomic DNA"
                     /db_xref="taxon:51198"
                     /lab_host="Bordetella bronchiseptica"
     CDS             1793..2455
                     /function="required for plasmid replication"
                     /codon_start=1
                     /transl_table=11
                     /product="REP"
                     /protein_id="AAB06688.1"
                     /db_xref="GI:833818"
     gene            complement(3013..3378)
                     /gene="lacZ alpha"
     CDS             complement(3013..3378)
                     /gene="lacZ alpha"
                     /codon_start=1
                     /transl_table=11
                     /product="LacZ alpha peptide"
                     /protein_id="AAB06689.1"
                     /db_xref="GI:833819"
     CDS             complement(3682..4872)
                     /function="tetracycline resistance determinant"
                     /codon_start=1
                     /transl_table=11
                     /product="unknown"
                     /protein_id="AAB06690.1"
                     /db_xref="GI:833820"
ORIGIN
        1 ctcgggccgt ctcttgggct tgatcggcct tcttgcgcat ctcacgcgct cctgcggcgg
       61 cctgtagggc aggctcatac ccctgccgaa ccgcttttgt cagccggtcg gccacggctt
      121 ccggcgtctc aacgcgcttt gagattccca gcttttcggc caatccctgc ggtgcatagg
      181 cgcgtggctc gaccgcttgc gggctgatgg tgacgtggcc cactggtggc cgctccaggg
      241 cctcgtagaa cgcctgaatg cgcgtgtgac gtgccttgct gccctcgatg ccccgttgca
      301 gccctagatc ggccacagcg gccgcaaacg tggtctggtc gcgggtcatc tgcgctttgt
      361 tgccgatgaa ctccttggcc gacagcctgc cgtcctgcgt cagcggcacc acgaacgcgg
      421 tcatgtgcgg gctggtttcg tcacggtgga tgctggccgt cacgatgcga tccgccccgt
      481 acttgtccgc cagccacttg tgcgccttct cgaagaacgc cgcctgctgt tcttggctgg
      541 ccgacttcca ccattccggg ctggccgtca tgacgtactc gaccgccaac acagcgtcct
      601 tgcgccgctt ctctggcagc aactcgcgca gtcggcccat cgcttcatcg gtgctgctgg
      661 ccgcccagtg ctcgttctct ggcgtcctgc tggcgtcagc gttgggcgtc tcgcgctcgc
      721 ggtaggcgtg cttgagactg gccgccacgt tgcccatttt cgccagcttc ttgcatcgca
      781 tgatcgcgta tgccgccatg cctgcccctc ccttttggtg tccaaccggc tcgacggggg
      841 cagcgcaagg cggtgcctcc ggcgggccac tcaatgcttg agtatactca ctagactttg
      901 cttcgcaaag tcgtgaccgc ctacggcggc tgcggcgccc tacgggcttg ctctccgggc
      961 ttcgccctgc gcggtcgctg cgctcccttg ccagcccgtg gatatgtgga cgatggccgc
     1021 gagcggccac cggctggctc gcttcgctcg gcccgtggac aaccctgctg gacaagctga
     1081 tggacaggct gcgcctgccc acgagcttga ccacagggat tgcccaccgg ctacccagcc
     1141 ttcgaccaca tacccaccgg ctccaactgc gcggcctgcg gccttgcccc atcaattttt
     1201 ttaattttct ctggggaaaa gcctccggcc tgcggcctgc gcgcttcgct tgccggttgg
     1261 acaccaagtg gaaggcgggt caaggctcgc gcagcgaccg cgcagcggct tggccttgac
     1321 gcgcctggaa cgacccaagc ctatgcgagt gggggcagtc gaaggcgaag cccgcccgcc
     1381 tgccccccga gcctcacggc ggcgagtgcg ggggttccaa gggggcagcg ccaccttggg
     1441 caaggccgaa ggccgcgcag tcgatcaaca agccccggag gggccacttt ttgccggagg
     1501 gggagccgcg ccgaaggcgt gggggaaccc cgcaggggtg cccttctttg ggcaccaaag
     1561 aactagatat agggcgaaat gcgaaagact taaaaatcaa caacttaaaa aaggggggta
     1621 cgcaacagct cattgcggca ccccccgcaa tagctcattg cgtaggttaa agaaaatctg
     1681 taattgactg ccacttttac gcaacgcata attgttgtcg cgctgccgaa aagttgcagc
     1741 tgattgcgca tggtgccgca accgtgcggc accctaccgc atggagataa gcatggccac
     1801 gcagtccaga gaaatcggca ttcaagccaa gaacaagccc ggtcactggg tgcaaacgga
     1861 acgcaaagcg catgaggcgt gggccgggct tattgcgagg aaacccacgg cggcaatgct
     1921 gctgcatcac ctcgtggcgc agatgggcca ccagaacgcc gtggtggtca gccagaagac
     1981 actttccaag ctcatcggac gttctttgcg gacggtccaa tacgcagtca aggacttggt
     2041 ggccgagcgc tggatctccg tcgtgaagct caacggcccc ggcaccgtgt cggcctacgt
     2101 ggtcaatgac cgcgtggcgt ggggccagcc ccgcgaccag ttgcgcctgt cggtgttcag
     2161 tgccgccgtg gtggttgatc acgacgacca ggacgaatcg ctgttggggc atggcgacct
     2221 gcgccgcatc ccgaccctgt atccgggcga gcagcaacta ccgaccggcc ccggcgagga
     2281 gccgcccagc cagcccggca ttccgggcat ggaaccagac ctgccagcct tgaccgaaac
     2341 ggaggaatgg gaacggcgcg ggcagcagcg cctgccgatg cccgatgagc cgtgttttct
     2401 ggacgatggc gagccgttgg agccgccgac acgggtcacg ctgccgcgcc ggtagcactt
     2461 gggttgcgca gcaacccgta agtgcgctgt tccagactat cggctgtagc cgcctcgccg
     2521 ccctatacct tgtctgcctc cccgcgttgc gtcgcggtgc atggagccgg gccacctcga
     2581 cctgaatgga agccggcggc acctcgctaa cggattcacc gtttttatca ggctctggga
     2641 ggcagaataa atgatcatat cgtcaattat tacctccacg gggagagcct gagcaaactg
     2701 gcctcaggca tttgagaagc acacggtcac actgcttccg gtagtcaata aaccggtaaa
     2761 ccagcaatag acataagcgg ctatttaacg accctgccct gaaccgacga ccgggtcgaa
     2821 tttgctttcg aatttctgcc attcatccgc ttattatcac ttattcaggc gtagcaccag
     2881 gcgtttaagg gcaccaataa ctgccttaaa aaaattacgc cccgccctgc cactcatcgc
     2941 agtcggccta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattttaaca
     3001 aaatattaac gcttacaatt tccattcgcc attcaggctg cgcaactgtt gggaagggcg
     3061 atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa gggggatgtg ctgcaaggcg
     3121 attaagttgg gtaacgccag ggttttccca gtcacgacgt tgtaaaacga cggccagtga
     3181 gcgcgcgtaa tacgactcac tatagggcga attggagctc caccgcggtg gcggccgctc
     3241 tagaactagt ggatcccccg ggctgcagga attcgatatc aagcttatcg ataccgtcga
     3301 cctcgagggg gggcccggta cccagctttt gttcccttta gtgagggtta attgcgcgct
     3361 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     3421 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     3481 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     3541 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgcatttgcg
     3601 cattcacagt tctccgcaag aattgattgg ctccaattct tggagtggtg aatccgttag
     3661 cgaggtgccg ccggcttcca ttcaggtcga ggtggcccgg ctccatgcac cgcgacgcaa
     3721 cgcggggagg cagacaaggt atagggcggc gcctacaatc catgccaacc cgttccatgt
     3781 gctcgccgag gcggcataaa tcgccgtgac gatcagcggt ccagtgatcg aagttaggct
     3841 ggtaagagcc gcgagcgatc cttgaagctg tccctgatgg tcgtcatcta cctgcctgga
     3901 cagcatggcc tgcaacgcgg gcatcccgat gccgccggaa gcgagaagaa tcataatggg
     3961 gaaggccatc cagcctcgcg tcgcgaacgc cagcaagacg tagcccagcg cgtcggccgc
     4021 catgccggcg ataatggcct gcttctcgcc gaaacgtttg gtggcgggac cagtgacgaa
     4081 ggcttgagcg agggcgtgca agattccgaa taccgcaagc gacaggccga tcatcgtcgc
     4141 gctccagcga aagcggtcct cgccgaaaat gacccagagc gctgccggca cctgtcctac
     4201 gagttgcatg ataaagaaga cagtcataag tgcggcgacg atagtcatgc cccgcgccca
     4261 ccggaaggag ctgactgggt tgaaggctct caagggcatc ggtcgacgct ctcccttatg
     4321 cgactcctgc attaggaagc agcccagtag taggttgagg ccgttgagca ccgccgccgc
     4381 aaggaatggt gcatgcaagg agatggcgcc caacagtccc ccggccacgg ggcctgccac
     4441 catacccacg ccgaaacaag cgctcatgag cccgaagtgg cgagcccgat cttccccatc
     4501 ggtgatgtcg gcgatatagg cgccagcaac cgcacctgtg gcgccggtga tgccggccac
     4561 gatgcgtccg gcgtagagga tccacaggac gggtgtggtc gccatgatcg cgtagtcgat
     4621 agtggctcca agtagcgaag cgagcaggac tgggcggcgg ccaaagcggt cggacagtgc
     4681 tccgagaacg ggtgcgcata gaaattgcat caacgcatat agcgctagca gcacgccata
     4741 gtgactggcg atgctgtcgg aatggacgat atcccgcaag aggcccggca gtaccggcat
     4801 aaccaagcct atgcctacag catccagggt gacggtgccg aggatgacga tgagcgcatt
     4861 gttagatttc atacacggtg cctgactgcg ttagcaattt aactgtgata aactaccgca
     4921 ttaaagctta tcgatgataa gctgtcaaac atgagaattc ttgaagacga aagggcctcg
     4981 tgatacgcct atttttatag gttaatgtca tgataataat ggtttcttag acgtcaggtg
     5041 gcacttttcg gggaaatgtg cgcgcccgcg ttcctgctgg cgctgggcct gtttctggcg
     5101 ctggacttcc cgctgttccg tcagcagctt ttcgcccacg gccttgatga tcgcggcggc
     5161 cttggcctgc atatcccgat tcaacggccc cagggcgtcc agaacgggct tcaggcgctc
     5221 ccgaaggt
//

pBBRMCS3载体质粒图谱pdf版和相关资料下载

pBBRMCS3载体应用举例
