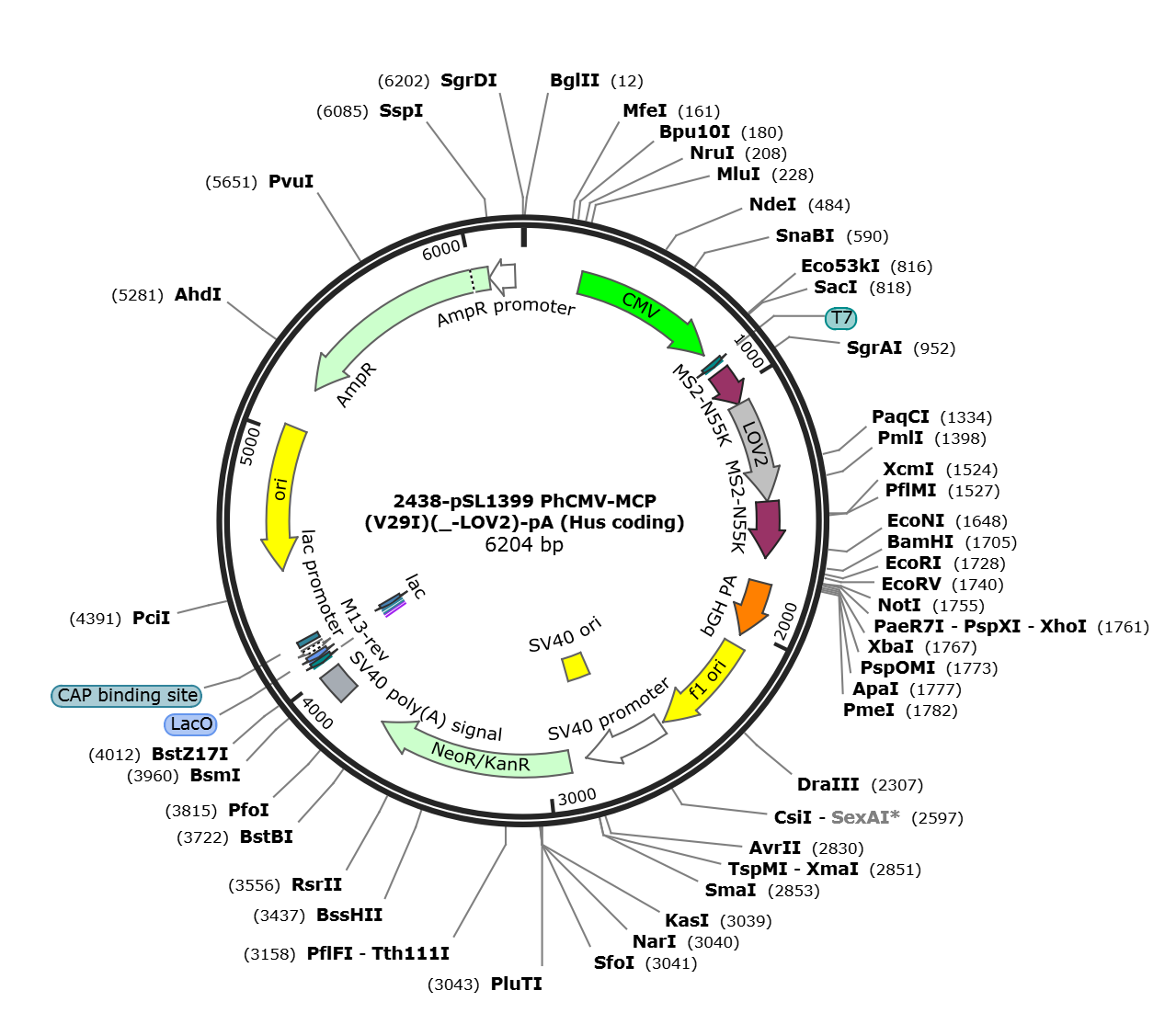

pSL1399

LOCUS       pSL1399               6204 bp DNA     circular SYN 06-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6204)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6204
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     primer_bind     213..232
                     /label=oSCL771
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     881..927
                     /label=oSCL2381
     CDS             910..1062
                     /codon_start=1
                     /label=MS2-N55K
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGIAEWISSNSRSQAYKVT
                     CSVRQS"
     CDS             1063..1473
                     /codon_start=1
                     /label=LOV2
                     /translation="LERIEKNFVITDPRLPDNPIIFASDSFLQLTEYSREEILGRNCRF
                     LQGPETDRATVRKIRDAIDNQTEVTVQLINYTKSGKKFWNLFHLQPMRDQKGDVQYFIG
                     VQLDGTEHVRDAAEREGVMLIKKTAENIDEAAG"
     primer_bind     1067..1109
                     /label=oSCL2408
     primer_bind     complement(1067..1086)
                     /label=oSCL2407
     primer_bind     1403..1445
                     /label=oSCL2410
     primer_bind     complement(1403..1422)
                     /label=oSCL2409
     primer_bind     1433..1476
                     /label=oSCL2412
     primer_bind     complement(1433..1452)
                     /label=oSCL2411
     CDS             1474..1701
                     /codon_start=1
                     /label=MS2-N55K
                     /translation="QKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATN
                     SDCELIVKAMQGLLKDGNPIPSAIAANSGIY"
     primer_bind     complement(1682..1724)
                     /label=oSCL2383
     primer_bind     complement(1682..1701)
                     /label=oSCL2382
     primer_bind     1682..1701
                     /label=oSCL2384
     terminator      1801..2028
                     /label=bGH PA
     rep_origin      2074..2502
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2516..2845
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2696..2831
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    2696..2773
                     /label=SV40 ORI
     CDS             2912..3706
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3880..4001
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4046..4066)
                     /label=M13-rev
     primer_bind     complement(4050..4066)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4072..4094)
                     /label=LacO
     protein_bind    4074..4090
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4098..4128)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4099..4128)
                     /label=lac
     protein_bind    4143..4164
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4452..5037)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5208..6068)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6069..6173)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gccaccatgg ctagcaactt cacacagttc gtgctggtgg acaacggcgg caccggcgac
      961 gtgaccgtgg cccctagcaa cttcgccaac ggcatcgccg agtggatcag cagcaacagc
     1021 agaagccaag cctacaaggt gacctgcagc gtgagacaga gcctggagag aatcgagaag
     1081 aacttcgtga tcaccgaccc tagactgccc gacaacccca tcatcttcgc tagcgacagc
     1141 ttcctgcagc tgaccgagta cagcagagag gagatcctgg gcagaaactg cagattcctg
     1201 caaggccccg agaccgacag agccaccgtg agaaagatca gagacgccat cgacaatcag
     1261 accgaggtga ccgtgcagct gatcaactac accaagagcg gcaagaagtt ctggaacctg
     1321 ttccacctgc agcccatgag agatcagaag ggcgacgtgc agtacttcat cggcgtgcag
     1381 ctggacggca ccgagcacgt gagagacgcc gccgagagag agggcgtgat gctgatcaag
     1441 aagaccgccg agaacatcga cgaggccgcc gggcagaaga gaaagtacac catcaaagtc
     1501 gaggtgccca aggtggccac ccaaaccgtg ggcggcgtgg agctgcccgt ggccgcctgg
     1561 agaagctacc tgaacatgga gctgaccatc cccatcttcg ccaccaacag cgactgcgag
     1621 ctgatcgtga aggccatgca aggcctgctg aaggacggca accccattcc tagcgccatc
     1681 gctgctaaca gcggcattta ttaaggatcc actagtccag tgtggtggaa ttctgcagat
     1741 atccagcaca gtggcggccg ctcgagtcta gagggcccgt ttaaacccgc tgatcagcct
     1801 cgactgtgcc ttctagttgc cagccatctg ttgtttgccc ctcccccgtg ccttccttga
     1861 ccctggaagg tgccactccc actgtccttt cctaataaaa tgaggaaatt gcatcgcatt
     1921 gtctgagtag gtgtcattct attctggggg gtggggtggg gcaggacagc aagggggagg
     1981 attgggaaga caatagcagg catgctgggg atgcggtggg ctctatggct tctgaggcgg
     2041 aaagaaccag ctggggctct agggggtatc cccacgcgcc ctgtagcggc gcattaagcg
     2101 cggcgggtgt ggtggttacg cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg
     2161 ctcctttcgc tttcttccct tcctttctcg ccacgttcgc cggctttccc cgtcaagctc
     2221 taaatcgggg gctcccttta gggttccgat ttagtgcttt acggcacctc gaccccaaaa
     2281 aacttgatta gggtgatggt tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc
     2341 ctttgacgtt ggagtccacg ttctttaata gtggactctt gttccaaact ggaacaacac
     2401 tcaaccctat ctcggtctat tcttttgatt tataagggat tttgccgatt tcggcctatt
     2461 ggttaaaaaa tgagctgatt taacaaaaat ttaacgcgaa ttaattctgt ggaatgtgtg
     2521 tcagttaggg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc aaagcatgca
     2581 tctcaattag tcagcaacca ggtgtggaaa gtccccaggc tccccagcag gcagaagtat
     2641 gcaaagcatg catctcaatt agtcagcaac catagtcccg cccctaactc cgcccatccc
     2701 gcccctaact ccgcccagtt ccgcccattc tccgccccat ggctgactaa ttttttttat
     2761 ttatgcagag gccgaggccg cctctgcctc tgagctattc cagaagtagt gaggaggctt
     2821 ttttggaggc ctaggctttt gcaaaaagct cccgggagct tgtatatcca ttttcggatc
     2881 tgatcaagag acaggatgag gatcgtttcg catgattgaa caagatggat tgcacgcagg
     2941 ttctccggcc gcttgggtgg agaggctatt cggctatgac tgggcacaac agacaatcgg
     3001 ctgctctgat gccgccgtgt tccggctgtc agcgcagggg cgcccggttc tttttgtcaa
     3061 gaccgacctg tccggtgccc tgaatgaact gcaggacgag gcagcgcggc tatcgtggct
     3121 ggccacgacg ggcgttcctt gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga
     3181 ctggctgcta ttgggcgaag tgccggggca ggatctcctg tcatctcacc ttgctcctgc
     3241 cgagaaagta tccatcatgg ctgatgcaat gcggcggctg catacgcttg atccggctac
     3301 ctgcccattc gaccaccaag cgaaacatcg catcgagcga gcacgtactc ggatggaagc
     3361 cggtcttgtc gatcaggatg atctggacga agagcatcag gggctcgcgc cagccgaact
     3421 gttcgccagg ctcaaggcgc gcatgcccga cggcgaggat ctcgtcgtga cccatggcga
     3481 tgcctgcttg ccgaatatca tggtggaaaa tggccgcttt tctggattca tcgactgtgg
     3541 ccggctgggt gtggcggacc gctatcagga catagcgttg gctacccgtg atattgctga
     3601 agagcttggc ggcgaatggg ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga
     3661 ttcgcagcgc atcgccttct atcgccttct tgacgagttc ttctgagcgg gactctgggg
     3721 ttcgaaatga ccgaccaagc gacgcccaac ctgccatcac gagatttcga ttccaccgcc
     3781 gccttctatg aaaggttggg cttcggaatc gttttccggg acgccggctg gatgatcctc
     3841 cagcgcgggg atctcatgct ggagttcttc gcccacccca acttgtttat tgcagcttat
     3901 aatggttaca aataaagcaa tagcatcaca aatttcacaa ataaagcatt tttttcactg
     3961 cattctagtt gtggtttgtc caaactcatc aatgtatctt atcatgtctg tataccgtcg
     4021 acctctagct agagcttggc gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat
     4081 ccgctcacaa ttccacacaa catacgagcc ggaagcataa agtgtaaagc ctggggtgcc
     4141 taatgagtga gctaactcac attaattgcg ttgcgctcac tgcccgcttt ccagtcggga
     4201 aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt
     4261 attgggcgct cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg
     4321 cgagcggtat cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac
     4381 gcaggaaaga acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg
     4441 ttgctggcgt ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca
     4501 agtcagaggt ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc
     4561 tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc
     4621 ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag
     4681 gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc
     4741 ttatccggta actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca
     4801 gcagccactg gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg
     4861 aagtggtggc ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg
     4921 aagccagtta ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct
     4981 ggtagcggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa
     5041 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
     5101 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
     5161 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
     5221 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
     5281 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
     5341 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
     5401 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
     5461 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
     5521 gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
     5581 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
     5641 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
     5701 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
     5761 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
     5821 tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
     5881 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
     5941 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
     6001 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
     6061 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg
     6121 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt
     6181 ccccgaaaag tgccacctga cgtc
//
