pdCASclos

LOCUS      pdCASclos              9056 bp ds-DNA

circular SYN 12-MAY-2021
DEFINITION  Transcriptional repression for gene Spo0A

(CAC-2011) in Clostridium
            acetobutylicum ATCC 824.
ACCESSION   .
VERSION     .
KEYWORDS    pdCASclos
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9056)
  AUTHORS   Li Q, Chen J, Minton NP, Zhang Y, Wen Z, Liu

J, Yang H, Zeng Z, Ren
            X, Yang J, Gu Y, Jiang W, Jiang Y, Yang S
  TITLE     CRISPR-based genome editing and expression

control systems in
            Clostridium acetobutylicum and Clostridium

beijerinckii.
  JOURNAL   Biotechnol J. 2016 May 23. doi:

10.1002/biot.201600053.
  PUBMED    27213844
REFERENCE   2  (bases 1 to 9056)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server

1.1.58
            http://www.biofeng.com

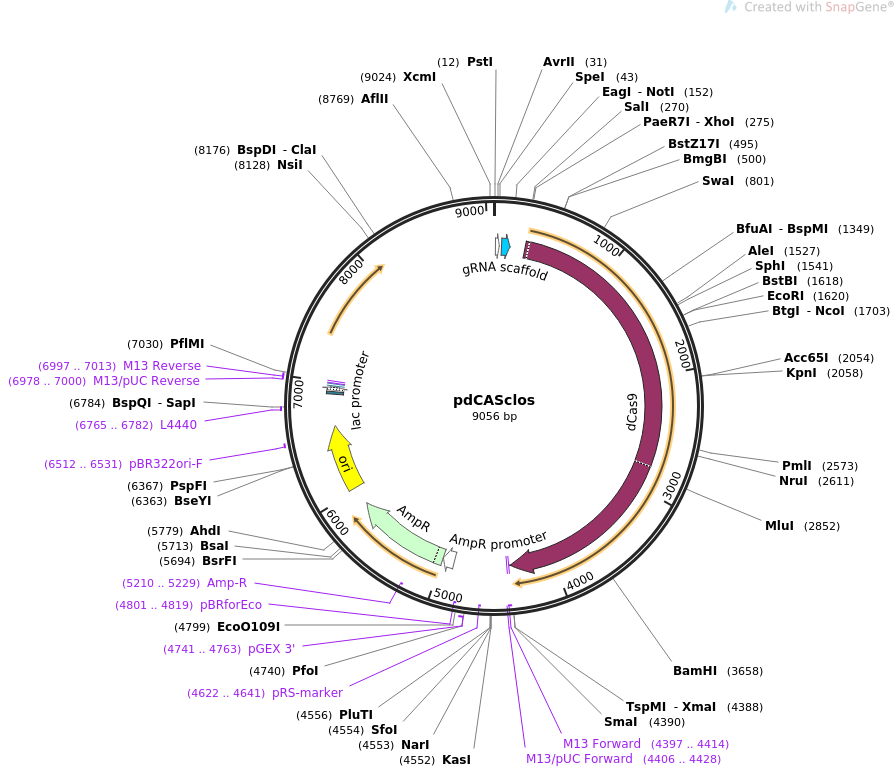

FEATURES             Location/Qualifiers
     source          1..9056
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        14..48
                     /label=J23119(SpeI) promoter
                     /note="bacterial promoter (Registry

of Standard Biological
                     Parts BBa_J23119) modified to end

with an SpeI site"
     misc_RNA        69..144
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the

Streptococcus pyogenes
                     CRISPR/Cas9 system"
     CDS             281..4387
                     /codon_start=1
                     /product="catalytically dead mutant

of the Cas9
                     endonuclease from the Streptococcus

pyogenes Type II
                     CRISPR/Cas system"
                     /label=dCas9
                     /note="RNA-guided DNA-binding

protein that lacks
                     endonuclease activity due to the

D10A mutation in the RuvC
                     catalytic domain and the H840A

mutation in the HNH
                     catalytic domain"


/translation="MDKKYSIGLAIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSI

KK


NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLE

ES


FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHM

IK


FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSR

RL


ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLL

AQ


IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKAL

VR


QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNRED

LL


RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLA

RG


NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLY

EY


FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIEC

FD


SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIE

ER


LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRN

FM


QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVM

GR


HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEK

LY


LYYLQNGRDMYVDQELDINRLSDYDVDAIVPQSFLKDDSIDNKVLTRSDKNRGKSDN

VP


SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQIT

KH


VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDA

YL


NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFF

KT


EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGF

SK


ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELL

GI


TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKG

NE


LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVIL

AD


ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKE

VL
                     DATLIHQSITGLYETRIDLSQLGGD"
     primer_bind     complement(4397..4414)
                     /label=M13 Forward
                     /note="In lacZ gene. Also called

M13-F20 or M13 (-21)
                     Forward"
     primer_bind     complement(4397..4413)
                     /label=M13 fwd
                     /note="common sequencing primer, one

of multiple similar
                     variants"
     primer_bind     complement(4406..4428)
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     complement(4622..4641)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence

yeast selectable
                     marker"
     primer_bind     4741..4763
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(4801..4819)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of

EcoRI site, forward
                     primer"
     promoter        4887..4991
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4992..5852
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to

ampicillin, carbenicillin, and
                     related antibiotics"


/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVG

YI


ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE

YS


PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLD

RW


EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLR

SA


LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIG

AS
                     LIKHW"
     primer_bind     complement(5210..5229)
                     /label=Amp-R
                     /note="Ampicillin resistance gene,

reverse primer"
     rep_origin      6023..6611
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number

ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6512..6531
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward

primer"
     primer_bind     6765..6782
                     /label=L4440
                     /note="L4440 vector, forward primer"
     protein_bind    6899..6920
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite

activator protein"
                     /note="CAP binding activates

transcription in the presence
                     of cAMP."
     promoter        6935..6965
                     /label=lac promoter
                     /note="promoter for the E. coli lac

operon"
     protein_bind    6973..6989
                     /label=lac operator
                     /bound_moiety="lac repressor encoded

by lacI"
                     /note="The lac repressor binds to

the lac operator to
                     inhibit transcription in E. coli.

This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-

thiogalactopyranoside (IPTG)."
     primer_bind     6978..7000
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     6997..7013
                     /label=M13 rev
                     /note="common sequencing primer, one

of multiple similar
                     variants"
     primer_bind     6997..7013
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called

M13-rev"
ORIGIN
        1 agcttggctg cagttgacag ctagctcagt cctaggtata

atactagttt taattgcaga
       61 tgataatagt tttagagcta gaaatagcaa gttaaaataa

ggctagtccg ttatcaactt
      121 gaaaaagtgg caccgagtcg gtgctttttt gcggccgcta

taaaatataa ataattttct
      181 aaaaaactta acttcatgtg aaaagtttgt taaaatataa

atgagcacgt taatcattta
      241 acatagataa ttaaatagta aaagggagtg tcgactcgag

atggataaga aatactcaat
      301 aggcttagct atcggcacaa atagcgtcgg atgggcggtg

atcactgatg aatataaggt
      361 tccgtctaaa aagttcaagg ttctgggaaa tacagaccgc

cacagtatca aaaaaaatct
      421 tataggggct cttttatttg acagtggaga gacagcggaa

gcgactcgtc tcaaacggac
      481 agctcgtaga aggtatacac gtcggaagaa tcgtatttgt

tatctacagg agattttttc
      541 aaatgagatg gcgaaagtag atgatagttt ctttcatcga

cttgaagagt cttttttggt
      601 ggaagaagac aagaagcatg aacgtcatcc tatttttgga

aatatagtag atgaagttgc
      661 ttatcatgag aaatatccaa ctatctatca tctgcgaaaa

aaattggtag attctactga
      721 taaagcggat ttgcgcttaa tctatttggc cttagcgcat

atgattaagt ttcgtggtca
      781 ttttttgatt gagggagatt taaatcctga taatagtgat

gtggacaaac tatttatcca
      841 gttggtacaa acctacaatc aattatttga agaaaaccct

attaacgcaa gtggagtaga
      901 tgctaaagcg attctttctg cacgattgag taaatcaaga

cgattagaaa atctcattgc
      961 tcagctcccc ggtgagaaga aaaatggctt atttgggaat

ctcattgctt tgtcattggg
     1021 tttgacccct aattttaaat caaattttga tttggcagaa

gatgctaaat tacagctttc
     1081 aaaagatact tacgatgatg atttagataa tttattggcg

caaattggag atcaatatgc
     1141 tgatttgttt ttggcagcta agaatttatc agatgctatt

ttactttcag atatcctaag
     1201 agtaaatact gaaataacta aggctcccct atcagcttca

atgattaaac gctacgatga
     1261 acatcatcaa gacttgactc ttttaaaagc tttagttcga

caacaacttc cagaaaagta
     1321 taaagaaatc ttttttgatc aatcaaaaaa cggatatgca

ggttatattg atgggggagc
     1381 tagccaagaa gaattttata aatttatcaa accaatttta

gaaaaaatgg atggtactga
     1441 ggaattattg gtgaaactaa atcgtgaaga tttgctgcgc

aagcaacgga cctttgacaa
     1501 cggctctatt ccccatcaaa ttcacttggg tgagctgcat

gctattttga gaagacaaga
     1561 agacttttat ccatttttaa aagacaatcg tgagaagatt

gaaaaaatct tgacttttcg
     1621 aattccttat tatgttggtc cattggcgcg tggcaatagt

cgttttgcat ggatgactcg
     1681 gaagtctgaa gaaacaatta ccccatggaa ttttgaagaa

gttgtcgata aaggtgcttc
     1741 agctcaatca tttattgaac gcatgacaaa ctttgataaa

aatcttccaa atgaaaaagt
     1801 actaccaaaa catagtttgc tttatgagta ttttacggtt

tataacgaat tgacaaaggt
     1861 caaatatgtt actgaaggaa tgcgaaaacc agcatttctt

tcaggtgaac agaagaaagc
     1921 cattgttgat ttactcttca aaacaaatcg aaaagtaacc

gttaagcaat taaaagaaga
     1981 ttatttcaaa aaaatagaat gttttgatag tgttgaaatt

tcaggagttg aagatagatt
     2041 taatgcttca ttaggtacct accatgattt gctaaaaatt

attaaagata aagatttttt
     2101 ggataatgaa gaaaatgaag atatcttaga ggatattgtt

ttaacattga ccttatttga
     2161 agatagggag atgattgagg aaagacttaa aacatatgct

cacctctttg atgataaggt
     2221 gatgaaacag cttaaacgtc gccgttatac tggttgggga

cgtttgtctc gaaaattgat
     2281 taatggtatt agggataagc aatctggcaa aacaatatta

gattttttga aatcagatgg
     2341 ttttgccaat cgcaatttta tgcagctgat ccatgatgat

agtttgacat ttaaagaaga
     2401 cattcaaaaa gcacaagtgt ctggacaagg cgatagttta

catgaacata ttgcaaattt
     2461 agctggtagc cctgctatta aaaaaggtat tttacagact

gtaaaagttg ttgatgaatt
     2521 ggtcaaagta atggggcggc ataagccaga aaatatcgtt

attgaaatgg cacgtgaaaa
     2581 tcagacaact caaaagggcc agaaaaattc gcgagagcgt

atgaaacgaa tcgaagaagg
     2641 tatcaaagaa ttaggaagtc agattcttaa agagcatcct

gttgaaaata ctcaattgca
     2701 aaatgaaaag ctctatctct attatctcca aaatggaaga

gacatgtatg tggaccaaga
     2761 attagatatt aatcgtttaa gtgattatga tgtcgatgca

attgttccac aaagtttcct
     2821 taaagacgat tcaatagaca ataaggtctt aacgcgttct

gataaaaatc gtggtaaatc
     2881 ggataacgtt ccaagtgaag aagtagtcaa aaagatgaaa

aactattgga gacaacttct
     2941 aaacgccaag ttaatcactc aacgtaagtt tgataattta

acgaaagctg aacgtggagg
     3001 tttgagtgaa cttgataaag ctggttttat caaacgccaa

ttggttgaaa ctcgccaaat
     3061 cactaagcat gtggcacaaa ttttggatag tcgcatgaat

actaaatacg atgaaaatga
     3121 taaacttatt cgagaggtta aagtgattac cttaaaatct

aaattagttt ctgacttccg
     3181 aaaagatttc caattctata aagtacgtga gattaacaat

taccatcatg cccatgatgc
     3241 gtatctaaat gccgtcgttg gaactgcttt gattaagaaa

tatccaaaac ttgaatcgga
     3301 gtttgtctat ggtgattata aagtttatga tgttcgtaaa

atgattgcta agtctgagca
     3361 agaaataggc aaagcaaccg caaaatattt cttttactct

aatatcatga acttcttcaa
     3421 aacagaaatt acacttgcaa atggagagat tcgcaaacgc

cctctaatcg aaactaatgg
     3481 ggaaactgga gaaattgtct gggataaagg gcgagatttt

gccacagtgc gcaaagtatt
     3541 gtccatgccc caagtcaata ttgtcaagaa aacagaagta

cagacaggcg gattctccaa
     3601 ggagtcaatt ttaccaaaaa gaaattcgga caagcttatt

gctcgtaaaa aagactggga
     3661 tccaaaaaaa tatggtggtt ttgatagtcc aacggtagct

tattcagtcc tagtggttgc
     3721 taaggtggaa aaagggaaat cgaagaagtt aaaatccgtt

aaagagttac tagggatcac
     3781 aattatggaa agaagttcct ttgaaaaaaa tccgattgac

tttttagaag ctaaaggata
     3841 taaggaagtt aaaaaagact taatcattaa actacctaaa

tatagtcttt ttgagttaga
     3901 aaacggtcgt aaacggatgc tggctagtgc cggagaatta

caaaaaggaa atgagctggc
     3961 tctgccaagc aaatatgtga attttttata tttagctagt

cattatgaaa agttgaaggg
     4021 tagtccagaa gataacgaac aaaaacaatt gtttgtggag

cagcataagc attatttaga
     4081 tgagattatt gagcaaatca gtgaattttc taagcgtgtt

attttagcag atgccaattt
     4141 agataaagtt cttagtgcat ataacaaaca tagagacaaa

ccaatacgtg aacaagcaga
     4201 aaatattatt catttattta cgttgacgaa tcttggagct

cccgctgctt ttaaatattt
     4261 tgatacaaca attgatcgta aacgatatac gtctacaaaa

gaagttttag atgccactct
     4321 tatccatcaa tccatcactg gtctttatga aacacgcatt

gatttgagtc agctaggagg
     4381 tgactgaccc gggggaactg gccgtcgttt tacaacgtcg

tgactgggaa aaccctggcg
     4441 ttacccaact taatcgcctt gcagcacatc cccctttcgc

cagctggcgt aatagcgaag
     4501 aggcccgcac cgatcgccct tcccaacagt tgcgcagcct

gaatggcgaa tggcgcctga
     4561 tgcggtattt tctccttacg catctgtgcg gtatttcaca

ccgcatatgg tgcactctca
     4621 gtacaatctg ctctgatgcc gcatagttaa gccagccccg

acacccgcca acacccgctg
     4681 acgcgccctg acgggcttgt ctgctcccgg catccgctta

cagacaagct gtgaccgtct
     4741 ccgggagctg catgtgtcag aggttttcac cgtcatcacc

gaaacgcgcg agacgaaagg
     4801 gcctcgtgat acgcctattt ttataggtta atgtcatgat

aataatggtt tcttagacgt
     4861 caggtggcac ttttcgggga aatgtgcgcg gaacccctat

ttgtttattt ttctaaatac
     4921 attcaaatat gtatccgctc atgagacaat aaccctgata

aatgcttcaa taatattgaa
     4981 aaaggaagag tatgagtatt caacatttcc gtgtcgccct

tattcccttt tttgcggcat
     5041 tttgccttcc tgtttttgct cacccagaaa cgctggtgaa

agtaaaagat gctgaagatc
     5101 agttgggtgc acgagtgggt tacatcgaac tggatctcaa

cagcggtaag atccttgaga
     5161 gttttcgccc cgaagaacgt tttccaatga tgagcacttt

taaagttctg ctatgtggcg
     5221 cggtattatc ccgtattgac gccgggcaag agcaactcgg

tcgccgcata cactattctc
     5281 agaatgactt ggttgagtac tcaccagtca cagaaaagca

tcttacggat ggcatgacag
     5341 taagagaatt atgcagtgct gccataacca tgagtgataa

cactgcggcc aacttacttc
     5401 tgacaacgat cggaggaccg aaggagctaa ccgctttttt

gcacaacatg ggggatcatg
     5461 taactcgcct tgatcgttgg gaaccggagc tgaatgaagc

cataccaaac gacgagcgtg
     5521 acaccacgat gcctgtagca atggcaacaa cgttgcgcaa

actattaact ggcgaactac
     5581 ttactctagc ttcccggcaa caattaatag actggatgga

ggcggataaa gttgcaggac
     5641 cacttctgcg ctcggccctt ccggctggct ggtttattgc

tgataaatct ggagccggtg
     5701 agcgtgggtc tcgcggtatc attgcagcac tggggccaga

tggtaagccc tcccgtatcg
     5761 tagttatcta cacgacgggg agtcaggcaa ctatggatga

acgaaataga cagatcgctg
     5821 agataggtgc ctcactgatt aagcattggt aactgtcaga

ccaagtttac tcatatatac
     5881 tttagattga tttaaaactt catttttaat ttaaaaggat

ctaggtgaag atcctttttg
     5941 ataatctcat gaccaaaatc ccttaacgtg agttttcgtt

ccactgagcg tcagaccccg
     6001 tagaaaagat caaaggatct tcttgagatc ctttttttct

gcgcgtaatc tgctgcttgc
     6061 aaacaaaaaa accaccgcta ccagcggtgg tttgtttgcc

ggatcaagag ctaccaactc
     6121 tttttccgaa ggtaactggc ttcagcagag cgcagatacc

aaatactgtc cttctagtgt
     6181 agccgtagtt aggccaccac ttcaagaact ctgtagcacc

gcctacatac ctcgctctgc
     6241 taatcctgtt accagtggct gctgccagtg gcgataagtc

gtgtcttacc gggttggact
     6301 caagacgata gttaccggat aaggcgcagc ggtcgggctg

aacggggggt tcgtgcacac
     6361 agcccagctt ggagcgaacg acctacaccg aactgagata

cctacagcgt gagctatgag
     6421 aaagcgccac gcttcccgaa gggagaaagg cggacaggta

tccggtaagc ggcagggtcg
     6481 gaacaggaga gcgcacgagg gagcttccag ggggaaacgc

ctggtatctt tatagtcctg
     6541 tcgggtttcg ccacctctga cttgagcgtc gatttttgtg

atgctcgtca ggggggcgga
     6601 gcctatggaa aaacgccagc aacgcggcct ttttacggtt

cctggccttt tgctggcctt
     6661 ttgctcacat gttctttcct gcgttatccc ctgattctgt

ggataaccgt attaccgcct
     6721 ttgagtgagc tgataccgct cgccgcagcc gaacgaccga

gcgcagcgag tcagtgagcg
     6781 aggaagcgga agagcgccca atacgcaaac cgcctctccc

cgcgcgttgg ccgattcatt
     6841 aatgcagctg gcacgacagg tttcccgact ggaaagcggg

cagtgagcgc aacgcaatta
     6901 atgtgagtta gctcactcat taggcacccc aggctttaca

ctttatgctt ccggctcgta
     6961 tgttgtgtgg aattgtgagc ggataacaat ttcacacagg

aaacagctat gaccatgatt
     7021 acgccaagct ttggctaaca cacacgccat tccaaccaat

agttttctcg gcataaagcc
     7081 atgctctgac gcttaaatgc actaatgcct taaaaaaaca

ttaaagtcta acacactaga
     7141 cttatttact tcgtaattaa gtcgttaaac cgtgtgctct

acgaccaaaa gtataaaacc
     7201 tttaagaact ttcttttttc ttgtaaaaaa agaaactaga

taaatctctc atatctttta
     7261 ttcaataatc gcatcagatt gcagtataaa tttaacgatc

actcatcatg ttcatattta
     7321 tcagagctcg tgctataatt atactaattt tataaggagg

aaaaaataaa gagggttata
     7381 atgaacgaga aaaatataaa acacagtcaa aactttatta

cttcaaaaca taatatagat
     7441 aaaataatga caaatataag attaaatgaa catgataata

tctttgaaat cggctcagga
     7501 aaagggcatt ttacccttga attagtacag aggtgtaatt

tcgtaactgc cattgaaata
     7561 gaccataaat tatgcaaaac tacagaaaat aaacttgttg

atcacgataa tttccaagtt
     7621 ttaaacaagg atatattgca gtttaaattt cctaaaaacc

aatcctataa aatatttggt
     7681 aatatacctt ataacataag tacggatata atacgcaaaa

ttgtttttga tagtatagct
     7741 gatgagattt atttaatcgt ggaatacggg tttgctaaaa

gattattaaa tacaaaacgc
     7801 tcattggcat tatttttaat ggcagaagtt gatatttcta

tattaagtat ggttccaaga
     7861 gaatattttc atcctaaacc taaagtgaat agctcactta

tcagattaaa tagaaaaaaa
     7921 tcaagaatat cacacaaaga taaacagaag tataattatt

tcgttatgaa atgggttaac
     7981 aaagaataca agaaaatatt tacaaaaaat caatttaaca

attccttaaa acatgcagga
     8041 attgacgatt taaacaatat tagctttgaa caattcttat

ctcttttcaa tagctataaa
     8101 ttatttaata agtaagttaa gggatgcata aactgcatcc

cttaacttgt ttttcgtgta
     8161 cctatttttt gtgaatcgat tatgtctttt gcgcattcac

ttcttttcta tataaatatg
     8221 agcgaagcga ataagcgtcg gaaaagcagc aaaaagtttc

ctttttgctg ttggagcatg
     8281 ggggttcagg gggtgcagta tctgacgtca atgccgagcg

aaagcgagcc gaagggtagc
     8341 atttacgtta gataaccccc tgatatgctc cgacgcttta

tatagaaaag aagattcaac
     8401 taggtaaaat cttaatatag gttgagatga taaggtttat

aaggaatttg tttgttctaa
     8461 tttttcactc attttgttct aatttctttt aacaaatgtt

cttttttttt tagaacagtt
     8521 atgatatagt tagaatagtt taaaataagg agtgagaaaa

agatgaaaga aagatatgga
     8581 acagtctata aaggctctca gaggctcata gacgaagaaa

gtggagaagt catagaggta
     8641 gacaagttat accgtaaaca aacgtctggt aacttcgtaa

aggcatatat agtgcaatta
     8701 ataagtatgt tagatatgat tggcggaaaa aaacttaaaa

tcgttaacta tatcctagat
     8761 aatgtccact taagtaacaa tacaatgata gctacaacaa

gagaaatagc aaaagctaca
     8821 ggaacaagtc tacaaacagt aataacaaca cttaaaatct

tagaagaagg aaatattata
     8881 aaaagaaaaa ctggagtatt aatgttaaac cctgaactac

taatgagagg cgacgaccaa
     8941 aaacaaaaat acctcttact cgaatttggg aactttgagc

aagaggcaaa tgaaatagat
     9001 tgacctccca ataacaccac gtagttattg ggaggtcaat

ctatgaaatg cgatta
//
