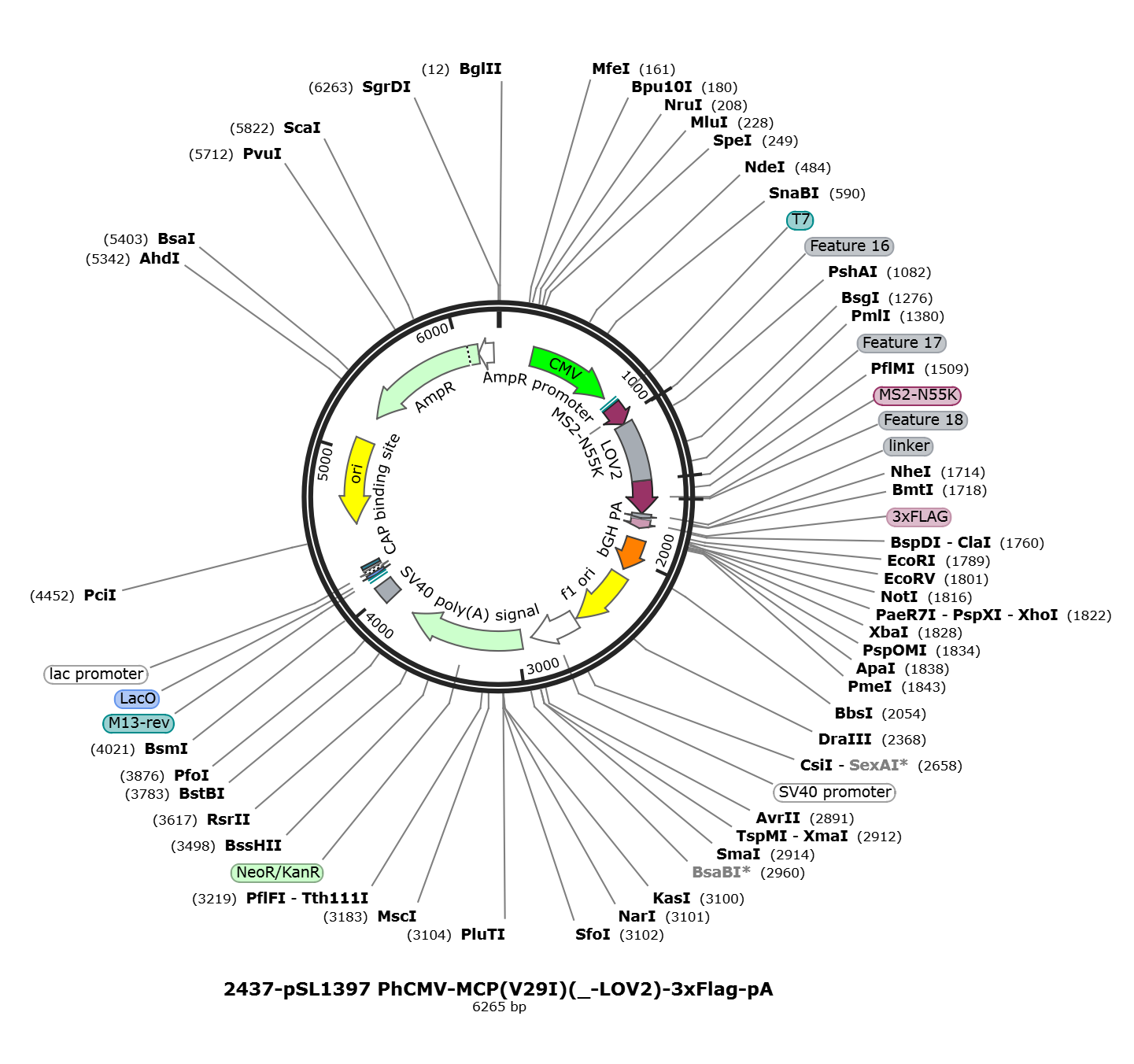

pSL1397

LOCUS      pSL1397           6265 bp DNA     circular SYN 06-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6265)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 30, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6265
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     213..232
                     /label=oSCL771
     misc_feature    232..819
                     /label=CMV
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     863..900
                     /label=oSCL2337
     primer_bind     863..882
                     /label=T7
     primer_bind     complement(863..882)
                     /label=oSCL1121
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     883..905
                     /label=oSCL2210
     primer_bind     883..900
                     /label=Oscl32-1
     primer_bind     883..900
                     /label=Oscl42-1
     regulatory      883..892
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     884..900
                     /label=oSCL1118
     regulatory      884..892
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             892..1044
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGIAEWISSNSRSQAYKVT
                     CSVRQS"
     primer_bind     complement(953..998)
                     /label=oSCL1156
     primer_bind     979..999
                     /label=oSCL1157
     primer_bind     complement(986..1061)
                     /label=oSCL2215
     misc_feature    1005^1006
                     /label=Feature 16
     primer_bind     1006..1025
                     /label=oSCL2216
     primer_bind     1025..1062
                     /label=oSCL2328
     primer_bind     1025..1062
                     /label=oSCL2329
     primer_bind     1025..1062
                     /label=oSCL2330
     primer_bind     complement(1025..1044)
                     /label=oSCL2327
     primer_bind     complement(1033..1061)
                     /label=oSCL2217
     primer_bind     1044..1062
                     /label=oSCL1757
     primer_bind     complement(1044..1061)
                     /label=oSCL2219
     misc_feature    1045..1455
                     /label=LOV2
     primer_bind     complement(1434..1455)
                     /label=oSCL1758
     primer_bind     1436..1482
                     /label=oSCL2218
     primer_bind     1436..1455
                     /label=oSCL2216
     primer_bind     1436..1455
                     /label=oSCL2220
     CDS             1456..1683
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="QKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATN
                     SDCELIVKAMQGLLKDGNPIPSAIAANSGIY"
     misc_feature    1456
                     /label=Feature 17
     primer_bind     complement(1557..1578)
                     /label=oSCL2219
     primer_bind     1578..1598
                     /label=oSCL2220
     misc_feature    1578^1579
                     /label=Feature 18
     primer_bind     complement(1663..1713)
                     /label=oSCL093
     primer_bind     complement(1663..1713)
                     /label=oSCL396
     primer_bind     complement(1663..1683)
                     /label=Oscl32-2
     primer_bind     complement(1663..1683)
                     /label=oSCL2211
     primer_bind     1683..1703
                     /label=oLZ048 NSP3-F
     misc_feature    1684..1714
                     /label=linker
     misc_feature    1684..1714
                     /label=linker
     primer_bind     1684..1713
                     /label=oSCL388
     primer_bind     1684..1713
                     /label=oSCL388a
     primer_bind     1684..1703
                     /label=oSCL1192
     primer_bind     1684..1701
                     /label=oLZ147 NS3a F
     primer_bind     1684..1700
                     /label=oYF0033
     primer_bind     complement(1694..1733)
                     /label=oSCL2071
     primer_bind     complement(1694..1714)
                     /label=oSCL1119
     primer_bind     complement(1694..1713)
                     /label=oSCL075
     CDS             1720..1785
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     terminator      1862..2089
                     /label=bGH PA
     polyA_signal    1865..2089
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2135..2563
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2577..2906
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2757..2892
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    2757..2834
                     /label=SV40 ORI
     CDS             2973..3767
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     CDS             2976..3767
                     /label=Kan/neoR
     polyA_signal    3941..4062
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4107..4127)
                     /label=M13-rev
     primer_bind     complement(4111..4127)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4133..4155)
                     /label=LacO
     protein_bind    4135..4151
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4159..4189)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4160..4189)
                     /label=lac
     protein_bind    4204..4225
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4513..5098)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5269..6129)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     CDS             complement(5272..5931)
                     /label=AmpR
     promoter        complement(6130..6234)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(6171..6199)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag gggccaccat ggcttcaaac
      901 tttactcagt tcgtgctcgt ggacaatggt gggacagggg atgtgacagt ggctccttct
      961 aatttcgcta atgggatcgc agagtggatc agctccaact cacggagcca ggcctacaag
     1021 gtgacatgca gcgtcaggca gtctttggaa cgtatcgaaa agaattttgt catcacggac
     1081 ccgcgtctgc ccgacaatcc gattatcttc gcgtcagact ctttcttaca actgactgag
     1141 tatagtagag aggagatatt ggggcgtaac tgtagatttc ttcaggggcc agaaactgat
     1201 cgggctaccg ttcgcaagat acgtgacgca atagacaacc agaccgaggt gacggtgcag
     1261 ctgattaact acacaaagtc tgggaagaag ttctggaacc tgtttcattt acaacctatg
     1321 agggaccaaa aaggtgacgt tcaatatttc atcggggttc agttagatgg gactgagcac
     1381 gtgagagatg cagcagaaag agagggtgta atgcttatta aaaaaacagc cgagaatatc
     1441 gacgaagccg ctggtcagaa gagaaagtat accatcaagg tggaggtccc caaagtggct
     1501 acccagacag tgggcggagt cgaactgcct gtcgccgctt ggaggtccta cctgaacatg
     1561 gagctcacta tcccaatttt cgctaccaat tctgactgtg aactcatcgt gaaggcaatg
     1621 caggggctcc tcaaagacgg taatcctatc ccttccgcca tcgccgctaa ctcaggtatc
     1681 tacgccagcg gaagtggcgg aggaggcgac gtcgctagcg actacaaaga ccatgacggt
     1741 gattataaag atcatgacat cgattacaag gatgacgatg acaagtaaga attctgcaga
     1801 tatccagcac agtggcggcc gctcgagtct agagggcccg tttaaacccg ctgatcagcc
     1861 tcgactgtgc cttctagttg ccagccatct gttgtttgcc cctcccccgt gccttccttg
     1921 accctggaag gtgccactcc cactgtcctt tcctaataaa atgaggaaat tgcatcgcat
     1981 tgtctgagta ggtgtcattc tattctgggg ggtggggtgg ggcaggacag caagggggag
     2041 gattgggaag acaatagcag gcatgctggg gatgcggtgg gctctatggc ttctgaggcg
     2101 gaaagaacca gctggggctc tagggggtat ccccacgcgc cctgtagcgg cgcattaagc
     2161 gcggcgggtg tggtggttac gcgcagcgtg accgctacac ttgccagcgc cctagcgccc
     2221 gctcctttcg ctttcttccc ttcctttctc gccacgttcg ccggctttcc ccgtcaagct
     2281 ctaaatcggg ggctcccttt agggttccga tttagtgctt tacggcacct cgaccccaaa
     2341 aaacttgatt agggtgatgg ttcacgtagt gggccatcgc cctgatagac ggtttttcgc
     2401 cctttgacgt tggagtccac gttctttaat agtggactct tgttccaaac tggaacaaca
     2461 ctcaacccta tctcggtcta ttcttttgat ttataaggga ttttgccgat ttcggcctat
     2521 tggttaaaaa atgagctgat ttaacaaaaa tttaacgcga attaattctg tggaatgtgt
     2581 gtcagttagg gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc
     2641 atctcaatta gtcagcaacc aggtgtggaa agtccccagg ctccccagca ggcagaagta
     2701 tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc gcccctaact ccgcccatcc
     2761 cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta atttttttta
     2821 tttatgcaga ggccgaggcc gcctctgcct ctgagctatt ccagaagtag tgaggaggct
     2881 tttttggagg cctaggcttt tgcaaaaagc tcccgggagc ttgtatatcc attttcggat
     2941 ctgatcaaga gacaggatga ggatcgtttc gcatgattga acaagatgga ttgcacgcag
     3001 gttctccggc cgcttgggtg gagaggctat tcggctatga ctgggcacaa cagacaatcg
     3061 gctgctctga tgccgccgtg ttccggctgt cagcgcaggg gcgcccggtt ctttttgtca
     3121 agaccgacct gtccggtgcc ctgaatgaac tgcaggacga ggcagcgcgg ctatcgtggc
     3181 tggccacgac gggcgttcct tgcgcagctg tgctcgacgt tgtcactgaa gcgggaaggg
     3241 actggctgct attgggcgaa gtgccggggc aggatctcct gtcatctcac cttgctcctg
     3301 ccgagaaagt atccatcatg gctgatgcaa tgcggcggct gcatacgctt gatccggcta
     3361 cctgcccatt cgaccaccaa gcgaaacatc gcatcgagcg agcacgtact cggatggaag
     3421 ccggtcttgt cgatcaggat gatctggacg aagagcatca ggggctcgcg ccagccgaac
     3481 tgttcgccag gctcaaggcg cgcatgcccg acggcgagga tctcgtcgtg acccatggcg
     3541 atgcctgctt gccgaatatc atggtggaaa atggccgctt ttctggattc atcgactgtg
     3601 gccggctggg tgtggcggac cgctatcagg acatagcgtt ggctacccgt gatattgctg
     3661 aagagcttgg cggcgaatgg gctgaccgct tcctcgtgct ttacggtatc gccgctcccg
     3721 attcgcagcg catcgccttc tatcgccttc ttgacgagtt cttctgagcg ggactctggg
     3781 gttcgaaatg accgaccaag cgacgcccaa cctgccatca cgagatttcg attccaccgc
     3841 cgccttctat gaaaggttgg gcttcggaat cgttttccgg gacgccggct ggatgatcct
     3901 ccagcgcggg gatctcatgc tggagttctt cgcccacccc aacttgttta ttgcagctta
     3961 taatggttac aaataaagca atagcatcac aaatttcaca aataaagcat ttttttcact
     4021 gcattctagt tgtggtttgt ccaaactcat caatgtatct tatcatgtct gtataccgtc
     4081 gacctctagc tagagcttgg cgtaatcatg gtcatagctg tttcctgtgt gaaattgtta
     4141 tccgctcaca attccacaca acatacgagc cggaagcata aagtgtaaag cctggggtgc
     4201 ctaatgagtg agctaactca cattaattgc gttgcgctca ctgcccgctt tccagtcggg
     4261 aaacctgtcg tgccagctgc attaatgaat cggccaacgc gcggggagag gcggtttgcg
     4321 tattgggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg ttcggctgcg
     4381 gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat caggggataa
     4441 cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc
     4501 gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc
     4561 aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag
     4621 ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct
     4681 cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta
     4741 ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc
     4801 cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc
     4861 agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt
     4921 gaagtggtgg cctaactacg gctacactag aagaacagta tttggtatct gcgctctgct
     4981 gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc
     5041 tggtagcggt ttttttgttt gcaagcagca gattacgcgc agaaaaaaag gatctcaaga
     5101 agatcctttg atcttttcta cggggtctga cgctcagtgg aacgaaaact cacgttaagg
     5161 gattttggtc atgagattat caaaaaggat cttcacctag atccttttaa attaaaaatg
     5221 aagttttaaa tcaatctaaa gtatatatga gtaaacttgg tctgacagtt accaatgctt
     5281 aatcagtgag gcacctatct cagcgatctg tctatttcgt tcatccatag ttgcctgact
     5341 ccccgtcgtg tagataacta cgatacggga gggcttacca tctggcccca gtgctgcaat
     5401 gataccgcga gacccacgct caccggctcc agatttatca gcaataaacc agccagccgg
     5461 aagggccgag cgcagaagtg gtcctgcaac tttatccgcc tccatccagt ctattaattg
     5521 ttgccgggaa gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat
     5581 tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg gcttcattca gctccggttc
     5641 ccaacgatca aggcgagtta catgatcccc catgttgtgc aaaaaagcgg ttagctcctt
     5701 cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg ttatcactca tggttatggc
     5761 agcactgcat aattctctta ctgtcatgcc atccgtaaga tgcttttctg tgactggtga
     5821 gtactcaacc aagtcattct gagaatagtg tatgcggcga ccgagttgct cttgcccggc
     5881 gtcaatacgg gataataccg cgccacatag cagaacttta aaagtgctca tcattggaaa
     5941 acgttcttcg gggcgaaaac tctcaaggat cttaccgctg ttgagatcca gttcgatgta
     6001 acccactcgt gcacccaact gatcttcagc atcttttact ttcaccagcg tttctgggtg
     6061 agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata agggcgacac ggaaatgttg
     6121 aatactcata ctcttccttt ttcaatatta ttgaagcatt tatcagggtt attgtctcat
     6181 gagcggatac atatttgaat gtatttagaa aaataaacaa ataggggttc cgcgcacatt
     6241 tccccgaaaa gtgccacctg acgtc
//
