pECFP-Nuc载体质粒基本信息

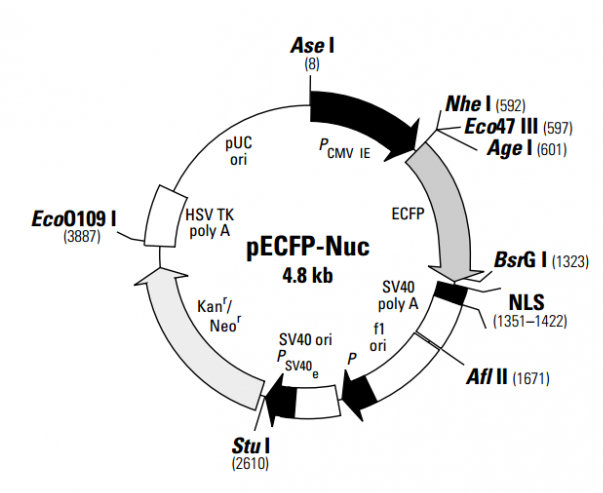

pECFP-Nuc质粒图谱载体图谱和pECFP-Nuc载体序列质粒序列多克隆位点信息
pECFP-Nuc质粒载体简介
pECFP-Nuc质粒序列载体序列
LOCUS pECFP-Nuc 4764 bp DNA circular SYN 12-JUL-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 4764)
AUTHORS Biofeng
TITLE Direct Submission
JOURNAL Exported Jul 12, 2023 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..4764
/mol_type="other DNA"
/organism="synthetic DNA construct"
enhancer 61..364
/label=CMV enhancer
/note="human cytomegalovirus immediate early enhancer"
promoter 365..568
/label=CMV promoter
/note="human cytomegalovirus (CMV) immediate early
promoter"
regulatory 607..616
/label=Kozak sequence
/note="vertebrate consensus sequence for strong initiation
of translation (Kozak, 1987)"
/regulatory_class="other"
CDS 613..1329
/codon_start=1
/product="enhanced CFP"
/label=ECFP
/note="mammalian codon-optimized"
/translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
KFICTTGKLPVPWPTLVTTLTWGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYISHNVYITADKQKNGIK
ANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
EFVTAAGITLGMDELYK"
CDS 1354..1374
/codon_start=1
/product="nuclear localization signal of SV40 (simian virus
40) large T antigen"
/label=SV40 NLS
/translation="PKKKRKV"
CDS 1378..1398
/codon_start=1
/product="nuclear localization signal of SV40 (simian virus
40) large T antigen"
/label=SV40 NLS
/translation="PKKKRKV"
CDS 1402..1422
/codon_start=1
/product="nuclear localization signal of SV40 (simian virus
40) large T antigen"
/label=SV40 NLS
/translation="PKKKRKV"
polyA_signal 1552..1673
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
rep_origin complement(1680..2135)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
promoter 2162..2266
/gene="bla"
/label=AmpR promoter
promoter 2268..2625
/label=SV40 promoter
/note="SV40 enhancer and early promoter"
rep_origin 2476..2611
/label=SV40 ori
/note="SV40 origin of replication"
CDS 2660..3454
/codon_start=1
/gene="aph(3')-II (or nptII)"
/product="aminoglycoside phosphotransferase from Tn5"
/label=NeoR/KanR
/note="confers resistance to neomycin, kanamycin, and G418
(Geneticin(R))"
/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
polyA_signal 3686..3733
/label=HSV TK poly(A) signal
/note="herpes simplex virus thymidine kinase
polyadenylation signal (Cole and Stacy, 1985)"
rep_origin 4062..4650
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
ORIGIN
1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
601 ccggtcgcca ccatggtgag caagggcgag gagctgttca ccggggtggt gcccatcctg
661 gtcgagctgg acggcgacgt aaacggccac aagttcagcg tgtccggcga gggcgagggc
721 gatgccacct acggcaagct gaccctgaag ttcatctgca ccaccggcaa gctgcccgtg
781 ccctggccca ccctcgtgac caccctgacc tggggcgtgc agtgcttcag ccgctacccc
841 gaccacatga agcagcacga cttcttcaag tccgccatgc ccgaaggcta cgtccaggag
901 cgcaccatct tcttcaagga cgacggcaac tacaagaccc gcgccgaggt gaagttcgag
961 ggcgacaccc tggtgaaccg catcgagctg aagggcatcg acttcaagga ggacggcaac
1021 atcctggggc acaagctgga gtacaactac atcagccaca acgtctatat caccgccgac
1081 aagcagaaga acggcatcaa ggccaacttc aagatccgcc acaacatcga ggacggcagc
1141 gtgcagctcg ccgaccacta ccagcagaac acccccatcg gcgacggccc cgtgctgctg
1201 cccgacaacc actacctgag cacccagtcc gccctgagca aagaccccaa cgagaagcgc
1261 gatcacatgg tcctgctgga gttcgtgacc gccgccggga tcactctcgg catggacgag
1321 ctgtacaagt ccggactcag atctcgagct gatccaaaaa agaagagaaa ggtagatcca
1381 aaaaagaaga gaaaggtaga tccaaaaaag aagagaaagg taggatccac cggatctaga
1441 taactgatca taatcagcca taccacattt gtagaggttt tacttgcttt aaaaaacctc
1501 ccacacctcc ccctgaacct gaaacataaa atgaatgcaa ttgttgttgt taacttgttt
1561 attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca
1621 tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttaaggcgta
1681 aattgtaagc gttaatattt tgttaaaatt cgcgttaaat ttttgttaaa tcagctcatt
1741 ttttaaccaa taggccgaaa tcggcaaaat cccttataaa tcaaaagaat agaccgagat
1801 agggttgagt gttgttccag tttggaacaa gagtccacta ttaaagaacg tggactccaa
1861 cgtcaaaggg cgaaaaaccg tctatcaggg cgatggccca ctacgtgaac catcacccta
1921 atcaagtttt ttggggtcga ggtgccgtaa agcactaaat cggaacccta aagggagccc
1981 ccgatttaga gcttgacggg gaaagccggc gaacgtggcg agaaaggaag ggaagaaagc
2041 gaaaggagcg ggcgctaggg cgctggcaag tgtagcggtc acgctgcgcg taaccaccac
2101 acccgccgcg cttaatgcgc cgctacaggg cgcgtcaggt ggcacttttc ggggaaatgt
2161 gcgcggaacc cctatttgtt tatttttcta aatacattca aatatgtatc cgctcatgag
2221 acaataaccc tgataaatgc ttcaataata ttgaaaaagg aagagtcctg aggcggaaag
2281 aaccagctgt ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc cccagcaggc
2341 agaagtatgc aaagcatgca tctcaattag tcagcaacca ggtgtggaaa gtccccaggc
2401 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac catagtcccg
2461 cccctaactc cgcccatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat
2521 ggctgactaa ttttttttat ttatgcagag gccgaggccg cctcggcctc tgagctattc
2581 cagaagtagt gaggaggctt ttttggaggc ctaggctttt gcaaagatcg atcaagagac
2641 aggatgagga tcgtttcgca tgattgaaca agatggattg cacgcaggtt ctccggccgc
2701 ttgggtggag aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc
2761 cgccgtgttc cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc
2821 cggtgccctg aatgaactgc aagacgaggc agcgcggcta tcgtggctgg ccacgacggg
2881 cgttccttgc gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt
2941 gggcgaagtg ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc
3001 catcatggct gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga
3061 ccaccaagcg aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga
3121 tcaggatgat ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct
3181 caaggcgagc atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc
3241 gaatatcatg gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt
3301 ggcggaccgc tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg
3361 cgaatgggct gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat
3421 cgccttctat cgccttcttg acgagttctt ctgagcggga ctctggggtt cgaaatgacc
3481 gaccaagcga cgcccaacct gccatcacga gatttcgatt ccaccgccgc cttctatgaa
3541 aggttgggct tcggaatcgt tttccgggac gccggctgga tgatcctcca gcgcggggat
3601 ctcatgctgg agttcttcgc ccaccctagg gggaggctaa ctgaaacacg gaaggagaca
3661 ataccggaag gaacccgcgc tatgacggca ataaaaagac agaataaaac gcacggtgtt
3721 gggtcgtttg ttcataaacg cggggttcgg tcccagggct ggcactctgt cgatacccca
3781 ccgagacccc attggggcca atacgcccgc gtttcttcct tttccccacc ccacccccca
3841 agttcgggtg aaggcccagg gctcgcagcc aacgtcgggg cggcaggccc tgccatagcc
3901 tcaggttact catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc
3961 taggtgaaga tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc
4021 cactgagcgt cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg
4081 cgcgtaatct gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg
4141 gatcaagagc taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca
4201 aatactgtcc ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg
4261 cctacatacc tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg
4321 tgtcttaccg ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga
4381 acggggggtt cgtgcacaca gcccagcttg gagcgaacga cctacaccga actgagatac
4441 ctacagcgtg agctatgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat
4501 ccggtaagcg gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc
4561 tggtatcttt atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga
4621 tgctcgtcag gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc
4681 ctggcctttt gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg
4741 gataaccgta ttaccgccat gcat
//
