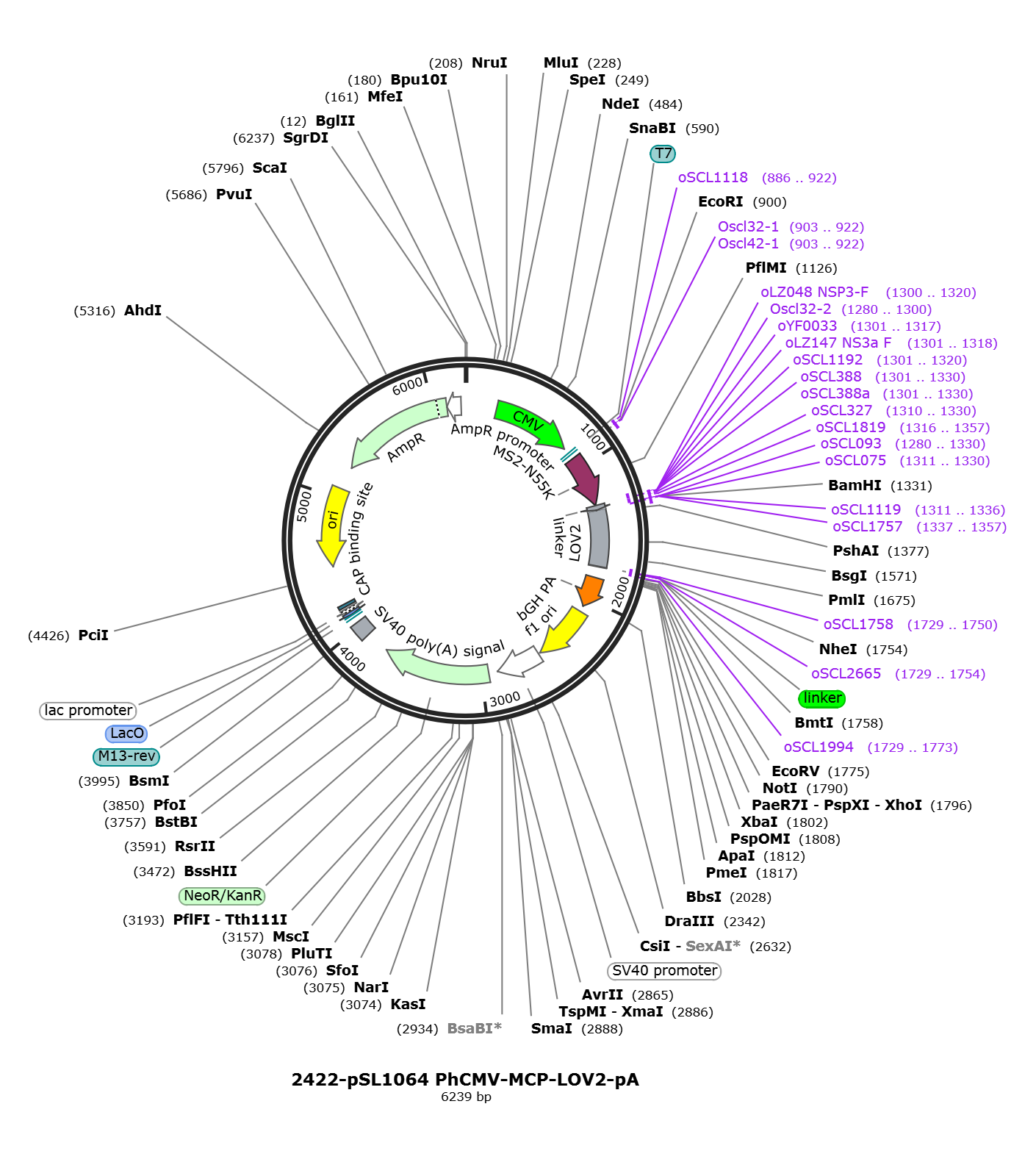

pSL1064

LOCUS       pSL1064             6239 bp DNA     circular SYN 05-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6239)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 28, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6239
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     863..882
                     /label=T7
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     886..922
                     /label=oSCL1118
     primer_bind     903..922
                     /label=Oscl32-1
     primer_bind     903..922
                     /label=Oscl42-1
     regulatory      906..914
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             914..1300
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGVAEWISSNSRSQAYKVT
                     CSVRQSSAQKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATNSDCELI
                     VKAMQGLLKDGNPIPSAIAANSGIY"
     primer_bind     complement(1280..1330)
                     /label=oSCL093
     primer_bind     complement(1280..1300)
                     /label=Oscl32-2
     primer_bind     1300..1320
                     /label=oLZ048 NSP3-F
     misc_feature    1301..1335
                     /label=linker
     misc_feature    1301..1335
                     /label=linker
     primer_bind     1301..1330
                     /label=oSCL388
     primer_bind     1301..1330
                     /label=oSCL388a
     primer_bind     1301..1320
                     /label=oSCL1192
     primer_bind     1301..1318
                     /label=oLZ147 NS3a F
     primer_bind     1301..1317
                     /label=oYF0033
     primer_bind     1310..1330
                     /label=oSCL327
     primer_bind     complement(1311..1336)
                     /label=oSCL1119
     primer_bind     complement(1311..1330)
                     /label=oSCL075
     primer_bind     1316..1357
                     /label=oSCL1819
     misc_feature    1337..1750
                     /label=LOV2
     primer_bind     1337..1357
                     /label=oSCL1757
     primer_bind     complement(1729..1773)
                     /label=oSCL1994
     primer_bind     complement(1729..1754)
                     /label=oSCL2665
     primer_bind     complement(1729..1750)
                     /label=oSCL1758
     CDS             1755..1759
                     /codon_start=1
                     /label=linker
                     /translation="S"
     terminator      1836..2063
                     /label=bGH PA
     polyA_signal    1839..2063
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2109..2537
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2551..2880
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2731..2866
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    2731..2808
                     /label=SV40 ORI
     CDS             2947..3741
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     CDS             2950..3741
                     /label=Kan/neoR
     polyA_signal    3915..4036
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4081..4101)
                     /label=M13-rev
     primer_bind     complement(4085..4101)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4107..4129)
                     /label=LacO
     protein_bind    4109..4125
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4133..4163)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4134..4163)
                     /label=lac
     protein_bind    4178..4199
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4487..5072)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5243..6103)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     CDS             complement(5246..5905)
                     /label=AmpR
     promoter        complement(6104..6208)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(6145..6173)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagg
      901 aattcccacc atggcttcaa actttactca gttcgtgctc gtggacaatg gtgggacagg
      961 ggatgtgaca gtggctcctt ctaatttcgc taatggggtg gcagagtgga tcagctccaa
     1021 ctcacggagc caggcctaca aggtgacatg cagcgtcagg cagtctagtg cccagaagag
     1081 aaagtatacc atcaaggtgg aggtccccaa agtggctacc cagacagtgg gcggagtcga
     1141 actgcctgtc gccgcttgga ggtcctacct gaacatggag ctcactatcc caattttcgc
     1201 taccaattct gactgtgaac tcatcgtgaa ggcaatgcag gggctcctca aagacggtaa
     1261 tcctatccct tccgccatcg ccgctaactc aggtatctac gccagcggaa gtggcggagg
     1321 aggcgacgtc ggatccggtt tggaacgtat cgaaaagaat tttgtcatca cggacccgcg
     1381 tctgcccgac aatccgatta tcttcgcgtc agactctttc ttacaactga ctgagtatag
     1441 tagagaggag atattggggc gtaactgtag atttcttcag gggccagaaa ctgatcgggc
     1501 taccgttcgc aagatacgtg acgcaataga caaccagacc gaggtgacgg tgcagctgat
     1561 taactacaca aagtctggga agaagttctg gaacctgttt catttacaac ctatgaggga
     1621 ccaaaaaggt gacgttcaat atttcatcgg ggttcagtta gatgggactg agcacgtgag
     1681 agatgcagca gaaagagagg gtgtaatgct tattaaaaaa acagccgaga atatcgacga
     1741 agccgctggt taagctagct agaaattctg cagatatcca gcacagtggc ggccgctcga
     1801 gtctagaggg cccgtttaaa cccgctgatc agcctcgact gtgccttcta gttgccagcc
     1861 atctgttgtt tgcccctccc ccgtgccttc cttgaccctg gaaggtgcca ctcccactgt
     1921 cctttcctaa taaaatgagg aaattgcatc gcattgtctg agtaggtgtc attctattct
     1981 ggggggtggg gtggggcagg acagcaaggg ggaggattgg gaagacaata gcaggcatgc
     2041 tggggatgcg gtgggctcta tggcttctga ggcggaaaga accagctggg gctctagggg
     2101 gtatccccac gcgccctgta gcggcgcatt aagcgcggcg ggtgtggtgg ttacgcgcag
     2161 cgtgaccgct acacttgcca gcgccctagc gcccgctcct ttcgctttct tcccttcctt
     2221 tctcgccacg ttcgccggct ttccccgtca agctctaaat cgggggctcc ctttagggtt
     2281 ccgatttagt gctttacggc acctcgaccc caaaaaactt gattagggtg atggttcacg
     2341 tagtgggcca tcgccctgat agacggtttt tcgccctttg acgttggagt ccacgttctt
     2401 taatagtgga ctcttgttcc aaactggaac aacactcaac cctatctcgg tctattcttt
     2461 tgatttataa gggattttgc cgatttcggc ctattggtta aaaaatgagc tgatttaaca
     2521 aaaatttaac gcgaattaat tctgtggaat gtgtgtcagt tagggtgtgg aaagtcccca
     2581 ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc aaccaggtgt
     2641 ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct caattagtca
     2701 gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc cagttccgcc
     2761 cattctccgc cccatggctg actaattttt tttatttatg cagaggccga ggccgcctct
     2821 gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg cttttgcaaa
     2881 aagctcccgg gagcttgtat atccattttc ggatctgatc aagagacagg atgaggatcg
     2941 tttcgcatga ttgaacaaga tggattgcac gcaggttctc cggccgcttg ggtggagagg
     3001 ctattcggct atgactgggc acaacagaca atcggctgct ctgatgccgc cgtgttccgg
     3061 ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg acctgtccgg tgccctgaat
     3121 gaactgcagg acgaggcagc gcggctatcg tggctggcca cgacgggcgt tccttgcgca
     3181 gctgtgctcg acgttgtcac tgaagcggga agggactggc tgctattggg cgaagtgccg
     3241 gggcaggatc tcctgtcatc tcaccttgct cctgccgaga aagtatccat catggctgat
     3301 gcaatgcggc ggctgcatac gcttgatccg gctacctgcc cattcgacca ccaagcgaaa
     3361 catcgcatcg agcgagcacg tactcggatg gaagccggtc ttgtcgatca ggatgatctg
     3421 gacgaagagc atcaggggct cgcgccagcc gaactgttcg ccaggctcaa ggcgcgcatg
     3481 cccgacggcg aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg
     3541 gaaaatggcc gcttttctgg attcatcgac tgtggccggc tgggtgtggc ggaccgctat
     3601 caggacatag cgttggctac ccgtgatatt gctgaagagc ttggcggcga atgggctgac
     3661 cgcttcctcg tgctttacgg tatcgccgct cccgattcgc agcgcatcgc cttctatcgc
     3721 cttcttgacg agttcttctg agcgggactc tggggttcga aatgaccgac caagcgacgc
     3781 ccaacctgcc atcacgagat ttcgattcca ccgccgcctt ctatgaaagg ttgggcttcg
     3841 gaatcgtttt ccgggacgcc ggctggatga tcctccagcg cggggatctc atgctggagt
     3901 tcttcgccca ccccaacttg tttattgcag cttataatgg ttacaaataa agcaatagca
     3961 tcacaaattt cacaaataaa gcattttttt cactgcattc tagttgtggt ttgtccaaac
     4021 tcatcaatgt atcttatcat gtctgtatac cgtcgacctc tagctagagc ttggcgtaat
     4081 catggtcata gctgtttcct gtgtgaaatt gttatccgct cacaattcca cacaacatac
     4141 gagccggaag cataaagtgt aaagcctggg gtgcctaatg agtgagctaa ctcacattaa
     4201 ttgcgttgcg ctcactgccc gctttccagt cgggaaacct gtcgtgccag ctgcattaat
     4261 gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc
     4321 tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg
     4381 cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag
     4441 gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc
     4501 gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag
     4561 gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga
     4621 ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc
     4681 atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg
     4741 tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt
     4801 ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca
     4861 gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca
     4921 ctagaagaac agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag
     4981 ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggttttttt gtttgcaagc
     5041 agcagattac gcgcagaaaa aaaggatctc aagaagatcc tttgatcttt tctacggggt
     5101 ctgacgctca gtggaacgaa aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa
     5161 ggatcttcac ctagatcctt ttaaattaaa aatgaagttt taaatcaatc taaagtatat
     5221 atgagtaaac ttggtctgac agttaccaat gcttaatcag tgaggcacct atctcagcga
     5281 tctgtctatt tcgttcatcc atagttgcct gactccccgt cgtgtagata actacgatac
     5341 gggagggctt accatctggc cccagtgctg caatgatacc gcgagaccca cgctcaccgg
     5401 ctccagattt atcagcaata aaccagccag ccggaagggc cgagcgcaga agtggtcctg
     5461 caactttatc cgcctccatc cagtctatta attgttgccg ggaagctaga gtaagtagtt
     5521 cgccagttaa tagtttgcgc aacgttgttg ccattgctac aggcatcgtg gtgtcacgct
     5581 cgtcgtttgg tatggcttca ttcagctccg gttcccaacg atcaaggcga gttacatgat
     5641 cccccatgtt gtgcaaaaaa gcggttagct ccttcggtcc tccgatcgtt gtcagaagta
     5701 agttggccgc agtgttatca ctcatggtta tggcagcact gcataattct cttactgtca
     5761 tgccatccgt aagatgcttt tctgtgactg gtgagtactc aaccaagtca ttctgagaat
     5821 agtgtatgcg gcgaccgagt tgctcttgcc cggcgtcaat acgggataat accgcgccac
     5881 atagcagaac tttaaaagtg ctcatcattg gaaaacgttc ttcggggcga aaactctcaa
     5941 ggatcttacc gctgttgaga tccagttcga tgtaacccac tcgtgcaccc aactgatctt
     6001 cagcatcttt tactttcacc agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg
     6061 caaaaaaggg aataagggcg acacggaaat gttgaatact catactcttc ctttttcaat
     6121 attattgaag catttatcag ggttattgtc tcatgagcgg atacatattt gaatgtattt
     6181 agaaaaataa acaaataggg gttccgcgca catttccccg aaaagtgcca cctgacgtc
//
