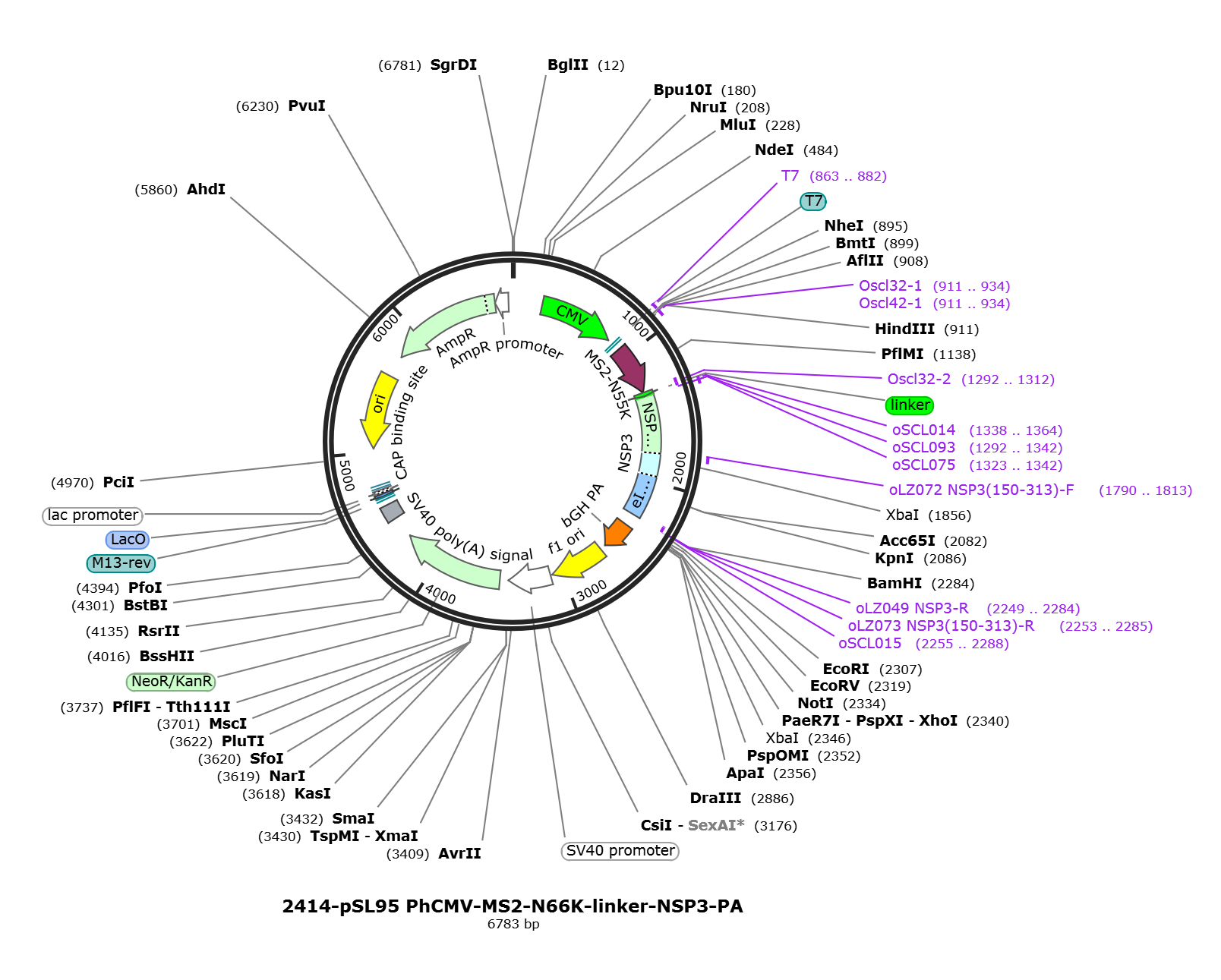

pSL95

LOCUS      pSL95              6783 bp DNA     circular SYN 05-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6783)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 28, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6783
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     863..882
                     /label=T7
     primer_bind     863..882
                     /label=T7
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     911..934
                     /label=Oscl32-1
     primer_bind     911..934
                     /label=Oscl42-1
     regulatory      917..926
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             926..1312
                     /codon_start=1
                     /product="bacteriophage MS2 coat protein"
                     /label=MS2-N55K
                     /note="binds with high affinity to a specific stem-loop
                     structure in the viral RNA (Lim et al., 1994)"
                     /translation="ASNFTQFVLVDNGGTGDVTVAPSNFANGVAEWISSNSRSQAYKVT
                     CSVRQSSAQKRKYTIKVEVPKVATQTVGGVELPVAAWRSYLNMELTIPIFATNSDCELI
                     VKAMQGLLKDGNPIPSAIAANSGIY"
     primer_bind     complement(1292..1342)
                     /label=oSCL093
     primer_bind     complement(1292..1312)
                     /label=Oscl32-2
     misc_feature    1313..1342
                     /label=linker
     primer_bind     complement(1323..1342)
                     /label=oSCL075
     primer_bind     1338..1364
                     /label=oSCL014
     misc_feature    1343..2284
                     /label=NSP3
     primer_bind     1790..1813
                     /label=oLZ072 NSP3(150-313)-F
     primer_bind     complement(2249..2284)
                     /label=oLZ049 NSP3-R
     primer_bind     complement(2253..2285)
                     /label=oLZ073 NSP3(150-313)-R
     primer_bind     complement(2255..2288)
                     /label=oSCL015
     terminator      2380..2607
                     /label=bGH PA
     polyA_signal    2383..2607
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2653..3081
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3095..3424
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3275..3410
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    3275..3352
                     /label=SV40 ORI
     CDS             3491..4285
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     CDS             3494..4285
                     /label=Kan/neoR
     polyA_signal    4459..4580
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4625..4645)
                     /label=M13-rev
     primer_bind     complement(4629..4645)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4651..4673)
                     /label=LacO
     protein_bind    4653..4669
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4677..4707)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4678..4707)
                     /label=lac
     protein_bind    4722..4743
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5031..5616)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5787..6647)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     CDS             complement(5790..6449)
                     /label=AmpR
     promoter        complement(6648..6752)
                     /gene="bla"
                     /label=AmpR promoter
     promoter        complement(6689..6717)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatggcttc aaactttact cagttcgtgc tcgtggacaa
      961 tggtgggaca ggggatgtga cagtggctcc ttctaatttc gctaatgggg tggcagagtg
     1021 gatcagctcc aactcacgga gccaggccta caaggtgaca tgcagcgtca ggcagtctag
     1081 tgcccagaag agaaagtata ccatcaaggt ggaggtcccc aaagtggcta cccagacagt
     1141 gggcggagtc gaactgcctg tcgccgcttg gaggtcctac ctgaacatgg agctcactat
     1201 cccaattttc gctaccaatt ctgactgtga actcatcgtg aaggcaatgc aggggctcct
     1261 caaagacggt aatcctatcc cttccgccat cgccgctaac tcaggtatct acgccagcgg
     1321 aagtggcgga ggaggcgacg tcatgctcaa gatggagtct acacagcaga tggctagttc
     1381 gattattaac acttcttttg aagccgcagt cgttgctgcc acttcaactc ttgaacttat
     1441 gggcattcaa tatgattata atgaagttta tactagagtt aagagcaaat ttgattacgt
     1501 aatggatgat tcaggtgtta aaaacaatct gttgggtaaa gcggcaacta ttgatcaggc
     1561 actgaatgga aaatttggtt cagcagcaag aaatagaaat tggatggctg atactagaac
     1621 tacagctaga ctagatgaag atgtgaacaa acttagaatg atgctatcat ctaaaggaat
     1681 tgatcaaaaa atgagagtac ttaatgcatg tttcaatgtg aagcgagttc caggtaaatc
     1741 atcatcaata attaaatgta ctagattaat gagagataag attgaacgtg gtgaagtcga
     1801 agtggatgat tcgtttgttg aagaaaaaat ggaagttgac acaattgatt ggaaatctag
     1861 atatgaacaa ttggaaaaac gatttgaatc gctgaaacaa agggtgaatg aaaaatatac
     1921 aagttgggtg caaaaagcaa aaaaggtaaa tgaaaatatg tactctctcc aaaacgttat
     1981 atcacaacag cagagccaga ttgctgattt acaaaattac tgtaataaat tggaagttga
     2041 tctacaaaat aaaattagtt cacttgtgtc ttcagtcgaa tggtacctga aatcaatgga
     2101 attgcctgat gaaattaaga cagatattga acaacaacta aattccattg atgtaatcaa
     2161 tccaattaat gctatagatg attttgaatc actgatcaga aatattatac tcgactatga
     2221 cagaatattt ttaatgttta aaggattaat gaggcaatgc aactatgaat atacgtatga
     2281 ataggatcca ctagtccagt gtggtggaat tctgcagata tccagcacag tggcggccgc
     2341 tcgagtctag agggcccgtt taaacccgct gatcagcctc gactgtgcct tctagttgcc
     2401 agccatctgt tgtttgcccc tcccccgtgc cttccttgac cctggaaggt gccactccca
     2461 ctgtcctttc ctaataaaat gaggaaattg catcgcattg tctgagtagg tgtcattcta
     2521 ttctgggggg tggggtgggg caggacagca agggggagga ttgggaagac aatagcaggc
     2581 atgctgggga tgcggtgggc tctatggctt ctgaggcgga aagaaccagc tggggctcta
     2641 gggggtatcc ccacgcgccc tgtagcggcg cattaagcgc ggcgggtgtg gtggttacgc
     2701 gcagcgtgac cgctacactt gccagcgccc tagcgcccgc tcctttcgct ttcttccctt
     2761 cctttctcgc cacgttcgcc ggctttcccc gtcaagctct aaatcggggg ctccctttag
     2821 ggttccgatt tagtgcttta cggcacctcg accccaaaaa acttgattag ggtgatggtt
     2881 cacgtagtgg gccatcgccc tgatagacgg tttttcgccc tttgacgttg gagtccacgt
     2941 tctttaatag tggactcttg ttccaaactg gaacaacact caaccctatc tcggtctatt
     3001 cttttgattt ataagggatt ttgccgattt cggcctattg gttaaaaaat gagctgattt
     3061 aacaaaaatt taacgcgaat taattctgtg gaatgtgtgt cagttagggt gtggaaagtc
     3121 cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccag
     3181 gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta
     3241 gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc cgcccagttc
     3301 cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc
     3361 ctctgcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc taggcttttg
     3421 caaaaagctc ccgggagctt gtatatccat tttcggatct gatcaagaga caggatgagg
     3481 atcgtttcgc atgattgaac aagatggatt gcacgcaggt tctccggccg cttgggtgga
     3541 gaggctattc ggctatgact gggcacaaca gacaatcggc tgctctgatg ccgccgtgtt
     3601 ccggctgtca gcgcaggggc gcccggttct ttttgtcaag accgacctgt ccggtgccct
     3661 gaatgaactg caggacgagg cagcgcggct atcgtggctg gccacgacgg gcgttccttg
     3721 cgcagctgtg ctcgacgttg tcactgaagc gggaagggac tggctgctat tgggcgaagt
     3781 gccggggcag gatctcctgt catctcacct tgctcctgcc gagaaagtat ccatcatggc
     3841 tgatgcaatg cggcggctgc atacgcttga tccggctacc tgcccattcg accaccaagc
     3901 gaaacatcgc atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg atcaggatga
     3961 tctggacgaa gagcatcagg ggctcgcgcc agccgaactg ttcgccaggc tcaaggcgcg
     4021 catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc cgaatatcat
     4081 ggtggaaaat ggccgctttt ctggattcat cgactgtggc cggctgggtg tggcggaccg
     4141 ctatcaggac atagcgttgg ctacccgtga tattgctgaa gagcttggcg gcgaatgggc
     4201 tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca tcgccttcta
     4261 tcgccttctt gacgagttct tctgagcggg actctggggt tcgaaatgac cgaccaagcg
     4321 acgcccaacc tgccatcacg agatttcgat tccaccgccg ccttctatga aaggttgggc
     4381 ttcggaatcg ttttccggga cgccggctgg atgatcctcc agcgcgggga tctcatgctg
     4441 gagttcttcg cccaccccaa cttgtttatt gcagcttata atggttacaa ataaagcaat
     4501 agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc
     4561 aaactcatca atgtatctta tcatgtctgt ataccgtcga cctctagcta gagcttggcg
     4621 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     4681 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     4741 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     4801 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     4861 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     4921 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     4981 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     5041 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     5101 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     5161 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     5221 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     5281 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     5341 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     5401 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     5461 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     5521 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggttt ttttgtttgc
     5581 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     5641 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     5701 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     5761 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     5821 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     5881 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     5941 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     6001 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     6061 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     6121 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     6181 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     6241 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     6301 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     6361 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     6421 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     6481 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     6541 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     6601 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     6661 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     6721 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     6781 gtc
//
