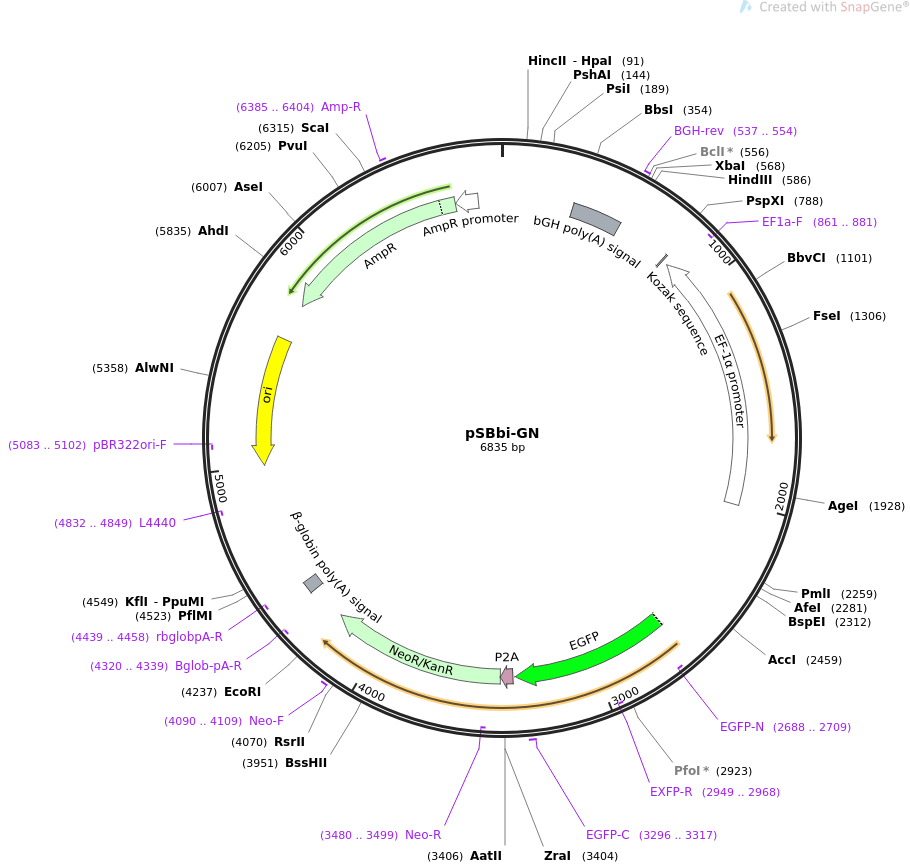

pSBbi-GN

LOCUS       pSBbi-GN                6835 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  SB-transposon with constitutive bi-directional promoter, one side:
            SfiI cloning site for GOI (contains filler DNA), other side: GFP and
            neomycin resistance gene.
ACCESSION   .
VERSION     .
KEYWORDS    pSBbi-GN
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6835)
  AUTHORS   Kowarz E, Loescher D, Marschalek R
  TITLE     Optimized Sleeping Beauty transposons rapidly generate stable
            transgenic cell lines.
  JOURNAL   Biotechnol J. 2015 Feb 4. doi: 10.1002/biot.201400821.
  PUBMED    25650551
REFERENCE   2  (bases 1 to 6835)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6835
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     polyA_signal    324..548
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     537..554
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     regulatory      794..803
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     promoter        complement(829..2010)
                     /label=EF-1-alpha promoter
                     /note="strong constitutive promoter for human elongation
                     factor EF-1-alpha"
     primer_bind     complement(861..881)
                     /label=EF1a-F
                     /note="Human elongation factor-1a promoter, forward primer"
     CDS             2643..3359
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MLSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(2688..2709)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(2949..2968)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     3296..3317
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     CDS             3369..3425
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     CDS             3426..4220
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3480..3499)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4090..4109
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4320..4339)
                     /label=Bglob-pA-R
                     /note="Rabbit beta-globin polyA region, reverse primer"
     polyA_site      4385..4440
                     /label=-beta-globin poly(A) signal
                     /note="rabbit beta-globin polyadenylation signal"
     primer_bind     complement(4439..4458)
                     /label=rbglobpA-R
                     /note="Rabbit beta-globin polyA, reverse primer. Also
                     called rb-glob-pA-term-R"
     primer_bind     complement(4832..4849)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5003..5591)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5083..5102)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5762..6622)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6385..6404
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6623..6727)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ggatccctat acagttgaag tcggaagttt acatacactt aagttggagt cattaaaact
       61 cgtttttcaa ctactccaca aatttcttgt taacaaacaa tagttttggc aagtcagtta
      121 ggacatctac tttgtgcatg acacaagtca tttttccaac aattgtttac agacagatta
      181 tttcacttat aattcactgt atcacaattc cagtgggtca gaagtttaca tacactaagt
      241 tcgactcctc tgcagaatgc ggcgatgttt cggtaagggg tccgctatct agtaggccca
      301 gctggttctt tccgcctcag aagccataga gcccaccgca tccccagcat gcctgctatt
      361 gtcttcccaa tcctccccct tgctgtcctg ccccacccca ccccccagaa tagaatgaca
      421 cctactcaga caatgcgatg caatttcctc attttattag gaaaggacag tgggagtggc
      481 accttccagg gtcaaggaag gcacggggga ggggcaaaca acagatggct ggcaactaga
      541 aggcacagtc gaggctgatc agcgagctct agagaattga tccccaagct tggcctgaca
      601 ggccttcgaa ttagagagaa ggaaagacgc aaccaggaag cccaccaaga gaaagaggca
      661 tttcctgaaa agattcccct ttttggagag ccctacaagg tatttactga acactagaca
      721 ttgaagtcct gatttatcac aatgttgaac cctatgatga aacaattcag tataattgag
      781 ttcgaaactc gagccatggt ggcctcagag gccagcttgg ggtagttttc acgacacctt
      841 aaatggaaga aaaaaacttt gaaccactgt ctgaggcttg agaatgaacc aagatccaaa
      901 ctcaaaaagg gcaaattcca aggagaatta catcaagtgc caagctggcc taacttcagt
      961 ctccacccac tcagtatggg gaaactccat cgcataaaac ccctcccccc aacctaaaga
     1021 cgacgtactc caaaagctcg agaactaatc gaggtgcctg gacggcgccc ggtactccgt
     1081 ggagtcacat gaagcgacgg ctgaggacgg aaaggccctt ttcctttgtg tgggtgactc
     1141 acccgcccgc tctcccgagc gccgcgtcct ccattttgag ctccctgcag cagggccggg
     1201 aagcggccat ctttccgctc acgcaactgg tgccgaccgg gccagccttg ccgcccaggg
     1261 cggggcgata cacggcggcg cgaggccagg caccagagca ggccggccag cttgagacta
     1321 cccccgtccg attctcggtg gccgcgctcg caggccccgc ctcgccgaac atgtgcgctg
     1381 ggacgcacgg gccccgtcgc cgcccgcggc cccaaaaacc gaaataccag tgtgcagatc
     1441 ttggcccgca tttacaagac tatcttgcca gaaaaaaagc gtcgcagcag gtcatcaaaa
     1501 attttaaatg gctagagact tatcgaaagc agcgagacag gcgcgaaggt gccaccagat
     1561 tcgcacgcgg cggccccagc gcccaggcca agcctcaact caagcacgag gcgaaggggc
     1621 tccttaagcg caaggcctcg aactctccca cccacttcca acccgaagct cgggatcaag
     1681 aatcacgtac tgcagccagg ggcgtggaag taattcaagg cacgcaaggg ccataacccg
     1741 taaagaggcc aggcccgcgg gaaccacaca cggcacttac ctgtgttctg gcggcaaacc
     1801 cgttgcgaaa aagaacgttc acggcgacta ctgcacttat atacggttct cccccaccct
     1861 cgggaaaaag gcggagccag tacacgacat cactttccca gtttaccccg cgccaccttc
     1921 tctaggcacc ggttcaattg ccgacccctc cccccaactt ctcggggact gtgggcgatg
     1981 tgcgctctgc ccactgacgg gcaccggagc ctctaggcga gaccctgtct cacaaaataa
     2041 agtaagcccg gactgagtgc ggaaaggcgg gcctggcggg tctggtctcc ccatgcgggc
     2101 caccagaggc cctgcagcct tcagtcgctt gaaggggtaa tggcgcttcc actcacaaac
     2161 atggcggaca gagcgtgtga acgagatgaa cagcccctca aaaatatggc cgccgaggct
     2221 ggacggccgt gccccagcag caccgcctcc gcgccccacg tgatctctcg ccgggcacag
     2281 cgctgaccgc ggaggtccaa ccggaagaat gtccggattg gacattcgga agagggcccg
     2341 ccttccctgg ggaatctctg cgcacgcgca gaacgcttcg accaatgaaa acacaggaag
     2401 ccgtccgcgc aaccgcgttg cgtcacttct gccgcccctg tttcaaggta tatagccgta
     2461 gacggaactt cgcctttctc tcggccttag cgccattttt ttgggtgagt gttttttggt
     2521 tcctgcgttg ggattccgtg tacaatccat agacatctga cctcggcact tagcatcatc
     2581 acagcaaact aactgtagcc tttctctctt tccctgtaga aacctctgca cctgaggcca
     2641 ccatgttgag caagggcgag gagctgttca ccggggtggt gcccatcctg gtcgagctgg
     2701 acggcgacgt aaacggccac aagttcagcg tgtccggcga gggcgagggc gatgccacct
     2761 acggcaagct gaccctgaag ttcatctgca ccaccggcaa gctgcccgtg ccctggccca
     2821 ccctcgtgac caccctgacc tacggcgtgc agtgcttcag ccgctacccc gaccacatga
     2881 agcagcacga cttcttcaag tccgccatgc ccgaaggcta cgtccaggag cgcaccatct
     2941 tcttcaagga cgacggcaac tacaagaccc gcgccgaggt gaagttcgag ggcgacaccc
     3001 tggtgaaccg catcgagctg aagggcatcg acttcaagga ggacggcaac atcctggggc
     3061 acaagctgga gtacaactac aacagccaca acgtctatat catggccgac aagcagaaga
     3121 acggcatcaa ggtgaacttc aagatccgcc acaacatcga ggacggcagc gtgcagctcg
     3181 ccgaccacta ccagcagaac acccccatcg gcgacggccc cgtgctgctg cccgacaacc
     3241 actacctgag cacccagtcc gccctgagca aagaccccaa cgagaagcgc gatcacatgg
     3301 tcctgctgga gttcgtgacc gccgccggga tcactctcgg catggacgag ctgtacaagg
     3361 gcagtggagc tactaacttc agcctgctga agcaggctgg tgacgtcgag gagaatcctg
     3421 gccccatgat tgaacaagat ggattgcacg caggttctcc ggccgcttgg gtggagaggc
     3481 tattcggcta tgactgggca caacagacaa tcggctgctc tgatgccgcc gtgttccggc
     3541 tgtcagcgca ggggcgcccg gttctttttg tcaagaccga cctgtccggt gccctgaatg
     3601 aactgcagga cgaggcagcg cggctatcgt ggctggccac gacgggcgtt ccttgcgcag
     3661 ctgtgctcga cgttgtcact gaagcgggaa gggactggct gctattgggc gaagtgccgg
     3721 ggcaggatct cctgtcatct caccttgctc ctgccgagaa agtatccatc atggctgatg
     3781 caatgcggcg gctgcatacg cttgatccgg ctacctgccc attcgaccac caagcgaaac
     3841 atcgcatcga gcgagcacgt actcggatgg aagccggtct tgtcgatcag gatgatctgg
     3901 acgaagagca tcaggggctc gcgccagccg aactgttcgc caggctcaag gcgcgcatgc
     3961 ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat atcatggtgg
     4021 aaaatggccg cttttctgga ttcatcgact gtggccggct gggtgtggcg gaccgctatc
     4081 aggacatagc gttggctacc cgtgatattg ctgaagagct tggcggcgaa tgggctgacc
     4141 gcttcctcgt gctttacggt atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc
     4201 ttcttgacga gttcttctga ttcgaaggcc tgtcgtgaat tcactcctca ggtgcaggct
     4261 gcctatcaga aggtggtggc tggtgtggcc aatgccctgg ctcacaaata ccactgagat
     4321 ctttttccct ctgccaaaaa ttatggggac atcatgaagc cccttgagca tctgacttct
     4381 ggctaataaa ggaaatttat tttcattgca atagtgtgtt ggaatttttt gtgtctctca
     4441 ctcggaagga catatgggag ggcaaatcat ttaaaacatc agaatgagta tttggtttag
     4501 agtttggcaa catatgccat atgctggctg ccatgaacta gctactcggg accccttacc
     4561 gaaacatcgc cgcattctgc agaggagtcg agtgtatgta aacttctgac ccactgggaa
     4621 tgtgatgaaa gaaataaaag ctgaaatgaa tcattctctc tactattatt ctgatatttc
     4681 acattcttaa aataaagtgg tgatcctaac tgacctaaga cagggaattt ttactaggat
     4741 taaatgtcag gaattgtgaa aaagtgagtt taaatgtatt tggctaaggt gtatgtaaac
     4801 ttccgacttc aactgtatag ggatccgctt cctcgctcac tgactcgctg cgctcggtcg
     4861 ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat
     4921 caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta
     4981 aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa
     5041 atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc
     5101 cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt
     5161 ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca
     5221 gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg
     5281 accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat
     5341 cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta
     5401 cagagttctt gaagtggtgg cctaactacg gctacactag aagaacagta tttggtatct
     5461 gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac
     5521 aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa
     5581 aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa
     5641 actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt
     5701 taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca
     5761 gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca
     5821 tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc
     5881 ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa
     5941 accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc
     6001 agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca
     6061 acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat
     6121 tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag
     6181 cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac
     6241 tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt
     6301 ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt
     6361 gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc
     6421 tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat
     6481 ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca
     6541 gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga
     6601 cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg
     6661 gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg
     6721 ttccgcgcac atttccccga aaagtgccac ctgatgcggt gtgaaatacc gcacagatgc
     6781 gtaaggagaa aataccgcat caggaaattg taagcgttaa tattttgtta aaatt
//
