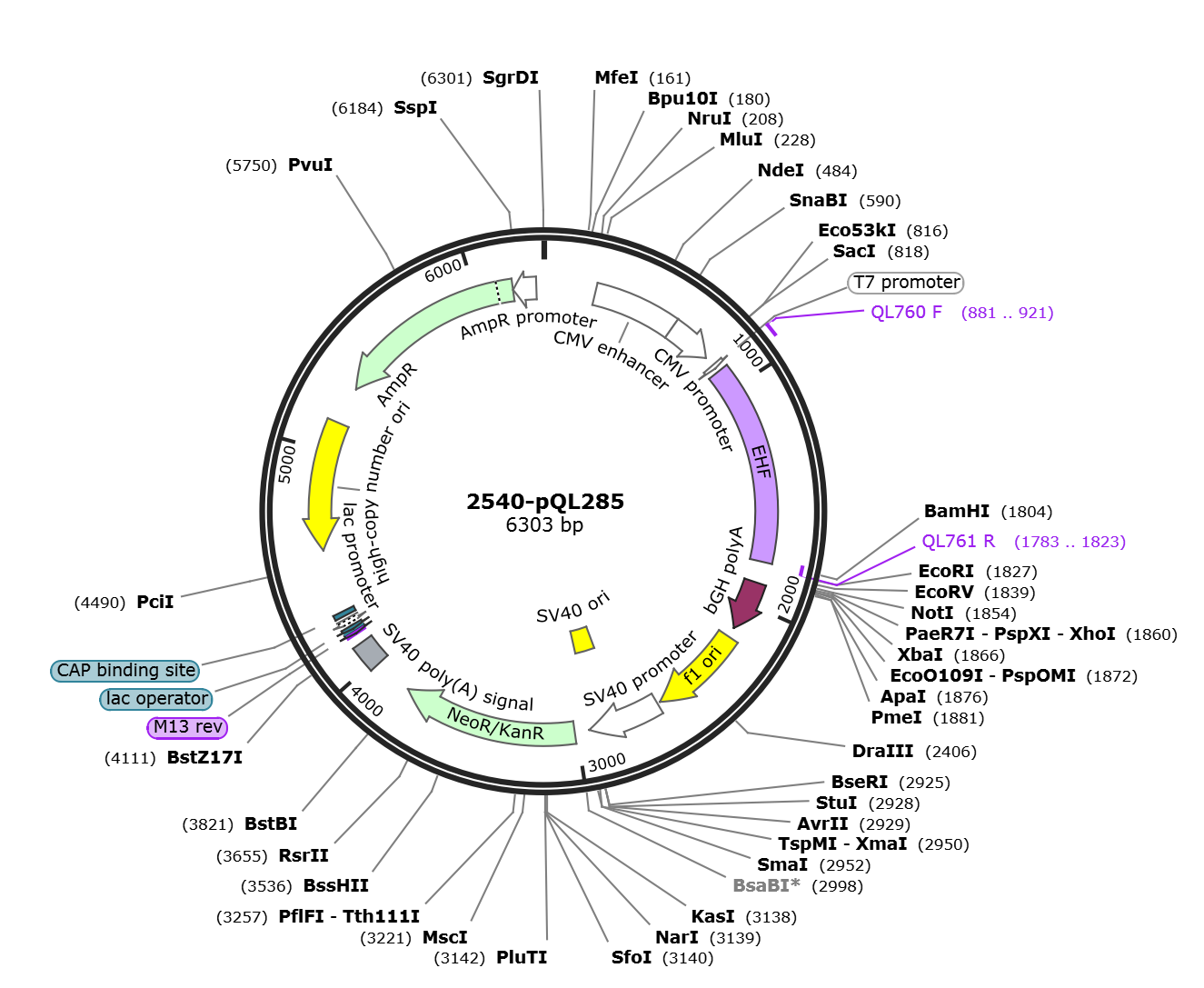

pQL285

LOCUS      pQL285    6303 bp DNA     circular SYN 07-APR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6303)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6303
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     881..921
                     /label=QL760 F
     misc_feature    901..1803
                     /label=EHF
     primer_bind     complement(1783..1823)
                     /label=QL761 R
     CDS             1900..2127
                     /codon_start=1
                     /label=bGH polyA
                     /translation="RLCLLVASHLLFAPPPCLP*PWKVPLPLSFPNKMRKLHRIV*VGV
                     ILFWGVGWGRTARGRIGKTIAGMLGMRWALW"
     rep_origin      2173..2601
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2615..2944
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2795..2930
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2847..2896
                     /codon_start=1
                     /label=P_SV40 TSS-region
                     /translation="*FFLFMQRPRPPLPLS"
     CDS             3011..3805
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3979..4100
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4149..4165)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    complement(4173..4189)
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4197..4227)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4242..4263
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4551..5136)
                     /direction=LEFT
                     /label=high-copy number ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5307..6167)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6168..6272)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 atgattctgg aaggaagtgg tgtaatgaat ctcaacccag ccaacaacct ccttcaccag
      961 caaccagcct ggacggacag ctaccccaca tgcaatgttt ccagcggttt ttttggaagc
     1021 cagtggcatg aaatccaccc tcagtactgg accaaatacc aggtgtggga atggctgcag
     1081 cacctcctgg acaccaacca gctagacgct agctgcatcc ctttccagga gttcgacatt
     1141 agcggagaac acctgtgcag catgagtctg caggagttca cgagggcagc aggctcagct
     1201 gggcagctgc tctacagcaa cctacagcat ctcaagtgga acggccaatg cagcagtgac
     1261 cttttccagt ccgcacacaa tgtcattgtc aagactgaac aaaccgatcc ttccatcatg
     1321 aacacatgga aagaagaaaa ctatctctat gatcccagct atggtagcac agtagatctg
     1381 ttggacagta agactttctg ccgggctcag atctccatga caacctccag tcaccttcca
     1441 gttgcagagt cacctgatat gaaaaaggag caagaccacc ctgtaaagtc ccacaccaaa
     1501 aagcacaacc caagaggcac tcacttatgg gagttcatcc gagacattct cttgagccca
     1561 gacaagaacc caggactgat caaatgggaa gaccgttcgg aaggcatctt caggttcctg
     1621 aagtcagaag ctgtggctca gctgtggggg aaaaagaaaa ataacagtag catgacatac
     1681 gagaagctca gccgggctat gagatattac tacaaacgag aaatcctgga acgtgtggat
     1741 ggacgacggc tggtctataa gtttgggaag aatgctcgtg gatggagaga aaatgagaac
     1801 tgaggatcca ctagtccagt gtggtggaat tctgcagata tccagcacag tggcggccgc
     1861 tcgagtctag agggcccgtt taaacccgct gatcagcctc gactgtgcct tctagttgcc
     1921 agccatctgt tgtttgcccc tcccccgtgc cttccttgac cctggaaggt gccactccca
     1981 ctgtcctttc ctaataaaat gaggaaattg catcgcattg tctgagtagg tgtcattcta
     2041 ttctgggggg tggggtgggg caggacagca agggggagga ttgggaagac aatagcaggc
     2101 atgctgggga tgcggtgggc tctatggctt ctgaggcgga aagaaccagc tggggctcta
     2161 gggggtatcc ccacgcgccc tgtagcggcg cattaagcgc ggcgggtgtg gtggttacgc
     2221 gcagcgtgac cgctacactt gccagcgccc tagcgcccgc tcctttcgct ttcttccctt
     2281 cctttctcgc cacgttcgcc ggctttcccc gtcaagctct aaatcggggg ctccctttag
     2341 ggttccgatt tagtgcttta cggcacctcg accccaaaaa acttgattag ggtgatggtt
     2401 cacgtagtgg gccatcgccc tgatagacgg tttttcgccc tttgacgttg gagtccacgt
     2461 tctttaatag tggactcttg ttccaaactg gaacaacact caaccctatc tcggtctatt
     2521 cttttgattt ataagggatt ttgccgattt cggcctattg gttaaaaaat gagctgattt
     2581 aacaaaaatt taacgcgaat taattctgtg gaatgtgtgt cagttagggt gtggaaagtc
     2641 cccaggctcc ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccag
     2701 gtgtggaaag tccccaggct ccccagcagg cagaagtatg caaagcatgc atctcaatta
     2761 gtcagcaacc atagtcccgc ccctaactcc gcccatcccg cccctaactc cgcccagttc
     2821 cgcccattct ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc
     2881 ctctgcctct gagctattcc agaagtagtg aggaggcttt tttggaggcc taggcttttg
     2941 caaaaagctc ccgggagctt gtatatccat tttcggatct gatcaagaga caggatgagg
     3001 atcgtttcgc atgattgaac aagatggatt gcacgcaggt tctccggccg cttgggtgga
     3061 gaggctattc ggctatgact gggcacaaca gacaatcggc tgctctgatg ccgccgtgtt
     3121 ccggctgtca gcgcaggggc gcccggttct ttttgtcaag accgacctgt ccggtgccct
     3181 gaatgaactg caggacgagg cagcgcggct atcgtggctg gccacgacgg gcgttccttg
     3241 cgcagctgtg ctcgacgttg tcactgaagc gggaagggac tggctgctat tgggcgaagt
     3301 gccggggcag gatctcctgt catctcacct tgctcctgcc gagaaagtat ccatcatggc
     3361 tgatgcaatg cggcggctgc atacgcttga tccggctacc tgcccattcg accaccaagc
     3421 gaaacatcgc atcgagcgag cacgtactcg gatggaagcc ggtcttgtcg atcaggatga
     3481 tctggacgaa gagcatcagg ggctcgcgcc agccgaactg ttcgccaggc tcaaggcgcg
     3541 catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat gcctgcttgc cgaatatcat
     3601 ggtggaaaat ggccgctttt ctggattcat cgactgtggc cggctgggtg tggcggaccg
     3661 ctatcaggac atagcgttgg ctacccgtga tattgctgaa gagcttggcg gcgaatgggc
     3721 tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat tcgcagcgca tcgccttcta
     3781 tcgccttctt gacgagttct tctgagcggg actctggggt tcgaaatgac cgaccaagcg
     3841 acgcccaacc tgccatcacg agatttcgat tccaccgccg ccttctatga aaggttgggc
     3901 ttcggaatcg ttttccggga cgccggctgg atgatcctcc agcgcgggga tctcatgctg
     3961 gagttcttcg cccaccccaa cttgtttatt gcagcttata atggttacaa ataaagcaat
     4021 agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg tggtttgtcc
     4081 aaactcatca atgtatctta tcatgtctgt ataccgtcga cctctagcta gagcttggcg
     4141 taatcatggt catagctgtt tcctgtgtga aattgttatc cgctcacaat tccacacaac
     4201 atacgagccg gaagcataaa gtgtaaagcc tggggtgcct aatgagtgag ctaactcaca
     4261 ttaattgcgt tgcgctcact gcccgctttc cagtcgggaa acctgtcgtg ccagctgcat
     4321 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     4381 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     4441 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     4501 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     4561 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     4621 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     4681 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     4741 tctcatagct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     4801 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     4861 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     4921 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     4981 tacactagaa gaacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     5041 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggttt ttttgtttgc
     5101 aagcagcaga ttacgcgcag aaaaaaagga tctcaagaag atcctttgat cttttctacg
     5161 gggtctgacg ctcagtggaa cgaaaactca cgttaaggga ttttggtcat gagattatca
     5221 aaaaggatct tcacctagat ccttttaaat taaaaatgaa gttttaaatc aatctaaagt
     5281 atatatgagt aaacttggtc tgacagttac caatgcttaa tcagtgaggc acctatctca
     5341 gcgatctgtc tatttcgttc atccatagtt gcctgactcc ccgtcgtgta gataactacg
     5401 atacgggagg gcttaccatc tggccccagt gctgcaatga taccgcgaga cccacgctca
     5461 ccggctccag atttatcagc aataaaccag ccagccggaa gggccgagcg cagaagtggt
     5521 cctgcaactt tatccgcctc catccagtct attaattgtt gccgggaagc tagagtaagt
     5581 agttcgccag ttaatagttt gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca
     5641 cgctcgtcgt ttggtatggc ttcattcagc tccggttccc aacgatcaag gcgagttaca
     5701 tgatccccca tgttgtgcaa aaaagcggtt agctccttcg gtcctccgat cgttgtcaga
     5761 agtaagttgg ccgcagtgtt atcactcatg gttatggcag cactgcataa ttctcttact
     5821 gtcatgccat ccgtaagatg cttttctgtg actggtgagt actcaaccaa gtcattctga
     5881 gaatagtgta tgcggcgacc gagttgctct tgcccggcgt caatacggga taataccgcg
     5941 ccacatagca gaactttaaa agtgctcatc attggaaaac gttcttcggg gcgaaaactc
     6001 tcaaggatct taccgctgtt gagatccagt tcgatgtaac ccactcgtgc acccaactga
     6061 tcttcagcat cttttacttt caccagcgtt tctgggtgag caaaaacagg aaggcaaaat
     6121 gccgcaaaaa agggaataag ggcgacacgg aaatgttgaa tactcatact cttccttttt
     6181 caatattatt gaagcattta tcagggttat tgtctcatga gcggatacat atttgaatgt
     6241 atttagaaaa ataaacaaat aggggttccg cgcacatttc cccgaaaagt gccacctgac
     6301 gtc
//
