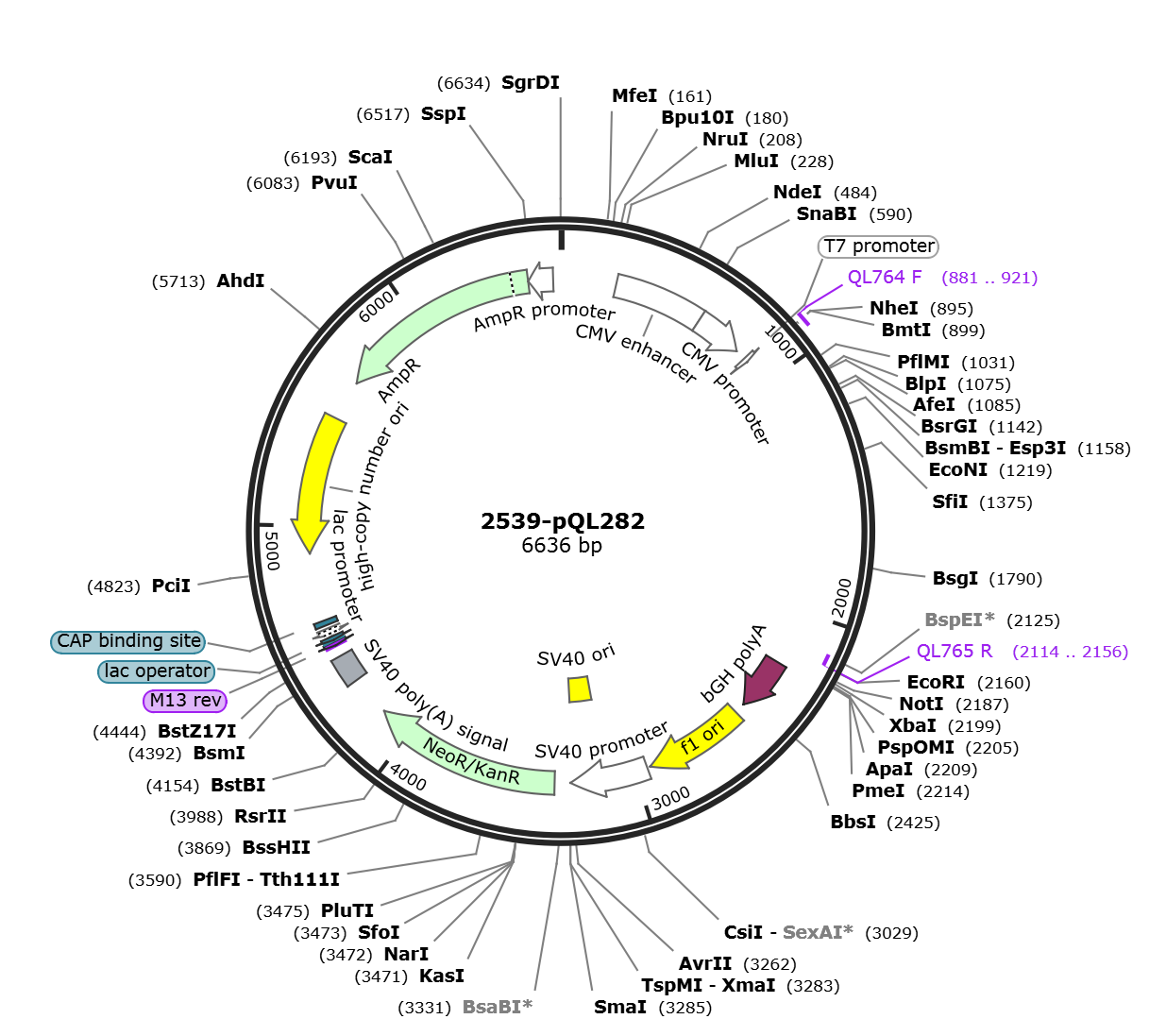

pQL282

LOCUS       pQL282            6636 bp DNA     circular SYN 05-DEC-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6636)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 3, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6636
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     881..921
                     /label=QL764 F
     primer_bind     complement(2114..2156)
                     /label=QL765 R
     CDS             2233..2460
                     /codon_start=1
                     /label=bGH polyA
                     /translation="RLCLLVASHLLFAPPPCLP*PWKVPLPLSFPNKMRKLHRIV*VGV
                     ILFWGVGWGRTARGRIGKTIAGMLGMRWALW"
     rep_origin      2506..2934
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2948..3277
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3128..3263
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3180..3229
                     /codon_start=1
                     /label=P_SV40 TSS-region
                     /translation="*FFLFMQRPRPPLPLS"
     CDS             3344..4138
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4312..4433
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4482..4498)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    complement(4506..4522)
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4530..4560)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4575..4596
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4884..5469)
                     /direction=LEFT
                     /label=high-copy number ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5640..6500)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6501..6605)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 atggagagtg caatcacgct gtggcagttc ctcttgcact tgctgctgga ccagaaacat
      961 gagcacctca tctgctggac atcgaacgat ggcgagttca agctcctcaa ggcggaagaa
     1021 gtggccaagc tgtggggcct ccgcaagaac aagaccaaca tgaactacga caagctgagc
     1081 agagcgctga gatactatta cgacaagaac atcatcaaga aagtgatcgg gcagaagttt
     1141 gtgtacaagt tcgtctcttt cccggatatc ctgaaaatgg atcctcacgc ggtagagatc
     1201 agccgggaga gcctcctgct gcaggacggc gactgtaagg tgtccccgga aggccgagag
     1261 gtccacaggc acggcttgtc ctctctcaaa agtgccagcc gcaacgagta cctccactcg
     1321 ggcctctact cgtccttcac catcaactcc ctgcagaacg ctccagaggc cttcaaggcc
     1381 atcaagacgg agaagctgga ggagccctgt gatgacagtc cccctgtgga agaagtcagg
     1441 actgtgatca ggtttgtgac caataaaacc gacaagcaca tcaccaggcc tgtggtgtcc
     1501 ctgccttcca catccgagac cgctgcggca gcggcatccg ctttcctggc ctcgtctgtc
     1561 tcagccaaga tctcctcttt aatgttgcca aatgctgcca gcatttcgtc tgcgtcaccc
     1621 tcttcatctc ggtccccatc cctgtccccc gactctcccc tcccttctga acacagaagc
     1681 ctcttcctgg aggcagcctg ccatgactcg gattctctgg agcccctgaa tctgtcatcg
     1741 ggctccaaaa ccaagtctcc atctcttccc ccaaaaggca aaaaacccaa aggcttggaa
     1801 atctctgcac cccaactgtt gctctccggc accgacatcg gctccatcgc cctcaacagc
     1861 ccagccctcc cctcaggatc cctcactcca gccttcttca ccgcacagac accaagtgga
     1921 ctgtttctgg cctcgagtcc gctgctgccc agcatacact tctggagcag ccttagtcct
     1981 gtcgccccac tgagtcctgc caggctgcaa gggccgaaca cacttttcca gttccccaca
     2041 ctgctcaacg gtcacatgcc ggtgccgctc cccagtctgg acagagctcc atccccagtt
     2101 ctgctgtccc ccagctctca gaaatccgga tcctaaggat ccactagtcc agtgtggtgg
     2161 aattctgcag atatccagca cagtggcggc cgctcgagtc tagagggccc gtttaaaccc
     2221 gctgatcagc ctcgactgtg ccttctagtt gccagccatc tgttgtttgc ccctcccccg
     2281 tgccttcctt gaccctggaa ggtgccactc ccactgtcct ttcctaataa aatgaggaaa
     2341 ttgcatcgca ttgtctgagt aggtgtcatt ctattctggg gggtggggtg gggcaggaca
     2401 gcaaggggga ggattgggaa gacaatagca ggcatgctgg ggatgcggtg ggctctatgg
     2461 cttctgaggc ggaaagaacc agctggggct ctagggggta tccccacgcg ccctgtagcg
     2521 gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt gaccgctaca cttgccagcg
     2581 ccctagcgcc cgctcctttc gctttcttcc cttcctttct cgccacgttc gccggctttc
     2641 cccgtcaagc tctaaatcgg gggctccctt tagggttccg atttagtgct ttacggcacc
     2701 tcgaccccaa aaaacttgat tagggtgatg gttcacgtag tgggccatcg ccctgataga
     2761 cggtttttcg ccctttgacg ttggagtcca cgttctttaa tagtggactc ttgttccaaa
     2821 ctggaacaac actcaaccct atctcggtct attcttttga tttataaggg attttgccga
     2881 tttcggccta ttggttaaaa aatgagctga tttaacaaaa atttaacgcg aattaattct
     2941 gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc tccccagcag gcagaagtat
     3001 gcaaagcatg catctcaatt agtcagcaac caggtgtgga aagtccccag gctccccagc
     3061 aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accatagtcc cgcccctaac
     3121 tccgcccatc ccgcccctaa ctccgcccag ttccgcccat tctccgcccc atggctgact
     3181 aatttttttt atttatgcag aggccgaggc cgcctctgcc tctgagctat tccagaagta
     3241 gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag ctcccgggag cttgtatatc
     3301 cattttcgga tctgatcaag agacaggatg aggatcgttt cgcatgattg aacaagatgg
     3361 attgcacgca ggttctccgg ccgcttgggt ggagaggcta ttcggctatg actgggcaca
     3421 acagacaatc ggctgctctg atgccgccgt gttccggctg tcagcgcagg ggcgcccggt
     3481 tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa ctgcaggacg aggcagcgcg
     3541 gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct gtgctcgacg ttgtcactga
     3601 agcgggaagg gactggctgc tattgggcga agtgccgggg caggatctcc tgtcatctca
     3661 ccttgctcct gccgagaaag tatccatcat ggctgatgca atgcggcggc tgcatacgct
     3721 tgatccggct acctgcccat tcgaccacca agcgaaacat cgcatcgagc gagcacgtac
     3781 tcggatggaa gccggtcttg tcgatcagga tgatctggac gaagagcatc aggggctcgc
     3841 gccagccgaa ctgttcgcca ggctcaaggc gcgcatgccc gacggcgagg atctcgtcgt
     3901 gacccatggc gatgcctgct tgccgaatat catggtggaa aatggccgct tttctggatt
     3961 catcgactgt ggccggctgg gtgtggcgga ccgctatcag gacatagcgt tggctacccg
     4021 tgatattgct gaagagcttg gcggcgaatg ggctgaccgc ttcctcgtgc tttacggtat
     4081 cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt cttgacgagt tcttctgagc
     4141 gggactctgg ggttcgaaat gaccgaccaa gcgacgccca acctgccatc acgagatttc
     4201 gattccaccg ccgccttcta tgaaaggttg ggcttcggaa tcgttttccg ggacgccggc
     4261 tggatgatcc tccagcgcgg ggatctcatg ctggagttct tcgcccaccc caacttgttt
     4321 attgcagctt ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca
     4381 tttttttcac tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttatcatgtc
     4441 tgtataccgt cgacctctag ctagagcttg gcgtaatcat ggtcatagct gtttcctgtg
     4501 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     4561 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     4621 ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga
     4681 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     4741 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     4801 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     4861 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     4921 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     4981 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     5041 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     5101 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     5161 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     5221 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     5281 acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt atttggtatc
     5341 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     5401 caaaccaccg ctggtagcgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa
     5461 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac
     5521 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta
     5581 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt
     5641 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata
     5701 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc
     5761 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac
     5821 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag
     5881 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac
     5941 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc
     6001 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg
     6061 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc
     6121 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct
     6181 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc
     6241 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc
     6301 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc
     6361 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc
     6421 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca
     6481 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt
     6541 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt
     6601 ccgcgcacat ttccccgaaa agtgccacct gacgtc
//
