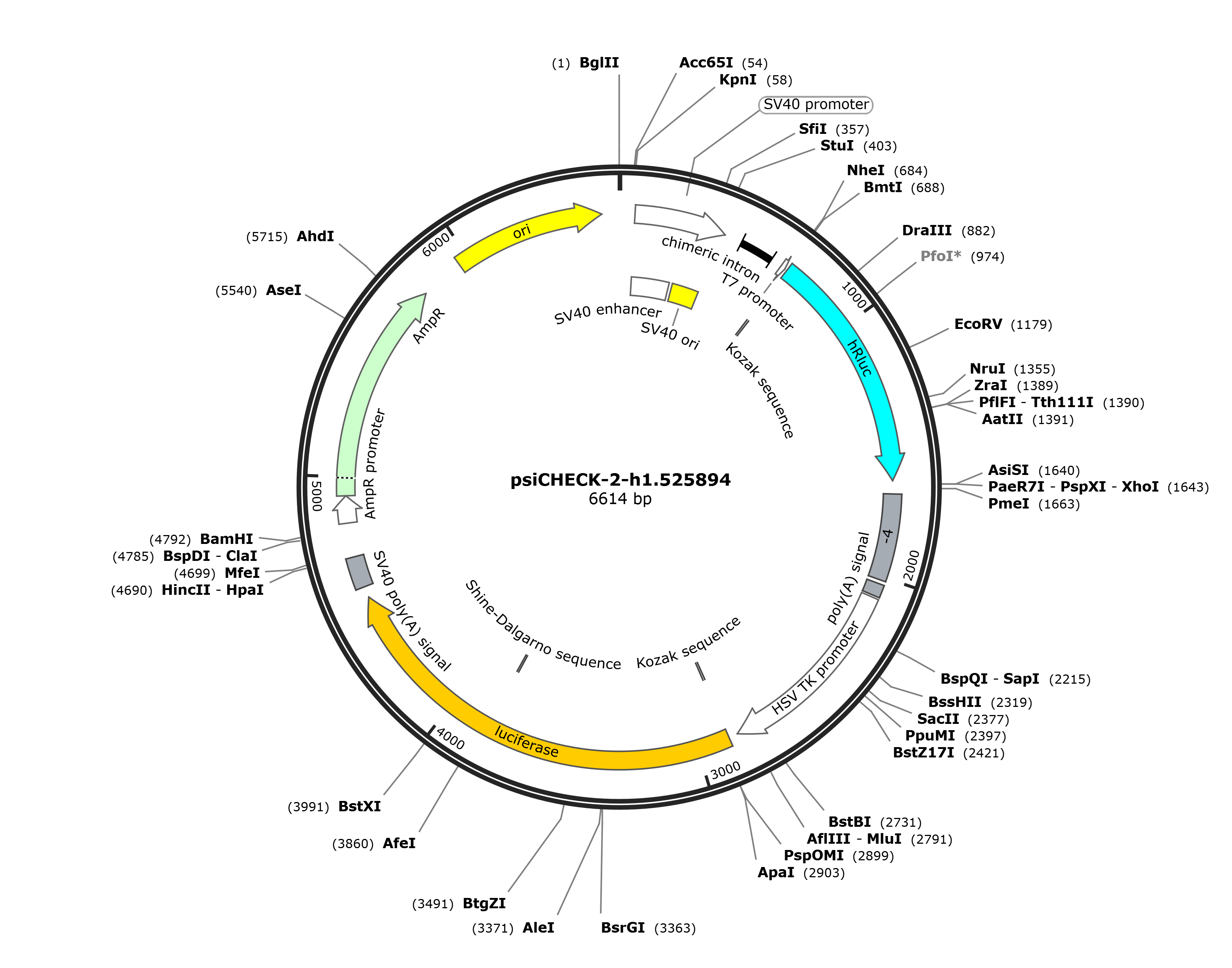

psiCHECK-2-h1.525894

LOCUS       psiCHECK-2-h1.525894              6614 bp DNA     circular SYN 03-FEB-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6614)
  AUTHORS   SnapGene License
  TITLE     Direct Submission
  JOURNAL   Exported Aug 26, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6614
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        62..419
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     enhancer        62..253
                     /label=SV40 enhancer
                     /note="enhancer for the SV40 early promoter (Herr, 1993)"
     rep_origin      270..405
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     intron          489..621
                     /label=chimeric intron
                     /note="chimera between introns from human beta-globin and
                     immunoglobulin heavy chain genes"
     promoter        666..684
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      688..697
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             694..1629
                     /codon_start=1
                     /product="Renilla luciferase"
                     /label=hRluc
                     /note="human codon-optimized"
                     /translation="MASKVYDPEQRKRMITGPQWWARCKQMNVLDSFINYYDSEKHAEN
                     AVIFLHGNAASSYLWRHVVPHIEPVARCIIPDLIGMGKSGKSGNGSYRLLDHYKYLTAW
                     FELLNLPKKIIFVGHDWGACLAFHYSYEHQDKIKAIVHAESVVDVIESWDEWPDIEEDI
                     ALIKSEEGEKMVLENNFFVETMLPSKIMRKLEPEEFAAYLEPFKEKGEVRRPTLSWPRE
                     IPLVKGGKPDVVQIVRNYNAYLRASDDLPKMFIESDPGFFSNAIVEGAKKFPNTEFVKV
                     KGLHFSQEDAPDEMGKYIKSFVERVLKNEQ"
     misc_feature    1681..2013
                     /label=-4
     polyA_signal    2029..2077
                     /note="synthetic polyadenylation signal"
     promoter        2086..2837
                     /label=HSV TK promoter
                     /note="herpes simplex virus thymidine kinase promoter"
     regulatory      2867..2876
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             2873..4525
                     /codon_start=1
                     /gene="luc+"
                     /product="firefly luciferase"
                     /label=luciferase
                     /note="enhanced luc+ version of the luciferase gene"
                     /db_xref="GI:42718124"
                     /protein_id="AAS38485.1"
                     /translation="MADAKNIKKGPAPFYPLEDGTAGEQLHKAMKRYALVPGTIAFTDA
                     HIEVDITYAEYFEMSVRLAEAMKRYGLNTNHRIVVCSENSLQFFMPVLGALFIGVAVAP
                     ANDIYNERELLNSMGISQPTVVFVSKKGLQKILNVQKKLPIIQKIIIMDSKTDYQGFQS
                     MYTFVTSHLPPGFNEYDFVPESFDRDKTIALIMNSSGSTGLPKGVALPHRTACVRFSHA
                     RDPIFGNQIIPDTAILSVVPFHHGFGMFTTLGYLICGFRVVLMYRFEEELFLRSLQDYK
                     IQSALLVPTLFSFFAKSTLIDKYDLSNLHEIASGGAPLSKEVGEAVAKRFHLPGIRQGY
                     GLTETTSAILITPEGDDKPGAVGKVVPFFEAKVVDLDTGKTLGVNQRGELCVRGPMIMS
                     GYVNNPEATNALIDKDGWLHSGDIAYWDEDEHFFIVDRLKSLIKYKGYQVAPAELESIL
                     LQHPNIFDAGVAGLPDDDAGELPAAVVVLEHGKTMTEKEIVDYVASQVTTAKKLRGGVV
                     FVDEVPKGLTGKLDARKIREILIKAKKGGKIAV"
     RBS             3832..3840
                     /label=Shine-Dalgarno sequence
                     /note="full consensus sequence for ribosome-binding sites
                     upstream of start codons in E. coli; complementary to a
                     region in the 3' end of the 16S rRNA (Chen et al., 1994)"
     polyA_signal    4569..4690
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     promoter        4823..4927
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4928..5788
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      5959..6547
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 agatctgcgc agcaccatgg cctgaaataa cctctgaaag aggaacttgg ttaggtacct
       61 tctgaggcgg aaagaaccag ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag
      121 gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accaggtgtg
      181 gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag
      241 caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc agttccgccc
      301 attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctcgg
      361 cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc ttttgcaaaa
      421 agcttgattc ttctgacaca acagtctcga acttaagctg cagaagttgg tcgtgaggca
      481 ctgggcaggt aagtatcaag gttacaagac aggtttaagg agaccaatag aaactgggct
      541 tgtcgagaca gagaagactc ttgcgtttct gataggcacc tattggtctt actgacatcc
      601 actttgcctt tctctccaca ggtgtccact cccagttcaa ttacagctct taaggctaga
      661 gtacttaata cgactcacta taggctagcc accatggctt ccaaggtgta cgaccccgag
      721 caacgcaaac gcatgatcac tgggcctcag tggtgggctc gctgcaagca aatgaacgtg
      781 ctggactcct tcatcaacta ctatgattcc gagaagcacg ccgagaacgc cgtgattttt
      841 ctgcatggta acgctgcctc cagctacctg tggaggcacg tcgtgcctca catcgagccc
      901 gtggctagat gcatcatccc tgatctgatc ggaatgggta agtccggcaa gagcgggaat
      961 ggctcatatc gcctcctgga tcactacaag tacctcaccg cttggttcga gctgctgaac
     1021 cttccaaaga aaatcatctt tgtgggccac gactgggggg cttgtctggc ctttcactac
     1081 tcctacgagc accaagacaa gatcaaggcc atcgtccatg ctgagagtgt cgtggacgtg
     1141 atcgagtcct gggacgagtg gcctgacatc gaggaggata tcgccctgat caagagcgaa
     1201 gagggcgaga aaatggtgct tgagaataac ttcttcgtcg agaccatgct cccaagcaag
     1261 atcatgcgga aactggagcc tgaggagttc gctgcctacc tggagccatt caaggagaag
     1321 ggcgaggtta gacggcctac cctctcctgg cctcgcgaga tccctctcgt taagggaggc
     1381 aagcccgacg tcgtccagat tgtccgcaac tacaacgcct accttcgggc cagcgacgat
     1441 ctgcctaaga tgttcatcga gtccgaccct gggttctttt ccaacgctat tgtcgaggga
     1501 gctaagaagt tccctaacac cgagttcgtg aaggtgaagg gcctccactt cagccaggag
     1561 gacgctccag atgaaatggg taagtacatc aagagcttcg tggagcgcgt gctgaagaac
     1621 gagcagtaat tctaggcgat cgctcgagcc cgggaattcg tttaaaccta gagcggccgc
     1681 cttggattcc attattttgc caaatcattt atttataagg taaattccta gaagtaacat
     1741 ttctgggtca aacgacgtta gtaatattga taggtacaaa ggctttttgt tattgtttgt
     1801 tttcattttt attaaagtta tgcatacaag cacatagatt taagaatcaa acaattctac
     1861 aattttttta aaaggataag aaaagcagac actcccctca cagtgcttgc aggcacctct
     1921 tttagctttt tttttatttt caatttaccc tcttgtctct agatgatacg ctgcttggtg
     1981 aattttgttt cagcgttacc cactgactcc ccggcggccg ctggccgcaa taaaatatct
     2041 ttattttcat tacatctgtg tgttggtttt ttgtgtgagg atctaaatga gtcttcggac
     2101 ctcgcggggg ccgcttaagc ggtggttagg gtttgtctga cgcgggggga gggggaagga
     2161 acgaaacact ctcattcgga ggcggctcgg ggtttggtct tggtggccac gggcacgcag
     2221 aagagcgccg cgatcctctt aagcaccccc ccgccctccg tggaggcggg ggtttggtcg
     2281 gcgggtggta actggcgggc cgctgactcg ggcgggtcgc gcgccccaga gtgtgacctt
     2341 ttcggtctgc tcgcagaccc ccgggcggcg ccgccgcggc ggcgacgggc tcgctgggtc
     2401 ctaggctcca tggggaccgt atacgtggac aggctctgga gcatccgcac gactgcggtg
     2461 atattaccgg agaccttctg cgggacgagc cgggtcacgc ggctgacgcg gagcgtccgt
     2521 tgggcgacaa acaccaggac ggggcacagg tacactatct tgtcacccgg aggcgcgagg
     2581 gactgcagga gcttcaggga gtggcgcagc tgcttcatcc ccgtggcccg ttgctcgcgt
     2641 ttgctggcgg tgtccccgga agaaatatat ttgcatgtct ttagttctat gatgacacaa
     2701 accccgccca gcgtcttgtc attggcgaat tcgaacacgc agatgcagtc ggggcggcgc
     2761 ggtcccaggt ccacttcgca tattaaggtg acgcgtgtgg cctcgaacac cgagcgaccc
     2821 tgcagcgacc cgcttaaaag cttggcattc cggtactgtt ggtaaagcca ccatggccga
     2881 tgctaagaac attaagaagg gccctgctcc cttctaccct ctggaggatg gcaccgctgg
     2941 cgagcagctg cacaaggcca tgaagaggta tgccctggtg cctggcacca ttgccttcac
     3001 cgatgcccac attgaggtgg acatcaccta tgccgagtac ttcgagatgt ctgtgcgcct
     3061 ggccgaggcc atgaagaggt acggcctgaa caccaaccac cgcatcgtgg tgtgctctga
     3121 gaactctctg cagttcttca tgccagtgct gggcgccctg ttcatcggag tggccgtggc
     3181 ccctgctaac gacatttaca acgagcgcga gctgctgaac agcatgggca tttctcagcc
     3241 taccgtggtg ttcgtgtcta agaagggcct gcagaagatc ctgaacgtgc agaagaagct
     3301 gcctatcatc cagaagatca tcatcatgga ctctaagacc gactaccagg gcttccagag
     3361 catgtacaca ttcgtgacat ctcatctgcc tcctggcttc aacgagtacg acttcgtgcc
     3421 agagtctttc gacagggaca aaaccattgc cctgatcatg aacagctctg ggtctaccgg
     3481 cctgcctaag ggcgtggccc tgcctcatcg caccgcctgt gtgcgcttct ctcacgcccg
     3541 cgaccctatt ttcggcaacc agatcatccc cgacaccgct attctgagcg tggtgccatt
     3601 ccaccacggc ttcggcatgt tcaccaccct gggctacctg atttgcggct ttcgggtggt
     3661 gctgatgtac cgcttcgagg aggagctgtt cctgcgcagc ctgcaagact acaaaattca
     3721 gtctgccctg ctggtgccaa ccctgttcag cttcttcgct aagagcaccc tgatcgacaa
     3781 gtacgacctg tctaacctgc acgagattgc ctctggcggc gccccactgt ctaaggaggt
     3841 gggcgaagcc gtggccaagc gctttcatct gccaggcatc cgccagggct acggcctgac
     3901 cgagacaacc agcgccattc tgattacccc agagggcgac gacaagcctg gcgccgtggg
     3961 caaggtggtg ccattcttcg aggccaaggt ggtggacctg gacaccggca agaccctggg
     4021 agtgaaccag cgcggcgagc tgtgtgtgcg cggccctatg attatgtccg gctacgtgaa
     4081 taaccctgag gccacaaacg ccctgatcga caaggacggc tggctgcact ctggcgacat
     4141 tgcctactgg gacgaggacg agcacttctt catcgtggac cgcctgaagt ctctgatcaa
     4201 gtacaagggc taccaggtgg ccccagccga gctggagtct atcctgctgc agcaccctaa
     4261 cattttcgac gccggagtgg ccggcctgcc cgacgacgat gccggcgagc tgcctgccgc
     4321 cgtcgtcgtg ctggaacacg gcaagaccat gaccgagaag gagatcgtgg actatgtggc
     4381 cagccaggtg acaaccgcca agaagctgcg cggcggagtg gtgttcgtgg acgaggtgcc
     4441 caagggcctg accggcaagc tggacgcccg caagatccgc gagatcctga tcaaggctaa
     4501 gaaaggcggc aagatcgccg tgtaataatt ctagagtcgg ggcggccggc cgcttcgagc
     4561 agacatgata agatacattg atgagtttgg acaaaccaca actagaatgc agtgaaaaaa
     4621 atgctttatt tgtgaaattt gtgatgctat tgctttattt gtaaccatta taagctgcaa
     4681 taaacaagtt aacaacaaca attgcattca ttttatgttt caggttcagg gggaggtgtg
     4741 ggaggttttt taaagcaagt aaaacctcta caaatgtggt aaaatcgata aggatccagg
     4801 tggcactttt cggggaaatg tgcgcggaac ccctatttgt ttatttttct aaatacattc
     4861 aaatatgtat ccgctcatga gacaataacc ctgataaatg cttcaataat attgaaaaag
     4921 gaagagtatg agtattcaac atttccgtgt cgcccttatt cccttttttg cggcattttg
     4981 ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta aaagatgctg aagatcagtt
     5041 gggtgcacga gtgggttaca tcgaactgga tctcaacagc ggtaagatcc ttgagagttt
     5101 tcgccccgaa gaacgttttc caatgatgag cacttttaaa gttctgctat gtggcgcggt
     5161 attatcccgt attgacgccg ggcaagagca actcggtcgc cgcatacact attctcagaa
     5221 tgacttggtt gagtactcac cagtcacaga aaagcatctt acggatggca tgacagtaag
     5281 agaattatgc agtgctgcca taaccatgag tgataacact gcggccaact tacttctgac
     5341 aacgatcgga ggaccgaagg agctaaccgc ttttttgcac aacatggggg atcatgtaac
     5401 tcgccttgat cgttgggaac cggagctgaa tgaagccata ccaaacgacg agcgtgacac
     5461 cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta ttaactggcg aactacttac
     5521 tctagcttcc cggcaacaat taatagactg gatggaggcg gataaagttg caggaccact
     5581 tctgcgctcg gcccttccgg ctggctggtt tattgctgat aaatctggag ccggtgagcg
     5641 tgggtctcgc ggtatcattg cagcactggg gccagatggt aagccctccc gtatcgtagt
     5701 tatctacacg acggggagtc aggcaactat ggatgaacga aatagacaga tcgctgagat
     5761 aggtgcctca ctgattaagc attggtaact gtcagaccaa gtttactcat atatacttta
     5821 gattgattta aaacttcatt tttaatttaa aaggatctag gtgaagatcc tttttgataa
     5881 tctcatgacc aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag accccgtaga
     5941 aaagatcaaa ggatcttctt gagatccttt ttttctgcgc gtaatctgct gcttgcaaac
     6001 aaaaaaacca ccgctaccag cggtggtttg tttgccggat caagagctac caactctttt
     6061 tccgaaggta actggcttca gcagagcgca gataccaaat actgttcttc tagtgtagcc
     6121 gtagttaggc caccacttca agaactctgt agcaccgcct acatacctcg ctctgctaat
     6181 cctgttacca gtggctgctg ccagtggcga taagtcgtgt cttaccgggt tggactcaag
     6241 acgatagtta ccggataagg cgcagcggtc gggctgaacg gggggttcgt gcacacagcc
     6301 cagcttggag cgaacgacct acaccgaact gagataccta cagcgtgagc tatgagaaag
     6361 cgccacgctt cccgaaggga gaaaggcgga caggtatccg gtaagcggca gggtcggaac
     6421 aggagagcgc acgagggagc ttccaggggg aaacgcctgg tatctttata gtcctgtcgg
     6481 gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg ggcggagcct
     6541 atggaaaaac gccagcaacg cggccttttt acggttcctg gccttttgct ggccttttgc
     6601 tcacatggct cgac
//
