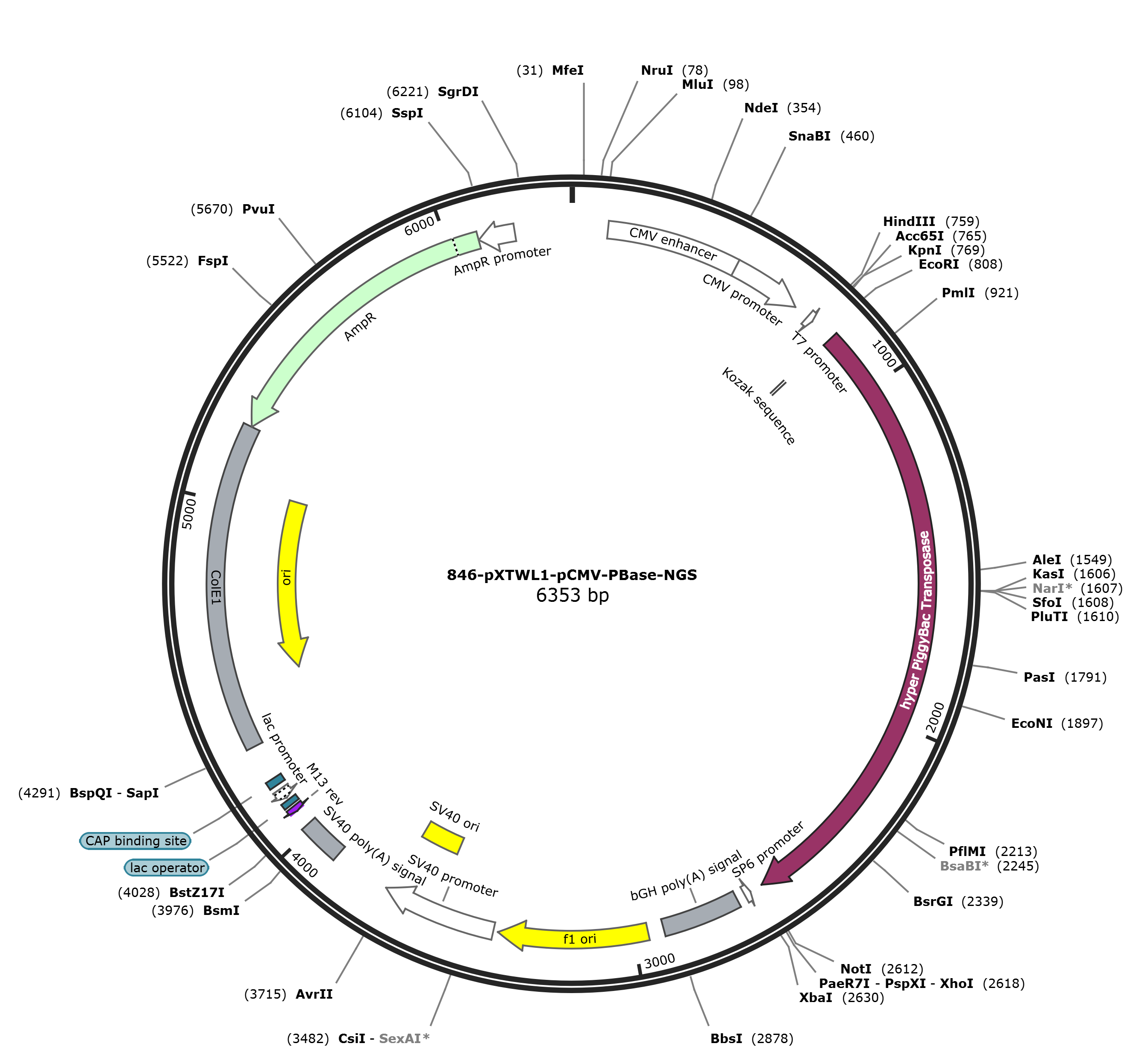

pXTWL1-pCMV-PBase

LOCUS       pXTWL1-pCMV-PBase             6353 bp DNA     circular SYN 23-DEC-2024
DEFINITION  TSN20241207-0571-00015_846_20241208-BAN3_H02_H02_i1.1.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6353)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 29, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6353
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        105..484
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        485..688
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        733..751
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      817..826
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             823..2607
                     /codon_start=1
                     /label=hyper PiggyBac Transposase
                     /translation="MGSSLDDEHILSALLQSDDELVGEDSDSEVSDHVSEDDVQSDTEE
                     AFIDEVHEVQPTSSGSEILDEQNVIEQPGSSLASNRILTLPQRTIRGKNKHCWSTSKPT
                     RRSRVSALNIVRSQRGPTRMCRNIYDPLLCFKLFFTDEIISEIVKWTNAEISLKRRESM
                     TSATFRDTNEDEIYAFFGILVMTAVRKDNHMSTDDLFDRSLSMVYVSVMSRDRFDFLIR
                     CLRMDDKSIRPTLRENDVFTPVRKIWDLFIHQCIQNYTPGAHLTIDEQLLGFRGRCPFR
                     VYIPNKPSKYGIKILMMCDSGTKYMINGMPYLGRGTQTNGVPLGEYYVKELSKPVHGSC
                     RNITCDNWFTSIPLAKNLLQEPYKLTIVGTVRSNKREIPEVLKNSRSRPVGTSMFCFDG
                     PLTLVSYKPKPAKMVYLLSSCDEDASINESTGKPQMVMYYNQTKGGVDTLDQMCSVMTC
                     SRKTNRWPMALLYGMINIACINSFIIYSHNVSSKGEKVQSRKKFMRNLYMGLTSSFMRK
                     RLEAPTLKRYLRDNISNILPKEVPGTSDDSTEEPVMKKRTYCTYCPSKIRRKASASCKK
                     CKKVICREHNIDMCQSCF"
     promoter        complement(2645..2663)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     polyA_signal    2689..2913
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2959..3387
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3401..3730
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3581..3716
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     polyA_signal    3896..4017
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4066..4082)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4090..4106
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4114..4144)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4159..4180
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     misc_feature    4286..5226
                     /label=ColE1
                     /note="ColE1"
     rep_origin      complement(4468..5056)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5227..6087)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6088..6192)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc ttagggttag
       61 gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt gattattgac
      121 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
      181 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      241 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      301 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      361 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      421 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      481 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      541 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      601 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      661 acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca ctgcttactg
      721 gcttatcgaa attaatacga ctcactatag ggagacccaa gcttggtacc gagctcggat
      781 ccactagtaa cggccgccag tgtgctggaa ttcgccgcca ccatgggcag cagcctggac
      841 gacgagcaca tcctgagcgc cctgctgcag agcgacgacg agctggtcgg cgaggacagc
      901 gacagcgagg tgagcgacca cgtgagcgag gacgacgtgc agtccgacac cgaggaggcc
      961 ttcatcgacg aggtgcacga ggtgcagcct accagcagcg gctccgagat cctggacgag
     1021 cagaacgtga tcgagcagcc cggcagctcc ctggccagca acaggatcct gaccctgccc
     1081 cagaggacca tcaggggcaa gaacaagcac tgctggtcca cctccaagcc caccaggcgg
     1141 agcagggtgt ccgccctgaa catcgtgaga agccagaggg gccccaccag gatgtgcagg
     1201 aacatctacg accccctgct gtgcttcaag ctgttcttca ccgacgagat catcagcgag
     1261 atcgtgaagt ggaccaacgc cgagatcagc ctgaagaggc gggagagcat gacctccgcc
     1321 accttcaggg acaccaacga ggacgagatc tacgccttct tcggcatcct ggtgatgacc
     1381 gccgtgagga aggacaacca catgagcacc gacgacctgt tcgacagatc cctgagcatg
     1441 gtgtacgtga gcgtgatgag cagggacaga ttcgacttcc tgatcagatg cctgaggatg
     1501 gacgacaaga gcatcaggcc caccctgcgg gagaacgacg tgttcacccc cgtgagaaag
     1561 atctgggacc tgttcatcca ccagtgcatc cagaactaca cccctggcgc ccacctgacc
     1621 atcgacgagc agctgctggg cttcaggggc aggtgcccct tcagggtcta tatccccaac
     1681 aagcccagca agtacggcat caagatcctg atgatgtgcg acagcggcac caagtacatg
     1741 atcaacggca tgccctacct gggcaggggc acccagacca acggcgtgcc cctgggcgag
     1801 tactacgtga aggagctgtc caagcccgtc cacggcagct gcagaaacat cacctgcgac
     1861 aactggttca ccagcatccc cctggccaag aacctgctgc aggagcccta caagctgacc
     1921 atcgtgggca ccgtgagaag caacaagaga gagatccccg aggtcctgaa gaacagcagg
     1981 tccaggcccg tgggcaccag catgttctgc ttcgacggcc ccctgaccct ggtgtcctac
     2041 aagcccaagc ccgccaagat ggtgtacctg ctgtccagct gcgacgagga cgccagcatc
     2101 aacgagagca ccggcaagcc ccagatggtg atgtactaca accagaccaa gggcggcgtg
     2161 gacaccctgg accagatgtg cagcgtgatg acctgcagca gaaagaccaa caggtggccc
     2221 atggccctgc tgtacggcat gatcaacatc gcctgcatca acagcttcat catctacagc
     2281 cacaacgtga gcagcaaggg cgagaaggtg cagagccgga aaaagttcat gcggaacctg
     2341 tacatgggcc tgacctccag cttcatgagg aagaggctgg aggcccccac cctgaagaga
     2401 tacctgaggg acaacatcag caacatcctg cccaaagagg tgcccggcac cagcgacgac
     2461 agcaccgagg agcccgtgat gaagaagagg acctactgca cctactgtcc cagcaagatc
     2521 agaagaaagg ccagcgccag ctgcaagaag tgtaagaagg tcatctgccg ggagcacaac
     2581 atcgacatgt gccagagctg tttctgatga gcggccgctc gagcatgcat ctagagggcc
     2641 ctattctata gtgtcaccta aatgctagag ctcgctgatc agcctcgact gtgccttcta
     2701 gttgccagcc atctgttgtt tgcccctccc ccgtgccttc cttgaccctg gaaggtgcca
     2761 ctcccactgt cctttcctaa taaaatgagg aaattgcatc gcattgtctg agtaggtgtc
     2821 attctattct ggggggtggg gtggggcagg acagcaaggg ggaggattgg gaagacaata
     2881 gcaggcatgc tggggatgcg gtgggctcta tggcttctga ggcggaaaga accagctggg
     2941 gctctagggg gtatccccac gcgccctgta gcggcgcatt aagcgcggcg ggtgtggtgg
     3001 ttacgcgcag cgtgaccgct acacttgcca gcgccctagc gcccgctcct ttcgctttct
     3061 tcccttcctt tctcgccacg ttcgccggct ttccccgtca agctctaaat cgggggctcc
     3121 ctttagggtt ccgatttagt gctttacggc acctcgaccc caaaaaactt gattagggtg
     3181 atggttcacg tagtgggcca tcgccctgat agacggtttt tcgccctttg acgttggagt
     3241 ccacgttctt taatagtgga ctcttgttcc aaactggaac aacactcaac cctatctcgg
     3301 tctattcttt tgatttataa gggattttgc cgatttcggc ctattggtta aaaaatgagc
     3361 tgatttaaca aaaatttaac gcgaattaat tctgtggaat gtgtgtcagt tagggtgtgg
     3421 aaagtcccca ggctccccag caggcagaag tatgcaaagc atgcatctca attagtcagc
     3481 aaccaggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa gcatgcatct
     3541 caattagtca gcaaccatag tcccgcccct aactccgccc atcccgcccc taactccgcc
     3601 cagttccgcc cattctccgc cccatggctg actaattttt tttatttatg cagaggccga
     3661 ggccgcctct gcctctgagc tattccagaa gtagtgagga ggcttttttg gaggcctagg
     3721 cttttgcaaa aagctccccg aaatgaccga ccaagcgacg cccaacctgc catcacgaga
     3781 tttcgattcc accgccgcct tctatgaaag gttgggcttc ggaatcgttt tccgggacgc
     3841 cggctggatg atcctccagc gcggggatct catgctggag ttcttcgccc accccaactt
     3901 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     3961 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttatca
     4021 tgtctgtata ccgtcgacct ctagctagag cttggcgtaa tcatggtcat agctgtttcc
     4081 tgtgtgaaat tgttatccgc tcacaattcc acacaacata cgagccggaa gcataaagtg
     4141 taaagcctgg ggtgcctaat gagtgagcta actcacatta attgcgttgc gctcactgcc
     4201 cgctttccag tcgggaaacc tgtcgtgcca gctgcattaa tgaatcggcc aacgcgcggg
     4261 gagaggcggt ttgcgtattg ggcgctcttc cgcttcctcg ctcactgact cgctgcgctc
     4321 ggtcgttcgg ctgcggcgag cggtatcagc tcactcaaag gcggtaatac ggttatccac
     4381 agaatcaggg gataacgcag gaaagaacat gtgagcaaaa ggccagcaaa aggccaggaa
     4441 ccgtaaaaag gccgcgttgc tggcgttttt ccataggctc cgcccccctg acgagcatca
     4501 caaaaatcga cgctcaagtc agaggtggcg aaacccgaca ggactataaa gataccaggc
     4561 gtttccccct ggaagctccc tcgtgcgctc tcctgttccg accctgccgc ttaccggata
     4621 cctgtccgcc tttctccctt cgggaagcgt ggcgctttct catagctcac gctgtaggta
     4681 tctcagttcg gtgtaggtcg ttcgctccaa gctgggctgt gtgcacgaac cccccgttca
     4741 gcccgaccgc tgcgccttat ccggtaacta tcgtcttgag tccaacccgg taagacacga
     4801 cttatcgcca ctggcagcag ccactggtaa caggattagc agagcgaggt atgtaggcgg
     4861 tgctacagag ttcttgaagt ggtggcctaa ctacggctac actagaagaa cagtatttgg
     4921 tatctgcgct ctgctgaagc cagttacctt cggaaaaaga gttggtagct cttgatccgg
     4981 caaacaaacc accgctggta gcggtggttt ttttgtttgc aagcagcaga ttacgcgcag
     5041 aaaaaaagga tctcaagaag atcctttgat cttttctacg gggtctgacg ctcagtggaa
     5101 cgaaaactca cgttaaggga ttttggtcat gagattatca aaaaggatct tcacctagat
     5161 ccttttaaat taaaaatgaa gttttaaatc aatctaaagt atatatgagt aaacttggtc
     5221 tgacagttac caatgcttaa tcagtgaggc acctatctca gcgatctgtc tatttcgttc
     5281 atccatagtt gcctgactcc ccgtcgtgta gataactacg atacgggagg gcttaccatc
     5341 tggccccagt gctgcaatga taccgcgaga cccacgctca ccggctccag atttatcagc
     5401 aataaaccag ccagccggaa gggccgagcg cagaagtggt cctgcaactt tatccgcctc
     5461 catccagtct attaattgtt gccgggaagc tagagtaagt agttcgccag ttaatagttt
     5521 gcgcaacgtt gttgccattg ctacaggcat cgtggtgtca cgctcgtcgt ttggtatggc
     5581 ttcattcagc tccggttccc aacgatcaag gcgagttaca tgatccccca tgttgtgcaa
     5641 aaaagcggtt agctccttcg gtcctccgat cgttgtcaga agtaagttgg ccgcagtgtt
     5701 atcactcatg gttatggcag cactgcataa ttctcttact gtcatgccat ccgtaagatg
     5761 cttttctgtg actggtgagt actcaaccaa gtcattctga gaatagtgta tgcggcgacc
     5821 gagttgctct tgcccggcgt caatacggga taataccgcg ccacatagca gaactttaaa
     5881 agtgctcatc attggaaaac gttcttcggg gcgaaaactc tcaaggatct taccgctgtt
     5941 gagatccagt tcgatgtaac ccactcgtgc acccaactga tcttcagcat cttttacttt
     6001 caccagcgtt tctgggtgag caaaaacagg aaggcaaaat gccgcaaaaa agggaataag
     6061 ggcgacacgg aaatgttgaa tactcatact cttccttttt caatattatt gaagcattta
     6121 tcagggttat tgtctcatga gcggatacat atttgaatgt atttagaaaa ataaacaaat
     6181 aggggttccg cgcacatttc cccgaaaagt gccacctgac gtcgacggat cgggagatct
     6241 cccgatcccc tatggtgcac tctcagtaca atctgctctg atgccgcata gttaagccag
     6301 tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt gcgcgagcaa aat
//
