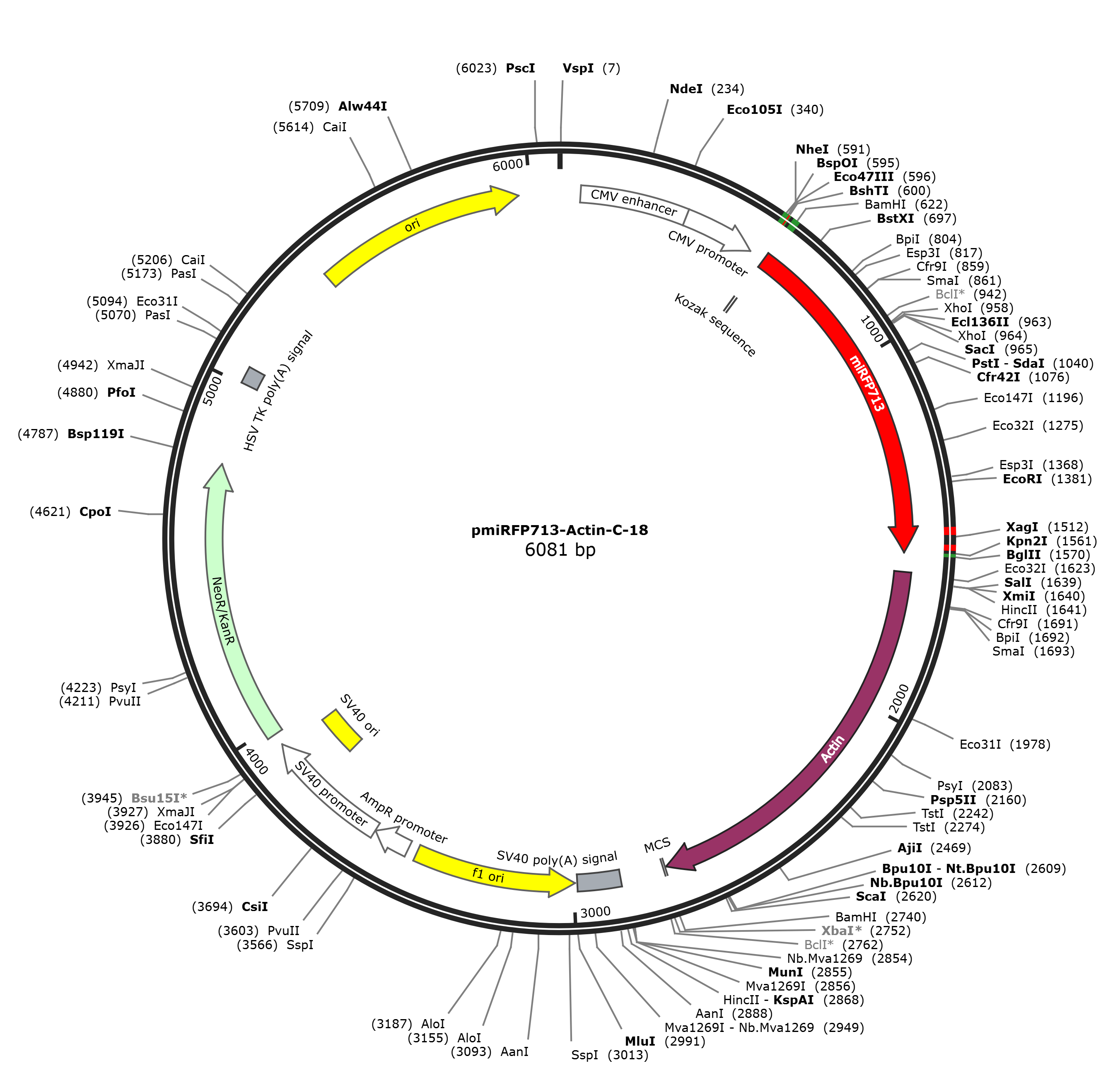

pmiRFP713-Actin

LOCUS       pmiRFP713-Actin                6081 bp DNA     circular SYN 21-APR-2023
DEFINITION  Vector for fusing photoactivatable mCherry to the N-terminus of a
            partner protein.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6081)
  AUTHORS   Clontech
  TITLE     Direct Submission
  JOURNAL   Exported Jun 26, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6081
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        61..364
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        365..568
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     585..631
                     /label=0416-PM636-F
     regulatory      607..616
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             613..1560
                     /codon_start=1
                     /label=miRFP713
                     /translation="MAEGSVARQPDLLTCDDEPIHIPGAIQPHGLLLALAADMTIVAGS
                     DNLPELTGLAIGALIGRSAADVFDSETHNRLTIALAEPGAAVGAPITVGFTMRKDAGFI
                     GSWHRHDQLIFLELEPPQRDVAEPQAFFRRTNSAIRRLQAAETLESACAAAAQEVRKIT
                     GFDRVMIYRFASDFSGEVIAEDRCAEVESKLGLHYPASTVPAQARRLYTINPVRIIPDI
                     NYRPVPVTPDLNPVTGRPIDLSFAILRSVSPVHLEFMRNIGMHGTMSISILRGERLWGL
                     IVCHHRTPYYVDLDGRQACKRVAERLATQIGVMEE"
     primer_bind     complement(1537..1581)
                     /label=0416-PM636-R
     CDS             1615..2736
                     /codon_start=1
                     /label=Actin
                     /translation="DDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVG
                     MGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLL
                     TEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVP
                     IYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDF
                     EQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSI
                     MKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWI
                     GGSILASLSTFQQMWISKQEYDESGPSIVHRKCF"
     primer_bind     1737..1762
                     /label=0312-Actin-F
     misc_feature    2740..2745
                     /label=MCS
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     polyA_signal    2869..2990
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2960..2979)
                     /label=SV40-R-Universal
     rep_origin      complement(2997..3452)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3479..3583
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3585..3942
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3793..3928
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3977..4771
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    5003..5050
                     /label=HSV TK poly(A) signal
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      5379..5967
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata tggagttccg
       61 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
      121 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      181 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      241 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      301 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      361 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      421 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      481 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      541 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      601 ccggtcgcca ccatggcgga aggatccgtc gccaggcagc ctgacctctt gacctgcgac
      661 gatgagccga tccatatccc cggtgccatc caaccgcatg gactgctgct cgccctcgcc
      721 gccgacatga cgatcgttgc cggcagcgac aaccttcccg aactcaccgg actggcgatc
      781 ggcgccctga tcggccgctc tgcggccgat gtcttcgact cggagacgca caaccgtctg
      841 acgatcgcct tggccgagcc cggggcggcc gtcggagcac cgatcactgt cggcttcacg
      901 atgcgaaagg acgcaggctt catcggctcc tggcatcgcc atgatcagct catcttcctc
      961 gagctcgagc ctccccagcg ggacgtcgcc gagccgcagg cgttcttccg ccgcaccaac
     1021 agcgccatcc gccgcctgca ggccgccgaa accttggaaa gcgcctgcgc cgccgcggcg
     1081 caagaggtgc ggaagattac cggcttcgat cgggtgatga tctatcgctt cgcctccgac
     1141 ttcagcggcg aagtgatcgc agaggatcgg tgcgccgagg tcgagtcaaa actaggcctg
     1201 cactatcctg cctcaaccgt gccggcgcag gcccgtcggc tctataccat caacccggta
     1261 cggatcattc ccgatatcaa ttatcggccg gtgccggtca ccccagacct caatccggtc
     1321 accgggcggc cgattgatct tagcttcgcc atcctgcgca gcgtctcgcc cgtccatctg
     1381 gaattcatgc gcaacatagg catgcacggc acgatgtcga tctcgatttt gcgcggcgag
     1441 cgactgtggg gattgatcgt ttgccatcac cgaacgccgt actacgtcga tctcgatggc
     1501 cgccaagcct gcaagagggt cgccgagagg ctggccactc agatcggcgt gatggaagag
     1561 tccggactca gatctggcag cggtggaggc agcgcatccg gcggaagcgg aagcgatgat
     1621 gatatcgccg cgctcgtcgt cgacaacggc tccggcatgt gcaaggccgg cttcgcgggc
     1681 gacgatgccc cccgggccgt cttcccctcc atcgtggggc gccccaggca ccagggcgtg
     1741 atggtgggca tgggtcagaa ggattcctat gtgggcgacg aggcccagag caagagaggc
     1801 atcctcaccc tgaagtaccc catcgagcac ggcatcgtca ccaactggga cgacatggag
     1861 aaaatctggc accacacctt ctacaatgag ctgcgtgtgg ctcccgagga gcaccccgtg
     1921 ctgctgaccg aggcccccct gaaccccaag gccaaccgcg agaagatgac ccagatcatg
     1981 tttgagacct tcaacacccc agccatgtac gttgctatcc aggctgtgct atccctgtac
     2041 gcctctggcc gtaccactgg catcgtgatg gactccggtg acggggtcac ccacactgtg
     2101 cccatctacg aggggtatgc cctcccccat gccatcctgc gtctggacct ggctggccgg
     2161 gacctgactg actacctcat gaagatcctc accgagcgcg gctacagctt caccaccacg
     2221 gccgagcggg aaatcgtgcg tgacattaag gagaagctgt gctacgtcgc cctggacttc
     2281 gagcaagaga tggccacggc tgcttccagc tcctccctgg agaagagcta cgagctgcct
     2341 gacggccagg tcatcaccat tggcaatgag cggttccgct gccctgaggc actcttccag
     2401 ccttccttcc tgggcatgga gtcctgtggc atccacgaaa ctaccttcaa ctccatcatg
     2461 aagtgtgacg tggacatccg caaagacctg tacgccaaca cagtgctgtc tggcggcacc
     2521 accatgtacc ctggcattgc cgacaggatg cagaaggaga tcactgccct ggcacccagc
     2581 acaatgaaga tcaagatcat tgctcctcct gagcgcaagt actccgtgtg gatcggcggc
     2641 tccatcctgg cctcgctgtc caccttccag cagatgtgga tcagcaagca ggagtatgac
     2701 gagtccggcc cctccatcgt ccaccgcaaa tgcttctagg gatccaccgg atctagataa
     2761 ctgatcataa tcagccatac cacatttgta gaggttttac ttgctttaaa aaacctccca
     2821 cacctccccc tgaacctgaa acataaaatg aatgcaattg ttgttgttaa cttgtttatt
     2881 gcagcttata atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt
     2941 ttttcactgc attctagttg tggtttgtcc aaactcatca atgtatctta acgcgtaaat
     3001 tgtaagcgtt aatattttgt taaaattcgc gttaaatttt tgttaaatca gctcattttt
     3061 taaccaatag gccgaaatcg gcaaaatccc ttataaatca aaagaataga ccgagatagg
     3121 gttgagtgtt gttccagttt ggaacaagag tccactatta aagaacgtgg actccaacgt
     3181 caaagggcga aaaaccgtct atcagggcga tggcccacta cgtgaaccat caccctaatc
     3241 aagttttttg gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag ggagcccccg
     3301 atttagagct tgacggggaa agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa
     3361 aggagcgggc gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc
     3421 cgccgcgctt aatgcgccgc tacagggcgc gtcaggtggc acttttcggg gaaatgtgcg
     3481 cggaacccct atttgtttat ttttctaaat acattcaaat atgtatccgc tcatgagaca
     3541 ataaccctga taaatgcttc aataatattg aaaaaggaag agtcctgagg cggaaagaac
     3601 cagctgtgga atgtgtgtca gttagggtgt ggaaagtccc caggctcccc agcaggcaga
     3661 agtatgcaaa gcatgcatct caattagtca gcaaccaggt gtggaaagtc cccaggctcc
     3721 ccagcaggca gaagtatgca aagcatgcat ctcaattagt cagcaaccat agtcccgccc
     3781 ctaactccgc ccatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc
     3841 tgactaattt tttttattta tgcagaggcc gaggccgcct cggcctctga gctattccag
     3901 aagtagtgag gaggcttttt tggaggccta ggcttttgca aagatcgatc aagagacagg
     3961 atgaggatcg tttcgcatga ttgaacaaga tggattgcac gcaggttctc cggccgcttg
     4021 ggtggagagg ctattcggct atgactgggc acaacagaca atcggctgct ctgatgccgc
     4081 cgtgttccgg ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg acctgtccgg
     4141 tgccctgaat gaactgcaag acgaggcagc gcggctatcg tggctggcca cgacgggcgt
     4201 tccttgcgca gctgtgctcg acgttgtcac tgaagcggga agggactggc tgctattggg
     4261 cgaagtgccg gggcaggatc tcctgtcatc tcaccttgct cctgccgaga aagtatccat
     4321 catggctgat gcaatgcggc ggctgcatac gcttgatccg gctacctgcc cattcgacca
     4381 ccaagcgaaa catcgcatcg agcgagcacg tactcggatg gaagccggtc ttgtcgatca
     4441 ggatgatctg gacgaagagc atcaggggct cgcgccagcc gaactgttcg ccaggctcaa
     4501 ggcgagcatg cccgacggcg aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa
     4561 tatcatggtg gaaaatggcc gcttttctgg attcatcgac tgtggccggc tgggtgtggc
     4621 ggaccgctat caggacatag cgttggctac ccgtgatatt gctgaagagc ttggcggcga
     4681 atgggctgac cgcttcctcg tgctttacgg tatcgccgct cccgattcgc agcgcatcgc
     4741 cttctatcgc cttcttgacg agttcttctg agcgggactc tggggttcga aatgaccgac
     4801 caagcgacgc ccaacctgcc atcacgagat ttcgattcca ccgccgcctt ctatgaaagg
     4861 ttgggcttcg gaatcgtttt ccgggacgcc ggctggatga tcctccagcg cggggatctc
     4921 atgctggagt tcttcgccca ccctaggggg aggctaactg aaacacggaa ggagacaata
     4981 ccggaaggaa cccgcgctat gacggcaata aaaagacaga ataaaacgca cggtgttggg
     5041 tcgtttgttc ataaacgcgg ggttcggtcc cagggctggc actctgtcga taccccaccg
     5101 agaccccatt ggggccaata cgcccgcgtt tcttcctttt ccccacccca ccccccaagt
     5161 tcgggtgaag gcccagggct cgcagccaac gtcggggcgg caggccctgc catagcctca
     5221 ggttactcat atatacttta gattgattta aaacttcatt tttaatttaa aaggatctag
     5281 gtgaagatcc tttttgataa tctcatgacc aaaatccctt aacgtgagtt ttcgttccac
     5341 tgagcgtcag accccgtaga aaagatcaaa ggatcttctt gagatccttt ttttctgcgc
     5401 gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg tttgccggat
     5461 caagagctac caactctttt tccgaaggta actggcttca gcagagcgca gataccaaat
     5521 actgtccttc tagtgtagcc gtagttaggc caccacttca agaactctgt agcaccgcct
     5581 acatacctcg ctctgctaat cctgttacca gtggctgctg ccagtggcga taagtcgtgt
     5641 cttaccgggt tggactcaag acgatagtta ccggataagg cgcagcggtc gggctgaacg
     5701 gggggttcgt gcacacagcc cagcttggag cgaacgacct acaccgaact gagataccta
     5761 cagcgtgagc tatgagaaag cgccacgctt cccgaaggga gaaaggcgga caggtatccg
     5821 gtaagcggca gggtcggaac aggagagcgc acgagggagc ttccaggggg aaacgcctgg
     5881 tatctttata gtcctgtcgg gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc
     5941 tcgtcagggg ggcggagcct atggaaaaac gccagcaacg cggccttttt acggttcctg
     6001 gccttttgct ggccttttgc tcacatgttc tttcctgcgt tatcccctga ttctgtggat
     6061 aaccgtatta ccgccatgca t
//
