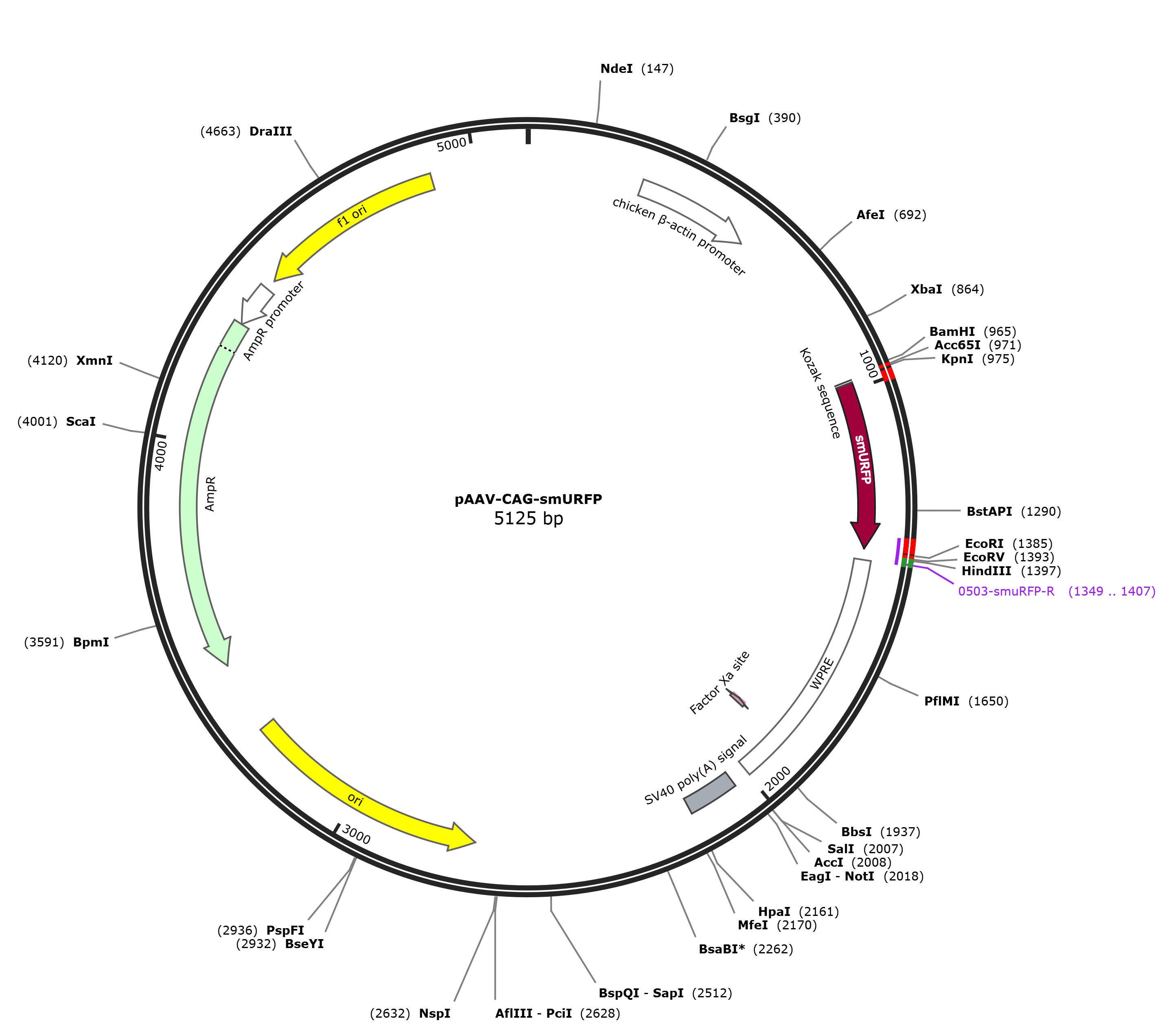

pAAV-CAG-smURFP

LOCUS       pAAV-CAG-smURFP            5125 bp DNA     circular SYN 21-APR-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5125)
  AUTHORS   Triple Threat
  TITLE     Direct Submission
  JOURNAL   Exported Jun 24, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5125
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        279..556
                     /label=chicken beta-actin promoter
     primer_bind     954..986
                     /label=0515-PM662-F
     regulatory      977..982
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             983..1381
                     /codon_start=1
                     /product="dimeric small ultra-red fluorescent protein
                     derived from a cyanobacterial phycobiliprotein (Rodriguez
                     et al., 2016)"
                     /label=smURFP
                     /translation="MAKTSEQRVNIATLLTENKKKIVDKASQDLWRRHPDLIAPGGIAF
                     SQRDRALCLRDYGWFLHLITFCLLAGDKGPIESIGLISIREMYNSLGVPVPAMMESIRC
                     LKEASLSLLDEEDANETAPYFDYIIKAMS"
     primer_bind     complement(1349..1407)
                     /label=0503-smuRFP-R
     primer_bind     complement(1382..1410)
                     /label=0503-E2-Crimson-R
     misc_feature    1409..1997
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(1476..1501)
                     /label=WPRE-R
     CDS             complement(1880..1891)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    2040..2161
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(2689..3277)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3448..4308)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4309..4413)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(4439..4894)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 tctacgtagc catgctctag gaagagtacc attgacgtca ataatgacgt atgttcccat
       61 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      121 ccacttggca gtacatcaag tgtatcatat gccaagtacg ccccctattg acgtcaatga
      181 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttatgggact ttcctacttg
      241 gcagtacatc tacgtattag tcatcgctat taccatggtc gaggtgagcc ccacgttctg
      301 cttcactctc cccatctccc ccccctcccc acccccaatt ttgtatttat ttatttttta
      361 attattttgt gcagcgatgg gggcgggggg gggggggggg cgcgcgccag gcggggcggg
      421 gcggggcgag gggcggggcg gggcgaggcg gagaggtgcg gcggcagcca atcagagcgg
      481 cgcgctccga aagtttcctt ttatggcgag gcggcggcgg cggcggccct ataaaaagcg
      541 aagcgcgcgg cgggcgggag tcgctgcgcg ctgccttcgc cccgtgcccc gctccgccgc
      601 cgcctcgcgc cgcccgcccc ggctctgact gaccgcgtta ctcccacagg tgagcgggcg
      661 ggacggccct tctcctccgg gctgtaatta gcgcttggtt taatgacggc ttgtttcttt
      721 tctgtggctg cgtgaaagcc ttgaggggct ccgggagggc cctttgtgcg gggggagcgg
      781 ctcggggctg tccgcggggg gacggctgcc ttcggggggg acggggcagg gcggggttcg
      841 gcttctggcg tgtgaccggc ggctctagag cctctgctaa ccatgttcat gccttcttct
      901 ttttcctaca gctcctgggc aacgtgctgg ttattgtgct gtctcatcat tttggcaaag
      961 aattggatcc ggtaccgcca ccatggctaa gacttccgaa cagagggtga acattgctac
     1021 actgctgaca gaaaataaga agaaaatcgt ggataaggct tcccaggatc tgtggcggag
     1081 acacccagac ctgatcgcac caggaggaat tgctttctct cagagggacc gcgctctgtg
     1141 cctgcgagat tacggctggt tcctgcatct gatcaccttt tgtctgctgg ccggagataa
     1201 gggccccatc gagtctattg ggctgatcag tattcgagaa atgtataact cactgggagt
     1261 gcccgtccct gcaatgatgg agagcattag atgcctgaaa gaagccagcc tgtccctgct
     1321 ggacgaagag gacgccaacg agaccgcacc ctactttgat tacattatta aggctatgag
     1381 ctaagaattc gatatcaagc ttatcgataa tcaacctctg gattacaaaa tttgtgaaag
     1441 attgactggt attcttaact atgttgctcc ttttacgcta tgtggatacg ctgctttaat
     1501 gcctttgtat catgctattg cttcccgtat ggctttcatt ttctcctcct tgtataaatc
     1561 ctggttgctg tctctttatg aggagttgtg gcccgttgtc aggcaacgtg gcgtggtgtg
     1621 cactgtgttt gctgacgcaa cccccactgg ttggggcatt gccaccacct gtcagctcct
     1681 ttccgggact ttcgctttcc ccctccctat tgccacggcg gaactcatcg ccgcctgcct
     1741 tgcccgctgc tggacagggg ctcggctgtt gggcactgac aattccgtgg tgttgtcggg
     1801 gaaatcatcg tcctttcctt ggctgctcgc ctgtgttgcc acctggattc tgcgcgggac
     1861 gtccttctgc tacgtccctt cggccctcaa tccagcggac cttccttccc gcggcctgct
     1921 gccggctctg cggcctcttc cgcgtcttcg ccttcgccct cagacgagtc ggatctccct
     1981 ttgggccgcc tccccgcatc gataccgtcg acccgggcgg ccgcttcgag cagacatgat
     2041 aagatacatt gatgagtttg gacaaaccac aactagaatg cagtgaaaaa aatgctttat
     2101 ttgtgaaatt tgtgatgcta ttgctttatt tgtaaccatt ataagctgca ataaacaagt
     2161 taacaacaac aattgcattc attttatgtt tcaggttcag ggggagatgt gggaggtttt
     2221 ttaaagcaag taaaacctct acaaatgtgg taaaatcgat aaggatcttc ctagagcatg
     2281 gctacgtaga taagtagcat ggcgggttaa tcattaacta caaggaaccc ctagtgatgg
     2341 agttggccac tccctctctg cgcgctcgct cgctcactga ggccgggcga ccaaaggtcg
     2401 cccgacgccc gggctttgcc cgggcggcct cagtgagcga gcgagcgcgc agctgcatta
     2461 atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt gggcgctctt ccgcttcctc
     2521 gctcactgac tcgctgcgct cggtcgttcg gctgcggcga gcggtatcag ctcactcaaa
     2581 ggcggtaata cggttatcca cagaatcagg ggataacgca ggaaagaaca tgtgagcaaa
     2641 aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt tccataggct
     2701 ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc gaaacccgac
     2761 aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct ctcctgttcc
     2821 gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg tggcgctttc
     2881 tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca agctgggctg
     2941 tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact atcgtcttga
     3001 gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta acaggattag
     3061 cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta actacggcta
     3121 cactagaaga acagtatttg gtatctgcgc tctgctgaag ccagttacct tcggaaaaag
     3181 agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt tttttgtttg
     3241 caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga tcttttctac
     3301 ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca tgagattatc
     3361 aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat caatctaaag
     3421 tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc
     3481 agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac
     3541 gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc
     3601 accggctcca gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg
     3661 tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag
     3721 tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc
     3781 acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac
     3841 atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag
     3901 aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac
     3961 tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg
     4021 agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg ataataccgc
     4081 gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact
     4141 ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg
     4201 atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa
     4261 tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt
     4321 tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg
     4381 tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccacctaa
     4441 attgtaagcg ttaatatttt gttaaaattc gcgttaaatt tttgttaaat cagctcattt
     4501 tttaaccaat aggccgaaat cggcaaaatc ccttataaat caaaagaata gaccgagata
     4561 gggttgagtg ttgttccagt ttggaacaag agtccactat taaagaacgt ggactccaac
     4621 gtcaaagggc gaaaaaccgt ctatcagggc gatggcccac tacgtgaacc atcaccctaa
     4681 tcaagttttt tggggtcgag gtgccgtaaa gcactaaatc ggaaccctaa agggagcccc
     4741 cgatttagag cttgacgggg aaagccggcg aacgtggcga gaaaggaagg gaagaaagcg
     4801 aaaggagcgg gcgctagggc gctggcaagt gtagcggtca cgctgcgcgt aaccaccaca
     4861 cccgccgcgc ttaatgcgcc gctacagggc gcgtcccatt cgccattcag gctgcgcaac
     4921 tgttgggaag ggcgatcggt gcgggcctct tcgctattac gccagctgcg cgctcgctcg
     4981 ctcactgagg ccgcccgggc aaagcccggg cgtcgggcga cctttggtcg cccggcctca
     5041 gtgagcgagc gagcgcgcag agagggagtg gccaactcca tcactagggg ttccttgtag
     5101 ttaatgatta acccgccatg ctact
//
