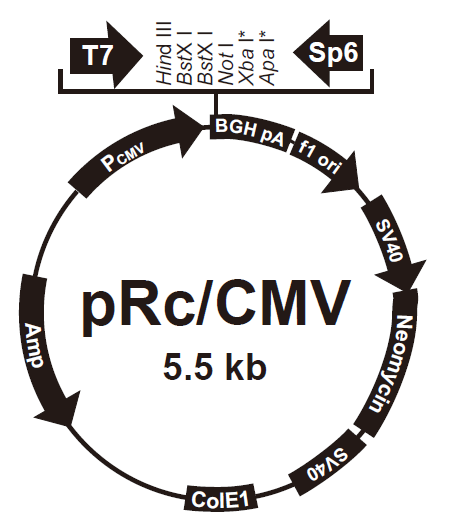

pRc/CMV

LOCUS       pRc/CMV                5542 bp DNA     circular SYN 12-JUL-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5542)
  AUTHORS   Biofeng
  TITLE     Direct Submission
  JOURNAL   Exported Jul 12, 2023 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5542
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        864..882
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     promoter        complement(999..1017)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     polyA_signal    1043..1267
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1313..1826
                     /direction=RIGHT
                     /label=M13 ori
                     /note="M13 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        1854..2184
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2035..2170
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2251..3045
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3219..3353
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3385..3401)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    3409..3425
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3433..3463)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3478..3499
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(3787..4375)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4546..5406)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5407..5511)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtcgactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggac tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttaact ggcttatcga aattaatacg actcactata gggagaccca agcttggtac
      901 cgagctcgga tccactagta acggccgcca gtgtgctgga attctgcaga tatccatcac
      961 actggcggcc gctcgagcat gcatctagag ggccctattc tatagtgtca cctaaatgct
     1021 agagctcgct gatcagcctc gactgtgcct tctagttgcc agccatctgt tgtttgcccc
     1081 tcccccgtgc cttccttgac cctggaaggt gccactccca ctgtcctttc ctaataaaat
     1141 gaggaaattg catcgcattg tctgagtagg tgtcattcta ttctgggggg tggggtgggg
     1201 caggacagca agggggagga ttgggaagac aatagcaggc atgctgggga tgcggtgggc
     1261 tctatggctt ctgaggcgga aagaaccagc tggggctcga ggggggatcc ccacgcgccc
     1321 tgtagcggcg cattaagcgc ggcgggtgtg gtggttacgc gcagcgtgac cgctacactt
     1381 gccagcgccc tagcgcccgc tcctttcgct ttcttccctt cctttctcgc cacgttcgcc
     1441 ggctttcccc gtcaagctct aaatcggggc atccctttag ggttccgatt tagtgcttta
     1501 cggcacctcg accccaaaaa acttgattag ggtgatggtt cacgtagtgg gccatcgccc
     1561 tgatagacgg tttttcgccc tttgacgttg gagtccacgt tctttaatag tggactcttg
     1621 ttccaaactg gaacaacact caaccctatc tcggtctatt cttttgattt ataagggatt
     1681 ttggggattt cggcctattg gttaaaaaat gagctgattt aacaaaaatt taacgcgaat
     1741 tttaacaaaa tattaacgtt tacaatttaa atatttgctt atacaatctt cctgtttttg
     1801 gggcttttct gattatcaac cggggtgggt accgagctcg aattctgtgg aatgtgtgtc
     1861 agttagggtg tggaaagtcc ccaggctccc caggcaggca gaagtatgca aagcatgcat
     1921 ctcaattagt cagcaaccag gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     1981 caaagcatgc atctcaatta gtcagcaacc atagtcccgc ccctaactcc gcccatcccg
     2041 cccctaactc cgcccagttc cgcccattct ccgccccatg gctgactaat tttttttatt
     2101 tatgcagagg ccgaggccgc ctcggcctct gagctattcc agaagtagtg aggaggcttt
     2161 tttggaggcc taggcttttg caaaaagctc ccgggagctt ggatatccat tttcggatct
     2221 gatcaagaga caggatgagg atcgtttcgc atgattgaac aagatggatt gcacgcaggt
     2281 tctccggccg cttgggtgga gaggctattc ggctatgact gggcacaaca gacaatcggc
     2341 tgctctgatg ccgccgtgtt ccggctgtca gcgcaggggc gcccggttct ttttgtcaag
     2401 accgacctgt ccggtgccct gaatgaactg caggacgagg cagcgcggct atcgtggctg
     2461 gccacgacgg gcgttccttg cgcagctgtg ctcgacgttg tcactgaagc gggaagggac
     2521 tggctgctat tgggcgaagt gccggggcag gatctcctgt catctcacct tgctcctgcc
     2581 gagaaagtat ccatcatggc tgatgcaatg cggcggctgc atacgcttga tccggctacc
     2641 tgcccattcg accaccaagc gaaacatcgc atcgagcgag cacgtactcg gatggaagcc
     2701 ggtcttgtcg atcaggatga tctggacgaa gagcatcagg ggctcgcgcc agccgaactg
     2761 ttcgccaggc tcaaggcgcg catgcccgac ggcgaggatc tcgtcgtgac ccatggcgat
     2821 gcctgcttgc cgaatatcat ggtggaaaat ggccgctttt ctggattcat cgactgtggc
     2881 cggctgggtg tggcggaccg ctatcaggac atagcgttgg ctacccgtga tattgctgaa
     2941 gagcttggcg gcgaatgggc tgaccgcttc ctcgtgcttt acggtatcgc cgctcccgat
     3001 tcgcagcgca tcgccttcta tcgccttctt gacgagttct tctgagcggg actctggggt
     3061 tcgaaatgac cgaccaagcg acgcccaacc tgccatcacg agatttcgat tccaccgccg
     3121 ccttctatga aaggttgggc ttcggaatcg ttttccggga cgccggctgg atgatcctcc
     3181 agcgcgggga tctcatgctg gagttcttcg cccaccccaa cttgtttatt gcagcttata
     3241 atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc
     3301 attctagttg tggtttgtcc aaactcatca atgtatctta tcatgtctgg atcccgtcga
     3361 cctcgagagc ttggcgtaat catggtcata gctgtttcct gtgtgaaatt gttatccgct
     3421 cacaattcca cacaacatac gagccggaag cataaagtgt aaagcctggg gtgcctaatg
     3481 agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc gctttccagt cgggaaacct
     3541 gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg agaggcggtt tgcgtattgg
     3601 gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc
     3661 ggtatcagct cactcaaagg cggtaatacg gttatccaca gaatcagggg ataacgcagg
     3721 aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct
     3781 ggcgtttttc cataggctcc gcccccctga cgagcatcac aaaaatcgac gctcaagtca
     3841 gaggtggcga aacccgacag gactataaag ataccaggcg tttccccctg gaagctccct
     3901 cgtgcgctct cctgttccga ccctgccgct taccggatac ctgtccgcct ttctcccttc
     3961 gggaagcgtg gcgctttctc aatgctcacg ctgtaggtat ctcagttcgg tgtaggtcgt
     4021 tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag cccgaccgct gcgccttatc
     4081 cggtaactat cgtcttgagt ccaacccggt aagacacgac ttatcgccac tggcagcagc
     4141 cactggtaac aggattagca gagcgaggta tgtaggcggt gctacagagt tcttgaagtg
     4201 gtggcctaac tacggctaca ctagaaggac agtatttggt atctgcgctc tgctgaagcc
     4261 agttaccttc ggaaaaagag ttggtagctc ttgatccggc aaacaaacca ccgctggtag
     4321 cggtggtttt tttgtttgca agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga
     4381 tcctttgatc ttttctacgg ggtctgacgc tcagtggaac gaaaactcac gttaagggat
     4441 tttggtcatg agattatcaa aaaggatctt cacctagatc cttttaaatt aaaaatgaag
     4501 ttttaaatca atctaaagta tatatgagta aacttggtct gacagttacc aatgcttaat
     4561 cagtgaggca cctatctcag cgatctgtct atttcgttca tccatagttg cctgactccc
     4621 cgtcgtgtag ataactacga tacgggaggg cttaccatct ggccccagtg ctgcaatgat
     4681 accgcgagac ccacgctcac cggctccaga tttatcagca ataaaccagc cagccggaag
     4741 ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc atccagtcta ttaattgttg
     4801 ccgggaagct agagtaagta gttcgccagt taatagtttg cgcaacgttg ttgccattgc
     4861 tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct tcattcagct ccggttccca
     4921 acgatcaagg cgagttacat gatcccccat gttgtgcaaa aaagcggtta gctccttcgg
     4981 tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta tcactcatgg ttatggcagc
     5041 actgcataat tctcttactg tcatgccatc cgtaagatgc ttttctgtga ctggtgagta
     5101 ctcaaccaag tcattctgag aatagtgtat gcggcgaccg agttgctctt gcccggcgtc
     5161 aatacgggat aataccgcgc cacatagcag aactttaaaa gtgctcatca ttggaaaacg
     5221 ttcttcgggg cgaaaactct caaggatctt accgctgttg agatccagtt cgatgtaacc
     5281 cactcgtgca cccaactgat cttcagcatc ttttactttc accagcgttt ctgggtgagc
     5341 aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat
     5401 actcatactc ttcctttttc aatattattg aagcatttat cagggttatt gtctcatgag
     5461 cggatacata tttgaatgta tttagaaaaa taaacaaata ggggttccgc gcacatttcc
     5521 ccgaaaagtg ccacctgacg tc
//
