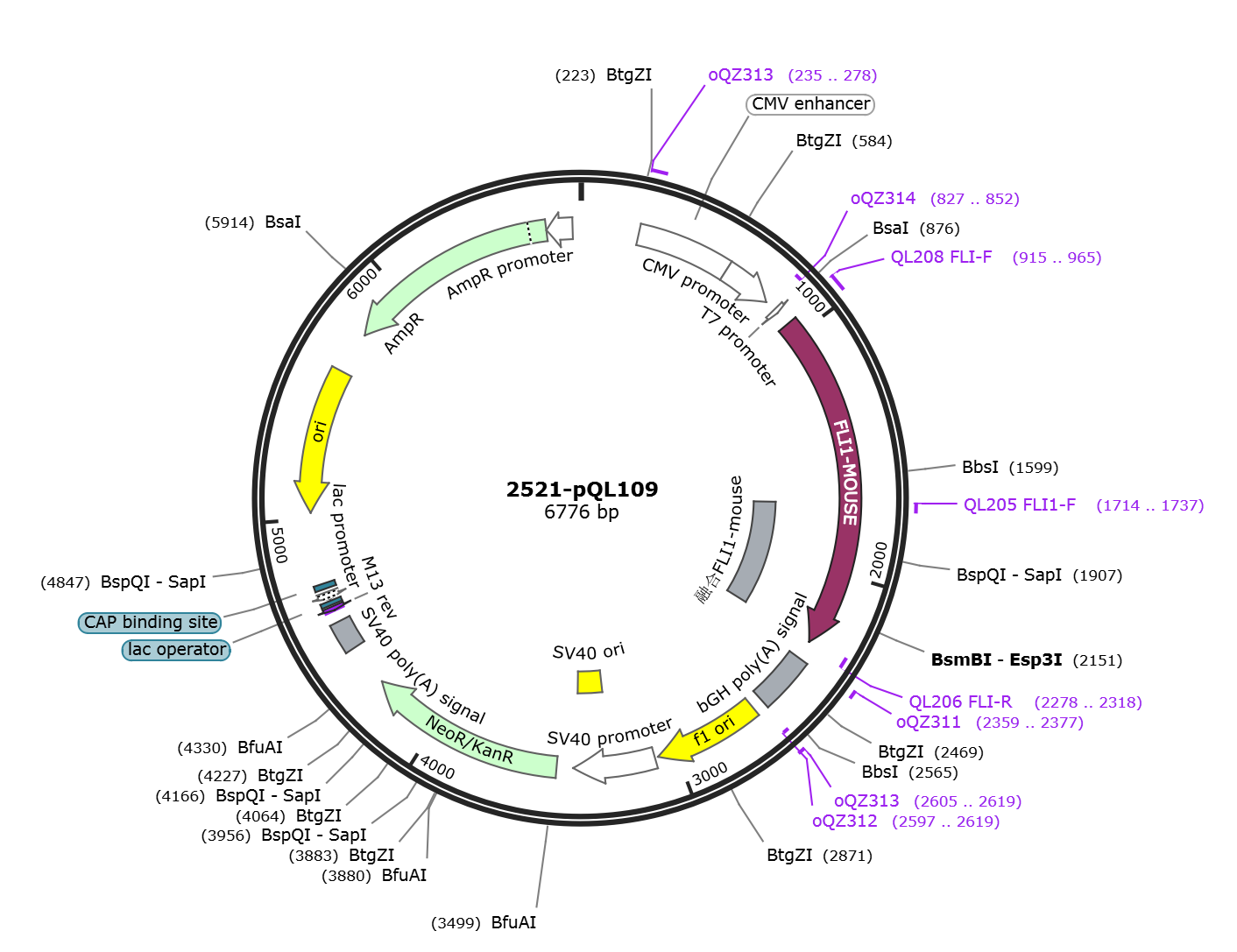

pQL109

LOCUS      pQL109               6776 bp DNA     circular SYN 18-MAY-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6776)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6776
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     915..965
                     /label=QL208 FLI-F
     CDS             941..2299
                     /codon_start=1
                     /label=FLI1-MOUSE
                     /translation="MDGTIKEALSVVSDDQSLFDSAYGAAAHLPKADMTASGSPDYGQP
                     HKINPLPPQQEWINQPVRVNVKREYDHMNGSRESPVDCSVSKCNKLVGGGEANPMNYNS
                     YMDEKNGPPPPNMTTNERRVIVPADPTLWTQEHVRQWLEWAIKEYGLMEIDTSFFQNMD
                     GKELCKMNKEDFLRATSAYNTEVLLSHLSYLRESSLLAYNTTSHTDQSSRLNVKEDPSY
                     DSVRRGAWNNNMNSGLNKSPLLGGSQTMGKNTEQRPQPDPYQILGPTSSRLANPGSGQI
                     QLWQFLLELLSDSANASCITWEGTNGEFKMTDPDEVARRWGERKSKPNMNYDKLSRALR
                     YYYDKNIMTKVHGKRYAYKFDFHGIAQALQPHPTETSMYKYPSDISYMPSYHAHQQKVN
                     FVPSHPSSMPVTSSSFFGAASQYWTSPTAGIYPNPSVPRHPNTHVPSHLGSYY"
     primer_bind     1714..1737
                     /label=QL205 FLI1-F
     misc_feature    1715..2299
                     /label=融合FLI1-mouse
     primer_bind     complement(2278..2318)
                     /label=QL206 FLI-R
     primer_bind     2359..2377
                     /label=oQZ311
     polyA_signal    2376..2600
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2597..2619)
                     /label=oQZ312
     primer_bind     2605..2619
                     /label=oQZ313
     rep_origin      2646..3074
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3088..3417
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3268..3403
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3484..4278
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4452..4573
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4622..4638)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4646..4662
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4670..4700)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4715..4736
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5024..5609)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5780..6640)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6641..6745)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atggacggga ctattaagga
      961 ggctctgtct gtggtgagtg acgatcagtc cctttttgat tcagcatacg gagcggcagc
     1021 ccatctcccc aaggcagata tgactgcttc ggggagtcct gactacgggc agccccacaa
     1081 aatcaacccc ctgccaccgc agcaggagtg gatcaaccag ccagtgagag tcaatgtcaa
     1141 gcgggagtat gaccacatga atggatccag ggagtctccg gtggactgca gtgtcagcaa
     1201 atgtaacaag ctggtgggcg gaggcgaagc caaccccatg aactataata gctacatgga
     1261 tgagaagaac ggcccccctc ctcccaacat gaccaccaac gaacggagag tcattgtgcc
     1321 tgcagacccc acactgtgga cacaggagca cgttcgacag tggctggagt gggctataaa
     1381 ggaatacgga ttgatggaga ttgacacttc cttcttccag aacatggatg gcaaggaatt
     1441 gtgtaaaatg aacaaggagg acttcctccg agccacctcc gcctacaaca cagaagtgct
     1501 gttgtcgcac ctcagttacc tcagggaaag ttcactgctg gcctataaca caacctccca
     1561 tacagaccag tcctcacgac tgaatgtcaa ggaagaccct tcttatgact ctgtcaggag
     1621 aggagcatgg aacaataata tgaactctgg cctcaacaaa agtcctctcc ttggaggatc
     1681 acagaccatg ggcaagaaca ctgagcagcg gccccagcca gatccttatc agatcctggg
     1741 gccaaccagc agccgcctag caaaccctgg gagtgggcag atccagctgt ggcagtttct
     1801 cctggaacta ctgtccgaca gcgccaacgc cagctgtatc acctgggagg ggaccaacgg
     1861 ggagttcaaa atgacggacc ctgatgaggt ggccaggcgc tggggagagc ggaagagcaa
     1921 gcccaacatg aattatgaca agctgagccg ggccctccga tactactatg acaaaaacat
     1981 tatgaccaaa gtgcatggca aaaggtatgc ctacaagttt gacttccatg gcattgccca
     2041 ggccctgcag ccacatccaa cagagacatc catgtacaag tatccctctg atatctccta
     2101 catgccttcc taccatgccc atcaacagaa ggtgaacttt gtcccgtctc acccatcctc
     2161 catgcctgtc acctcctcca gcttctttgg agcagcatca caatactgga cctcccccac
     2221 tgctgggatc tatccaaacc ccagtgtccc ccgccatcct aacacccacg tgccttcaca
     2281 cttaggcagc tactactagg aattctgcag atatccagca cagtggcggc cgctcgagtc
     2341 tagagggccc gtttaaaccc gctgatcagc ctcgactgtg ccttctagtt gccagccatc
     2401 tgttgtttgc ccctcccccg tgccttcctt gaccctggaa ggtgccactc ccactgtcct
     2461 ttcctaataa aatgaggaaa ttgcatcgca ttgtctgagt aggtgtcatt ctattctggg
     2521 gggtggggtg gggcaggaca gcaaggggga ggattgggaa gacaatagca ggcatgctgg
     2581 ggatgcggtg ggctctatgg cttctgaggc ggaaagaacc agctggggct ctagggggta
     2641 tccccacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt
     2701 gaccgctaca cttgccagcg ccctagcgcc cgctcctttc gctttcttcc cttcctttct
     2761 cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg
     2821 atttagtgct ttacggcacc tcgaccccaa aaaacttgat tagggtgatg gttcacgtag
     2881 tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa
     2941 tagtggactc ttgttccaaa ctggaacaac actcaaccct atctcggtct attcttttga
     3001 tttataaggg attttgccga tttcggccta ttggttaaaa aatgagctga tttaacaaaa
     3061 atttaacgcg aattaattct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc
     3121 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga
     3181 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     3241 accatagtcc cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat
     3301 tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc cgcctctgcc
     3361 tctgagctat tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag
     3421 ctcccgggag cttgtatatc cattttcgga tctgatcaag agacaggatg aggatcgttt
     3481 cgcatgattg aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta
     3541 ttcggctatg actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg
     3601 tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa
     3661 ctgcaggacg aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct
     3721 gtgctcgacg ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg
     3781 caggatctcc tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca
     3841 atgcggcggc tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat
     3901 cgcatcgagc gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac
     3961 gaagagcatc aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gcgcatgccc
     4021 gacggcgagg atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa
     4081 aatggccgct tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag
     4141 gacatagcgt tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc
     4201 ttcctcgtgc tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt
     4261 cttgacgagt tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca
     4321 acctgccatc acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa
     4381 tcgttttccg ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct
     4441 tcgcccaccc caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca
     4501 caaatttcac aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca
     4561 tcaatgtatc ttatcatgtc tgtataccgt cgacctctag ctagagcttg gcgtaatcat
     4621 ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag
     4681 ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg
     4741 cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa
     4801 tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca
     4861 ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg
     4921 taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc
     4981 agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc
     5041 cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac
     5101 tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc
     5161 tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata
     5221 gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc
     5281 acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca
     5341 acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag
     5401 cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta
     5461 gaagaacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg
     5521 gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tttttttgtt tgcaagcagc
     5581 agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct acggggtctg
     5641 acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta tcaaaaagga
     5701 tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa agtatatatg
     5761 agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc tcagcgatct
     5821 gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact acgatacggg
     5881 agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc tcaccggctc
     5941 cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt ggtcctgcaa
     6001 ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta agtagttcgc
     6061 cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg tcacgctcgt
     6121 cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt acatgatccc
     6181 ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc agaagtaagt
     6241 tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt actgtcatgc
     6301 catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc tgagaatagt
     6361 gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc gcgccacata
     6421 gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa ctctcaagga
     6481 tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac tgatcttcag
     6541 catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa
     6601 aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt tttcaatatt
     6661 attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa tgtatttaga
     6721 aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct gacgtc
//
