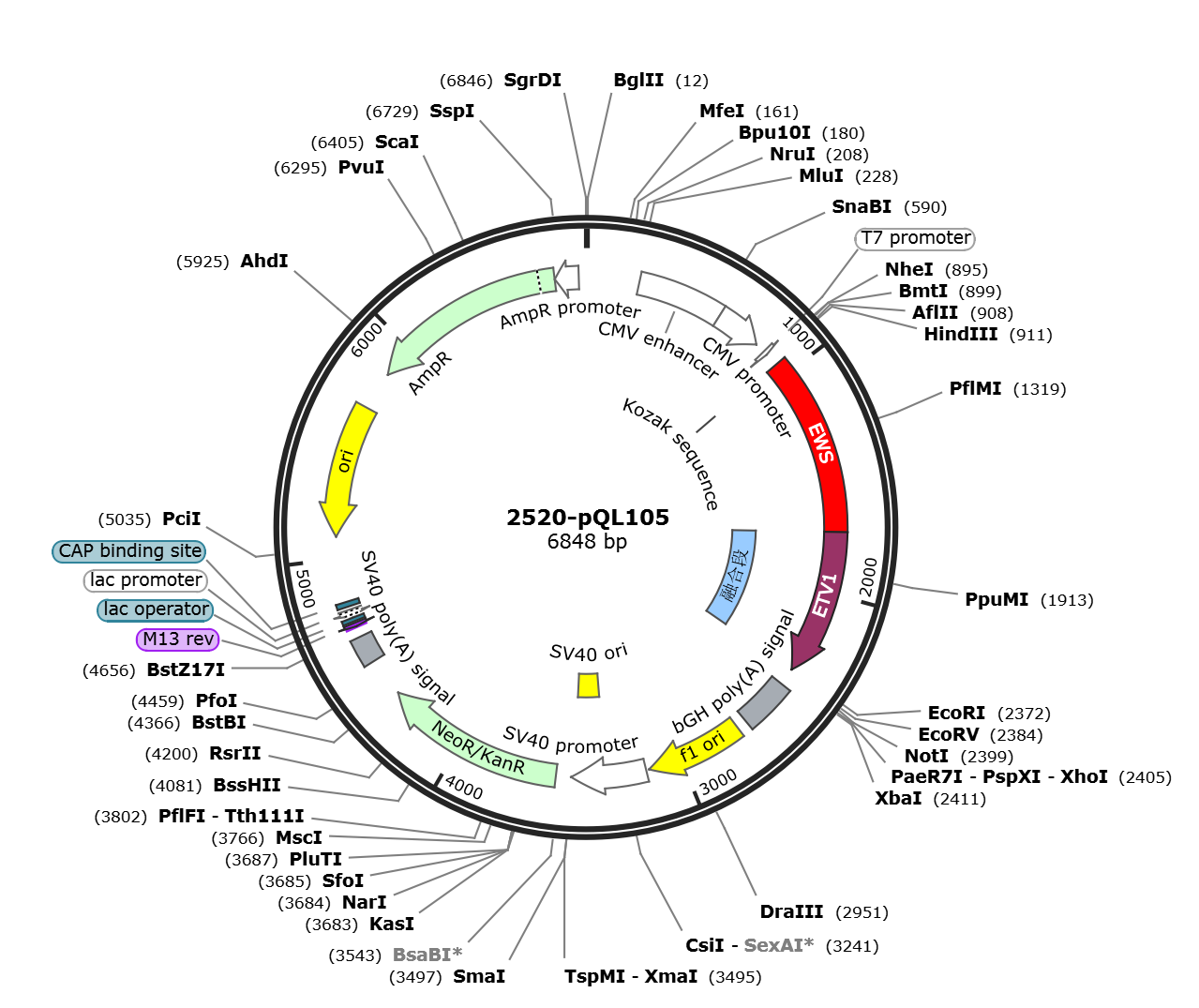

pQL105

LOCUS      pQL105             6848 bp DNA     circular SYN 06-MAY-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6848)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6848
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     897..961
                     /label=QL166 EWS-FL1-F
     primer_bind     913..961
                     /label=QL141-F
     primer_bind     914..961
                     /label=QL79 EWS-FLI1-F QL171-F
     primer_bind     939..961
                     /label=QL107 EWS-F
     primer_bind     939..961
                     /label=QL168-F
     regulatory      939..944
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     misc_feature    941..1732
                     /label=EWS
     primer_bind     1245..1266
                     /label=QL184 EWS-F
     primer_bind     complement(1349..1370)
                     /label=QL185 EWS-R
     primer_bind     1496..1518
                     /label=QL148
     primer_bind     complement(1579..1601)
                     /label=QL149
     primer_bind     1645..1667
                     /label=QL150
     primer_bind     1674..1695
                     /label=QL188 EF-F
     primer_bind     complement(1712..1751)
                     /label=QL199 EWS-R(ETV1)
     primer_bind     complement(1712..1734)
                     /label=QL195 EWS-R
     primer_bind     complement(1712..1733)
                     /label=QL197 EWS-R(FEV)
     primer_bind     complement(1712..1732)
                     /label=QL 108 EWS-R
     primer_bind     complement(1712..1732)
                     /label=QL172-R
     CDS             1733..2371
                     /codon_start=1
                     /label=ETV1
                     /translation="DSEVPSCHSIYMRQEGFLAHPSRTEGCMFEKGPRQFYDDTCVVPE
                     KFDGDIKQEPGMYREGPTYQRRGSLQLWQFLVALLDDPSNSHFIAWTGRGMEFKLIEPE
                     EVARRWGIQKNRPAMNYDKLSRSLRYYYEKGIMQKVAGERYVYKFVCDPEALFSMAFPD
                     NQRPLLKTDMERHINEEDTVPLSHFDESMAYMPEGGCCNPHPYNEGYVY"
     misc_feature    1733..2371
                     /label=融合段
     primer_bind     1733..1753
                     /label=QL200 ETV1-F
     primer_bind     complement(2351..2392)
                     /label=QL161-R
     primer_bind     complement(2411..2430)
                     /label=QL 108 EWS-R
     primer_bind     2431..2449
                     /label=oQZ311
     polyA_signal    2448..2672
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2669..2691)
                     /label=oQZ312
     primer_bind     2677..2691
                     /label=oQZ313
     rep_origin      2718..3146
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3160..3489
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3340..3475
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3556..4350
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4524..4645
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4694..4710)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4718..4734
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4742..4772)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4787..4808
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5096..5681)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5852..6712)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6713..6817)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atggcgtcca cggattacag
      961 tacctatagc caagctgcag cgcagcaggg ctacagtgct tacaccgccc agcccactca
     1021 aggatatgca cagaccaccc aggcatatgg gcaacaaagc tatggaacct atggacagcc
     1081 cactgatgtc agctataccc aggctcagac cactgcaacc tatgggcaga ccgcctatgc
     1141 aacttcttat ggacagcctc ccactggtta tactactcca actgcccccc aggcatacag
     1201 ccagcctgtc caggggtatg gcactggtgc ttatgatacc accactgcta cagtcaccac
     1261 cacccaggcc tcctatgcag ctcagtctgc atatggcact cagcctgctt atccagccta
     1321 tgggcagcag ccagcagcca ctgcacctac aagaccgcag gatggaaaca agcccactga
     1381 gactagtcaa cctcaatcta gcacaggggg ttacaaccag cccagcctag gatatggaca
     1441 gagtaactac agttatcccc aggtacctgg gagctacccc atgcagccag tcactgcacc
     1501 tccatcctac cctcctacca gctattcctc tacacagccg actagttatg atcagagcag
     1561 ttactctcag cagaacacct atgggcaacc gagcagctat ggacagcaga gtagctatgg
     1621 tcaacaaagc agctatgggc agcagcctcc cactagttac ccaccccaaa ctggatccta
     1681 cagccaagct ccaagtcaat atagccaaca gagcagcagc tacgggcagc aggactcaga
     1741 agtgcctagc tgccactcca tttatatgag gcaagaaggc ttcctggctc atcccagcag
     1801 aacagaaggc tgtatgtttg aaaagggccc caggcagttt tatgatgaca cctgtgttgt
     1861 cccagaaaaa ttcgatggag acatcaaaca agagccagga atgtatcggg aaggacccac
     1921 ataccaacgg cgaggatcac ttcagctctg gcagtttttg gtagctcttc tggatgaccc
     1981 ttcaaattct cattttattg cctggactgg tcgaggcatg gaatttaaac tgattgagcc
     2041 tgaagaggtg gcccgacgtt ggggcattca gaaaaacagg ccagctatga actatgataa
     2101 acttagccgt tcactccgct attactatga gaaaggaatt atgcaaaagg tggctggaga
     2161 gagatatgtc tacaagtttg tgtgtgatcc agaagccctt ttctccatgg cctttccaga
     2221 taatcagcgt ccactgctga agacagacat ggaacgtcac atcaacgagg aggacacagt
     2281 gcctctttct cactttgatg agagcatggc ctacatgccg gaagggggct gctgcaaccc
     2341 ccacccctac aacgaaggct acgtgtatta agaattctgc agatatccag cacagtggcg
     2401 gccgctcgag tctagagggc ccgtttaaac ccgctgatca gcctcgactg tgccttctag
     2461 ttgccagcca tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg aaggtgccac
     2521 tcccactgtc ctttcctaat aaaatgagga aattgcatcg cattgtctga gtaggtgtca
     2581 ttctattctg gggggtgggg tggggcagga cagcaagggg gaggattggg aagacaatag
     2641 caggcatgct ggggatgcgg tgggctctat ggcttctgag gcggaaagaa ccagctgggg
     2701 ctctaggggg tatccccacg cgccctgtag cggcgcatta agcgcggcgg gtgtggtggt
     2761 tacgcgcagc gtgaccgcta cacttgccag cgccctagcg cccgctcctt tcgctttctt
     2821 cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc gggggctccc
     2881 tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg attagggtga
     2941 tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga cgttggagtc
     3001 cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaacc ctatctcggt
     3061 ctattctttt gatttataag ggattttgcc gatttcggcc tattggttaa aaaatgagct
     3121 gatttaacaa aaatttaacg cgaattaatt ctgtggaatg tgtgtcagtt agggtgtgga
     3181 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     3241 accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag catgcatctc
     3301 aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct aactccgccc
     3361 agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc agaggccgag
     3421 gccgcctctg cctctgagct attccagaag tagtgaggag gcttttttgg aggcctaggc
     3481 ttttgcaaaa agctcccggg agcttgtata tccattttcg gatctgatca agagacagga
     3541 tgaggatcgt ttcgcatgat tgaacaagat ggattgcacg caggttctcc ggccgcttgg
     3601 gtggagaggc tattcggcta tgactgggca caacagacaa tcggctgctc tgatgccgcc
     3661 gtgttccggc tgtcagcgca ggggcgcccg gttctttttg tcaagaccga cctgtccggt
     3721 gccctgaatg aactgcagga cgaggcagcg cggctatcgt ggctggccac gacgggcgtt
     3781 ccttgcgcag ctgtgctcga cgttgtcact gaagcgggaa gggactggct gctattgggc
     3841 gaagtgccgg ggcaggatct cctgtcatct caccttgctc ctgccgagaa agtatccatc
     3901 atggctgatg caatgcggcg gctgcatacg cttgatccgg ctacctgccc attcgaccac
     3961 caagcgaaac atcgcatcga gcgagcacgt actcggatgg aagccggtct tgtcgatcag
     4021 gatgatctgg acgaagagca tcaggggctc gcgccagccg aactgttcgc caggctcaag
     4081 gcgcgcatgc ccgacggcga ggatctcgtc gtgacccatg gcgatgcctg cttgccgaat
     4141 atcatggtgg aaaatggccg cttttctgga ttcatcgact gtggccggct gggtgtggcg
     4201 gaccgctatc aggacatagc gttggctacc cgtgatattg ctgaagagct tggcggcgaa
     4261 tgggctgacc gcttcctcgt gctttacggt atcgccgctc ccgattcgca gcgcatcgcc
     4321 ttctatcgcc ttcttgacga gttcttctga gcgggactct ggggttcgaa atgaccgacc
     4381 aagcgacgcc caacctgcca tcacgagatt tcgattccac cgccgccttc tatgaaaggt
     4441 tgggcttcgg aatcgttttc cgggacgccg gctggatgat cctccagcgc ggggatctca
     4501 tgctggagtt cttcgcccac cccaacttgt ttattgcagc ttataatggt tacaaataaa
     4561 gcaatagcat cacaaatttc acaaataaag catttttttc actgcattct agttgtggtt
     4621 tgtccaaact catcaatgta tcttatcatg tctgtatacc gtcgacctct agctagagct
     4681 tggcgtaatc atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac
     4741 acaacatacg agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac
     4801 tcacattaat tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc
     4861 tgcattaatg aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgctcttccg
     4921 cttcctcgct cactgactcg ctgcgctcgg tcgttcggct gcggcgagcg gtatcagctc
     4981 actcaaaggc ggtaatacgg ttatccacag aatcagggga taacgcagga aagaacatgt
     5041 gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc cgcgttgctg gcgtttttcc
     5101 ataggctccg cccccctgac gagcatcaca aaaatcgacg ctcaagtcag aggtggcgaa
     5161 acccgacagg actataaaga taccaggcgt ttccccctgg aagctccctc gtgcgctctc
     5221 ctgttccgac cctgccgctt accggatacc tgtccgcctt tctcccttcg ggaagcgtgg
     5281 cgctttctca tagctcacgc tgtaggtatc tcagttcggt gtaggtcgtt cgctccaagc
     5341 tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg cgccttatcc ggtaactatc
     5401 gtcttgagtc caacccggta agacacgact tatcgccact ggcagcagcc actggtaaca
     5461 ggattagcag agcgaggtat gtaggcggtg ctacagagtt cttgaagtgg tggcctaact
     5521 acggctacac tagaagaaca gtatttggta tctgcgctct gctgaagcca gttaccttcg
     5581 gaaaaagagt tggtagctct tgatccggca aacaaaccac cgctggtagc ggtttttttg
     5641 tttgcaagca gcagattacg cgcagaaaaa aaggatctca agaagatcct ttgatctttt
     5701 ctacggggtc tgacgctcag tggaacgaaa actcacgtta agggattttg gtcatgagat
     5761 tatcaaaaag gatcttcacc tagatccttt taaattaaaa atgaagtttt aaatcaatct
     5821 aaagtatata tgagtaaact tggtctgaca gttaccaatg cttaatcagt gaggcaccta
     5881 tctcagcgat ctgtctattt cgttcatcca tagttgcctg actccccgtc gtgtagataa
     5941 ctacgatacg ggagggctta ccatctggcc ccagtgctgc aatgataccg cgagacccac
     6001 gctcaccggc tccagattta tcagcaataa accagccagc cggaagggcc gagcgcagaa
     6061 gtggtcctgc aactttatcc gcctccatcc agtctattaa ttgttgccgg gaagctagag
     6121 taagtagttc gccagttaat agtttgcgca acgttgttgc cattgctaca ggcatcgtgg
     6181 tgtcacgctc gtcgtttggt atggcttcat tcagctccgg ttcccaacga tcaaggcgag
     6241 ttacatgatc ccccatgttg tgcaaaaaag cggttagctc cttcggtcct ccgatcgttg
     6301 tcagaagtaa gttggccgca gtgttatcac tcatggttat ggcagcactg cataattctc
     6361 ttactgtcat gccatccgta agatgctttt ctgtgactgg tgagtactca accaagtcat
     6421 tctgagaata gtgtatgcgg cgaccgagtt gctcttgccc ggcgtcaata cgggataata
     6481 ccgcgccaca tagcagaact ttaaaagtgc tcatcattgg aaaacgttct tcggggcgaa
     6541 aactctcaag gatcttaccg ctgttgagat ccagttcgat gtaacccact cgtgcaccca
     6601 actgatcttc agcatctttt actttcacca gcgtttctgg gtgagcaaaa acaggaaggc
     6661 aaaatgccgc aaaaaaggga ataagggcga cacggaaatg ttgaatactc atactcttcc
     6721 tttttcaata ttattgaagc atttatcagg gttattgtct catgagcgga tacatatttg
     6781 aatgtattta gaaaaataaa caaatagggg ttccgcgcac atttccccga aaagtgccac
     6841 ctgacgtc
//
