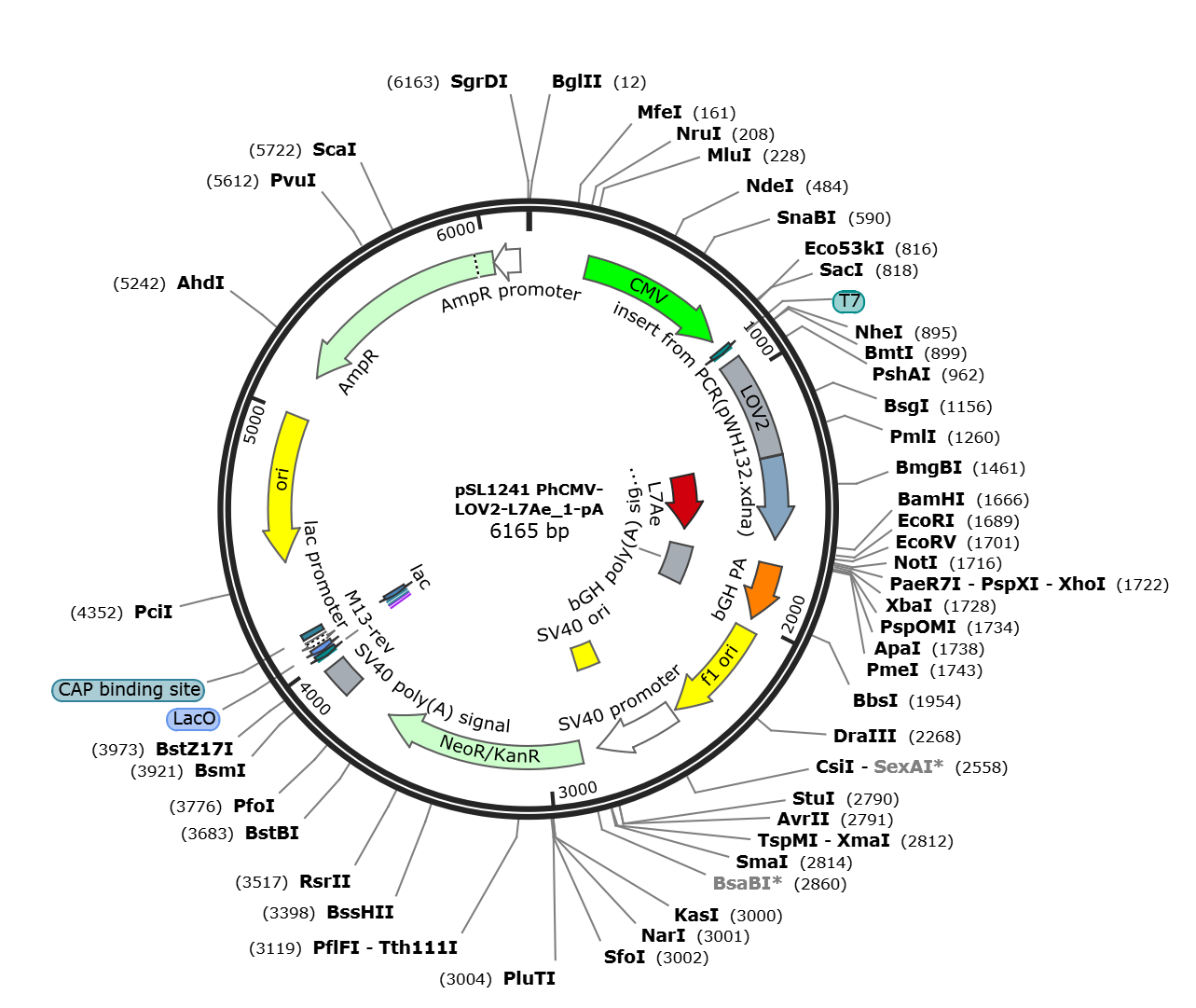

pSL1241

LOCUS       pSL1241              6165 bp DNA     circular SYN 05-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6165)
  AUTHORS   Trial User
  TITLE     Direct Submission
  JOURNAL   Exported Aug 28, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6165
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     primer_bind     863..882
                     /label=T7
     primer_bind     881..949
                     /label=oSCL2252
     misc_feature    925..1332
                     /label=LOV2
     primer_bind     925..942
                     /label=oSCL1757
     primer_bind     925..942
                     /label=oSCL1819
     primer_bind     complement(1312..1355)
                     /label=oSCL2254
     primer_bind     complement(1314..1332)
                     /label=oSCL1758
     primer_bind     complement(1314..1332)
                     /label=oSCL1994
     misc_feature    1336..1662
                     /label=L7Ae
     misc_feature    1336..1662
                     /direction=RIGHT

                     /note="note=""Fragment extracted from PCR(pWH132.xdna) [363
                      nt] : (BamHI[6] / XbaI[373])"
     primer_bind     1336..1355
                     /label=oSCL2255
     primer_bind     complement(1638..1662)
                     /label=DDL7AeR
                     /note="EcoRI"
     primer_bind     complement(1642..1671)
                     /label=L7Ae RLE
     primer_bind     complement(1644..1685)
                     /label=oSCL2256
     primer_bind     complement(1736..1754)
                     /label=oYW306
     terminator      1762..1989
                     /label=bGH PA
     polyA_signal    1765..1989
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2035..2463
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2477..2806
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2657..2792
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    2657..2734
                     /label=SV40 ORI
     CDS             2873..3667
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3841..3962
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4007..4027)
                     /label=M13-rev
     primer_bind     complement(4011..4027)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(4033..4055)
                     /label=LacO
     protein_bind    4035..4051
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4059..4089)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(4060..4089)
                     /label=lac
     protein_bind    4104..4125
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4413..4998)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5169..6029)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6030..6134)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gccaccatgt ttttggcaac aaccttggaa cgtatcgaaa agaattttgt catcacggac
      961 ccgcgtctgc ccgacaatcc gattatcttc gcgtcagact ctttcttaca actgactgag
     1021 tatagtagag aggagatatt ggggcgtaac tgtagatttc ttcaggggcc agaaactgat
     1081 cgggctaccg ttcgcaagat acgtgacgca atagacaacc agaccgaggt gacggtgcag
     1141 ctgattaact acacaaagtc tgggaagaag ttctggaacc tgtttcattt acaacctatg
     1201 agggaccaaa aaggtgacgt tcaatatttc atcggggttc agttagatgg gactgagcac
     1261 gtgagagatg cagcagaaag agagggtgta atgcttatta aaaaaacagc cgagaatatc
     1321 gacgaagccg ctaagatgca gaacgaggcc ctgagcctgc tggaaaaagt gcgcgagagc
     1381 ggcaaagtga agaagggcac caacgaaacc accaaggccg tggaacgggg cctggccaag
     1441 ctggtgtata tcgccgagga cgtggacccc cccgagattg tggcccatct gcccctgctg
     1501 tgcgaagaga agaacgtgcc ctacatctac gtgaagtcca agaacgacct gggcagagcc
     1561 gtgggcatcg aggtgccatg tgcctctgcc gccatcatca acgagggcga gctgcggaaa
     1621 gaactgggca gcctggtgga aaagatcaag ggcctgcaga agtaaggatc cactagtcca
     1681 gtgtggtgga attctgcaga tatccagcac agtggcggcc gctcgagtct agagggcccg
     1741 tttaaacccg ctgatcagcc tcgactgtgc cttctagttg ccagccatct gttgtttgcc
     1801 cctcccccgt gccttccttg accctggaag gtgccactcc cactgtcctt tcctaataaa
     1861 atgaggaaat tgcatcgcat tgtctgagta ggtgtcattc tattctgggg ggtggggtgg
     1921 ggcaggacag caagggggag gattgggaag acaatagcag gcatgctggg gatgcggtgg
     1981 gctctatggc ttctgaggcg gaaagaacca gctggggctc tagggggtat ccccacgcgc
     2041 cctgtagcgg cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg accgctacac
     2101 ttgccagcgc cctagcgccc gctcctttcg ctttcttccc ttcctttctc gccacgttcg
     2161 ccggctttcc ccgtcaagct ctaaatcggg ggctcccttt agggttccga tttagtgctt
     2221 tacggcacct cgaccccaaa aaacttgatt agggtgatgg ttcacgtagt gggccatcgc
     2281 cctgatagac ggtttttcgc cctttgacgt tggagtccac gttctttaat agtggactct
     2341 tgttccaaac tggaacaaca ctcaacccta tctcggtcta ttcttttgat ttataaggga
     2401 ttttgccgat ttcggcctat tggttaaaaa atgagctgat ttaacaaaaa tttaacgcga
     2461 attaattctg tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg
     2521 cagaagtatg caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg
     2581 ctccccagca ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc
     2641 gcccctaact ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca
     2701 tggctgacta atttttttta tttatgcaga ggccgaggcc gcctctgcct ctgagctatt
     2761 ccagaagtag tgaggaggct tttttggagg cctaggcttt tgcaaaaagc tcccgggagc
     2821 ttgtatatcc attttcggat ctgatcaaga gacaggatga ggatcgtttc gcatgattga
     2881 acaagatgga ttgcacgcag gttctccggc cgcttgggtg gagaggctat tcggctatga
     2941 ctgggcacaa cagacaatcg gctgctctga tgccgccgtg ttccggctgt cagcgcaggg
     3001 gcgcccggtt ctttttgtca agaccgacct gtccggtgcc ctgaatgaac tgcaggacga
     3061 ggcagcgcgg ctatcgtggc tggccacgac gggcgttcct tgcgcagctg tgctcgacgt
     3121 tgtcactgaa gcgggaaggg actggctgct attgggcgaa gtgccggggc aggatctcct
     3181 gtcatctcac cttgctcctg ccgagaaagt atccatcatg gctgatgcaa tgcggcggct
     3241 gcatacgctt gatccggcta cctgcccatt cgaccaccaa gcgaaacatc gcatcgagcg
     3301 agcacgtact cggatggaag ccggtcttgt cgatcaggat gatctggacg aagagcatca
     3361 ggggctcgcg ccagccgaac tgttcgccag gctcaaggcg cgcatgcccg acggcgagga
     3421 tctcgtcgtg acccatggcg atgcctgctt gccgaatatc atggtggaaa atggccgctt
     3481 ttctggattc atcgactgtg gccggctggg tgtggcggac cgctatcagg acatagcgtt
     3541 ggctacccgt gatattgctg aagagcttgg cggcgaatgg gctgaccgct tcctcgtgct
     3601 ttacggtatc gccgctcccg attcgcagcg catcgccttc tatcgccttc ttgacgagtt
     3661 cttctgagcg ggactctggg gttcgaaatg accgaccaag cgacgcccaa cctgccatca
     3721 cgagatttcg attccaccgc cgccttctat gaaaggttgg gcttcggaat cgttttccgg
     3781 gacgccggct ggatgatcct ccagcgcggg gatctcatgc tggagttctt cgcccacccc
     3841 aacttgttta ttgcagctta taatggttac aaataaagca atagcatcac aaatttcaca
     3901 aataaagcat ttttttcact gcattctagt tgtggtttgt ccaaactcat caatgtatct
     3961 tatcatgtct gtataccgtc gacctctagc tagagcttgg cgtaatcatg gtcatagctg
     4021 tttcctgtgt gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata
     4081 aagtgtaaag cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca
     4141 ctgcccgctt tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc
     4201 gcggggagag gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg
     4261 cgctcggtcg ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta
     4321 tccacagaat caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc
     4381 aggaaccgta aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag
     4441 catcacaaaa atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac
     4501 caggcgtttc cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc
     4561 ggatacctgt ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt
     4621 aggtatctca gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc
     4681 gttcagcccg accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga
     4741 cacgacttat cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta
     4801 ggcggtgcta cagagttctt gaagtggtgg cctaactacg gctacactag aagaacagta
     4861 tttggtatct gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga
     4921 tccggcaaac aaaccaccgc tggtagcggt ttttttgttt gcaagcagca gattacgcgc
     4981 agaaaaaaag gatctcaaga agatcctttg atcttttcta cggggtctga cgctcagtgg
     5041 aacgaaaact cacgttaagg gattttggtc atgagattat caaaaaggat cttcacctag
     5101 atccttttaa attaaaaatg aagttttaaa tcaatctaaa gtatatatga gtaaacttgg
     5161 tctgacagtt accaatgctt aatcagtgag gcacctatct cagcgatctg tctatttcgt
     5221 tcatccatag ttgcctgact ccccgtcgtg tagataacta cgatacggga gggcttacca
     5281 tctggcccca gtgctgcaat gataccgcga gacccacgct caccggctcc agatttatca
     5341 gcaataaacc agccagccgg aagggccgag cgcagaagtg gtcctgcaac tttatccgcc
     5401 tccatccagt ctattaattg ttgccgggaa gctagagtaa gtagttcgcc agttaatagt
     5461 ttgcgcaacg ttgttgccat tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg
     5521 gcttcattca gctccggttc ccaacgatca aggcgagtta catgatcccc catgttgtgc
     5581 aaaaaagcgg ttagctcctt cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg
     5641 ttatcactca tggttatggc agcactgcat aattctctta ctgtcatgcc atccgtaaga
     5701 tgcttttctg tgactggtga gtactcaacc aagtcattct gagaatagtg tatgcggcga
     5761 ccgagttgct cttgcccggc gtcaatacgg gataataccg cgccacatag cagaacttta
     5821 aaagtgctca tcattggaaa acgttcttcg gggcgaaaac tctcaaggat cttaccgctg
     5881 ttgagatcca gttcgatgta acccactcgt gcacccaact gatcttcagc atcttttact
     5941 ttcaccagcg tttctgggtg agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata
     6001 agggcgacac ggaaatgttg aatactcata ctcttccttt ttcaatatta ttgaagcatt
     6061 tatcagggtt attgtctcat gagcggatac atatttgaat gtatttagaa aaataaacaa
     6121 ataggggttc cgcgcacatt tccccgaaaa gtgccacctg acgtc
//
