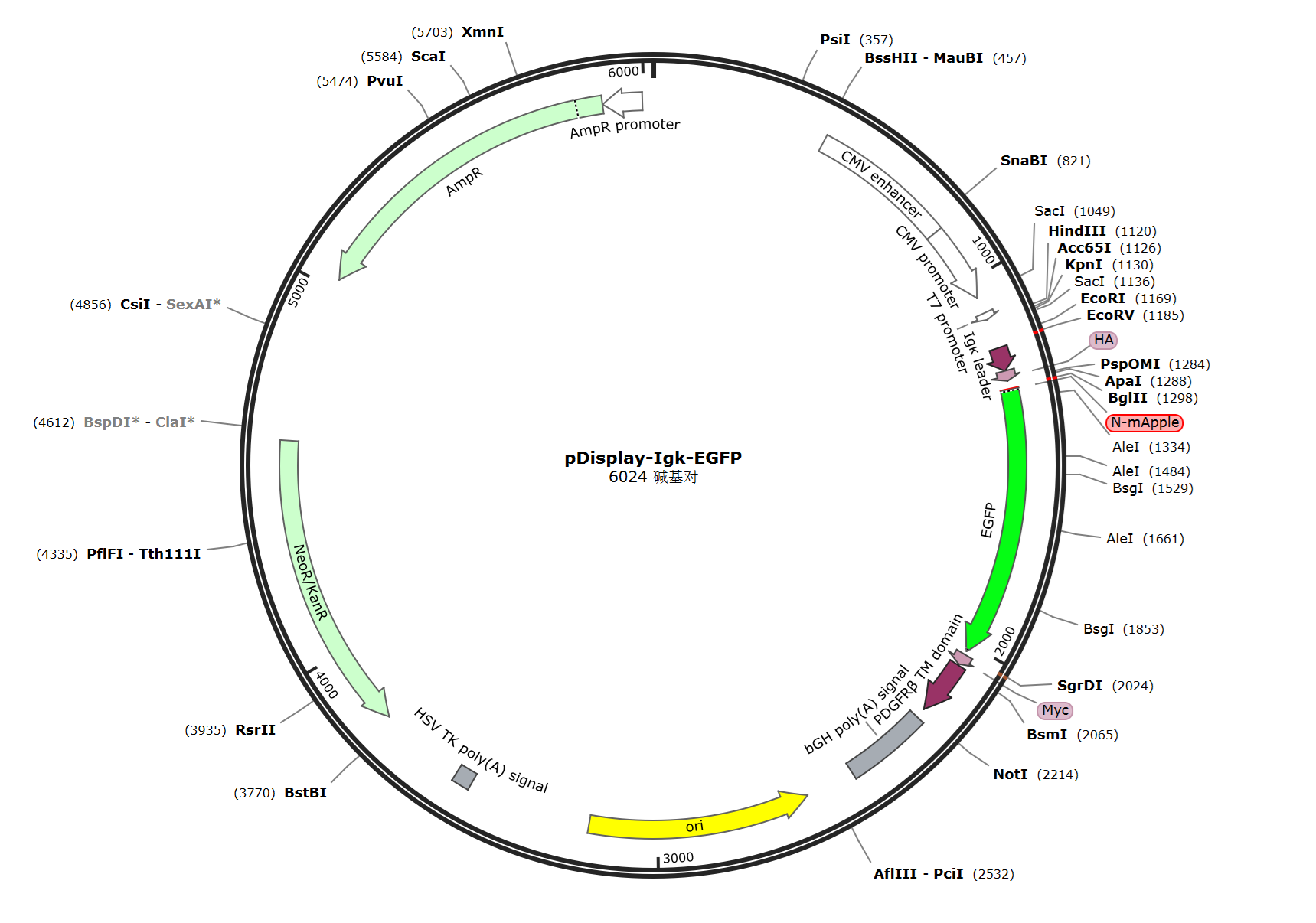

pDisplay-Igk-EGFP

LOCUS      pDisplay-Igk-EGFP             6024 bp DNA     circular SYN 16-OCT-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pDisplay-Igk-EGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6024)
  AUTHORS   Kiryl Piatkevich
  TITLE     Direct Submission
  JOURNAL   Exported Aug 17, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6024
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     source          1307..2019
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        466..845
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        846..1049
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        1094..1112
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     1118..1137
                     /label=pDisplay-F
     primer_bind     1168..1213
                     /label=igk-F1
     sig_peptide     1193..1255
                     /codon_start=1
                     /product="leader sequence from mouse immunoglobulin kappa
                     light chain"
                     /label=Ig-kappa leader
                     /translation="METDTLLLWVLLLWVPGSTGD"
     CDS             1256..1282
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     primer_bind     1278..1322
                     /label=PD-F1
     primer_bind     1282..1324
                     /label=Igk-GFP-F1
     CDS             1304..1306
                     /codon_start=1
                     /label=N-mApple
                     /translation="M"
     CDS             1307..2019
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="VSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDG
                     NYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKV
                     NFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLE
                     FVTAAGITLGMDELY"
     primer_bind     complement(1998..2020)
                     /label=EGFP-CAAX-R1
     primer_bind     complement(2000..2045)
                     /label=Igk-GFP-R1
     primer_bind     complement(2001..2020)
                     /label=2418-R2
     primer_bind     2002..2022
                     /label=Kv2.1-Fw-BsrGI
     primer_bind     complement(2011..2041)
                     /label=PD-R1
     primer_bind     2021..2041
                     /label=MYC-F1
     CDS             2030..2059
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     CDS             2063..2209
                     /codon_start=1
                     /product="transmembrane domain from platelet derived growth
                     factor receptor beta"
                     /label=PDGFR-beta TM domain
                     /translation="AVGQDTQEVIVVPHSLPFKVVVISAILALVVLTIISLIILIMLWQ
                     KKPR"
     primer_bind     complement(2191..2237)
                     /label=MYC-R1
     polyA_signal    2237..2461
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2367..2387)
                     /label=bGH-R1-for seq
     rep_origin      complement(2593..3181)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     polyA_signal    3510..3557
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     CDS             complement(3789..4583)
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     CDS             complement(5031..5891)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(5892..5996)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gcgccctgta gcggcgcatt aagcgcggcg ggtgtggtgg ttacgcgcag cgtgaccgct
       61 acacttgcca gcgccctagc gcccgctcct ttcgctttct tcccttcctt tctcgccacg
      121 ttcgccggct ttccccgtca agctctaaat cgggggctcc ctttagggtt ccgatttagt
      181 gctttacggc acctcgaccc caaaaaactt gattagggtg atggttcacg tagtgggcca
      241 tcgccctgat agacggtttt tcgccctttg acgttggagt ccacgttctt taatagtgga
      301 ctcttgttcc aaactggaac aacactcaac cctatctcgg tctattcttt tgatttataa
      361 gggattttgc cgatttcggc ctattggtta aaaaatgagc tgatttaaca aaaatttaac
      421 gcgaatttta acaaaatatt aacgcttaca atttacgcgc gcgttgacat tgattattga
      481 ctagttatta atagtaatca attacggggt cattagttca tagcccatat atggagttcc
      541 gcgttacata acttacggta aatggcccgc ctggctgacc gcccaacgac ccccgcccat
      601 tgacgtcaat aatgacgtat gttcccatag taacgccaat agggactttc cattgacgtc
      661 aatgggtgga gtatttacgg taaactgccc acttggcagt acatcaagtg tatcatatgc
      721 caagtacgcc ccctattgac gtcaatgacg gtaaatggcc cgcctggcat tatgcccagt
      781 acatgacctt atgggacttt cctacttggc agtacatcta cgtattagtc atcgctatta
      841 ccatggtgat gcggttttgg cagtacatca atgggcgtgg atagcggttt gactcacggg
      901 gatttccaag tctccacccc attgacgtca atgggagttt gttttggcac caaaatcaac
      961 gggactttcc aaaatgtcgt aacaactccg ccccattgac gcaaatgggc ggtaggcgtg
     1021 tacggtggga ggtctatata agcagagctc tctggctaac tagagaaccc actgcttact
     1081 ggcttatcga aattaatacg actcactata gggagaccca agcttggtac cgagctcgga
     1141 tccactagta acggccgcca gtgtgctgga attcggcttg gggatatcca ccatggagac
     1201 agacacactc ctgctatggg tactgctgct ctgggttcca ggttccactg gtgactatcc
     1261 atatgatgtt ccagattatg ctggggccca gccggccaga tctatggtga gcaagggcga
     1321 ggagctgttc accggggtgg tgcccatcct ggtcgagctg gacggcgacg taaacggcca
     1381 caagttcagc gtgtccggcg agggcgaggg cgatgccacc tacggcaagc tgaccctgaa
     1441 gttcatttgc accaccggca agctgcccgt gccctggccc accctcgtga ccaccctgac
     1501 ctacggcgtg cagtgcttca gccgctaccc cgaccacatg aagcagcacg acttcttcaa
     1561 gtccgccatg cccgaaggct acgtccagga gcgcaccatc ttcttcaagg acgacggcaa
     1621 ctacaagacc cgcgccgagg tgaagttcga gggcgacacc ctggtgaacc gcatcgagct
     1681 gaagggcatc gacttcaagg aggacggcaa catcctgggg cacaagctgg agtacaacta
     1741 caacagccac aacgtctata tcatggccga caagcagaag aacggcatca aggtgaactt
     1801 caagatccgc cacaacatcg aggacggcag cgtgcagctc gccgaccact accagcagaa
     1861 cacccccatc ggcgacggcc ccgtgctgct gcccgacaac cactacctga gcacccagtc
     1921 cgccctgagc aaagacccca acgagaagcg cgatcacatg gtcctgctgg agttcgtgac
     1981 cgccgccggg atcactctcg gcatggacga gctgtacaag ggcgtcgacg aacaaaaact
     2041 catctcagaa gaggatctga atgctgtggg ccaggacacg caggaggtca tcgtggtgcc
     2101 acactccttg ccctttaagg tggtggtgat ctcagccatc ctggccctgg tggtgctcac
     2161 catcatctcc cttatcatcc tcatcatgct ttggcagaag aagccacgtt aggcggccgc
     2221 tcgagatcag cctcgactgt gccttctagt tgccagccat ctgttgtttg cccctccccc
     2281 gtgccttcct tgaccctgga aggtgccact cccactgtcc tttcctaata aaatgaggaa
     2341 attgcatcgc attgtctgag taggtgtcat tctattctgg ggggtggggt ggggcaggac
     2401 agcaaggggg aggattggga agacaatagc aggcatgctg gggatgcggt gggctctatg
     2461 gcttctgagg cggaaagaac cagtggcggt aatacggtta tccacagaat caggggataa
     2521 cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta aaaaggccgc
     2581 gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa atcgacgctc
     2641 aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc cccctggaag
     2701 ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt ccgcctttct
     2761 cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca gttcggtgta
     2821 ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg accgctgcgc
     2881 cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat cgccactggc
     2941 agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta cagagttctt
     3001 gaagtggtgg cctaactacg gctacactag aagaacagta tttggtatct gcgctctgct
     3061 gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac aaaccaccgc
     3121 tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa aaggatctca
     3181 agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa actcacgtta
     3241 agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt taaattaaaa
     3301 atgaagtttt aaatcaatct aaagtatata tgagtaacct gaggctatgg cagggcctgc
     3361 cgccccgacg ttggctgcga gccctgggcc ttcacccgaa cttggggggt ggggtgggga
     3421 aaaggaagaa acgcgggcgt attggcccca atggggtctc ggtggggtat cgacagagtg
     3481 ccagccctgg gaccgaaccc cgcgtttatg aacaaacgac ccaacaccgt gcgttttatt
     3541 ctgtcttttt attgccgtca tagcgcgggt tccttccggt attgtctcct tccgtgtttc
     3601 agttagcctc cccctagggt gggcgaagaa ctccagcatg agatccccgc gctggaggat
     3661 catccagccg gcgtcccgga aaacgattcc gaagcccaac ctttcataga aggcggcggt
     3721 ggaatcgaaa tctcgtgatg gcaggttggg cgtcgcttgg tcggtcattt cgaaccccag
     3781 agtcccgctc agaagaactc gtcaagaagg cgatagaagg cgatgcgctg cgaatcggga
     3841 gcggcgatac cgtaaagcac gaggaagcgg tcagcccatt cgccgccaag ctcttcagca
     3901 atatcacggg tagccaacgc tatgtcctga tagcggtccg ccacacccag ccggccacag
     3961 tcgatgaatc cagaaaagcg gccattttcc accatgatat tcggcaagca ggcatcgcca
     4021 tgggtcacga cgagatcctc gccgtcgggc atgctcgcct tgagcctggc gaacagttcg
     4081 gctggcgcga gcccctgatg ctcttcgtcc agatcatcct gatcgacaag accggcttcc
     4141 atccgagtac gtgctcgctc gatgcgatgt ttcgcttggt ggtcgaatgg gcaggtagcc
     4201 ggatcaagcg tatgcagccg ccgcattgca tcagccatga tggatacttt ctcggcagga
     4261 gcaaggtgag atgacaggag atcctgcccc ggcacttcgc ccaatagcag ccagtccctt
     4321 cccgcttcag tgacaacgtc gagcacagct gcgcaaggaa cgcccgtcgt ggccagccac
     4381 gatagccgcg ctgcctcgtc ttgcagttca ttcagggcac cggacaggtc ggtcttgaca
     4441 aaaagaaccg ggcgcccctg cgctgacagc cggaacacgg cggcatcaga gcagccgatt
     4501 gtctgttgtg cccagtcata gccgaatagc ctctccaccc aagcggccgg agaacctgcg
     4561 tgcaatccat cttgttcaat catgcgaaac gatcctcatc ctgtctcttg atcgatcttt
     4621 gcaaaagcct aggcctccaa aaaagcctcc tcactacttc tggaatagct cagaggccgg
     4681 gcctcggcct ctgcataaat aaaaaaaatt agtcagccat ggggcggaga atgggcggaa
     4741 ctgggcggag ttaggggcgg gatgggcgga gttaggggcg ggactatggt tgctgactaa
     4801 ttgagatgca tgctttgcat acttctgcct gctggggagc ctggggactt tccacacctg
     4861 gttgctgact aattgagatg catgctttgc atacttctgc ctgctgggga gcctggggac
     4921 tttccacacc ctaactgaca cacattccac agctggttct ttccgcctca ggactcttcc
     4981 tttttcaata aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc
     5041 ttaatcagtg aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga
     5101 ctccccgtcg tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca
     5161 atgataccgc gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc
     5221 ggaagggccg agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat
     5281 tgttgccggg aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc
     5341 attgctacag gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt
     5401 tcccaacgat caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc
     5461 ttcggtcctc cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg
     5521 gcagcactgc ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt
     5581 gagtactcaa ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg
     5641 gcgtcaatac gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga
     5701 aaacgttctt cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg
     5761 taacccactc gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg
     5821 tgagcaaaaa caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt
     5881 tgaatactca tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc
     5941 atgagcggat acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca
     6001 tttccccgaa aagtgccacc tgac
//
