pcDNA4/myc-His C

价格:1500元

联系方式:I47-825O-882O

买家导航

载体基本信息

出品公司: Invitrogen
载体名称: pcDNA4/myc-His C
质粒类型: 哺乳动物表达载体;cDNA表达载体
高拷贝/低拷贝: 高拷贝
克隆方法: 多克隆位点,限制性内切酶
启动子: CMV
载体大小: 5071 bp
5' 测序引物及序列: T7 Forward: 5’-TAATACGACTCACTATAGGG-3’
3' 测序引物及序列: BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3
载体标签: His Tag (C-端), c-Myc Epitope Tag(C-端)
载体抗性: 氨苄青霉素
筛选标记: Zeocin
克隆菌株: TOP10F´, DH5a, JM109, TOP10
宿主细胞(系): 常规细胞系,如293、Hela等
备注: pcDNA4/myc-His C 载体是哺乳动物表达载体,适用于cDNA的表达与克隆;
CMV启动子驱动目的基因的高水平表达;
pcDNA4/myc-His A,B,C的 区别仅在于多克隆位点处。
产品目录号: V863-20
稳定性: 瞬表达 或 稳表达
组成型/诱导型: 组成型
病毒/非病毒: 非病毒

载体质粒图谱和多克隆位点信息

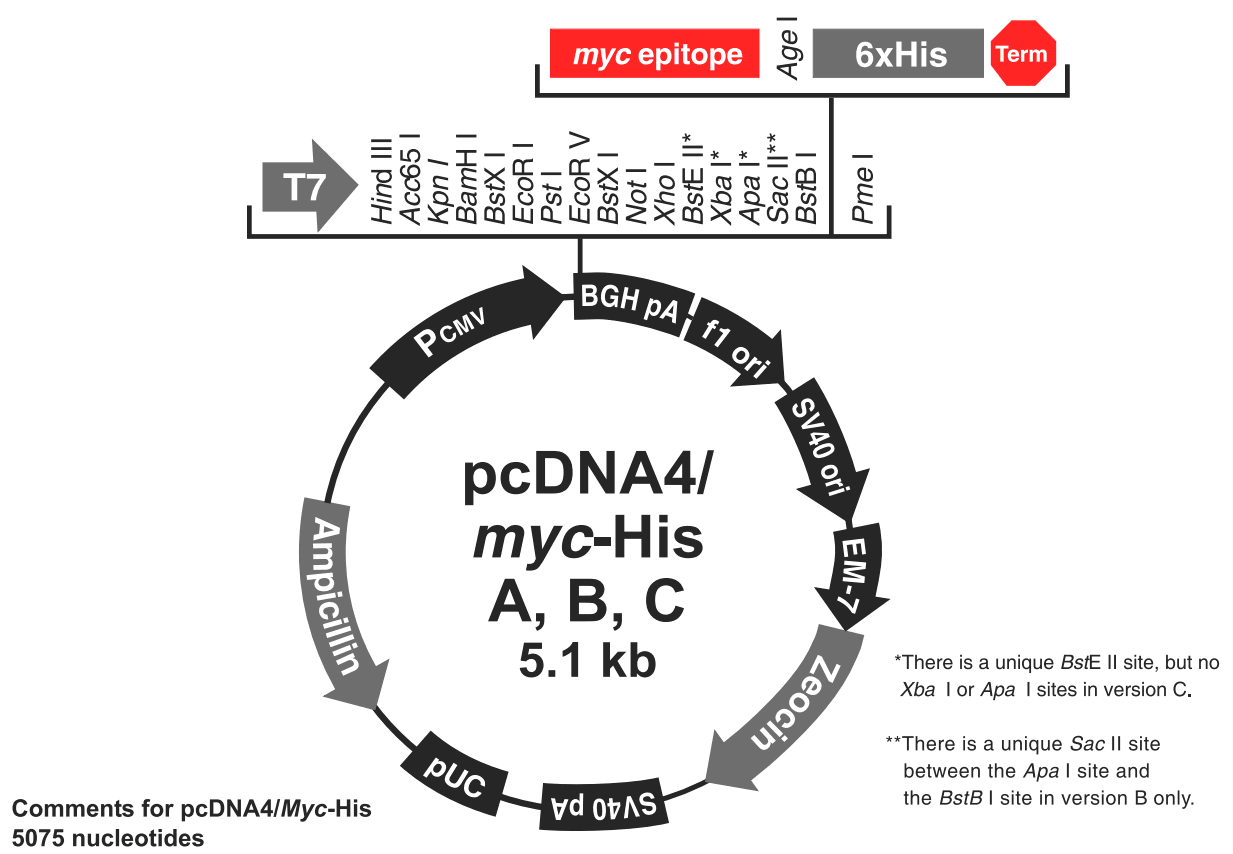

pcDNA4-myc-His C载体图谱



pcDNA4-myc-His C 多克隆位点

pcDNA4-myc-His 载体特征

载体简介

载体描述
pcDNA4/myc-His A, B, and C are 5.1 kb vectors designed for overproduction of recombinant proteins in mammalian cell lines. Features of the vectors allow purification and detection of expressed proteins (see pages 11-12 for more information). High-level stable and transient expression can be carried out in most mammalian cells. The vectors contain the following elements:

Human cytomegalovirus immediate-early (CMV) promoter for high-level expression in a wide range of mammalian cells

Three reading frames to facilitate in-frame cloning with a C-terminal peptide encoding the myc (c-myc) epitope and a polyhistidine (6xHis) metal-binding tag

Zeocin resistance gene for selection of stable cell lines (Mulsant et al., 1988) (see page 14 for more information).

Episomal replication in cell lines that are latently infected with SV40 or that express the SV40 large T antigen (e.g., COS7).
The control plasmid, pcDNA4/myc-His/lacZ is included for use as a positive control for transfection, expression, and detection in the cell line of choice.

实验流程:

Use the following outline to clone and express your gene of interest in pcDNA4/myc-His:
1.Consult the multiple cloning sites described on pages 3-4 to determine which vector (A, B, or C) to use for cloning your gene in frame with the C-terminal myc epitope and the polyhistidine tag.
2.Ligate your insert into the appropriate vector and transform into E. coli. Select transformants on 50 to 100 μg/mL ampicillin or 25 to 50g/mL Zeocin in Low Salt LB. For more information.
3.Analyze your transformants for the presence of insert by restriction digestion.
4.Select a transformant with the correct restriction pattern and use sequencing to confirm that your gene is cloned in-frame with the C-terminal peptide.
5.Transfect your construct into the cell line of choice using your own method of transfection. Generate a stable cell line, if desired.
6.Test for expression of your recombinant gene by western blot analysis or functional assay. For antibodies to the myc epitope or the C-terminal polyhistidine tag.
7.To purify your recombinant protein, you may use metal-chelating resin such as ProBond. ProBond resin is available separately



载体序列

LOCUS       pcDNA4/myc-His C	5071 bp 	DNA	SYN
DEFINITION  pcDNA4/myc-His C
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
FEATURES             Location/Qualifiers
     source          1..5071
                     /organism="pcDNA4/myc-His C"
                     /mol_type="other DNA"
     promoter        236..852
                     /label="CMV_immearly_promoter"
     misc_feature    315..602
                     /label="CAG_enhancer"
     misc_feature    769..789
                     /label="CMV_fwd_primer"
     promoter        863..881
                     /label="T7_promoter"
     misc_feature    complement(1078..1095)
                     /label="BGH_rev_primer"
     terminator      1081..1308
                     /label="bGH_PA_terminator"
     rep_origin      1371..1677
                     /label="f1_origin"
     misc_feature    complement(1791..1811)
                     /label="pBABE_3_primer"
     misc_feature    complement(1797..2013)
                     /label="SV40_enhancer"
     promoter        1809..2078
                     /label="SV40_promoter"
     rep_origin      1977..2054
                     /label="SV40_origin"
     misc_feature    2039..2058
                     /label="SV40pro_F_primer"
     promoter        2172..2239
                     /label="EM7_promoter"
     gene            2240..2611
                     /label="bleo"
                     /gene="bleo"
     misc_feature    2240..2614
                     /label="sh_ble"
     terminator      2747..2866
                     /label="SV40_PA_terminator"
     misc_feature    2835..2854
                     /label="EBV_rev_primer"
     promoter        complement(2910..2928)
                     /label="M13_reverse_primer"
     misc_feature    complement(2927..2949)
                     /label="M13_pUC_rev_primer"
     promoter        complement(2963..2992)
                     /label="lac_promoter"
     rep_origin      complement(3301..3920)
                     /label="pBR322_origin"
     gene            complement(4075..4935)
                     /label="Ampicillin"
                     /gene="Ampicillin"
     CDS             complement(4075..4935)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(4977..5005)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTCGACTCT CAGTACAATC TGCTCTGATG
   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
  421 ATTGACGTCA ATGGGTGGAC TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGT
  901 TAAGCTTGGT ACCGAGCTCG GATCCACTAG TCCAGTGTGG TGGAATTCTG CAGATATCCA
  961 GCACAGTGGC GGCCGCTCGA GGTCACCCAT TCGAACAAAA ACTCATCTCA GAAGAGGATC
 1021 TGAATATGCA TACCGGTCAT CATCACCATC ACCATTGAGT TTAAACCCGC TGATCAGCCT
 1081 CGACTGTGCC TTCTAGTTGC CAGCCATCTG TTGTTTGCCC CTCCCCCGTG CCTTCCTTGA
 1141 CCCTGGAAGG TGCCACTCCC ACTGTCCTTT CCTAATAAAA TGAGGAAATT GCATCGCATT
 1201 GTCTGAGTAG GTGTCATTCT ATTCTGGGGG GTGGGGTGGG GCAGGACAGC AAGGGGGAGG
 1261 ATTGGGAAGA CAATAGCAGG CATGCTGGGG ATGCGGTGGG CTCTATGGCT TCTGAGGCGG
 1321 AAAGAACCAG CTGGGGCTCT AGGGGGTATC CCCACGCGCC CTGTAGCGGC GCATTAAGCG
 1381 CGGCGGGTGT GGTGGTTACG CGCAGCGTGA CCGCTACACT TGCCAGCGCC CTAGCGCCCG
 1441 CTCCTTTCGC TTTCTTCCCT TCCTTTCTCG CCACGTTCGC CGGCTTTCCC CGTCAAGCTC
 1501 TAAATCGGGG CATCCCTTTA GGGTTCCGAT TTAGTGCTTT ACGGCACCTC GACCCCAAAA
 1561 AACTTGATTA GGGTGATGGT TCACGTAGTG GGCCATCGCC CTGATAGACG GTTTTTCGCC
 1621 CTTTGACGTT GGAGTCCACG TTCTTTAATA GTGGACTCTT GTTCCAAACT GGAACAACAC
 1681 TCAACCCTAT CTCGGTCTAT TCTTTTGATT TATAAGGGAT TTTGGGGATT TCGGCCTATT
 1741 GGTTAAAAAA TGAGCTGATT TAACAAAAAT TTAACGCGAA TTAATTCTGT GGAATGTGTG
 1801 TCAGTTAGGG TGTGGAAAGT CCCCAGGCTC CCCAGGCAGG CAGAAGTATG CAAAGCATGC
 1861 ATCTCAATTA GTCAGCAACC AGGTGTGGAA AGTCCCCAGG CTCCCCAGCA GGCAGAAGTA
 1921 TGCAAAGCAT GCATCTCAAT TAGTCAGCAA CCATAGTCCC GCCCCTAACT CCGCCCATCC
 1981 CGCCCCTAAC TCCGCCCAGT TCCGCCCATT CTCCGCCCCA TGGCTGACTA ATTTTTTTTA
 2041 TTTATGCAGA GGCCGAGGCC GCCTCTGCCT CTGAGCTATT CCAGAAGTAG TGAGGAGGCT
 2101 TTTTTGGAGG CCTAGGCTTT TGCAAAAAGC TCCCGGGAGC TTGTATATCC ATTTTCGGAT
 2161 CTGATCAGCA CGTGTTGACA ATTAATCATC GGCATAGTAT ATCGGCATAG TATAATACGA
 2221 CAAGGTGAGG AACTAAACCA TGGCCAAGTT GACCAGTGCC GTTCCGGTGC TCACCGCGCG
 2281 CGACGTCGCC GGAGCGGTCG AGTTCTGGAC CGACCGGCTC GGGTTCTCCC GGGACTTCGT
 2341 GGAGGACGAC TTCGCCGGTG TGGTCCGGGA CGACGTGACC CTGTTCATCA GCGCGGTCCA
 2401 GGACCAGGTG GTGCCGGACA ACACCCTGGC CTGGGTGTGG GTGCGCGGCC TGGACGAGCT
 2461 GTACGCCGAG TGGTCGGAGG TCGTGTCCAC GAACTTCCGG GACGCCTCCG GGCCGGCCAT
 2521 GACCGAGATC GGCGAGCAGC CGTGGGGGCG GGAGTTCGCC CTGCGCGACC CGGCCGGCAA
 2581 CTGCGTGCAC TTCGTGGCCG AGGAGCAGGA CTGACACGTG CTACGAGATT TCGATTCCAC
 2641 CGCCGCCTTC TATGAAAGGT TGGGCTTCGG AATCGTTTTC CGGGACGCCG GCTGGATGAT
 2701 CCTCCAGCGC GGGGATCTCA TGCTGGAGTT CTTCGCCCAC CCCAACTTGT TTATTGCAGC
 2761 TTATAATGGT TACAAATAAA GCAATAGCAT CACAAATTTC ACAAATAAAG CATTTTTTTC
 2821 ACTGCATTCT AGTTGTGGTT TGTCCAAACT CATCAATGTA TCTTATCATG TCTGTATACC
 2881 GTCGACCTCT AGCTAGAGCT TGGCGTAATC ATGGTCATAG CTGTTTCCTG TGTGAAATTG
 2941 TTATCCGCTC ACAATTCCAC ACAACATACG AGCCGGAAGC ATAAAGTGTA AAGCCTGGGG
 3001 TGCCTAATGA GTGAGCTAAC TCACATTAAT TGCGTTGCGC TCACTGCCCG CTTTCCAGTC
 3061 GGGAAACCTG TCGTGCCAGC TGCATTAATG AATCGGCCAA CGCGCGGGGA GAGGCGGTTT
 3121 GCGTATTGGG CGCTCTTCCG CTTCCTCGCT CACTGACTCG CTGCGCTCGG TCGTTCGGCT
 3181 GCGGCGAGCG GTATCAGCTC ACTCAAAGGC GGTAATACGG TTATCCACAG AATCAGGGGA
 3241 TAACGCAGGA AAGAACATGT GAGCAAAAGG CCAGCAAAAG GCCAGGAACC GTAAAAAGGC
 3301 CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG CCCCCCTGAC GAGCATCACA AAAATCGACG
 3361 CTCAAGTCAG AGGTGGCGAA ACCCGACAGG ACTATAAAGA TACCAGGCGT TTCCCCCTGG
 3421 AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC CCTGCCGCTT ACCGGATACC TGTCCGCCTT
 3481 TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA ATGCTCACGC TGTAGGTATC TCAGTTCGGT
 3541 GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT GCACGAACCC CCCGTTCAGC CCGACCGCTG
 3601 CGCCTTATCC GGTAACTATC GTCTTGAGTC CAACCCGGTA AGACACGACT TATCGCCACT
 3661 GGCAGCAGCC ACTGGTAACA GGATTAGCAG AGCGAGGTAT GTAGGCGGTG CTACAGAGTT
 3721 CTTGAAGTGG TGGCCTAACT ACGGCTACAC TAGAAGGACA GTATTTGGTA TCTGCGCTCT
 3781 GCTGAAGCCA GTTACCTTCG GAAAAAGAGT TGGTAGCTCT TGATCCGGCA AACAAACCAC
 3841 CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA GCAGCAGATT ACGCGCAGAA AAAAAGGATC
 3901 TCAAGAAGAT CCTTTGATCT TTTCTACGGG GTCTGACGCT CAGTGGAACG AAAACTCACG
 3961 TTAAGGGATT TTGGTCATGA GATTATCAAA AAGGATCTTC ACCTAGATCC TTTTAAATTA
 4021 AAAATGAAGT TTTAAATCAA TCTAAAGTAT ATATGAGTAA ACTTGGTCTG ACAGTTACCA
 4081 ATGCTTAATC AGTGAGGCAC CTATCTCAGC GATCTGTCTA TTTCGTTCAT CCATAGTTGC
 4141 CTGACTCCCC GTCGTGTAGA TAACTACGAT ACGGGAGGGC TTACCATCTG GCCCCAGTGC
 4201 TGCAATGATA CCGCGAGACC CACGCTCACC GGCTCCAGAT TTATCAGCAA TAAACCAGCC
 4261 AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC TGCAACTTTA TCCGCCTCCA TCCAGTCTAT
 4321 TAATTGTTGC CGGGAAGCTA GAGTAAGTAG TTCGCCAGTT AATAGTTTGC GCAACGTTGT
 4381 TGCCATTGCT ACAGGCATCG TGGTGTCACG CTCGTCGTTT GGTATGGCTT CATTCAGCTC
 4441 CGGTTCCCAA CGATCAAGGC GAGTTACATG ATCCCCCATG TTGTGCAAAA AAGCGGTTAG
 4501 CTCCTTCGGT CCTCCGATCG TTGTCAGAAG TAAGTTGGCC GCAGTGTTAT CACTCATGGT
 4561 TATGGCAGCA CTGCATAATT CTCTTACTGT CATGCCATCC GTAAGATGCT TTTCTGTGAC
 4621 TGGTGAGTAC TCAACCAAGT CATTCTGAGA ATAGTGTATG CGGCGACCGA GTTGCTCTTG
 4681 CCCGGCGTCA ATACGGGATA ATACCGCGCC ACATAGCAGA ACTTTAAAAG TGCTCATCAT
 4741 TGGAAAACGT TCTTCGGGGC GAAAACTCTC AAGGATCTTA CCGCTGTTGA GATCCAGTTC
 4801 GATGTAACCC ACTCGTGCAC CCAACTGATC TTCAGCATCT TTTACTTTCA CCAGCGTTTC
 4861 TGGGTGAGCA AAAACAGGAA GGCAAAATGC CGCAAAAAAG GGAATAAGGG CGACACGGAA
 4921 ATGTTGAATA CTCATACTCT TCCTTTTTCA ATATTATTGA AGCATTTATC AGGGTTATTG
 4981 TCTCATGAGC GGATACATAT TTGAATGTAT TTAGAAAAAT AAACAAATAG GGGTTCCGCG
 5041 CACATTTCCC CGAAAAGTGC CACCTGACGT C
//
