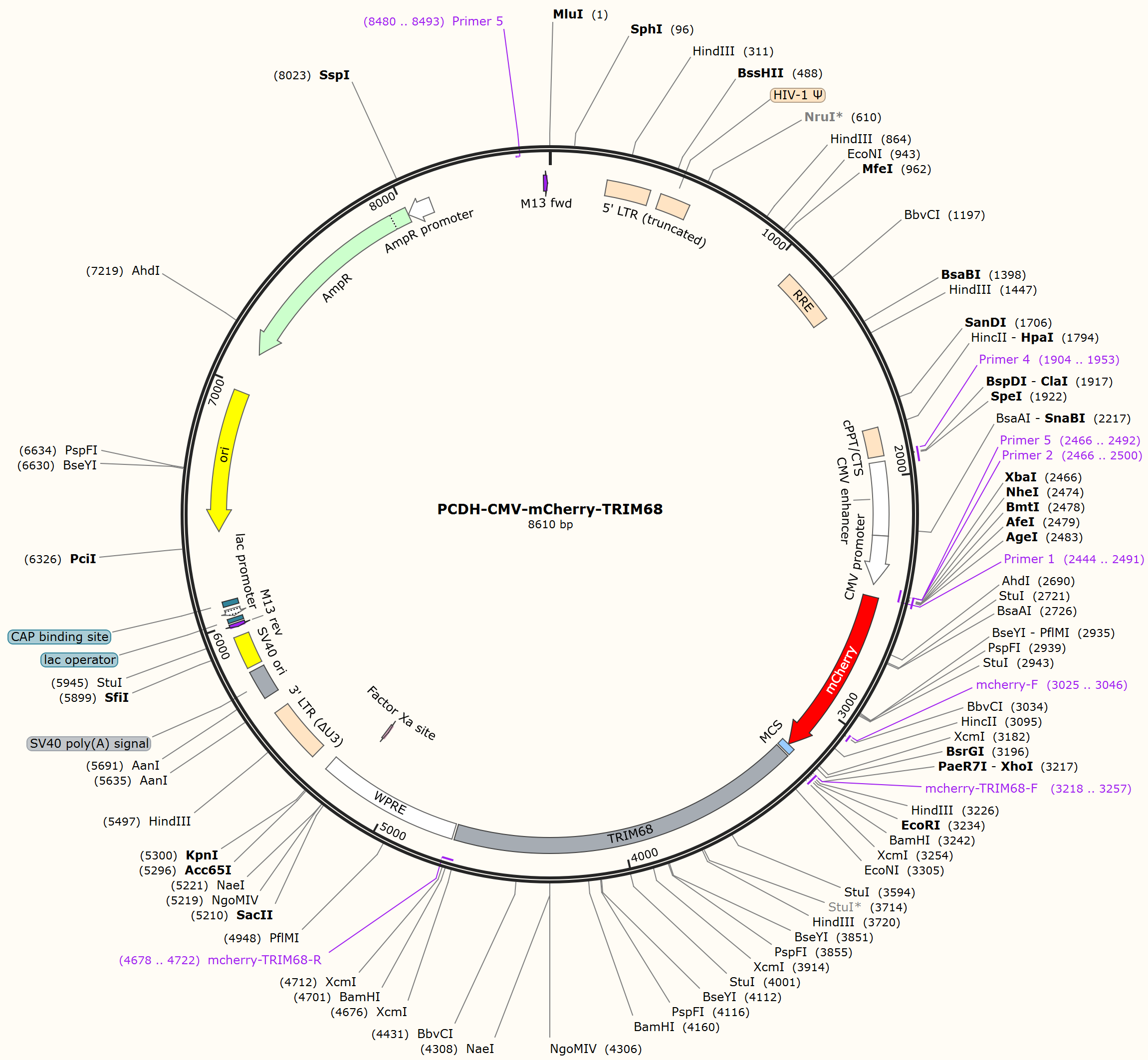

PCDH-CMV-mCherry-TRIM68

LOCUS      PCDH-CMV-mCherry-TRIM68                8610 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8610)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 11, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8610
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3218..3257
                     /label=mcherry-TRIM68-F
     misc_feature    3240..4697
                     /label=TRIM68
     primer_bind     complement(4678..4722)
                     /label=mcherry-TRIM68-R
     misc_feature    4707..5294
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5178..5189)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5367..5600
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5672..5793
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5812..5947
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5985..6001)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6009..6025
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6033..6063)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6078..6099
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6387..6975)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7146..8006)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8007..8111)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8480..8493)
                     /label=Primer 5
     primer_bind     8585..8601
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggatcccac agccttggtg gaagccattg tggaagaagt ggcctgtccc atctgtatga
     3301 ccttcctgag ggagcccatg agcattgact gtggccacag cttctgccac agctgtctct
     3361 ctggactctg ggagatccca ggagaatccc agaactgggg ttacacctgt cccctctgtc
     3421 gagctcctgt ccagccaagg aacctgcggc ctaattggca gctggccaat gttgtagaaa
     3481 aagtccgtct gctaaggcta catccaggaa tggggctgaa gggtgacctg tgtgagcgcc
     3541 atggggaaaa gctgaagatg ttctgcaaag aggatgtctt gataatgtgt gaggcctgca
     3601 gccagtcccc agagcatgag gcccacagtg ttgtgccaat ggaggatgtt gcctgggagt
     3661 acaagtggga acttcatgag gccctcgaac atctgaagaa agagcaagaa gaggcctgga
     3721 agcttgaagt tggtgaaagg aaacgaactg ccacctggaa gatacaggtg gaaacccgaa
     3781 aacagagtat tgtatgggag tttgaaaaat accagcgatt actagagaaa aagcagccac
     3841 cacatcggca gctgggggca gaggtagcag cagctctggc cagcctacag cgggaggcag
     3901 cggagaccat gcagaaactg gagttgaacc atagcgagct catccagcag agccaggtcc
     3961 tgtggaggat gattgcagag ttgaaagaga ggtcgcagag gcctgtccgc tggatgttgc
     4021 aggatattca ggaagtgtta aacaggagca aatcttggag cttgcagcag ccagaaccaa
     4081 tctccctgga gttgaagaca gattgccgtg tgctggggct aagagagatc ctgaagactt
     4141 atgcagctga tgtgcgcttg gatccagata ctgcttactc ccgtctcatc gtgtctgagg
     4201 acagaaaacg tgtgcactat ggagacacca accagaaact gccagacaat cctgagagat
     4261 tttaccgcta taatatcgtc ctgggaagcc agtgcatctc ctcaggccgg cactactggg
     4321 aggtggaggt gggagacagg tctgagtggg gcctgggagt atgtaagcaa aatgtagacc
     4381 ggaaggaggt ggtctactta tccccccact atggattctg ggtgataagg ctgaggaagg
     4441 gaaatgagta ccgagcaggc accgatgagt acccaatcct gtccttgccg gtccctcctc
     4501 gccgggtggg aatcttcgtg gattatgagg cccatgacat ttctttctac aatgtgactg
     4561 actgtggctc ccacatcttc actttccccc gctatccctt ccctgggcgc ctcctgccct
     4621 attttagtcc ttgctacagc attggaacca acaacactgc tcctctggcc atctgctccc
     4681 tggatgggga ggactaatag ggatccaatc aacctctgga ttacaaaatt tgtgaaagat
     4741 tgactggtat tcttaactat gttgctcctt ttacgctatg tggatacgct gctttaatgc
     4801 ctttgtatca tgctattgct tcccgtatgg ctttcatttt ctcctccttg tataaatcct
     4861 ggttgctgtc tctttatgag gagttgtggc ccgttgtcag gcaacgtggc gtggtgtgca
     4921 ctgtgtttgc tgacgcaacc cccactggtt ggggcattgc caccacctgt cagctccttt
     4981 ccgggacttt cgctttcccc ctccctattg ccacggcgga actcatcgcc gcctgccttg
     5041 cccgctgctg gacaggggct cggctgttgg gcactgacaa ttccgtggtg ttgtcgggga
     5101 agctgacgtc ctttccatgg ctgctcgcct gtgttgccac ctggattctg cgcgggacgt
     5161 ccttctgcta cgtcccttcg gccctcaatc cagcggacct tccttcccgc ggcctgctgc
     5221 cggctctgcg gcctcttccg cgtctccgcc ttcgccctca gacgagtcgg atctcccttt
     5281 ggccgcctcc ccgccggtac ctttaagacc aatgacttac aaggcagctg tagatcttag
     5341 ccacttttta aaagaaaagg ggggactgga agggctaatt cactcccaac gaaaataaga
     5401 tctgcttttt gcttgtactg ggtctctctg gttagaccag atctgagcct gggagctctc
     5461 tggctaacta gggaacccac tgcttaagcc tcaataaagc ttgccttgag tgcttcaagt
     5521 agtgtgtgcc cgtctgttgt gtgactctgg taactagaga tccctcagac ccttttagtc
     5581 agtgtggaaa atctctagca gtagtagttc atgtcatctt attattcagt atttataact
     5641 tgcaaagaaa tgaatatcag agagtgagag gaacttgttt attgcagctt ataatggtta
     5701 caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac tgcattctag
     5761 ttgtggtttg tccaaactca tcaatgtatc ttatcatgtc tggctctagc tatcccgccc
     5821 ctaactccgc ccagttccgc ccattctccg ccccatggct gactaatttt ttttatttat
     5881 gcagaggccg aggccgcctc ggcctctgag ctattccaga agtagtgagg aggctttttt
     5941 ggaggcctag acttttgcag agacggccca aattcgtaat catggtcata gctgtttcct
     6001 gtgtgaaatt gttatccgct cacaattcca cacaacatac gagccggaag cataaagtgt
     6061 aaagcctggg gtgcctaatg agtgagctaa ctcacattaa ttgcgttgcg ctcactgccc
     6121 gctttccagt cgggaaacct gtcgtgccag ctgcattaat gaatcggcca acgcgcgggg
     6181 agaggcggtt tgcgtattgg gcgctcttcc gcttcctcgc tcactgactc gctgcgctcg
     6241 gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg cggtaatacg gttatccaca
     6301 gaatcagggg ataacgcagg aaagaacatg tgagcaaaag gccagcaaaa ggccaggaac
     6361 cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc gcccccctga cgagcatcac
     6421 aaaaatcgac gctcaagtca gaggtggcga aacccgacag gactataaag ataccaggcg
     6481 tttccccctg gaagctccct cgtgcgctct cctgttccga ccctgccgct taccggatac
     6541 ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc atagctcacg ctgtaggtat
     6601 ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg tgcacgaacc ccccgttcag
     6661 cccgaccgct gcgccttatc cggtaactat cgtcttgagt ccaacccggt aagacacgac
     6721 ttatcgccac tggcagcagc cactggtaac aggattagca gagcgaggta tgtaggcggt
     6781 gctacagagt tcttgaagtg gtggcctaac tacggctaca ctagaaggac agtatttggt
     6841 atctgcgctc tgctgaagcc agttaccttc ggaaaaagag ttggtagctc ttgatccggc
     6901 aaacaaacca ccgctggtag cggtggtttt tttgtttgca agcagcagat tacgcgcaga
     6961 aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac
     7021 gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc
     7081 cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct
     7141 gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca
     7201 tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct
     7261 ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca
     7321 ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc
     7381 atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg
     7441 cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct
     7501 tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa
     7561 aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta
     7621 tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc
     7681 ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg
     7741 agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa
     7801 gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg
     7861 agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc
     7921 accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg
     7981 gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat
     8041 cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa taaacaaata
     8101 ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg tctaagaaac cattattatc
     8161 atgacattaa cctataaaaa taggcgtatc acgaggccct ttcgtctcgc gcgtttcggt
     8221 gatgacggtg aaaacctctg acacatgcag ctcccggaga cggtcacagc ttgtctgtaa
     8281 gcggatgccg ggagcagaca agcccgtcag ggcgcgtcag cgggtgttgg cgggtgtcgg
     8341 ggctggctta actatgcggc atcagagcag attgtactga gagtgcacca tatgcggtgt
     8401 gaaataccgc acagatgcgt aaggagaaaa taccgcatca ggcgccattc gccattcagg
     8461 ctgcgcaact gttgggaagg gcgatcggtg cgggcctctt cgctattacg ccagctggcg
     8521 aaagggggat gtgctgcaag gcgattaagt tgggtaacgc cagggttttc ccagtcacga
     8581 cgttgtaaaa cgacggccag tgccaagctg
//
