| 质粒名称: | pFUS_B9 |
|---|---|
| 出品公司: | 爱迪基因 |
| 目录编号: | 31026 |
| 存储实验室: | Adam Bogdanove, Daniel Voytas |
|
载体骨架基本信息 |
|
| 载体名称: | pCR8 |
| 载体出品公司: | Invitrogen |
| 载体抗性: | 大观霉素 |
| 空载体大小: | 2447 bp |
| 高拷贝/低拷贝: | 高拷贝 |
| 生长条件: | 37 ℃ |
|
插入基因信息 |
|
| 插入基因名称: | LacZ + BsaI restriction sites |
| 插入大小: | 459 bp |
| 克隆方法: | 限制性内切酶 |
| 5' 克隆位点: | AflII (未破坏) |
| 3' 克隆位点: | XbaI(未破坏) |
| 5' 测序引物 | pCR8_F1 (ttgatgcctggcagttccct) |
| 3' 测序引物 | pCR8_R1 (cgaaccgaacaggcttatgt) |
|
文献引用方法 |
|
| 材料和方法部分: | pFUS_B9 was a gift from Adam Bogdanove & Daniel Voytas (Addgene plasmid # 31026 ; http://n2t.net/addgene:31026 ; RRID:Addgene_31026) |
| 参考文献部分: | Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Apr 14. ():. 10.1093/nar/gkr218 PubMed 21493687 |
买家导航
pFUSB9载体基本信息

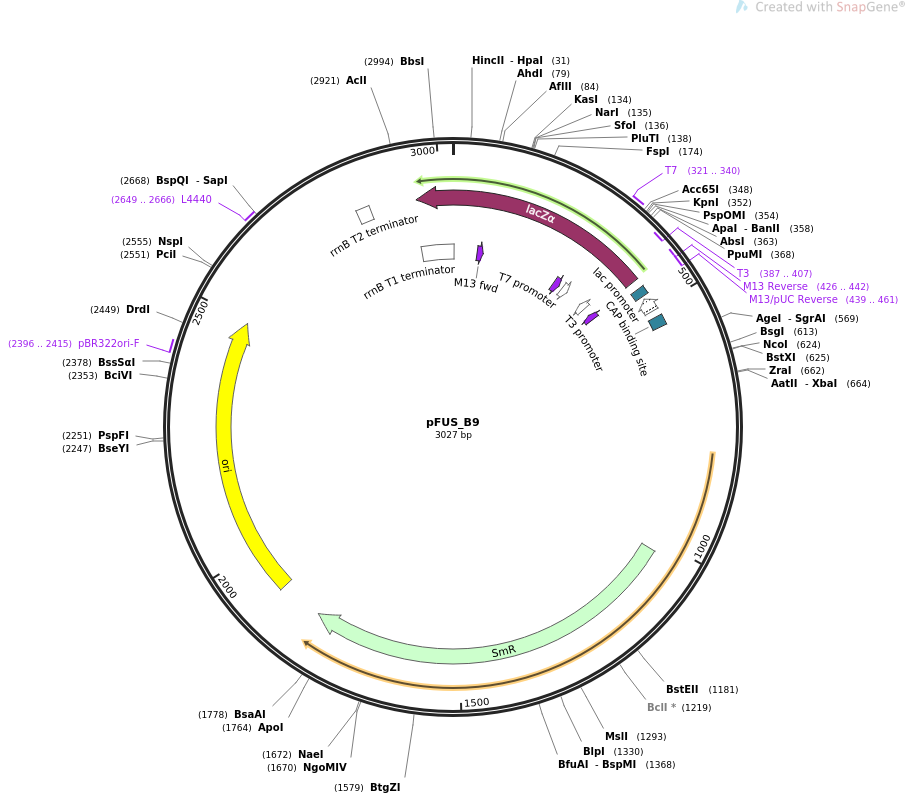

pFUSB9载体图谱质粒图谱和多克隆位点信息
pFUSB9载体简介
pFUSB9载体序列
LOCUS pFUS_B9 3027 bp ds-DNA circular SYN 13-MAY-2021
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS pFUS_B9
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 3027)
AUTHORS Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller
JA, Somia NV, Bogdanove AJ, Voytas DF
TITLE Efficient design and assembly of custom TALEN and other TAL
effector-based constructs for DNA targeting.
JOURNAL Nucleic Acids Res. 2011 Apr 14. ():.
PUBMED 21493687
REFERENCE 2 (bases 1 to 3027)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported May 13, 2021 from SnapGene Server 1.1.58
http://www.snapgene.com
FEATURES Location/Qualifiers
source 1..3027
/organism="synthetic DNA construct"
/mol_type="other DNA"
primer_bind 67..83
/label=M13 fwd
/note="common sequencing primer, one of multiple similar
variants"
primer_bind 295..311
/label=M13 fwd
/note="common sequencing primer, one of multiple similar
variants"
primer_bind 321..340
/label=T7
/note="T7 promoter, forward primer"
promoter 321..339
/label=T7 promoter
/note="promoter for bacteriophage T7 RNA polymerase"
primer_bind complement(387..407)
/label=T3
/note="T3 promoter, forward primer"
promoter complement(387..405)
/label=T3 promoter
/note="promoter for bacteriophage T3 RNA polymerase"
primer_bind complement(426..442)
/label=M13 rev
/note="common sequencing primer, one of multiple similar
variants"
primer_bind complement(426..442)
/label=M13 Reverse
/note="In lacZ gene. Also called M13-rev"
primer_bind complement(439..461)
/label=M13/pUC Reverse
/note="In lacZ gene"
protein_bind 450..466
/label=lac operator
/bound_moiety="lac repressor encoded by lacI"
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
promoter complement(474..504)
/label=lac promoter
/note="promoter for the E. coli lac operon"
protein_bind 519..540
/label=CAP binding site
/bound_moiety="E. coli catabolite activator protein"
/note="CAP binding activates transcription in the presence
of cAMP."
CDS 1023..1814
/codon_start=1
/gene="aadA"
/product="aminoglycoside adenylyltransferase (Murphy,
1985)"
/label=SmR
/note="confers resistance to spectinomycin and
streptomycin"
/translation="MREAVIAEVSTQLSEVVGVIERHLEPTLLAVHLYGSAVDGGLKPH
SDIDLLVTVTVRLDETTRRALINDLLETSASPGESEILRAVEVTIVVHDDIIPWRYPAK
RELQFGEWQRNDILAGIFEPATIDIDLAILLTKAREHSVALVGPAAEELFDPVPEQDLF
EALNETLTLWNSPPDWAGDERNVVLTLSRIWYSAVTGKIAPKDVAADWAMERLPAQYQP
VILEARQAYLGQEEDRLASRADQLEEFVHYVKGEITKVVGK"
rep_origin 1907..2495
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
primer_bind 2396..2415
/label=pBR322ori-F
/note="pBR322 origin, forward primer"
primer_bind 2649..2666
/label=L4440
/note="L4440 vector, forward primer"
terminator 2825..2852
/label=rrnB T2 terminator
/note="transcription terminator T2 from the E. coli rrnB
gene"
terminator 2944..3
/gene="Escherichia coli rrnB"
/label=rrnB T1 terminator
/note="transcription terminator T1 from the E. coli rrnB
gene"
CDS complement(2951..430)
/codon_start=1
/gene="lacZ fragment"
/product="LacZ-alpha fragment of beta-galactosidase"
/label=lacZ-alpha
/translation="MTMITPSAQLTLTKGNKSWRTSRGGPVPNSPYSESYYARSLAVVL
QRRDWENPGVTQLNRLAAHPPFASWRNSEEARTDRPSQQLRSLNGEWDAPCSGAGLDSH
HLVRGQAMRRLRLAVVLQRRDWENIHASVNARVGNCQASNKTKGSVGRLGLSFYLLFVG
ERSPE"
ORIGIN
1 ttgatgcctg gcagttccct actctcgcgt taacgctagc atggatgttt tcccagtcac
61 gacgttgtaa aacgacggcc agtcttaagc gtctcatggc ctgaccccgg accaagtggt
121 ggctatcgag accggcgccg ctacagggcg cgtcccattc gccattcagg ctgcgcaact
181 gttgggaagg gcgatcggtg cgggcctctt cgctattacg ccagctggcg aaagggggat
241 gtgctgcaag gcgattaagt tgggtaacgc cagggttttc ccagtcacga cgttgtaaaa
301 cgacggccag tgagcgcgcg taatacgact cactataggg cgaattgggt accgggcccc
361 ccctcgaggt cctccagctt ttgttccctt tagtgagggt taattgcgcg cttggcgtaa
421 tcatggtcat agctgtttcc tgtgtgaaat tgttatccgc tcacaattcc acacaacata
481 cgagccggaa gcataaagtg taaagcctgg ggtgcctaat gagtgagcta actcacatta
541 attgcgttgc gctcactgcc cgctttccac cggtggtctc cgctcgaaac ggtgcagcgg
601 ctgttgccgg tgctgtgcca ggaccatggc ctgaccccgg accaagtggt ggctatcgag
661 acgtctagac cagccaggac agaaatgcct cgacttcgct gctacccaag gttgccgggt
721 gacgcacacc gtggaaacgg atgaaggcac gaacccagtg gacataagcc tgttcggttc
781 gtaagctgta atgcaagtag cgtatgcgct cacgcaactg gtccagaacc ttgaccgaac
841 gcagcggtgg taacggcgca gtggcggttt tcatggcttg ttatgactgt ttttttgggg
901 tacagtctat gcctcgggca tccaagcagc aagcgcgtta cgccgtgggt cgatgtttga
961 tgttatggag cagcaacgat gttacgcagc agggcagtcg ccctaaaaca aagttaaaca
1021 ttatgaggga agcggtgatc gccgaagtat cgactcaact atcagaggta gttggcgtca
1081 tcgagcgcca tctcgaaccg acgttgctgg ccgtacattt gtacggctcc gcagtggatg
1141 gcggcctgaa gccacacagt gatattgatt tgctggttac ggtgaccgta aggcttgatg
1201 aaacaacgcg gcgagctttg atcaacgacc ttttggaaac ttcggcttcc cctggagaga
1261 gcgagattct ccgcgctgta gaagtcacca ttgttgtgca cgacgacatc attccgtggc
1321 gttatccagc taagcgcgaa ctgcaatttg gagaatggca gcgcaatgac attcttgcag
1381 gtatcttcga gccagccacg atcgacattg atctggctat cttgctgaca aaagcaagag
1441 aacatagcgt tgccttggta ggtccagcgg cggaggaact ctttgatccg gttcctgaac
1501 aggatctatt tgaggcgcta aatgaaacct taacgctatg gaactcgccg cccgactggg
1561 ctggcgatga gcgaaatgta gtgcttacgt tgtcccgcat ttggtacagc gcagtaaccg
1621 gcaaaatcgc gccgaaggat gtcgctgccg actgggcaat ggagcgcctg ccggcccagt
1681 atcagcccgt catacttgaa gctagacagg cttatcttgg acaagaagaa gatcgcttgg
1741 cctcgcgcgc agatcagttg gaagaatttg tccactacgt gaaaggcgag atcaccaagg
1801 tagtcggcaa ataaccctcg agccacccat gaccaaaatc ccttaacgtg agttacgcgt
1861 cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga gatccttttt
1921 ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg gtggtttgtt
1981 tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc agagcgcaga
2041 taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag aactctgtag
2101 caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc agtggcgata
2161 agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg cagcggtcgg
2221 gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac accgaactga
2281 gatacctaca gcgtgagcat tgagaaagcg ccacgcttcc cgaagggaga aaggcggaca
2341 ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt ccagggggaa
2401 acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag cgtcgatttt
2461 tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg gcctttttac
2521 ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta tcccctgatt
2581 ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc agccgaacga
2641 ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cccaatacgc aaaccgcctc
2701 tccccgcgcg ttggccgatt cattaatgca gctggcacga caggtttccc gactggaaag
2761 cgggcagtga gcgcaacgca attaatacgc gtaccgctag ccaggaagag tttgtagaaa
2821 cgcaaaaagg ccatccgtca ggatggcctt ctgcttagtt tgatgcctgg cagtttatgg
2881 cgggcgtcct gcccgccacc ctccgggccg ttgcttcaca acgttcaaat ccgctcccgg
2941 cggatttgtc ctactcagga gagcgttcac cgacaaacaa cagataaaac gaaaggccca
3001 gtcttccgac tgagcctttc gttttat
//
