| 质粒名称: | pET28-MRPP1 |
|---|---|
| 出品公司: | addgene |
| 目录编号: | 67862 |
| 存储实验室: | Walter Rossmanith |
|
载体骨架基本信息 |
|
| 载体名称: | pET28-b(+) |
| 载体出品公司: | Novagen |
| 空载体大小: | 5369 bp |
| 完整质粒大小: | 6428 bp |
| 载体类型: | 细菌细胞表达 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | DH5a |
| 拷贝数: | 低拷贝 |
|
插入基因信息 |
|
| 插入基因名称: | MRPP1 / TRMT10C / RG9MTD1 |
| 物种来源: | H. sapiens (human) |
| 插入大小: | 1095bp |
| 基因突变: | mitoch. form (contains aa 40-403) |
| GenBank编号 | 54931 |
| 启动子: | T7 |
| 标签/融合蛋白: | His (N terminal on backbone) |
| 克隆方法: | 未知 |
| 5’测序引物 | T7 |
| 3’测序引物 | T7 Terminal |
|
文献引用方法 |
|
| 材料和方法部分: | pET28-MRPP1 was a gift from Walter Rossmanith (Addgene plasmid # 67862 ; http://n2t.net/addgene:67862 ; RRID:Addgene_67862) |
| 参考文献部分: | RNase P without RNA: identification and functional reconstitution of the human mitochondrial tRNA processing enzyme. Holzmann J, Frank P, Loffler E, Bennett KL, Gerner C, Rossmanith W. Cell. 2008 Oct 31;135(3):462-74. doi: 10.1016/j.cell.2008.09.013. 10.1016/j.cell.2008.09.013 PubMed 18984158 |
买家导航
载体基本信息

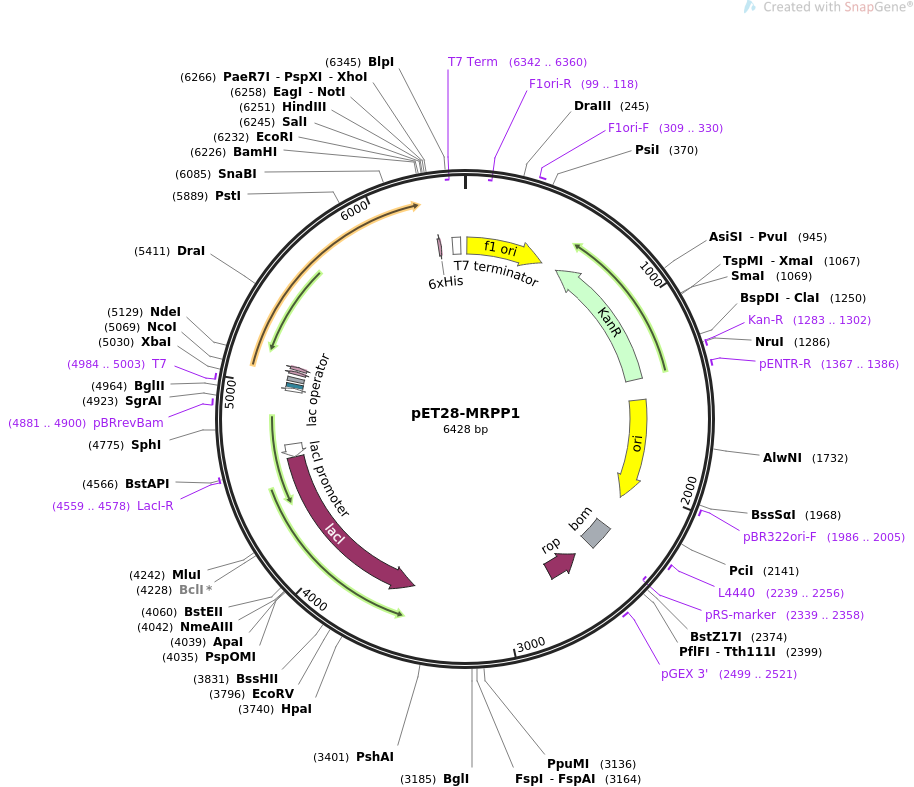

载体图谱质粒图谱和多克隆位点信息
载体简介
载体序列
LOCUS pET28-MRPP1 6428 bp ds-DNA circular SYN 12-MAY-2021
DEFINITION bacterial expression of TRMT10C, full coding sequence (mitoch. form)
+ N-term. His tag (thrombin site).
ACCESSION .
VERSION .
KEYWORDS pET28-MRPP1
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 6428)
AUTHORS Holzmann J, Frank P, Loffler E, Bennett KL, Gerner C, Rossmanith W
TITLE RNase P without RNA: identification and functional reconstitution of
the human mitochondrial tRNA processing enzyme.
JOURNAL Cell. 2008 Oct 31;135(3):462-74. doi: 10.1016/j.cell.2008.09.013.
PUBMED 18984158
REFERENCE 2 (bases 1 to 6428)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported May 12, 2021 from SnapGene Server 1.1.58
http://www.biofeng.com
FEATURES Location/Qualifiers
source 1..6428
/organism="synthetic DNA construct"
/mol_type="other DNA"
rep_origin 12..467
/direction=RIGHT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
primer_bind complement(99..118)
/label=F1ori-R
/note="F1 origin, reverse primer"
primer_bind 309..330
/label=F1ori-F
/note="F1 origin, forward primer"
CDS complement(560..1375)
/codon_start=1
/gene="aph(3')-Ia"
/product="aminoglycoside phosphotransferase"
/label=KanR
/note="confers resistance to kanamycin in bacteria or G418
(Geneticin(R)) in eukaryotes"
/translation="MSHIQRETSCSRPRLNSNMDADLYGYKWARDNVGQSGATIYRLYG
KPDAPELFLKHGKGSVANDVTDEMVRLNWLTEFMPLPTIKHFIRTPDDAWLLTTAIPGK
TAFQVLEEYPDSGENIVDALAVFLRRLHSIPVCNCPFNSDRVFRLAQAQSRMNNGLVDA
SDFDDERNGWPVEQVWKEMHKLLPFSPDSVVTHGDFSLDNLIFDEGKLIGCIDVGRVGI
ADRYQDLAILWNCLGEFSPSLQKRLFQKYGIDNPDMNKLQFHLMLDEFF"
primer_bind 1283..1302
/label=Kan-R
/note="Kanamycin resistance gene, reverse primer"
primer_bind 1367..1386
/label=pENTR-R
/note="pENTR vectors, reverse primer"
rep_origin 1497..2085
/direction=RIGHT
/label=ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
primer_bind 1986..2005
/label=pBR322ori-F
/note="pBR322 origin, forward primer"
primer_bind 2239..2256
/label=L4440
/note="L4440 vector, forward primer"
misc_feature 2271..2413
/label=bom
/note="basis of mobility region from pBR322"
primer_bind complement(2339..2358)
/label=pRS-marker
/note="pRS vectors, use to sequence yeast selectable
marker"
primer_bind 2499..2521
/label=pGEX 3'
/note="pGEX vectors, reverse primer"
CDS complement(2515..2706)
/codon_start=1
/gene="rop"
/product="Rop protein, which maintains plasmids at low copy
number"
/label=rop
/translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
DELYRSCLARFGDDGENL"
CDS complement(3515..4597)
/codon_start=1
/gene="lacI"
/product="lac repressor"
/label=lacI
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
/translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
ALADSLMQLARQVSRLESGQ"
primer_bind 4559..4578
/label=LacI-R
/note="LacI, reverse primer"
promoter complement(4598..4675)
/gene="lacI"
/label=lacI promoter
primer_bind 4881..4900
/label=pBRrevBam
/note="pBR322 vectors, tet region, downstream of BamHI,
reverse primer"
primer_bind 4984..5003
/label=T7
/note="T7 promoter, forward primer"
promoter 4984..5002
/label=T7 promoter
/note="promoter for bacteriophage T7 RNA polymerase"
protein_bind 5003..5027
/label=lac operator
/bound_moiety="lac repressor encoded by lacI"
/note="The lac repressor binds to the lac operator to
inhibit transcription in E. coli. This inhibition can be
relieved by adding lactose or
isopropyl-beta-D-thiogalactopyranoside (IPTG)."
RBS 5042..5064
/note="efficient ribosome binding site from bacteriophage
T7 gene 10 (Olins and Rangwala, 1989)"
CDS 5083..5100
/codon_start=1
/product="6xHis affinity tag"
/label=6xHis
/translation="HHHHHH"
CDS 5110..5127
/codon_start=1
/product="thrombin recognition and cleavage site"
/label=thrombin site
/translation="LVPRGS"
CDS 6272..6289
/codon_start=1
/product="6xHis affinity tag"
/label=6xHis
/translation="HHHHHH"
primer_bind complement(6342..6360)
/label=T7 Term
/note="T7 terminator, reverse primer"
terminator 6356..6403
/label=T7 terminator
/note="transcription terminator for bacteriophage T7 RNA
polymerase"
ORIGIN
1 tggcgaatgg gacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
61 cagcgtgacc gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc
121 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
181 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc
241 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
301 ctttaatagt ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc
361 ttttgattta taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta
421 acaaaaattt aacgcgaatt ttaacaaaat attaacgttt acaatttcag gtggcacttt
481 tcggggaaat gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta
541 tccgctcatg aattaattct tagaaaaact catcgagcat caaatgaaac tgcaatttat
601 tcatatcagg attatcaata ccatattttt gaaaaagccg tttctgtaat gaaggagaaa
661 actcaccgag gcagttccat aggatggcaa gatcctggta tcggtctgcg attccgactc
721 gtccaacatc aatacaacct attaatttcc cctcgtcaaa aataaggtta tcaagtgaga
781 aatcaccatg agtgacgact gaatccggtg agaatggcaa aagtttatgc atttctttcc
841 agacttgttc aacaggccag ccattacgct cgtcatcaaa atcactcgca tcaaccaaac
901 cgttattcat tcgtgattgc gcctgagcga gacgaaatac gcgatcgctg ttaaaaggac
961 aattacaaac aggaatcgaa tgcaaccggc gcaggaacac tgccagcgca tcaacaatat
1021 tttcacctga atcaggatat tcttctaata cctggaatgc tgttttcccg gggatcgcag
1081 tggtgagtaa ccatgcatca tcaggagtac ggataaaatg cttgatggtc ggaagaggca
1141 taaattccgt cagccagttt agtctgacca tctcatctgt aacatcattg gcaacgctac
1201 ctttgccatg tttcagaaac aactctggcg catcgggctt cccatacaat cgatagattg
1261 tcgcacctga ttgcccgaca ttatcgcgag cccatttata cccatataaa tcagcatcca
1321 tgttggaatt taatcgcggc ctagagcaag acgtttcccg ttgaatatgg ctcataacac
1381 cccttgtatt actgtttatg taagcagaca gttttattgt tcatgaccaa aatcccttaa
1441 cgtgagtttt cgttccactg agcgtcagac cccgtagaaa agatcaaagg atcttcttga
1501 gatccttttt ttctgcgcgt aatctgctgc ttgcaaacaa aaaaaccacc gctaccagcg
1561 gtggtttgtt tgccggatca agagctacca actctttttc cgaaggtaac tggcttcagc
1621 agagcgcaga taccaaatac tgtccttcta gtgtagccgt agttaggcca ccacttcaag
1681 aactctgtag caccgcctac atacctcgct ctgctaatcc tgttaccagt ggctgctgcc
1741 agtggcgata agtcgtgtct taccgggttg gactcaagac gatagttacc ggataaggcg
1801 cagcggtcgg gctgaacggg gggttcgtgc acacagccca gcttggagcg aacgacctac
1861 accgaactga gatacctaca gcgtgagcta tgagaaagcg ccacgcttcc cgaagggaga
1921 aaggcggaca ggtatccggt aagcggcagg gtcggaacag gagagcgcac gagggagctt
1981 ccagggggaa acgcctggta tctttatagt cctgtcgggt ttcgccacct ctgacttgag
2041 cgtcgatttt tgtgatgctc gtcagggggg cggagcctat ggaaaaacgc cagcaacgcg
2101 gcctttttac ggttcctggc cttttgctgg ccttttgctc acatgttctt tcctgcgtta
2161 tcccctgatt ctgtggataa ccgtattacc gcctttgagt gagctgatac cgctcgccgc
2221 agccgaacga ccgagcgcag cgagtcagtg agcgaggaag cggaagagcg cctgatgcgg
2281 tattttctcc ttacgcatct gtgcggtatt tcacaccgca tatatggtgc actctcagta
2341 caatctgctc tgatgccgca tagttaagcc agtatacact ccgctatcgc tacgtgactg
2401 ggtcatggct gcgccccgac acccgccaac acccgctgac gcgccctgac gggcttgtct
2461 gctcccggca tccgcttaca gacaagctgt gaccgtctcc gggagctgca tgtgtcagag
2521 gttttcaccg tcatcaccga aacgcgcgag gcagctgcgg taaagctcat cagcgtggtc
2581 gtgaagcgat tcacagatgt ctgcctgttc atccgcgtcc agctcgttga gtttctccag
2641 aagcgttaat gtctggcttc tgataaagcg ggccatgtta agggcggttt tttcctgttt
2701 ggtcactgat gcctccgtgt aagggggatt tctgttcatg ggggtaatga taccgatgaa
2761 acgagagagg atgctcacga tacgggttac tgatgatgaa catgcccggt tactggaacg
2821 ttgtgagggt aaacaactgg cggtatggat gcggcgggac cagagaaaaa tcactcaggg
2881 tcaatgccag cgcttcgtta atacagatgt aggtgttcca cagggtagcc agcagcatcc
2941 tgcgatgcag atccggaaca taatggtgca gggcgctgac ttccgcgttt ccagacttta
3001 cgaaacacgg aaaccgaaga ccattcatgt tgttgctcag gtcgcagacg ttttgcagca
3061 gcagtcgctt cacgttcgct cgcgtatcgg tgattcattc tgctaaccag taaggcaacc
3121 ccgccagcct agccgggtcc tcaacgacag gagcacgatc atgcgcaccc gtggggccgc
3181 catgccggcg ataatggcct gcttctcgcc gaaacgtttg gtggcgggac cagtgacgaa
3241 ggcttgagcg agggcgtgca agattccgaa taccgcaagc gacaggccga tcatcgtcgc
3301 gctccagcga aagcggtcct cgccgaaaat gacccagagc gctgccggca cctgtcctac
3361 gagttgcatg ataaagaaga cagtcataag tgcggcgacg atagtcatgc cccgcgccca
3421 ccggaaggag ctgactgggt tgaaggctct caagggcatc ggtcgagatc ccggtgccta
3481 atgagtgagc taacttacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
3541 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
3601 tgggcgccag ggtggttttt cttttcacca gtgagacggg caacagctga ttgcccttca
3661 ccgcctggcc ctgagagagt tgcagcaagc ggtccacgct ggtttgcccc agcaggcgaa
3721 aatcctgttt gatggtggtt aacggcggga tataacatga gctgtcttcg gtatcgtcgt
3781 atcccactac cgagatatcc gcaccaacgc gcagcccgga ctcggtaatg gcgcgcattg
3841 cgcccagcgc catctgatcg ttggcaacca gcatcgcagt gggaacgatg ccctcattca
3901 gcatttgcat ggtttgttga aaaccggaca tggcactcca gtcgccttcc cgttccgcta
3961 tcggctgaat ttgattgcga gtgagatatt tatgccagcc agccagacgc agacgcgccg
4021 agacagaact taatgggccc gctaacagcg cgatttgctg gtgacccaat gcgaccagat
4081 gctccacgcc cagtcgcgta ccgtcttcat gggagaaaat aatactgttg atgggtgtct
4141 ggtcagagac atcaagaaat aacgccggaa cattagtgca ggcagcttcc acagcaatgg
4201 catcctggtc atccagcgga tagttaatga tcagcccact gacgcgttgc gcgagaagat
4261 tgtgcaccgc cgctttacag gcttcgacgc cgcttcgttc taccatcgac accaccacgc
4321 tggcacccag ttgatcggcg cgagatttaa tcgccgcgac aatttgcgac ggcgcgtgca
4381 gggccagact ggaggtggca acgccaatca gcaacgactg tttgcccgcc agttgttgtg
4441 ccacgcggtt gggaatgtaa ttcagctccg ccatcgccgc ttccactttt tcccgcgttt
4501 tcgcagaaac gtggctggcc tggttcacca cgcgggaaac ggtctgataa gagacaccgg
4561 catactctgc gacatcgtat aacgttactg gtttcacatt caccaccctg aattgactct
4621 cttccgggcg ctatcatgcc ataccgcgaa aggttttgcg ccattcgatg gtgtccggga
4681 tctcgacgct ctcccttatg cgactcctgc attaggaagc agcccagtag taggttgagg
4741 ccgttgagca ccgccgccgc aaggaatggt gcatgcaagg agatggcgcc caacagtccc
4801 ccggccacgg ggcctgccac catacccacg ccgaaacaag cgctcatgag cccgaagtgg
4861 cgagcccgat cttccccatc ggtgatgtcg gcgatatagg cgccagcaac cgcacctgtg
4921 gcgccggtga tgccggccac gatgcgtccg gcgtagagga tcgagatctc gatcccgcga
4981 aattaatacg actcactata ggggaattgt gagcggataa caattcccct ctagaaataa
5041 ttttgtttaa ctttaagaag gagatatacc atgggcagca gccatcatca tcatcatcac
5101 agcagcggcc tggtgccgcg cggcagccat atgtcttcca aaataccagc tgttacttat
5161 cctaaaaatg agagtacacc cccttctgaa gagctagagt tggataagtg gaaaactacc
5221 atgaaatcta gtgtgcaaga agaatgtgtt tcaacaatct caagcagtaa ggatgaagat
5281 cctctagctg ccaccagaga gttcattgag atgtggagat tgcttggcag agaagtacca
5341 gaacacatca ctgaagaaga gctcaaaacc cttatggaat gtgtttctaa cacagcaaaa
5401 aaaaaatatt taaaatattt atatacgaag gaaaaagtga aaaaagctag gcaaataaaa
5461 aaggaaatga aagcagcagc aagggaagaa gcaaaaaata tcaagctgct agaaaccact
5521 gaggaagata aacagaaaaa ctttctattt ttacgacttt gggataggaa tatggacata
5581 gcaatgggct ggaagggtgc ccaggccatg cagtttggac aacctttggt ttttgacatg
5641 gcttacgaaa attatatgaa acgaaaagaa ttgcagaata ctgtttccca gcttttagaa
5701 agtgaaggat ggaacagaag aaatgttgat cctttccata tttatttctg caatctaaaa
5761 atagatggtg ctttgcacag agagttagtt aaacggtatc aagaaaaatg ggacaaattg
5821 cttttaacat caacagaaaa gtctcatgta gatttatttc caaaggacag tattatctat
5881 ttaactgcag attctcccaa tgttatgact actttcaggc atgacaaagt ttatgtaatt
5941 gggtcttttg ttgataagag tatgcagcca ggcacatccc tagccaaggc aaaacggctg
6001 aacctggcaa ctgaatgcct tccattagat aaatatttac aatgggaaat tggtaacaaa
6061 aatctcacct tagatcaaat gatacgtatt ttgttatgtc tgaaaaacaa tggtaattgg
6121 caagaggctc tgcaattcgt tcccaagaga aaacatactg gttttctgga gatttctcag
6181 cattctcaag agtttatcaa cagactaaag aaggcaaaga cttgaggatc cgaattcgag
6241 ctccgtcgac aagcttgcgg ccgcactcga gcaccaccac caccaccact gagatccggc
6301 tgctaacaaa gcccgaaagg aagctgagtt ggctgctgcc accgctgagc aataactagc
6361 ataacccctt ggggcctcta aacgggtctt gaggggtttt ttgctgaaag gaggaactat
6421 atccggat
//
载体图谱质粒图谱pdf版和相关资料下载
载体质粒应用举例
- 上一篇：hCas9-VPR
- 下一篇：pRetroX GFP Mps1 wt
