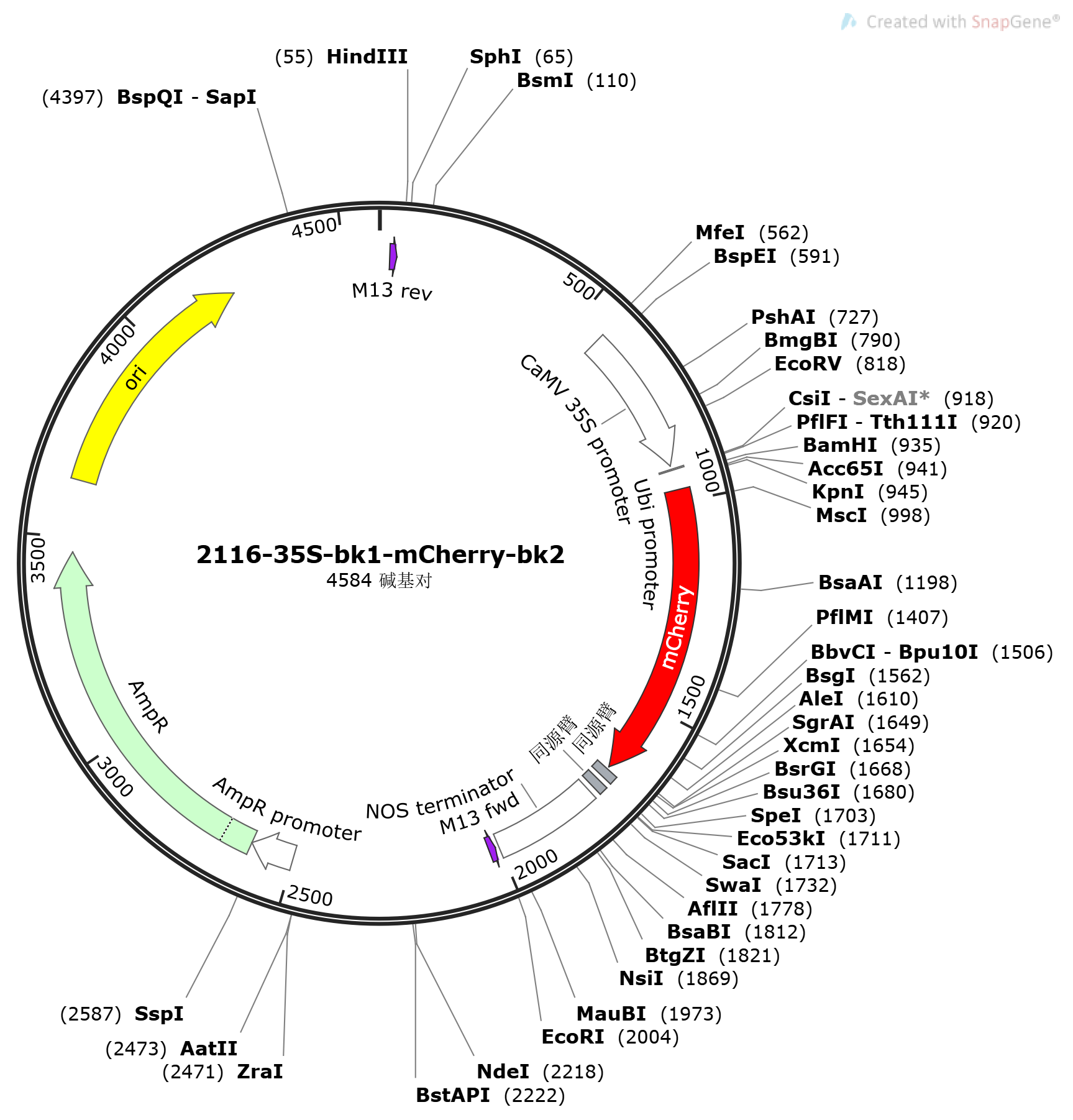

pSPYCE35S-bk1-mCherry-bk2

LOCUS       pSPYCE35S-bk1-mCherry-bk2            4584 bp DNA     circular SYN 19-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4584)
  AUTHORS   Youbio
  TITLE     Direct Submission
  JOURNAL   Exported Sep 22, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..4584
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     primer_bind     26..42
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        566..911
                     /label=CaMV 35S promoter
                     /note="strong constitutive promoter from cauliflower mosaic
                     virus"
     primer_bind     852..871
                     /label=YNEF
     promoter        920..922
                     /label=Ubi promoter
                     /note="maize polyubiquitin gene promoter"
     CDS             971..1675
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="VSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEGT
                     QTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNFE
                     DGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALKG
                     EIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERAE
                     GRHSTGGMDELYK"
     misc_feature    1682..1702
                     /label=同源臂
     misc_feature    1715..1735
                     /label=同源臂
     terminator      1749..2001
                     /label=NOS terminator
                     /note="nopaline synthase terminator and poly(A) signal"
     primer_bind     complement(2010..2026)
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     promoter        2500..2604
                     /gene="bla"
                     /label=AmpR promoter
     CDS             2605..3465
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      3636..4224
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 attgtgagcg gataacaatt tcacacagga aacagctatg accatgatta cgccaagctt
       61 gcatgcctgc aggtccccag attagccttt tcaatttcag aaagaatgct aacccacaga
      121 tggttagaga ggcttacgca gcaggtctca tcaagacgat ctacccgagc aataatctcc
      181 aggaaatcaa ataccttccc aagaaggtta aagatgcagt caaaagattc aggactaact
      241 gcatcaagaa cacagagaaa gatatatttc tcaagatcag aagtactatt ccagtatgga
      301 cgattcaagg cttgcttcac aaaccaaggc aagtaataga gattggagtc tctaaaaagg
      361 tagttcccac tgaatcaaag gccatggagt caaagattca aatagaggac ctaacagaac
      421 tcgccgtaaa gactggcgaa cagttcatac agagtctctt acgactcaat gacaagaaga
      481 aaatcttcgt caacatggtg gagcacgaca cacttgtcta ctccaaaaat atcaaagata
      541 cagtctcaga agaccaaagg gcaattgaga cttttcaaca aagggtaata tccggaaacc
      601 tcctcggatt ccattgccca gctatctgtc actttattgt gaagatagtg gaaaaggaag
      661 gtggctccta caaatgccat cattgcgata aaggaaaggc catcgttgaa gatgcctctg
      721 ccgacagtgg tcccaaagat ggacccccac ccacgaggag catcgtggaa aaagaagacg
      781 ttccaaccac gtcttcaaag caagtggatt gatgtgatat ctccactgac gtaagggatg
      841 acgcacaatc ccactatcct tcgcaagacc cttcctctat ataaggaagt tcatttcatt
      901 tggagagaac acgggggacc aggtcgactc tcgaggatcc ggtacccggt atcgatttaa
      961 aaggcctatg gtgagcaagg gcgaggagga taacatggcc atcatcaagg agttcatgcg
     1021 cttcaaggtg cacatggagg gctccgtgaa cggccacgag ttcgagatcg agggcgaggg
     1081 cgagggccgc ccctacgagg gcacccagac cgccaagctg aaggtgacca agggtggccc
     1141 cctgcccttc gcctgggaca tcctgtcccc tcagttcatg tacggctcca aggcctacgt
     1201 gaagcacccc gccgacatcc ccgactactt gaagctgtcc ttccccgagg gcttcaagtg
     1261 ggagcgcgtg atgaacttcg aggacggcgg cgtggtgacc gtgacccagg actcctccct
     1321 gcaggacggc gagttcatct acaaggtgaa gctgcgcggc accaacttcc cctccgacgg
     1381 ccccgtaatg cagaagaaga ccatgggctg ggaggcctcc tccgagcgga tgtaccccga
     1441 ggacggcgcc ctgaagggcg agatcaagca gaggctgaag ctgaaggacg gcggccacta
     1501 cgacgctgag gtcaagacca cctacaaggc caagaagccc gtgcagctgc ccggcgccta
     1561 caacgtcaac atcaagttgg acatcacctc ccacaacgag gactacacca tcgtggaaca
     1621 gtacgaacgc gccgagggcc gccactccac cggcggcatg gacgagctgt acaagaggcc
     1681 tcaggtcgac tctcgaggat caactagtga gctcagtacc cggtatcgat ttaaataaga
     1741 atttccccga tcgttcaaac atttggcaat aaagtttctt aagattgaat cctgttgccg
     1801 gtcttgcgat gattatcata taatttctgt tgaattacgt taagcatgta ataattaaca
     1861 tgtaatgcat gacgttattt atgagatggg tttttatgat tagagtcccg caattataca
     1921 tttaatacgc gatagaaaac aaaatatagc gcgcaaacta ggataaatta tcgcgcgcgg
     1981 tgtcatctat gttactagat cgggaattca ctggccgtcg ttttacaacg tcgtgactgg
     2041 gaaaaccctg gcgttaccca acttaatcgc cttgcagcac atcccccttt cgccagctgg
     2101 cgtaatagcg aagaggcccg caccgatcgc ccttcccaac agttgcgcag cctgaatggc
     2161 gaatggcgcc tgatgcggta ttttctcctt acgcatctgt gcggtatttc acaccgcata
     2221 tggtgcactc tcagtacaat ctgctctgat gccgcatagt taagccagcc ccgacacccg
     2281 ccaacacccg ctgacgcgcc ctgacgggct tgtctgctcc cggcatccgc ttacagacaa
     2341 gctgtgaccg tctccgggag ctgcatgtgt cagaggtttt caccgtcatc accgaaacgc
     2401 gcgagacgaa agggcctcgt gatacgccta tttttatagg ttaatgtcat gataataatg
     2461 gtttcttaga cgtcaggtgg cacttttcgg ggaaatgtgc gcggaacccc tatttgttta
     2521 tttttctaaa tacattcaaa tatgtatccg ctcatgagac aataaccctg ataaatgctt
     2581 caataatatt gaaaaaggaa gagtatgagt attcaacatt tccgtgtcgc ccttattccc
     2641 ttttttgcgg cattttgcct tcctgttttt gctcacccag aaacgctggt gaaagtaaaa
     2701 gatgctgaag atcagttggg tgcacgagtg ggttacatcg aactggatct caacagcggt
     2761 aagatccttg agagttttcg ccccgaagaa cgttttccaa tgatgagcac ttttaaagtt
     2821 ctgctatgtg gcgcggtatt atcccgtatt gacgccgggc aagagcaact cggtcgccgc
     2881 atacactatt ctcagaatga cttggttgag tactcaccag tcacagaaaa gcatcttacg
     2941 gatggcatga cagtaagaga attatgcagt gctgccataa ccatgagtga taacactgcg
     3001 gccaacttac ttctgacaac gatcggagga ccgaaggagc taaccgcttt tttgcacaac
     3061 atgggggatc atgtaactcg ccttgatcgt tgggaaccgg agctgaatga agccatacca
     3121 aacgacgagc gtgacaccac gatgcctgta gcaatggcaa caacgttgcg caaactatta
     3181 actggcgaac tacttactct agcttcccgg caacaattaa tagactggat ggaggcggat
     3241 aaagttgcag gaccacttct gcgctcggcc cttccggctg gctggtttat tgctgataaa
     3301 tctggagccg gtgagcgtgg gtctcgcggt atcattgcag cactggggcc agatggtaag
     3361 ccctcccgta tcgtagttat ctacacgacg gggagtcagg caactatgga tgaacgaaat
     3421 agacagatcg ctgagatagg tgcctcactg attaagcatt ggtaactgtc agaccaagtt
     3481 tactcatata tactttagat tgatttaaaa cttcattttt aatttaaaag gatctaggtg
     3541 aagatccttt ttgataatct catgaccaaa atcccttaac gtgagttttc gttccactga
     3601 gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag atcctttttt tctgcgcgta
     3661 atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt gccggatcaa
     3721 gagctaccaa ctctttttcc gaaggtaact ggcttcagca gagcgcagat accaaatact
     3781 gttcttctag tgtagccgta gttaggccac cacttcaaga actctgtagc accgcctaca
     3841 tacctcgctc tgctaatcct gttaccagtg gctgctgcca gtggcgataa gtcgtgtctt
     3901 accgggttgg actcaagacg atagttaccg gataaggcgc agcggtcggg ctgaacgggg
     3961 ggttcgtgca cacagcccag cttggagcga acgacctaca ccgaactgag atacctacag
     4021 cgtgagctat gagaaagcgc cacgcttccc gaagggagaa aggcggacag gtatccggta
     4081 agcggcaggg tcggaacagg agagcgcacg agggagcttc cagggggaaa cgcctggtat
     4141 ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt gtgatgctcg
     4201 tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg gttcctggcc
     4261 ttttgctggc cttttgctca catgttcttt cctgcgttat cccctgattc tgtggataac
     4321 cgtattaccg cctttgagtg agctgatacc gctcgccgca gccgaacgac cgagcgcagc
     4381 gagtcagtga gcgaggaagc ggaagagcgc ccaatacgca aaccgcctct ccccgcgcgt
     4441 tggccgattc attaatgcag ctggcacgac aggtttcccg actggaaagc gggcagtgag
     4501 cgcaacgcaa ttaatgtgag ttagctcact cattaggcac cccaggcttt acactttatg
     4561 cttccggctc gtatgttgtg tgga
//
