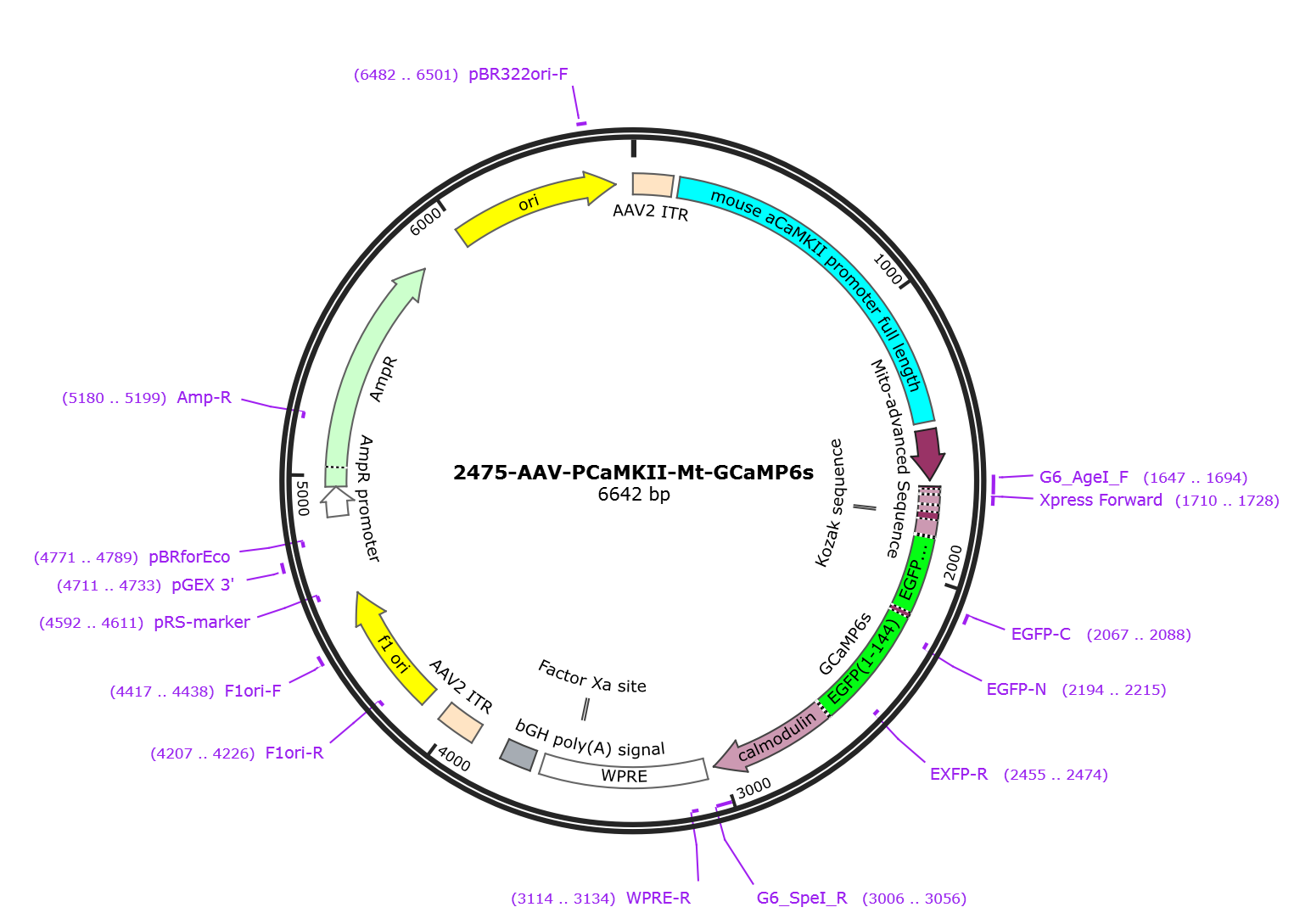

AAV-PCaMKII-Mt-GCaMP6s

LOCUS       AAV-PCaMKII-Mt-GCaMP6s               6642 bp DNA     circular SYN 02-APR-2026
DEFINITION  Forebrain principle neuron specific expression of GCaMP6f Ca sensor
            and physically separate nuclear localized dTomato fluorophore .
ACCESSION   .
VERSION     .
KEYWORDS    2475-AAV-PCaMKII-Mt-GCaMP6s
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6642)
  TITLE     Ting GCaMP6 plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 6642)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 31, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName:
            "Unpublished"
FEATURES             Location/Qualifiers
     source          1..6642
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     repeat_region   1..141
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     promoter        164..1452
                     /label=mouse aCaMKII promoter full length
     CDS             1480..1659
                     /codon_start=1
                     /label=Mito-advanced Sequence
                     /translation="MAQRLLLRRFLASVISRKPSQGQWPPLTSRALQTPQCSPGGLTVT
                     PNPARTIYTTRISLT"
     primer_bind     1647..1694
                     /label=G6_AgeI_F
     CDS             1681..3030
                     /codon_start=1
                     /product="improved fluorescent protein-based calcium sensor
                     (Chen et al., 2013)"
                     /label=GCaMP6s
                     /translation="MGSHHHHHHGMASMTGGQQMGRDLYDDDDKDLATMVDSSRRKWNK
                     TGHAVRAIGRLSSLENVYIKADKQKNGIKANFHIRHNIEDGGVQLAYHYQQNTPIGDGP
                     VLLPDNHYLSVQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKGGTGGSMVSKGEE
                     LFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLT
                     YGVQCFSRYPDHMKQHDFFKSAMPEGYIQERTIFFKDDGNYKTRAEVKFEGDTLVNRIE
                     LKGIDFKEDGNILGHKLEYNLPDQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRS
                     LGQNPTEAELQDMINEVDADGDGTIDFPEFLTMMARKMKYRDTEEEIREAFGVFDKDGN
                     GYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK"
     primer_bind     1710..1728
                     /label=Xpress Forward
     regulatory      1777..1786
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     primer_bind     2067..2088
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     primer_bind     complement(2194..2215)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(2455..2474)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     complement(3006..3056)
                     /label=G6_SpeI_R
     misc_feature    3061..3649
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(3114..3134)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(3532..3543)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3682..3793
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     repeat_region   3905..4045
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     rep_origin      4120..4575
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(4207..4226)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4417..4438
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(4592..4611)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     4711..4733
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(4771..4789)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        4857..4961
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4962..5822
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5180..5199)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      5993..6581
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6482..6501
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcaaag cccgggcgtc
       61 gggcgacctt tggtcgcccg gcctcagtga gcgagcgagc gcgcagagag ggagtggcca
      121 actccatcac taggggttcc tgcggccgca cgcgtttaat taacattatg gccttaggtc
      181 acttcatctc catggggttc ttcttctgat tttctagaaa atgagatggg ggtgcagaga
      241 gcttcctcag tgacctgccc agggtcacat cagaaatgtc agagctagaa cttgaactca
      301 gattactaat cttaaattcc atgccttggg ggcatgcaag tacgatatac agaaggagtg
      361 aactcattag ggcagatgac caatgagttt aggaaagaag agtccagggc agggtacatc
      421 tacaccaccc gcccagccct gggtgagtcc agccacgttc acctcattat agttgcctct
      481 ctccagtcct accttgacgg gaagcacaag cagaaactgg gacaggagcc ccaggagacc
      541 aaatcttcat ggtccctctg ggaggatggg tggggagagc tgtggcagag gcctcaggag
      601 gggccctgct gctcagtggt gacagatagg ggtgagaaag cagacagagt cattccgtca
      661 gcattctggg tctgtttggt acttcttctc acgctaaggt ggcggtgtga tatgcacaat
      721 ggctaaaaag cagggagagc tggaaagaaa caaggacaga gacagaggcc aagtcaacca
      781 gaccaattcc cagaggaagc aaagaaacca ttacagagac tacaaggggg aagggaagga
      841 gagatgaatt agcttcccct gtaaacctta gaacccagct gttgccaggg caacggggca
      901 atacctgtct cttcagagga gatgaagttg ccagggtaac tacatcctgt ctttctcaag
      961 gaccatccca gaatgtggca cccactagcc gttaccatag caactgcctc tttgccccac
     1021 ttaatcccat cccgtctgtt aaaagggccc tatagttgga ggtgggggag gtaggaagag
     1081 cgatgatcac ttgtggacta agtttgttcg catccccttc tccaaccccc tcagtacatc
     1141 accctggggg aacagggtcc acttgctcct gggcccacac agtcctgcag tattgtgtat
     1201 ataaggccag ggcaaagagg agcaggtttt aaagtgaaag gcaggcaggt gttggggagg
     1261 cagttaccgg ggcaacggga acagggcgtt tcggaggtgg ttgccatggg gacctggatg
     1321 ctgacgaagg ctcgcgaggc tgtgagcagc cacagtgccc tgctcagaag ccccaagctc
     1381 gtcagtcaag ccggttctcc gtttgcactc aggagcacgg gcaggcgagt ggcccctagt
     1441 tctgggggca gcgggggatc ctgatcccct agggccacca tggctcagcg acttcttctg
     1501 aggaggttcc tggcctctgt catctccagg aagccctctc agggtcagtg gccacccctc
     1561 acttccagag ccctccagac cccacaatgc agtcctggtg gcctgactgt aacacccaac
     1621 ccagcccgga caatatacac cacgaggatc tccttgacac ctaggccacc ggttgccacc
     1681 atgggttctc atcatcatca tcatcatggt atggctagca tgactggtgg acagcaaatg
     1741 ggtcgggatc tgtacgacga tgacgataag gatctcgcca ccatggtcga ctcatcacgt
     1801 cgtaagtgga ataagacagg tcacgcagtc agagctatag gtcggctgag ctcactcgag
     1861 aacgtctata tcaaggccga caagcagaag aacggcatca aggcgaactt ccacatccgc
     1921 cacaacatcg aggacggcgg cgtgcagctc gcctaccact accagcagaa cacccccatc
     1981 ggcgacggcc ccgtgctgct gcccgacaac cactacctga gcgtgcagtc caaactttcg
     2041 aaagacccca acgagaagcg cgatcacatg gtcctgctgg agttcgtgac cgccgccggg
     2101 atcactctcg gcatggacga gctgtacaag ggcggtaccg gagggagcat ggtgagcaag
     2161 ggcgaggagc tgttcaccgg ggtggtgccc atcctggtcg agctggacgg cgacgtaaac
     2221 ggccacaagt tcagcgtgtc cggcgagggt gagggcgatg ccacctacgg caagctgacc
     2281 ctgaagttca tctgcaccac cggcaagctg cccgtgccct ggcccaccct cgtgaccacc
     2341 ctgacctacg gcgtgcagtg cttcagccgc taccccgacc acatgaagca gcacgacttc
     2401 ttcaagtccg ccatgcccga aggctacatc caggagcgca ccatcttctt caaggacgac
     2461 ggcaactaca agacccgcgc cgaggtgaag ttcgagggcg acaccctggt gaaccgcatc
     2521 gagctgaagg gcatcgactt caaggaggac ggcaacatcc tggggcacaa gctggagtac
     2581 aacctgccgg accaactgac tgaagagcag atcgcagaat ttaaagaggc tttctcccta
     2641 tttgacaagg acggggatgg gacaataaca accaaggagc tggggacggt gatgcggtct
     2701 ctggggcaga accccacaga agcagagctg caggacatga tcaatgaagt agatgccgac
     2761 ggtgacggca caatcgactt ccctgagttc ctgacaatga tggcaagaaa aatgaaatac
     2821 agggacacgg aagaagaaat tagagaagcg ttcggtgtgt ttgataagga tggcaatggc
     2881 tacatcagtg cagcagagct tcgccacgtg atgacaaacc ttggagagaa gttaacagat
     2941 gaagaggttg atgaaatgat cagggaagca gacatcgatg gggatggtca ggtaaactac
     3001 gaagagtttg tacaaatgat gacagcgaag tgaactagtt gagatatcaa gcttatcgat
     3061 aatcaacctc tggattacaa aatttgtgaa agattgactg gtattcttaa ctatgttgct
     3121 ccttttacgc tatgtggata cgctgcttta atgcctttgt atcatgctat tgcttcccgt
     3181 atggctttca ttttctcctc cttgtataaa tcctggttgc tgtctcttta tgaggagttg
     3241 tggcccgttg tcaggcaacg tggcgtggtg tgcactgtgt ttgctgacgc aacccccact
     3301 ggttggggca ttgccaccac ctgtcagctc ctttccggga ctttcgcttt ccccctccct
     3361 attgccacgg cggaactcat cgccgcctgc cttgcccgct gctggacagg ggctcggctg
     3421 ttgggcactg acaattccgt ggtgttgtcg gggaaatcat cgtcctttcc ttggctgctc
     3481 gcctatgttg ccacctggat tctgcgcggg acgtccttct gctacgtccc ttcggccctc
     3541 aatccagcgg accttccttc ccgcggcctg ctgccggctc tgcggcctct tccgcgtctt
     3601 cgccttcgcc ctcagacgag tcggatctcc ctttgggccg cctccccgca tcgataccga
     3661 gcgctgctcg agagatctcg actgtgcctt ctagttgcca gccatctgtt gtttgcccct
     3721 cccccgtgcc ttccttgacc ctggaaggtg ccactcccac tgtcctttcc taataaaatg
     3781 aggaaattgc atcgcattgt ctgagtaggt gtcattctat tctggggggt ggggtggggc
     3841 aggacagcaa gggggaggat tgggaagaca atagcaggca tgcacgtgcg gaccgagcgg
     3901 ccgcaggaac ccctagtgat ggagttggcc actccctctc tgcgcgctcg ctcgctcact
     3961 gaggccgggc gaccaaaggt cgcccgacgc ccgggctttg cccgggcggc ctcagtgagc
     4021 gagcgagcgc gcagctgcct gcaggggcgc ctgatgcggt attttctcct tacgcatctg
     4081 tgcggtattt cacaccgcat acgtcaaagc aaccatagta cgcgccctgt agcggcgcat
     4141 taagcgcggc gggtgtggtg gttacgcgca gcgtgaccgc tacacttgcc agcgccctag
     4201 cgcccgctcc tttcgctttc ttcccttcct ttctcgccac gttcgccggc tttccccgtc
     4261 aagctctaaa tcgggggctc cctttagggt tccgatttag tgctttacgg cacctcgacc
     4321 ccaaaaaact tgatttgggt gatggttcac gtagtgggcc atcgccctga tagacggttt
     4381 ttcgcccttt gacgttggag tccacgttct ttaatagtgg actcttgttc caaactggaa
     4441 caacactcaa ccctatctcg ggctattctt ttgatttata agggattttg ccgatttcgg
     4501 cctattggtt aaaaaatgag ctgatttaac aaaaatttaa cgcgaatttt aacaaaatat
     4561 taacgtttac aattttatgg tgcactctca gtacaatctg ctctgatgcc gcatagttaa
     4621 gccagccccg acacccgcca acacccgctg acgcgccctg acgggcttgt ctgctcccgg
     4681 catccgctta cagacaagct gtgaccgtct ccgggagctg catgtgtcag aggttttcac
     4741 cgtcatcacc gaaacgcgcg agacgaaagg gcctcgtgat acgcctattt ttataggtta
     4801 atgtcatgat aataatggtt tcttagacgt caggtggcac ttttcgggga aatgtgcgcg
     4861 gaacccctat ttgtttattt ttctaaatac attcaaatat gtatccgctc atgagacaat
     4921 aaccctgata aatgcttcaa taatattgaa aaaggaagag tatgagtatt caacatttcc
     4981 gtgtcgccct tattcccttt tttgcggcat tttgccttcc tgtttttgct cacccagaaa
     5041 cgctggtgaa agtaaaagat gctgaagatc agttgggtgc acgagtgggt tacatcgaac
     5101 tggatctcaa cagcggtaag atccttgaga gttttcgccc cgaagaacgt tttccaatga
     5161 tgagcacttt taaagttctg ctatgtggcg cggtattatc ccgtattgac gccgggcaag
     5221 agcaactcgg tcgccgcata cactattctc agaatgactt ggttgagtac tcaccagtca
     5281 cagaaaagca tcttacggat ggcatgacag taagagaatt atgcagtgct gccataacca
     5341 tgagtgataa cactgcggcc aacttacttc tgacaacgat cggaggaccg aaggagctaa
     5401 ccgctttttt gcacaacatg ggggatcatg taactcgcct tgatcgttgg gaaccggagc
     5461 tgaatgaagc cataccaaac gacgagcgtg acaccacgat gcctgtagca atggcaacaa
     5521 cgttgcgcaa actattaact ggcgaactac ttactctagc ttcccggcaa caattaatag
     5581 actggatgga ggcggataaa gttgcaggac cacttctgcg ctcggccctt ccggctggct
     5641 ggtttattgc tgataaatct ggagccggtg agcgtgggtc tcgcggtatc attgcagcac
     5701 tggggccaga tggtaagccc tcccgtatcg tagttatcta cacgacgggg agtcaggcaa
     5761 ctatggatga acgaaataga cagatcgctg agataggtgc ctcactgatt aagcattggt
     5821 aactgtcaga ccaagtttac tcatatatac tttagattga tttaaaactt catttttaat
     5881 ttaaaaggat ctaggtgaag atcctttttg ataatctcat gaccaaaatc ccttaacgtg
     5941 agttttcgtt ccactgagcg tcagaccccg tagaaaagat caaaggatct tcttgagatc
     6001 ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa accaccgcta ccagcggtgg
     6061 tttgtttgcc ggatcaagag ctaccaactc tttttccgaa ggtaactggc ttcagcagag
     6121 cgcagatacc aaatactgtc cttctagtgt agccgtagtt aggccaccac ttcaagaact
     6181 ctgtagcacc gcctacatac ctcgctctgc taatcctgtt accagtggct gctgccagtg
     6241 gcgataagtc gtgtcttacc gggttggact caagacgata gttaccggat aaggcgcagc
     6301 ggtcgggctg aacggggggt tcgtgcacac agcccagctt ggagcgaacg acctacaccg
     6361 aactgagata cctacagcgt gagctatgag aaagcgccac gcttcccgaa gggagaaagg
     6421 cggacaggta tccggtaagc ggcagggtcg gaacaggaga gcgcacgagg gagcttccag
     6481 ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg ccacctctga cttgagcgtc
     6541 gatttttgtg atgctcgtca ggggggcgga gcctatggaa aaacgccagc aacgcggcct
     6601 ttttacggtt cctggccttt tgctggcctt ttgctcacat gt
//
