| 质粒名称: | pAAV-CAG-dMito-LSSmScarlet3 |
|---|---|
| 出品公司: | Wekwikgene |
| 目录编号: | 0000179 |
| 产品用途: | Expresses the dMito-LSSmScarlet3 fusion of the chemically stable red fluorescent protein with a large Stock's shift with dMito in mitochondria of mammalian cells |
| 存储实验室: | Laboratory of Molecular Design |
|
载体骨架基本信息 |
|
| 载体名称: | pAAV |
| 表达系统: | 腺病毒，哺乳动物表达 |
| 启动子: | CAG |
| 拷贝数: | 低拷贝 |
| 载体抗性: | 氨苄霉素 |
| 生长温度: | 37 ℃ |
| 宿主菌: | Mach1 |
|
插入基因信息 |
|
| 插入基因名称: | dMito-LSSmScarlet3 |
| 物种来源: | Synthetic |
| 密码子优化: | 细菌表达优化 |
|
文献引用方法 |
|
| 参考文献部分: |
LSSmScarlet2 and LSSmScarlet3, Chemically Stable Genetically Encoded Red Fluorescent Proteins with a Large Stokes' Shift
Subach O.M., Vlaskina A.V., Agapova Y.K., Piatkevich K.D., Patrushev M.V., Samygina V.R., Subach F.V.
Int. J. Mol. Sci. 23, 11051 (2022)
|
买家导航
pAAV-CAG-dMito-LSSmScarlet3载体质粒基本信息

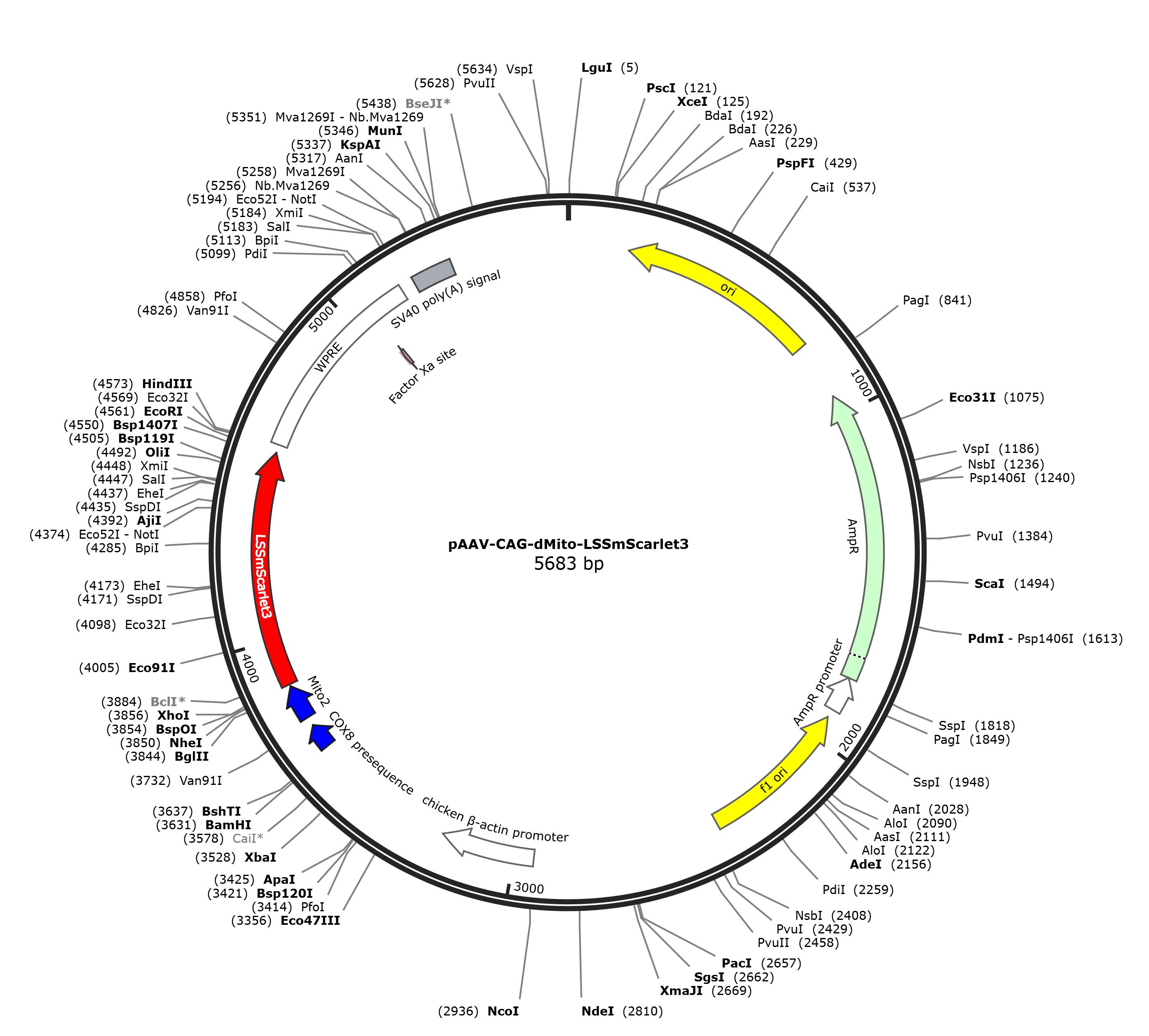

pAAV-CAG-dMito-LSSmScarlet3质粒图谱载体图谱和pAAV-CAG-dMito-LSSmScarlet3载体序列质粒序列多克隆位点信息
pAAV-CAG-dMito-LSSmScarlet3质粒载体简介
pAAV-CAG-dMito-LSSmScarlet3质粒序列载体序列
LOCUS pAAV-CAG-dMito-LSSmScarlet3 5683 bp DNA circular SYN 22-APR-2023
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS .
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 5683)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported Apr 29, 2026 from SnapGene 6.0.2
https://www.biofeng.com
FEATURES Location/Qualifiers
source 1..5683
/mol_type="other DNA"
/organism="synthetic DNA construct"
rep_origin complement(182..770)
/direction=LEFT
/label=ori
/note="high-copy-number colE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(941..1801)
/codon_start=1
/gene="bla"
/product="beta-lactamase"
/label=AmpR
/note="confers resistance to ampicillin, carbenicillin, and
related antibiotics"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
LIKHW"
promoter complement(1802..1906)
/gene="bla"
/label=AmpR promoter
rep_origin complement(1932..2387)
/direction=LEFT
/label=f1 ori
/note="f1 bacteriophage origin of replication; arrow
indicates direction of (+) strand synthesis"
promoter 2942..3219
/label=chicken beta-actin promoter
CDS 3649..3723
/codon_start=1
/product="mitochondrial presequence of human cytochrome c
oxidase subunit VIII (Rizutto et al., 1989)"
/label=COX8 presequence
/translation="MSVLTPLLLRGLTGSARRLPVPRAK"
CDS 3751..3855
/codon_start=1
/label=Mito2
/translation="SVLTPLLLRGLTGSARRLPVPRAKIHSLGPARSAS"
CDS 3862..4560
/codon_start=1
/label=LSSmScarlet3
/translation="MVSKGEAVIKEFMRFKVHMEGSMNGHEFEIEGEGEGRPYEGTQTA
KLKVTKGGPLPFSWDILSPQFMYGSRAFTKHPADIPDYHKQSFPEGFKWERVMNFEDGG
AVTVTQDTSLEDGTLIYEVKLRGTNFPPDGPVMQKKTMGLEADTERLYPEDGVLKGDIK
MALRLKDGGRYLAHVRTTYKAKKPVLMPGAYNVDRKLDITSHNEDYTVVEQFERSEGRH
STGDMDELYK"
misc_feature 4585..5173
/label=WPRE
/note="woodchuck posttranscriptional regulatory element"
CDS complement(5056..5067)
/codon_start=1
/product="Factor Xa recognition and cleavage site"
/label=Factor Xa site
/translation="IEGR"
polyA_signal 5216..5337
/label=SV40 poly(A) signal
/note="SV40 polyadenylation signal"
ORIGIN
1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
1921 aagtgccacc taaattgtaa gcgttaatat tttgttaaaa ttcgcgttaa atttttgtta
1981 aatcagctca ttttttaacc aataggccga aatcggcaaa atcccttata aatcaaaaga
2041 atagaccgag atagggttga gtgttgttcc agtttggaac aagagtccac tattaaagaa
2101 cgtggactcc aacgtcaaag ggcgaaaaac cgtctatcag ggcgatggcc cactacgtga
2161 accatcaccc taatcaagtt ttttggggtc gaggtgccgt aaagcactaa atcggaaccc
2221 taaagggagc ccccgattta gagcttgacg gggaaagccg gcgaacgtgg cgagaaagga
2281 agggaagaaa gcgaaaggag cgggcgctag ggcgctggca agtgtagcgg tcacgctgcg
2341 cgtaaccacc acacccgccg cgcttaatgc gccgctacag ggcgcgtccc attcgccatt
2401 caggctgcgc aactgttggg aagggcgatc ggtgcgggcc tcttcgctat tacgccagct
2461 gcgcgctcgc tcgctcactg aggccgcccg ggcaaagccc gggcgtcggg cgacctttgg
2521 tcgcccggcc tcagtgagcg agcgagcgcg cagagaggga gtggccaact ccatcactag
2581 gggttccttg tagttaatga ttaacccgcc atgctactta tctacgtagc catgctctag
2641 gaagatcgta ggttaattaa ggcgcgcccc taggggagat ggccagccag cccattgacg
2701 tcaataatga cgtatgttcc catagtaacg ccaataggga ctttccattg acgtcaatgg
2761 gtggagtatt tacggtaaac tgcccacttg gcagtacatc aagtgtatca tatgccaagt
2821 acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct ggcattatgc ccagtacatg
2881 accttatggg actttcctac ttggcagtac atctacgtat tagtcatcgc tattaccatg
2941 gtcgaggtga gccccacgtt ctgcttcact ctccccatct cccccccctc cccaccccca
3001 attttgtatt tatttatttt ttaattattt tgtgcagcga tgggggcggg gggggggggg
3061 gggcgcgcgc caggcggggc ggggcggggc gaggggcggg gcggggcgag gcggagaggt
3121 gcggcggcag ccaatcagag cggcgcgctc cgaaagtttc cttttatggc gaggcggcgg
3181 cggcggcggc cctataaaaa gcgaagcgcg cggcgggcgg gagtcgctgc gacgctgcct
3241 tcgccccgtg ccccgctccg ccgccgcctc gcgccgcccg ccccggctct gactgaccgc
3301 gttactccca caggtgagcg ggcgggacgg cccttctcct ccgggctgta attagcgctt
3361 ggtttaatga cggcttgttt cttttctgtg gctgcgtgaa agccttgagg ggctccggga
3421 gggccctttg tgcgggggga gcggctcggg gctgtccgcg gggggacggc tgccttcggg
3481 ggggacgggg cagggcgggg ttcggcttct ggcgtgtgac cggcggctct agagcctctg
3541 ctaaccatgt tcatgccttc ttctttttcc tacagctcct gggcaacgtg ctggttattg
3601 tgctgtctca tcattttggc aaagaattgg ggatccaccg gtgccaccat gtccgtcctg
3661 acgccgctgc tgctgcgggg cttgacaggc tcggcccggc ggctcccagt gccgcgcgcc
3721 aagatccatt cgttggggcc tgcaagatcc agtgtattaa cacctctgct gctgcggggc
3781 ttgacaggct cggcccggcg gctcccagtg ccgcgcgcca agattcacag tcttggtcca
3841 gctagatctg ctagcctcga gatggtgagc aagggcgagg cagtgatcaa ggagttcatg
3901 cggttcaagg tgcacatgga gggctccatg aacggccacg agttcgagat cgagggcgag
3961 ggcgagggcc gcccctacga gggcacccag accgccaagc tgaaggtgac caagggtggt
4021 ccactgccct tctcctggga catcctgtcc cctcagttca tgtacggctc cagggccttc
4081 accaagcacc ccgccgatat ccccgactac cataagcagt ccttccccga gggcttcaag
4141 tgggagcgcg tgatgaactt cgaggacggc ggcgccgtga ccgtgaccca ggacacctcc
4201 ctggaggacg gcaccctgat ctacgaggtg aagctccgcg gcaccaactt ccctcctgac
4261 ggccccgtaa tgcagaagaa gactatgggc ttggaagcgg acaccgagcg gttgtacccc
4321 gaggacggcg tgctgaaggg cgacattaag atggccctgc gcctgaagga cggcggccgc
4381 tacctggcac acgtcaggac cacctacaag gccaagaagc ccgtgttgat gcccggcgcc
4441 tacaacgtcg accgcaagtt ggacatcacc tcccacaacg aggactacac cgtggtggaa
4501 cagttcgaac gctccgaggg ccgccactcc accggcgaca tggacgagct gtacaagtaa
4561 gaattcgata tcaagcttat cgataatcaa cctctggatt acaaaatttg tgaaagattg
4621 actggtattc ttaactatgt tgctcctttt acgctatgtg gatacgctgc tttaatgcct
4681 ttgtatcatg ctattgcttc ccgtatggct ttcattttct cctccttgta taaatcctgg
4741 ttgctgtctc tttatgagga gttgtggccc gttgtcaggc aacgtggcgt ggtgtgcact
4801 gtgtttgctg acgcaacccc cactggttgg ggcattgcca ccacctgtca gctcctttcc
4861 gggactttcg ctttccccct ccctattgcc acggcggaac tcatcgccgc ctgccttgcc
4921 cgctgctgga caggggctcg gctgttgggc actgacaatt ccgtggtgtt gtcggggaaa
4981 tcatcgtcct ttccttggct gctcgcctgt gttgccacct ggattctgcg cgggacgtcc
5041 ttctgctacg tcccttcggc cctcaatcca gcggaccttc cttcccgcgg cctgctgccg
5101 gctctgcggc ctcttccgcg tcttcgcctt cgccctcaga cgagtcggat ctccctttgg
5161 gccgcctccc cgcatcgata ccgtcgaccc gggcggccgc ttcgagcaga catgataaga
5221 tacattgatg agtttggaca aaccacaact agaatgcagt gaaaaaaatg ctttatttgt
5281 gaaatttgtg atgctattgc tttatttgta accattataa gctgcaataa acaagttaac
5341 aacaacaatt gcattcattt tatgtttcag gttcaggggg agatgtggga ggttttttaa
5401 agcaagtaaa acctctacaa atgtggtaaa atcgataagg atcttcctag agcatggcta
5461 cgtagataag tagcatggcg ggttaatcat taactacaag gaacccctag tgatggagtt
5521 ggccactccc tctctgcgcg ctcgctcgct cactgaggcc gggcgaccaa aggtcgcccg
5581 acgcccgggc tttgcccggg cggcctcagt gagcgagcga gcgcgcagct gcattaatga
5641 atcggccaac gcgcggggag aggcggtttg cgtattgggc gct
//
pAAV-CAG-dMito-LSSmScarlet3载体图谱质粒图谱pdf版和pAAV-CAG-dMito-LSSmScarlet3载体序列质粒序列等相关资料下载
pAAV-CAG-dMito-LSSmScarlet3质粒载体应用举例
