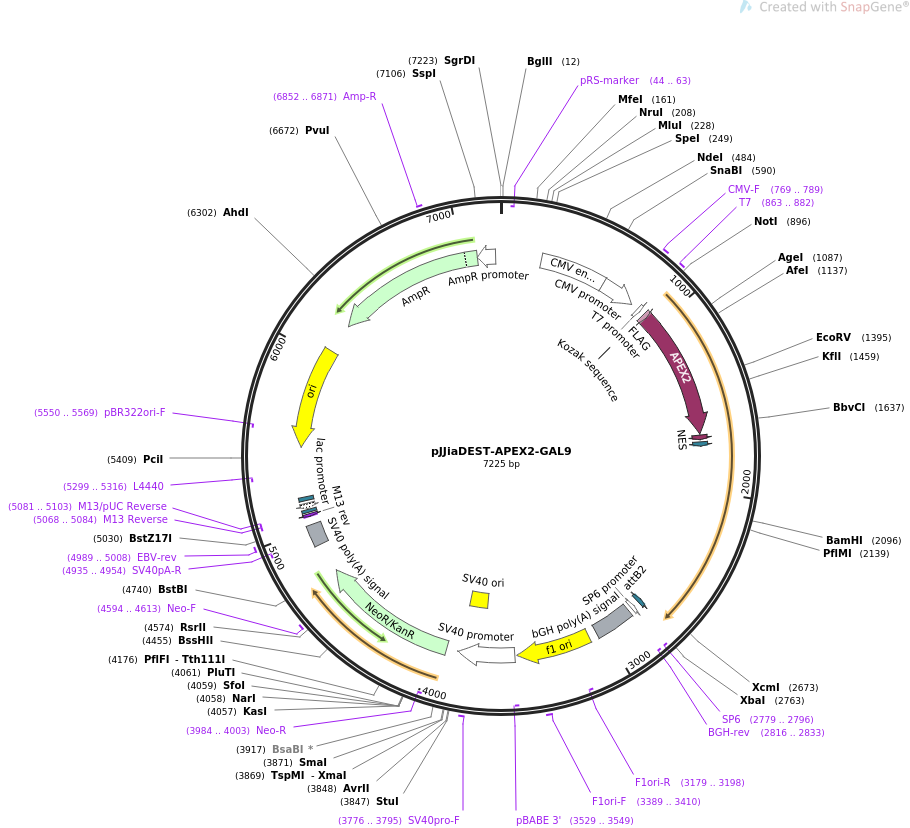

pJJiaDEST-APEX2-GAL9

LOCUS       pJJiaDEST-APEX2-GAL9                7225 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Express APEX2-Galectin-9 in mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    pJJiaDEST-APEX2-GAL9
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7225)
  AUTHORS   Jia J, Abudu YP, Claude-Taupin A, Gu Y, Kumar S, Choi SW, Peters R,
            Mudd MH, Allers L, Salemi M, Phinney B, Johansen T, Deretic V
  TITLE     Galectins Control mTOR in Response to Endomembrane Damage.
  JOURNAL   Mol Cell. 2018 Apr 5;70(1):120-135.e8. doi:
            10.1016/j.molcel.2018.03.009.
  PUBMED    29625033
REFERENCE   2  (bases 1 to 7225)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7225
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(44..63)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     769..789
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     863..882
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      901..910
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             910..933
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     CDS             934..1680
                     /codon_start=1
                     /product="soybean ascorbate peroxidase, engineered to serve
                     as a monomeric tag for electron microscopy and live-cell
                     proteomics (Lam et al., 2015)"
                     /label=APEX2
                     /note="more active than the original APEX due to the A134P
                     mutation"
                     /translation="GKSYPTVSADYQDAVEKAKKKLRGFIAEKRCAPLMLRLAFHSAGT
                     FDKGTKTGGPFGTIKHPAELAHSANNGLDIAVRLLEPLKAEFPILSYADFYQLAGVVAV
                     EVTGGPKVPFHPGREDKPEPPPEGRLPDPTKGSDHLRDVFGKAMGLTDQDIVALSGGHT
                     IGAAHKERSGFEGPWTSNPLIFDNSYFTELLSGEKEGLLQLPSDKALLSDPVFRPLVDK
                     YAADEDAFFADYAEAHQKLSELGFADA"
     CDS             1687..1713
                     /codon_start=1
                     /product="nuclear export signal from the HIV Rev protein
                     (Fischer et al., 1995)"
                     /label=NES
                     /translation="LPPLERLTL"
     protein_bind    1726..1750
                     /gene="mutant version of attB"
                     /label=attB1
                     /bound_moiety="BP Clonase(TM)"
                     /note="recombination site for the Gateway(R) BP reaction"
     protein_bind    complement(2723..2747)
                     /gene="mutant version of attB"
                     /label=attB2
                     /bound_moiety="BP Clonase(TM)"
                     /note="recombination site for the Gateway(R) BP reaction"
     promoter        complement(2778..2796)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     complement(2779..2796)
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     primer_bind     complement(2816..2833)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    2822..3046
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3092..3520
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3179..3198)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     3389..3410
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(3529..3549)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        3534..3863
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3714..3849
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3776..3795
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3930..4724
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3984..4003)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4594..4613
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    4898..5019
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4935..4954)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     4989..5008
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(5068..5084)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(5068..5084)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(5081..5103)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    5092..5108
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5116..5146)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5161..5182
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(5299..5316)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(5470..6058)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(5550..5569)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(6229..7089)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     6852..6871
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(7090..7194)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gcttgcggcc
      901 gccaccatgg actacaagga tgacgacgat aagggaaagt cttacccaac tgtgagtgct
      961 gattaccagg acgccgttga gaaggcgaag aagaagctca gaggcttcat cgctgagaag
     1021 agatgcgctc ctctaatgct ccgtttggca ttccactctg ctggaacctt tgacaagggc
     1081 acgaagaccg gtggaccctt cggaaccatc aagcaccctg ccgaactggc tcacagcgct
     1141 aacaacggtc ttgacatcgc tgttaggctt ttggagccac tcaaggcgga gttccctatt
     1201 ttgagctacg ccgatttcta ccagttggct ggcgttgttg ccgttgaggt cacgggtgga
     1261 cctaaggttc cattccaccc tggaagagag gacaagcctg agccaccacc agagggtcgc
     1321 ttgcccgatc ccactaaggg ttctgaccat ttgagagatg tgtttggcaa agctatgggg
     1381 cttactgacc aagatatcgt tgctctatct gggggtcaca ctattggagc tgcacacaag
     1441 gagcgttctg gatttgaggg tccctggacc tctaatcctc ttattttcga caactcatac
     1501 ttcacggagt tgttgagtgg tgagaaggaa ggtctccttc agctaccttc tgacaaggct
     1561 cttttgtctg accctgtatt ccgccctctc gttgacaaat atgcagcgga cgaagatgcc
     1621 ttctttgctg attacgctga ggctcaccaa aagctttccg agcttgggtt tgctgatgcc
     1681 ctgcagctgc ctcccctgga gcgcctgacc ctggacctcg aatcaacaag tttgtacaaa
     1741 aaagcaggct tcgccttcag cggttcccag gctccctacc tgagtccagc tgtccccttt
     1801 tctgggacta ttcaaggagg tctccaggac ggacttcaga tcactgtcaa tgggaccgtt
     1861 ctcagctcca gtggaaccag gtttgctgtg aactttcaga ctggcttcag tggaaatgac
     1921 attgccttcc acttcaaccc tcggtttgaa gatggagggt acgtggtgtg caacacgagg
     1981 cagaacggaa gctgggggcc cgaggagagg aagacacaca tgcctttcca gaaggggatg
     2041 ccctttgacc tctgcttcct ggtgcagagc tcagatttca aggtgatggt gaacgggatc
     2101 ctcttcgtgc agtacttcca ccgcgtgccc ttccaccgtg tggacaccat ctccgtcaat
     2161 ggctctgtgc agctgtccta catcagcttc cagcctcccg gcgtgtggcc tgccaacccg
     2221 gctcccatta cccagacagt catccacaca gtgcagagcg cccctggaca gatgttctct
     2281 actcccgcca tcccacctat gatgtacccc caccccgcct atccgatgcc tttcatcacc
     2341 accattctgg gagggctgta cccatccaag tccatcctcc tgtcaggcac tgtcctgccc
     2401 agtgctcaga ggttccacat caacctgtgc tctgggaacc acatcgcctt ccacctgaac
     2461 ccccgttttg atgagaatgc tgtggtccgc aacacccaga tcgacaactc ctgggggtct
     2521 gaggagcgaa gtctgccccg aaaaatgccc ttcgtccgtg gccagagctt ctcagtgtgg
     2581 atcttgtgtg aagctcactg cctcaaggtg gccgtggatg gtcagcacct gtttgaatac
     2641 taccatcgcc tgaggaacct gcccaccatc aacagactgg aagtgggggg cgacatccag
     2701 ctgacccatg tgcagacata ggacccagct ttcttgtaca aagtggttga ttcgagcatg
     2761 catctagagg gccctattct atagtgtcac ctaaatgcta gagctcgctg atcagcctcg
     2821 actgtgcctt ctagttgcca gccatctgtt gtttgcccct cccccgtgcc ttccttgacc
     2881 ctggaaggtg ccactcccac tgtcctttcc taataaaatg aggaaattgc atcgcattgt
     2941 ctgagtaggt gtcattctat tctggggggt ggggtggggc aggacagcaa gggggaggat
     3001 tgggaagaca atagcaggca tgctggggat gcggtgggct ctatggcttc tgaggcggaa
     3061 agaaccagct ggggctctag ggggtatccc cacgcgccct gtagcggcgc attaagcgcg
     3121 gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg ccagcgccct agcgcccgct
     3181 cctttcgctt tcttcccttc ctttctcgcc acgttcgccg gctttccccg tcaagctcta
     3241 aatcgggggc tccctttagg gttccgattt agtgctttac ggcacctcga ccccaaaaaa
     3301 cttgattagg gtgatggttc acgtagtggg ccatcgccct gatagacggt ttttcgccct
     3361 ttgacgttgg agtccacgtt ctttaatagt ggactcttgt tccaaactgg aacaacactc
     3421 aaccctatct cggtctattc ttttgattta taagggattt tgccgatttc ggcctattgg
     3481 ttaaaaaatg agctgattta acaaaaattt aacgcgaatt aattctgtgg aatgtgtgtc
     3541 agttagggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc
     3601 tcaattagtc agcaaccagg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc
     3661 aaagcatgca tctcaattag tcagcaacca tagtcccgcc cctaactccg cccatcccgc
     3721 ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt ttttttattt
     3781 atgcagaggc cgaggccgcc tctgcctctg agctattcca gaagtagtga ggaggctttt
     3841 ttggaggcct aggcttttgc aaaaagctcc cgggagcttg tatatccatt ttcggatctg
     3901 atcaagagac aggatgagga tcgtttcgca tgattgaaca agatggattg cacgcaggtt
     3961 ctccggccgc ttgggtggag aggctattcg gctatgactg ggcacaacag acaatcggct
     4021 gctctgatgc cgccgtgttc cggctgtcag cgcaggggcg cccggttctt tttgtcaaga
     4081 ccgacctgtc cggtgccctg aatgaactgc aggacgaggc agcgcggcta tcgtggctgg
     4141 ccacgacggg cgttccttgc gcagctgtgc tcgacgttgt cactgaagcg ggaagggact
     4201 ggctgctatt gggcgaagtg ccggggcagg atctcctgtc atctcacctt gctcctgccg
     4261 agaaagtatc catcatggct gatgcaatgc ggcggctgca tacgcttgat ccggctacct
     4321 gcccattcga ccaccaagcg aaacatcgca tcgagcgagc acgtactcgg atggaagccg
     4381 gtcttgtcga tcaggatgat ctggacgaag agcatcaggg gctcgcgcca gccgaactgt
     4441 tcgccaggct caaggcgcgc atgcccgacg gcgaggatct cgtcgtgacc catggcgatg
     4501 cctgcttgcc gaatatcatg gtggaaaatg gccgcttttc tggattcatc gactgtggcc
     4561 ggctgggtgt ggcggaccgc tatcaggaca tagcgttggc tacccgtgat attgctgaag
     4621 agcttggcgg cgaatgggct gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt
     4681 cgcagcgcat cgccttctat cgccttcttg acgagttctt ctgagcggga ctctggggtt
     4741 cgaaatgacc gaccaagcga cgcccaacct gccatcacga gatttcgatt ccaccgccgc
     4801 cttctatgaa aggttgggct tcggaatcgt tttccgggac gccggctgga tgatcctcca
     4861 gcgcggggat ctcatgctgg agttcttcgc ccaccccaac ttgtttattg cagcttataa
     4921 tggttacaaa taaagcaata gcatcacaaa tttcacaaat aaagcatttt tttcactgca
     4981 ttctagttgt ggtttgtcca aactcatcaa tgtatcttat catgtctgta taccgtcgac
     5041 ctctagctag agcttggcgt aatcatggtc atagctgttt cctgtgtgaa attgttatcc
     5101 gctcacaatt ccacacaaca tacgagccgg aagcataaag tgtaaagcct ggggtgccta
     5161 atgagtgagc taactcacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa
     5221 cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat
     5281 tgggcgctct tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg
     5341 agcggtatca gctcactcaa aggcggtaat acggttatcc acagaatcag gggataacgc
     5401 aggaaagaac atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt
     5461 gctggcgttt ttccataggc tccgcccccc tgacgagcat cacaaaaatc gacgctcaag
     5521 tcagaggtgg cgaaacccga caggactata aagataccag gcgtttcccc ctggaagctc
     5581 cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga tacctgtccg cctttctccc
     5641 ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg tatctcagtt cggtgtaggt
     5701 cgttcgctcc aagctgggct gtgtgcacaa accccccgtt cagcccgacc gctgcgcctt
     5761 atccggtaac tatcgtcttg agtccaaccc ggtaagacac gacttatcgc cactggcagc
     5821 agccactggt aacaggatta gcagagcgag gtatgtaggc ggtgctacag agttcttgaa
     5881 gtggtggcct aactacggct acactagaag aacagtattt ggtatctgcg ctctgctgaa
     5941 gccagttacc ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg
     6001 tagcggtggt ttttttgttt gcaagcagca gattacgcgc agaaaaaaag gatctcaaga
     6061 agatcctttg atcttttcta cggggtctga cgctcagtgg aacgaaaact cacgttaagg
     6121 gattttggtc atgagattat caaaaaggat cttcacctag atccttttaa attaaaaatg
     6181 aagttttaaa tcaatctaaa gtatatatga gtaaacttgg tctgacagtt accaatgctt
     6241 aatcagtgag gcacctatct cagcgatctg tctatttcgt tcatccatag ttgcctgact
     6301 ccccgtcgtg tagataacta cgatacggga gggcttacca tctggcccca gtgctgcaat
     6361 gataccgcga gacccacgct caccggctcc agatttatca gcaataaacc agccagccgg
     6421 aagggccgag cgcagaagtg gtcctgcaac tttatccgcc tccatccagt ctattaattg
     6481 ttgccgggaa gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat
     6541 tgctacaggc atcgtggtgt cacgctcgtc gtttggtatg gcttcattca gctccggttc
     6601 ccaacgatca aggcgagtta catgatcccc catgttgtgc aaaaaagcgg ttagctcctt
     6661 cggtcctccg atcgttgtca gaagtaagtt ggccgcagtg ttatcactca tggttatggc
     6721 agcactgcat aattctctta ctgtcatgcc atccgtaaga tgcttttctg tgactggtga
     6781 gtactcaacc aagtcattct gagaatagtg tatgcggcga ccgagttgct cttgcccggc
     6841 gtcaatacgg gataataccg cgccacatag cagaacttta aaagtgctca tcattggaaa
     6901 acgttcttcg gggcgaaaac tctcaaggat cttaccgctg ttgagatcca gttcgatgta
     6961 acccactcgt gcacccaact gatcttcagc atcttttact ttcaccagcg tttctgggtg
     7021 agcaaaaaca ggaaggcaaa atgccgcaaa aaagggaata agggcgacac ggaaatgttg
     7081 aatactcata ctcttccttt ttcaatatta ttgaagcatt tatcagggtt attgtctcat
     7141 gagcggatac atatttgaat gtatttagaa aaataaacaa ataggggttc cgcgcacatt
     7201 tccccgaaaa gtgccacctg acgtc
//
