pQL101

LOCUS       pQL101          6824 bp DNA     circular SYN 18-APR-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6824)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

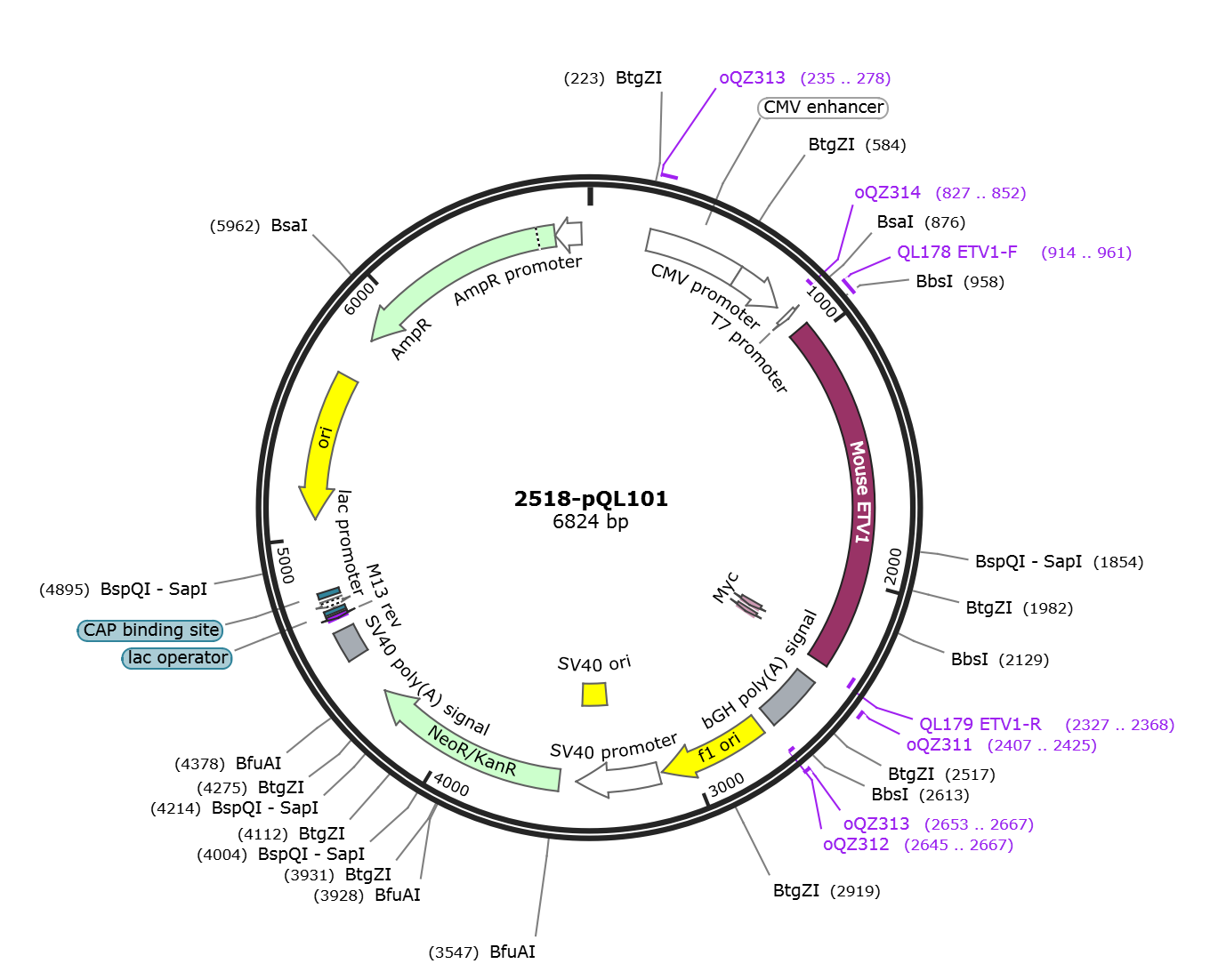

FEATURES             Location/Qualifiers
     source          1..6824
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..961
                     /label=QL178 ETV1-F
     misc_feature    941..2347
                     /label=Mouse ETV1
     CDS             2270..2299
                     /codon_start=1
                     /product="Myc (human c-Myc proto-oncogene) epitope tag"
                     /label=Myc
                     /translation="EQKLISEEDL"
     CDS             2318..2341
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     primer_bind     complement(2327..2368)
                     /label=QL179 ETV1-R
     primer_bind     2407..2425
                     /label=oQZ311
     polyA_signal    2424..2648
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2645..2667)
                     /label=oQZ312
     primer_bind     2653..2667
                     /label=oQZ313
     rep_origin      2694..3122
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3136..3465
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3316..3451
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3532..4326
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4500..4621
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4670..4686)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4694..4710
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4718..4748)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4763..4784
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5072..5657)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5828..6688)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6689..6793)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccgccacc atgcttcaag atttaagtgc
      961 aggcgtcttc ttccctcctt gttcacaaca cagaacatta gctcaggtac ctgacaatga
     1021 tgagcagttt gttccagact atcaggctga aagtttggct tttcatggcc tcccactgaa
     1081 aatcaagaaa gaaccccaca gcccatgttc agaactcggg tctgcttgca gtcaagagca
     1141 gccctttaaa ttcagctatg gagaaaagtg cctgtacaat gtcagtgcct atgatcagaa
     1201 gccacaagtg ggaatgaggc cctccaatcc cccgacacca tccagcactc cagtgtcccc
     1261 actacaccat gcatctccaa acacagctca tactccgaaa cctgaccggg ccttcccagc
     1321 tcacctccct ccttctcagt ccataccaga cagcacctac cccatggacc acagatttcg
     1381 ccgccagctt tctgaaccct gtaattcttt tcctcctttg ccgacaatgc caagggaagg
     1441 gcgtcctatg taccaacgcc agatgtctga gccaaacatc cccttcccac cacaaggctt
     1501 taagcaggag taccacgacc cagtctatga acataccacc atggttggcg gtgcagccag
     1561 ccaaagcttc ccccctcctt tgatgatcaa acaggaaccc agagattttg catatgactc
     1621 agaagtgcct agctgccact ccatttatat gaggcaagaa ggcttcctgg ctcatccaag
     1681 cagaacagaa ggctgcatgt ttgagaaggg tcccaggcag ttctatgatg acacctgtgt
     1741 ggtcccggag aagttcgatg gggacattaa gcaagagcct ggaatgtacc gggaaggacc
     1801 cacgtaccag aggcgaggat ccctccagct ctggcagttt ttggtagctc ttctggatga
     1861 cccttcaaat tctcatttca ttgcctggac tggacgaggc atggaattta aactgattga
     1921 gcccgaagag gtggcccggc gttggggcat tcagaagaac aggccggcga tgaactatga
     1981 caaacttagt cgttctctcc gctattatta tgagaaggga atcatgcaaa aggtggctgg
     2041 agaaagatac gtgtacaaat ttgtgtgtga cccggaagcc cttttctcta tggcctttcc
     2101 ggataaccag cgcccactgc tgaagacgga catggaacgt cacatcaacg aagaggacac
     2161 agtgcctctg tctcactttg atgagagcat gacctacatg cccgaagggg gctgctgcaa
     2221 ccctcacccc tacaacgaag gatacgtgta cacgcgtacg cggccgctcg agcagaaact
     2281 catctcagaa gaggatctgg cagcaaatga tatcctggat tacaaggatg acgacgataa
     2341 ggtttaagaa ttctgcagat atccagcaca gtggcggccg ctcgagtcta gagggcccgt
     2401 ttaaacccgc tgatcagcct cgactgtgcc ttctagttgc cagccatctg ttgtttgccc
     2461 ctcccccgtg ccttccttga ccctggaagg tgccactccc actgtccttt cctaataaaa
     2521 tgaggaaatt gcatcgcatt gtctgagtag gtgtcattct attctggggg gtggggtggg
     2581 gcaggacagc aagggggagg attgggaaga caatagcagg catgctgggg atgcggtggg
     2641 ctctatggct tctgaggcgg aaagaaccag ctggggctct agggggtatc cccacgcgcc
     2701 ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg cgcagcgtga ccgctacact
     2761 tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct tcctttctcg ccacgttcgc
     2821 cggctttccc cgtcaagctc taaatcgggg gctcccttta gggttccgat ttagtgcttt
     2881 acggcacctc gaccccaaaa aacttgatta gggtgatggt tcacgtagtg ggccatcgcc
     2941 ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg ttctttaata gtggactctt
     3001 gttccaaact ggaacaacac tcaaccctat ctcggtctat tcttttgatt tataagggat
     3061 tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt taacaaaaat ttaacgcgaa
     3121 ttaattctgt ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc cccagcaggc
     3181 agaagtatgc aaagcatgca tctcaattag tcagcaacca ggtgtggaaa gtccccaggc
     3241 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac catagtcccg
     3301 cccctaactc cgcccatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat
     3361 ggctgactaa ttttttttat ttatgcagag gccgaggccg cctctgcctc tgagctattc
     3421 cagaagtagt gaggaggctt ttttggaggc ctaggctttt gcaaaaagct cccgggagct
     3481 tgtatatcca ttttcggatc tgatcaagag acaggatgag gatcgtttcg catgattgaa
     3541 caagatggat tgcacgcagg ttctccggcc gcttgggtgg agaggctatt cggctatgac
     3601 tgggcacaac agacaatcgg ctgctctgat gccgccgtgt tccggctgtc agcgcagggg
     3661 cgcccggttc tttttgtcaa gaccgacctg tccggtgccc tgaatgaact gcaggacgag
     3721 gcagcgcggc tatcgtggct ggccacgacg ggcgttcctt gcgcagctgt gctcgacgtt
     3781 gtcactgaag cgggaaggga ctggctgcta ttgggcgaag tgccggggca ggatctcctg
     3841 tcatctcacc ttgctcctgc cgagaaagta tccatcatgg ctgatgcaat gcggcggctg
     3901 catacgcttg atccggctac ctgcccattc gaccaccaag cgaaacatcg catcgagcga
     3961 gcacgtactc ggatggaagc cggtcttgtc gatcaggatg atctggacga agagcatcag
     4021 gggctcgcgc cagccgaact gttcgccagg ctcaaggcgc gcatgcccga cggcgaggat
     4081 ctcgtcgtga cccatggcga tgcctgcttg ccgaatatca tggtggaaaa tggccgcttt
     4141 tctggattca tcgactgtgg ccggctgggt gtggcggacc gctatcagga catagcgttg
     4201 gctacccgtg atattgctga agagcttggc ggcgaatggg ctgaccgctt cctcgtgctt
     4261 tacggtatcg ccgctcccga ttcgcagcgc atcgccttct atcgccttct tgacgagttc
     4321 ttctgagcgg gactctgggg ttcgaaatga ccgaccaagc gacgcccaac ctgccatcac
     4381 gagatttcga ttccaccgcc gccttctatg aaaggttggg cttcggaatc gttttccggg
     4441 acgccggctg gatgatcctc cagcgcgggg atctcatgct ggagttcttc gcccacccca
     4501 acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca aatttcacaa
     4561 ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc aatgtatctt
     4621 atcatgtctg tataccgtcg acctctagct agagcttggc gtaatcatgg tcatagctgt
     4681 ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa catacgagcc ggaagcataa
     4741 agtgtaaagc ctggggtgcc taatgagtga gctaactcac attaattgcg ttgcgctcac
     4801 tgcccgcttt ccagtcggga aacctgtcgt gccagctgca ttaatgaatc ggccaacgcg
     4861 cggggagagg cggtttgcgt attgggcgct cttccgcttc ctcgctcact gactcgctgc
     4921 gctcggtcgt tcggctgcgg cgagcggtat cagctcactc aaaggcggta atacggttat
     4981 ccacagaatc aggggataac gcaggaaaga acatgtgagc aaaaggccag caaaaggcca
     5041 ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag gctccgcccc cctgacgagc
     5101 atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc gacaggacta taaagatacc
     5161 aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt tccgaccctg ccgcttaccg
     5221 gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct ttctcatagc tcacgctgta
     5281 ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg ctgtgtgcac gaaccccccg
     5341 ttcagcccga ccgctgcgcc ttatccggta actatcgtct tgagtccaac ccggtaagac
     5401 acgacttatc gccactggca gcagccactg gtaacaggat tagcagagcg aggtatgtag
     5461 gcggtgctac agagttcttg aagtggtggc ctaactacgg ctacactaga agaacagtat
     5521 ttggtatctg cgctctgctg aagccagtta ccttcggaaa aagagttggt agctcttgat
     5581 ccggcaaaca aaccaccgct ggtagcggtt tttttgtttg caagcagcag attacgcgca
     5641 gaaaaaaagg atctcaagaa gatcctttga tcttttctac ggggtctgac gctcagtgga
     5701 acgaaaactc acgttaaggg attttggtca tgagattatc aaaaaggatc ttcacctaga
     5761 tccttttaaa ttaaaaatga agttttaaat caatctaaag tatatatgag taaacttggt
     5821 ctgacagtta ccaatgctta atcagtgagg cacctatctc agcgatctgt ctatttcgtt
     5881 catccatagt tgcctgactc cccgtcgtgt agataactac gatacgggag ggcttaccat
     5941 ctggccccag tgctgcaatg ataccgcgag acccacgctc accggctcca gatttatcag
     6001 caataaacca gccagccgga agggccgagc gcagaagtgg tcctgcaact ttatccgcct
     6061 ccatccagtc tattaattgt tgccgggaag ctagagtaag tagttcgcca gttaatagtt
     6121 tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg
     6181 cttcattcag ctccggttcc caacgatcaa ggcgagttac atgatccccc atgttgtgca
     6241 aaaaagcggt tagctccttc ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt
     6301 tatcactcat ggttatggca gcactgcata attctcttac tgtcatgcca tccgtaagat
     6361 gcttttctgt gactggtgag tactcaacca agtcattctg agaatagtgt atgcggcgac
     6421 cgagttgctc ttgcccggcg tcaatacggg ataataccgc gccacatagc agaactttaa
     6481 aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt
     6541 tgagatccag ttcgatgtaa cccactcgtg cacccaactg atcttcagca tcttttactt
     6601 tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa
     6661 gggcgacacg gaaatgttga atactcatac tcttcctttt tcaatattat tgaagcattt
     6721 atcagggtta ttgtctcatg agcggataca tatttgaatg tatttagaaa aataaacaaa
     6781 taggggttcc gcgcacattt ccccgaaaag tgccacctga cgtc
//
