pYSJ27

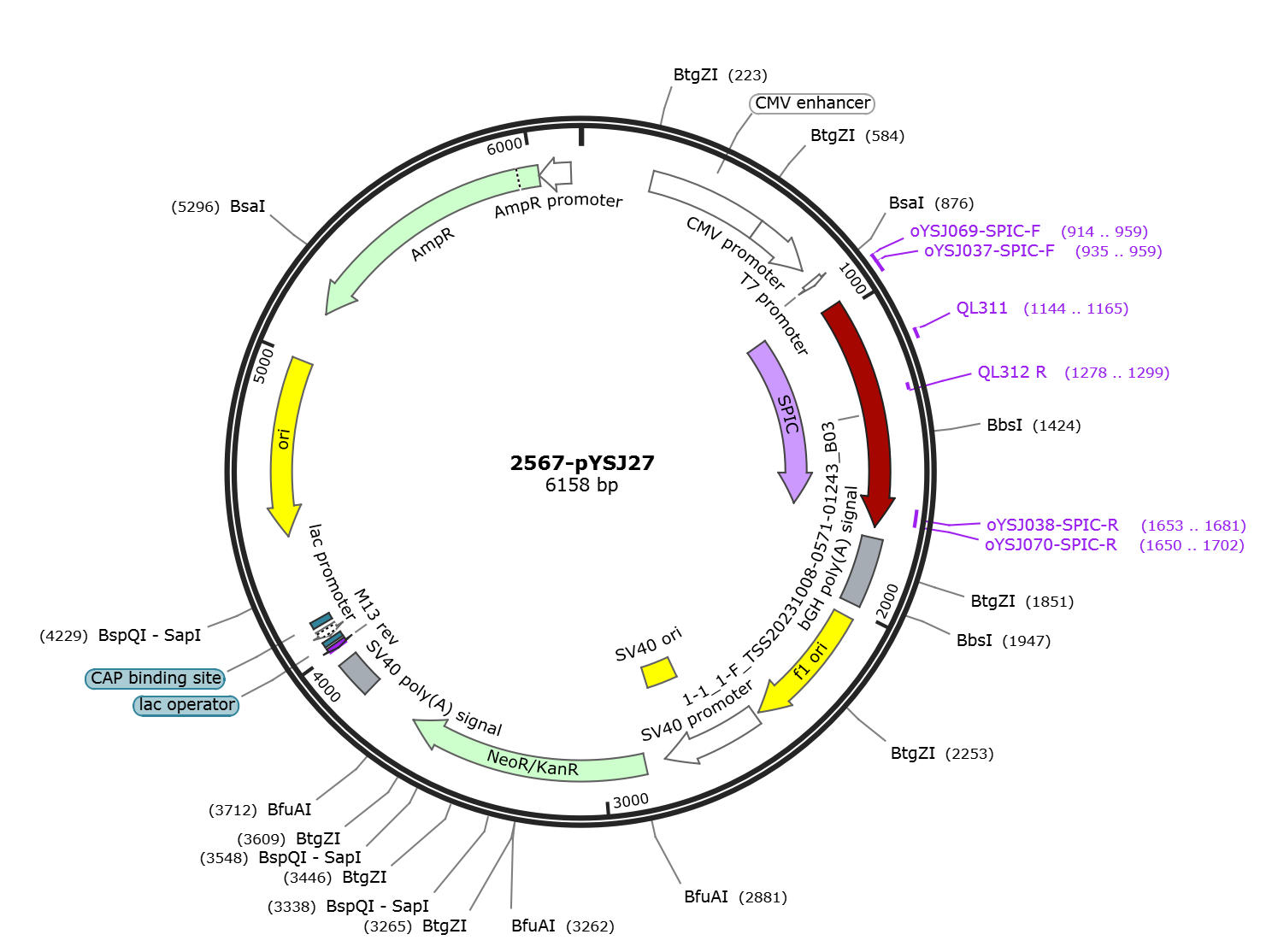

LOCUS      pYSJ27              6158 bp DNA     circular SYN 19-OCT-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6158)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6158
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..959
                     /label=oYSJ069-SPIC-F
     CDS             935..1681
                     /codon_start=1
                     /label=SPIC
                     /translation="MTCVEQDKLGQAFEDAFEVLRQHSTGDLQYSPDYRNYLALINHRP
                     HVKGNSSCYGVLPTEEPVYNWRTVINSAADFYFEGNIHQSLQNITENQLVQPTLLQQKG
                     GKGRKKLRLFEYLHESLYNPEMASCIQWVDKTKGIFQFVSKNKEKLAELWGKRKGNRKT
                     MTYQKMARALRNYGRSGEITKIRRKLTYQFSEAILQRLSPSYFLGKEIFYSQCVQPDQE
                     YLSLNNWNANYNYTYANYHELNHHDC"
     primer_bind     935..959
                     /label=oYSJ037-SPIC-F
     misc_feature    970..1721
                     /label=1-1_1-F_TSS20231008-0571-01243_B03
     primer_bind     1144..1165
                     /label=QL311
     primer_bind     complement(1278..1299)
                     /label=QL312 R
     primer_bind     complement(1650..1702)
                     /label=oYSJ070-SPIC-R
     primer_bind     complement(1653..1681)
                     /label=oYSJ038-SPIC-R
     polyA_signal    1758..1982
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2028..2456
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2470..2799
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2650..2785
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             2866..3660
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    3834..3955
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4004..4020)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4028..4044
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4052..4082)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4097..4118
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4406..4991)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5162..6022)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6023..6127)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgacg tgtgttgaac aagacaagct
      961 gggtcaagca tttgaagatg cttttgaggt tctgaggcaa cattcaactg gagatcttca
     1021 gtactcgcca gattacagaa attacctggc tttaatcaac catcgtcctc atgtcaaagg
     1081 aaattccagc tgctatggag tgttgcctac agaggagcct gtctataatt ggagaacggt
     1141 aattaacagt gctgcggact tctattttga aggaaatatt catcaatctc tgcagaacat
     1201 aactgaaaac cagctggtac aacccactct tctccagcaa aaggggggaa aaggcaggaa
     1261 gaagctccga ctgtttgaat accttcacga atccctgtat aatccggaga tggcatcttg
     1321 tattcagtgg gtagataaaa ccaaaggcat ctttcagttt gtatcaaaaa acaaagaaaa
     1381 acttgccgag ctttggggga aaagaaaagg caacaggaag accatgactt accagaaaat
     1441 ggccagggca ctcagaaatt acggaagaag tggggaaatt accaaaatcc ggaggaagct
     1501 gacttaccag ttcagtgagg ccattctcca aagactctct ccatcctatt tcctggggaa
     1561 agagatcttc tattcacagt gtgttcaacc tgatcaagaa tatctcagtt taaataactg
     1621 gaatgccaat tataattata catatgccaa ttaccatgag ctaaatcacc atgattgcta
     1681 agaattctgc agatatccag cacagtggcg gccgctcgag tctagagggc ccgtttaaac
     1741 ccgctgatca gcctcgactg tgccttctag ttgccagcca tctgttgttt gcccctcccc
     1801 cgtgccttcc ttgaccctgg aaggtgccac tcccactgtc ctttcctaat aaaatgagga
     1861 aattgcatcg cattgtctga gtaggtgtca ttctattctg gggggtgggg tggggcagga
     1921 cagcaagggg gaggattggg aagacaatag caggcatgct ggggatgcgg tgggctctat
     1981 ggcttctgag gcggaaagaa ccagctgggg ctctaggggg tatccccacg cgccctgtag
     2041 cggcgcatta agcgcggcgg gtgtggtggt tacgcgcagc gtgaccgcta cacttgccag
     2101 cgccctagcg cccgctcctt tcgctttctt cccttccttt ctcgccacgt tcgccggctt
     2161 tccccgtcaa gctctaaatc gggggctccc tttagggttc cgatttagtg ctttacggca
     2221 cctcgacccc aaaaaacttg attagggtga tggttcacgt agtgggccat cgccctgata
     2281 gacggttttt cgccctttga cgttggagtc cacgttcttt aatagtggac tcttgttcca
     2341 aactggaaca acactcaacc ctatctcggt ctattctttt gatttataag ggattttgcc
     2401 gatttcggcc tattggttaa aaaatgagct gatttaacaa aaatttaacg cgaattaatt
     2461 ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag gctccccagc aggcagaagt
     2521 atgcaaagca tgcatctcaa ttagtcagca accaggtgtg gaaagtcccc aggctcccca
     2581 gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccatagt cccgccccta
     2641 actccgccca tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga
     2701 ctaatttttt ttatttatgc agaggccgag gccgcctctg cctctgagct attccagaag
     2761 tagtgaggag gcttttttgg aggcctaggc ttttgcaaaa agctcccggg agcttgtata
     2821 tccattttcg gatctgatca agagacagga tgaggatcgt ttcgcatgat tgaacaagat
     2881 ggattgcacg caggttctcc ggccgcttgg gtggagaggc tattcggcta tgactgggca
     2941 caacagacaa tcggctgctc tgatgccgcc gtgttccggc tgtcagcgca ggggcgcccg
     3001 gttctttttg tcaagaccga cctgtccggt gccctgaatg aactgcagga cgaggcagcg
     3061 cggctatcgt ggctggccac gacgggcgtt ccttgcgcag ctgtgctcga cgttgtcact
     3121 gaagcgggaa gggactggct gctattgggc gaagtgccgg ggcaggatct cctgtcatct
     3181 caccttgctc ctgccgagaa agtatccatc atggctgatg caatgcggcg gctgcatacg
     3241 cttgatccgg ctacctgccc attcgaccac caagcgaaac atcgcatcga gcgagcacgt
     3301 actcggatgg aagccggtct tgtcgatcag gatgatctgg acgaagagca tcaggggctc
     3361 gcgccagccg aactgttcgc caggctcaag gcgcgcatgc ccgacggcga ggatctcgtc
     3421 gtgacccatg gcgatgcctg cttgccgaat atcatggtgg aaaatggccg cttttctgga
     3481 ttcatcgact gtggccggct gggtgtggcg gaccgctatc aggacatagc gttggctacc
     3541 cgtgatattg ctgaagagct tggcggcgaa tgggctgacc gcttcctcgt gctttacggt
     3601 atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc ttcttgacga gttcttctga
     3661 gcgggactct ggggttcgaa atgaccgacc aagcgacgcc caacctgcca tcacgagatt
     3721 tcgattccac cgccgccttc tatgaaaggt tgggcttcgg aatcgttttc cgggacgccg
     3781 gctggatgat cctccagcgc ggggatctca tgctggagtt cttcgcccac cccaacttgt
     3841 ttattgcagc ttataatggt tacaaataaa gcaatagcat cacaaatttc acaaataaag
     3901 catttttttc actgcattct agttgtggtt tgtccaaact catcaatgta tcttatcatg
     3961 tctgtatacc gtcgacctct agctagagct tggcgtaatc atggtcatag ctgtttcctg
     4021 tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc ataaagtgta
     4081 aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc tcactgcccg
     4141 ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga
     4201 gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg ctgcgctcgg
     4261 tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg ttatccacag
     4321 aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc
     4381 gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca
     4441 aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt
     4501 ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc
     4561 tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc
     4621 tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc
     4681 ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact
     4741 tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg
     4801 ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta
     4861 tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca
     4921 aacaaaccac cgctggtagc ggtttttttg tttgcaagca gcagattacg cgcagaaaaa
     4981 aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa
     5041 actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt
     5101 taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca
     5161 gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca
     5221 tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc
     5281 ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa
     5341 accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc
     5401 agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca
     5461 acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat
     5521 tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag
     5581 cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac
     5641 tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt
     5701 ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt
     5761 gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc
     5821 tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat
     5881 ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca
     5941 gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga
     6001 cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg
     6061 gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg
     6121 ttccgcgcac atttccccga aaagtgccac ctgacgtc
//
