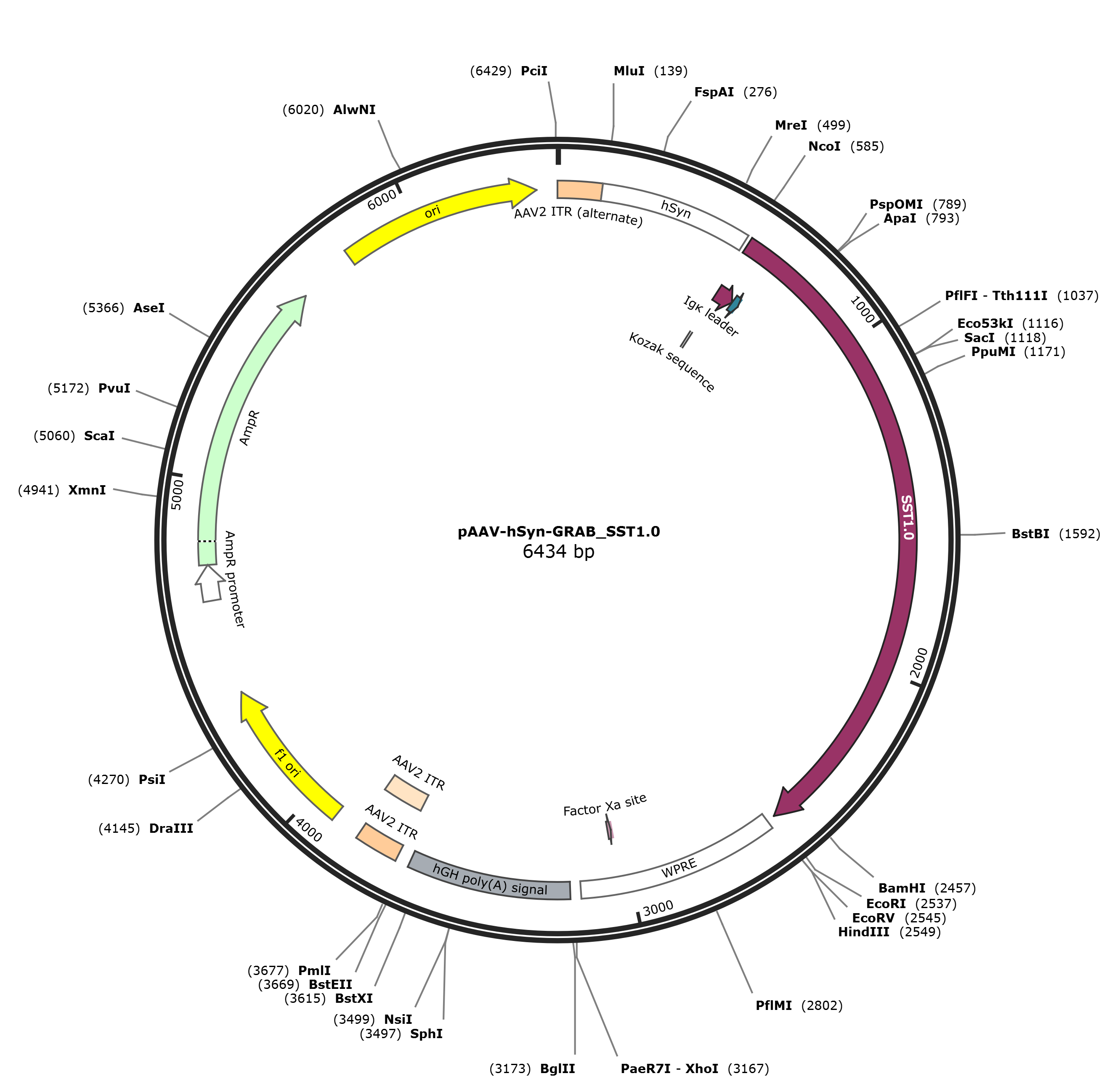

pAAV-hSyn-GRAB_SST1.0

LOCUS      pAAV-hSyn-GRAB_SST1.0         6434 bp DNA     circular SYN 23-JAN-2024
DEFINITION  Expresses the genetically-encoded fluorescent somatostatin (SST)
            sensor GRAB_SST1.0 in neurons.
ACCESSION   .
VERSION     .
KEYWORDS    pAAV-hSyn-GRAB_SST1.0
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6434)
  TITLE     A toolkit of highly selective and sensitive genetically encoded
            neuropeptide sensors
REFERENCE   2  (bases 1 to 6434)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jul 8, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"
FEATURES             Location/Qualifiers
     source          1..6434
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     repeat_region   1..130
                     /label=AAV2 ITR (alternate)
                     /note="Functional equivalent of wild-type AAV2 ITR"
     promoter        131..574
                     /label=hSyn
     regulatory      581..590
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             587..2536
                     /codon_start=1
                     /label=SST1.0
                     /translation="METDTLLLWVLLLWVPGSTGDTSLYKKVGTTGEPLFPASTPSWNA
                     SSPGAASGGGDNRTLVGPAPSAGARAVLVPVLYLLVCAAGLGGNTLVIYVVLRFAKMKT
                     VTNIYILNLAVADVLYMLGLPFLATQNAASFWPFGPVLCRLVMTLDGVNQFTSVFCLTV
                     MSVDRYLAVVHPLSSARWRRPRVAKLASAAAWVLSLCMSLPLLVFADVQEGGTCNASWP
                     EPVGLWGAVFIIYTAVLGFFAPLLVICLCYLLIVVKVRAAGVRVGCALDLEEGGNVYIK
                     ADKQKNGIKANFHIRHNIEDGGVQLAYHYQQNTPIGDGPVLLPDNHYLSVQSKLSKDPN
                     EKRDHMVLLEFVTAAGITIGMDELYKGGTGGSMVRKGEELFTGVVPILVELDGDVNGHK
                     FSVSGEGEGDATEGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFK
                     SAMPEGYIQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYN
                     TGAAARWRGRQLKVTWMVLVVVLVFAGCWLPFFTVNIVNLAVALPQEPASAGLYFFVVI
                     LSYANSCANPVLYGFLSDNFRQSFQKVLCLRKGSGAKDADATEPRPDRIRQQQEATPPA
                     HRAAANGLMQTSKL"
     sig_peptide     587..649
                     /codon_start=1
                     /product="leader sequence from mouse immunoglobulin kappa
                     light chain"
                     /label=Ig-kappa leader
                     /translation="METDTLLLWVLLLWVPGSTGD"
     protein_bind    650..674
                     /gene="mutant version of attB"
                     /label=attB1
                     /bound_moiety="BP Clonase(TM)"
                     /note="recombination site for the Gateway(R) BP reaction"
     primer_bind     1621..1642
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     primer_bind     complement(1748..1769)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(2009..2028)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     misc_feature    2561..3149
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(2614..2634)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(3032..3043)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     polyA_signal    3181..3657
                     /label=hGH poly(A) signal
                     /note="human growth hormone polyadenylation signal"
     primer_bind     complement(3380..3399)
                     /label=hGH-PA-R
                     /note="Human growth hormone terminator, reverse primer"
     repeat_region   3697..3837
                     /label=AAV2 ITR
                     /note="inverted terminal repeat of adeno-associated virus
                     serotype 2"
     repeat_region   3697..3826
                     /label=AAV2 ITR
     rep_origin      3912..4367
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(3999..4018)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     4209..4230
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(4384..4403)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     primer_bind     4503..4525
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     complement(4563..4581)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        4649..4753
                     /gene="bla"
                     /label=AmpR promoter
     CDS             4754..5614
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(4972..4991)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      5785..6373
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6274..6293
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cctgcaggca gctgcgcgct cgctcgctca ctgaggccgc ccgggcgtcg ggcgaccttt
       61 ggtcgcccgg cctcagtgag cgagcgagcg cgcagagagg gagtggccaa ctccatcact
      121 aggggttcct gcggccgcac gcgtatgagg cggggtgggg gtgcctacct gacgaccgac
      181 cccgacccac tggacaagca cccaaccccc attccccaaa ttgcgcatcc cctatcagag
      241 agggggaggg gaaacaggat gcggcgaggc gcgtgcgcac tgccagcttc agcaccgcgg
      301 acagtgcctt cgcccccgcc tggcggcgcg cgccaccgcc gcctcagcac tgaaggcgcg
      361 ctgacgtcac tcgccggtcc cccgcaaact ccccttcccg gccaccttgg tcgcgtccgc
      421 gccgccgccg gcccagccgg accgcaccac gcgaggcgcg agataggggg gcacgggcgc
      481 gaccatctgc gctgcggcgc cggcgactca gcgctgcctc agtctgcggt gggcagcgga
      541 ggagtcgtgt cgtgcctgag agcgcagtcg agaaaccggt gccaccatgg agacagacac
      601 actcctgcta tgggtactgc tgctctgggt tccaggttcc actggtgaca caagtttgta
      661 caaaaaagtt ggcaccaccg gtgagcccct gttcccagcc tccacgccca gctggaacgc
      721 ctcctccccg ggggctgcct ctggaggcgg tgacaacagg acgctggtgg ggccggcgcc
      781 ctcggcaggg gcccgggcgg tgctggtgcc cgtgctgtac ctgctggtgt gtgcggccgg
      841 gctgggcggg aacacgctgg tcatctacgt ggtgctgcgc ttcgccaaga tgaagaccgt
      901 caccaacatc tacattctca acctggcagt ggccgacgtc ctgtacatgc tggggctgcc
      961 tttcctggcc acgcagaacg ccgcgtcctt ctggcccttc ggccccgtcc tgtgccgcct
     1021 ggtcatgacg ctggacggcg tcaaccagtt caccagtgtc ttctgcctga cagtcatgag
     1081 cgtggaccgc tacctggcag tggtgcaccc gctgagctcg gcccgctggc gccgcccgcg
     1141 tgtggccaag ctggcgagcg ccgcggcctg ggtcctgtct ctgtgcatgt cgctgccgct
     1201 cctggtgttc gcggacgtgc aggagggcgg tacctgcaac gccagctggc cggagcccgt
     1261 ggggctgtgg ggcgccgtct tcatcatcta cacggccgtg ctgggcttct tcgcgccgct
     1321 gctggtcatc tgcctgtgct acctgctcat cgtggtgaag gtgagggcgg cgggcgtgcg
     1381 cgtgggctgc gcgctggacc tggaggaggg aggaaacgtc tatatcaagg ccgacaagca
     1441 gaagaacggc atcaaggcga acttccacat ccgccacaac atcgaggacg gcggcgtgca
     1501 gctcgcctac cactaccagc agaacacccc catcggcgac ggccccgtgc tgctgcccga
     1561 caaccactac ctgagcgtgc agtccaaact ttcgaaagac cccaacgaga agcgcgatca
     1621 catggtcctg ctggagttcg tgaccgccgc cgggatcact attggcatgg acgagctgta
     1681 caagggcggt accggaggga gcatggtgag aaagggcgag gagctgttca ccggggtggt
     1741 gcccatcctg gtcgagctgg acggcgacgt aaacggccac aagttcagcg tgtccggcga
     1801 gggtgagggc gatgccaccg agggcaagct gaccctgaag ttcatctgca ccaccggcaa
     1861 gctgcccgtg ccctggccca ccctcgtgac caccctgacc tacggcgtgc agtgcttcag
     1921 ccgctacccc gaccacatga agcagcacga cttcttcaag tccgccatgc ccgaaggcta
     1981 catccaggag cgcaccatct tcttcaagga cgacggcaac tacaagaccc gcgccgaggt
     2041 gaagttcgag ggcgacaccc tggtgaaccg catcgagctg aagggcatcg acttcaagga
     2101 ggacggcaac atcctggggc acaagctgga gtacaacacc ggagcagcag cacgctggcg
     2161 cgggcggcag ctcaaggtga cgtggatggt gttggtggtg gtgctggtgt ttgcgggatg
     2221 ttggctgccc ttcttcaccg tcaacatcgt caacctggcc gtggcgctgc cccaggagcc
     2281 cgcctccgcc ggcctctact tcttcgtggt catcctctcc tacgccaaca gctgtgccaa
     2341 ccccgtcctc tacggcttcc tctctgacaa cttccgccag agcttccaga aggttctgtg
     2401 cctccgcaag ggctctggtg ccaaggacgc tgacgccacg gagccgcgtc cagacaggat
     2461 ccggcagcag caggaggcca cgccgcccgc gcaccgcgcc gcagccaacg ggcttatgca
     2521 gaccagcaag ctgtaagaat tcgatatcaa gcttatcgat aatcaacctc tggattacaa
     2581 aatttgtgaa agattgactg gtattcttaa ctatgttgct ccttttacgc tatgtggata
     2641 cgctgcttta atgcctttgt atcatgctat tgcttcccgt atggctttca ttttctcctc
     2701 cttgtataaa tcctggttgc tgtctcttta tgaggagttg tggcccgttg tcaggcaacg
     2761 tggcgtggtg tgcactgtgt ttgctgacgc aacccccact ggttggggca ttgccaccac
     2821 ctgtcagctc ctttccggga ctttcgcttt ccccctccct attgccacgg cggaactcat
     2881 cgccgcctgc cttgcccgct gctggacagg ggctcggctg ttgggcactg acaattccgt
     2941 ggtgttgtcg gggaaatcat cgtcctttcc ttggctgctc gcctatgttg ccacctggat
     3001 tctgcgcggg acgtccttct gctacgtccc ttcggccctc aatccagcgg accttccttc
     3061 ccgcggcctg ctgccggctc tgcggcctct tccgcgtctt cgccttcgcc ctcagacgag
     3121 tcggatctcc ctttgggccg cctccccgca tcgataccga gcgctgctcg agagatctac
     3181 gggtggcatc cctgtgaccc ctccccagtg cctctcctgg ccctggaagt tgccactcca
     3241 gtgcccacca gccttgtcct aataaaatta agttgcatca ttttgtctga ctaggtgtcc
     3301 ttctataata ttatggggtg gaggggggtg gtatggagca aggggcaagt tgggaagaca
     3361 acctgtaggg cctgcggggt ctattgggaa ccaagctgga gtgcagtggc acaatcttgg
     3421 ctcactgcaa tctccgcctc ctgggttcaa gcgattctcc tgcctcagcc tcccgagttg
     3481 ttgggattcc aggcatgcat gaccaggctc agctaatttt tgtttttttg gtagagacgg
     3541 ggtttcacca tattggccag gctggtctcc aactcctaat ctcaggtgat ctacccacct
     3601 tggcctccca aattgctggg attacaggcg tgaaccactg ctcccttccc tgtccttctg
     3661 attttgtagg taaccacgtg cggaccgagc ggccgcagga acccctagtg atggagttgg
     3721 ccactccctc tctgcgcgct cgctcgctca ctgaggccgg gcgaccaaag gtcgcccgac
     3781 gcccgggctt tgcccgggcg gcctcagtga gcgagcgagc gcgcagctgc ctgcaggggc
     3841 gcctgatgcg gtattttctc cttacgcatc tgtgcggtat ttcacaccgc atacgtcaaa
     3901 gcaaccatag tacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg
     3961 cagcgtgacc gctacacttg ccagcgcctt agcgcccgct cctttcgctt tcttcccttc
     4021 ctttctcgcc acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg
     4081 gttccgattt agtgctttac ggcacctcga ccccaaaaaa cttgatttgg gtgatggttc
     4141 acgtagtggg ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt
     4201 ctttaatagt ggactcttgt tccaaactgg aacaacactc aactctatct cgggctattc
     4261 ttttgattta taagggattt tgccgatttc ggtctattgg ttaaaaaatg agctgattta
     4321 acaaaaattt aacgcgaatt ttaacaaaat attaacgttt acaattttat ggtgcactct
     4381 cagtacaatc tgctctgatg ccgcatagtt aagccagccc cgacacccgc caacacccgc
     4441 tgacgcgccc tgacgggctt gtctgctccc ggcatccgct tacagacaag ctgtgaccgt
     4501 ctccgggagc tgcatgtgtc agaggttttc accgtcatca ccgaaacgcg cgagacgaaa
     4561 gggcctcgtg atacgcctat ttttataggt taatgtcatg ataataatgg tttcttagac
     4621 gtcaggtggc acttttcggg gaaatgtgcg cggaacccct atttgtttat ttttctaaat
     4681 acattcaaat atgtatccgc tcatgagaca ataaccctga taaatgcttc aataatattg
     4741 aaaaaggaag agtatgagta ttcaacattt ccgtgtcgcc cttattccct tttttgcggc
     4801 attttgcctt cctgtttttg ctcacccaga aacgctggtg aaagtaaaag atgctgaaga
     4861 tcagttgggt gcacgagtgg gttacatcga actggatctc aacagcggta agatccttga
     4921 gagttttcgc cccgaagaac gttttccaat gatgagcact tttaaagttc tgctatgtgg
     4981 cgcggtatta tcccgtattg acgccgggca agagcaactc ggtcgccgca tacactattc
     5041 tcagaatgac ttggttgagt actcaccagt cacagaaaag catcttacgg atggcatgac
     5101 agtaagagaa ttatgcagtg ctgccataac catgagtgat aacactgcgg ccaacttact
     5161 tctgacaacg atcggaggac cgaaggagct aaccgctttt ttgcacaaca tgggggatca
     5221 tgtaactcgc cttgatcgtt gggaaccgga gctgaatgaa gccataccaa acgacgagcg
     5281 tgacaccacg atgcctgtag caatggcaac aacgttgcgc aaactattaa ctggcgaact
     5341 acttactcta gcttcccggc aacaattaat agactggatg gaggcggata aagttgcagg
     5401 accacttctg cgctcggccc ttccggctgg ctggtttatt gctgataaat ctggagccgg
     5461 tgagcgtggg tctcgcggta tcattgcagc actggggcca gatggtaagc cctcccgtat
     5521 cgtagttatc tacacgacgg ggagtcaggc aactatggat gaacgaaata gacagatcgc
     5581 tgagataggt gcctcactga ttaagcattg gtaactgtca gaccaagttt actcatatat
     5641 actttagatt gatttaaaac ttcattttta atttaaaagg atctaggtga agatcctttt
     5701 tgataatctc atgaccaaaa tcccttaacg tgagttttcg ttccactgag cgtcagaccc
     5761 cgtagaaaag atcaaaggat cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt
     5821 gcaaacaaaa aaaccaccgc taccagcggt ggtttgtttg ccggatcaag agctaccaac
     5881 tctttttccg aaggtaactg gcttcagcag agcgcagata ccaaatactg ttcttctagt
     5941 gtagccgtag ttaggccacc acttcaagaa ctctgtagca ccgcctacat acctcgctct
     6001 gctaatcctg ttaccagtgg ctgctgccag tggcgataag tcgtgtctta ccgggttgga
     6061 ctcaagacga tagttaccgg ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac
     6121 acagcccagc ttggagcgaa cgacctacac cgaactgaga tacctacagc gtgagctatg
     6181 agaaagcgcc acgcttcccg aagggagaaa ggcggacagg tatccggtaa gcggcagggt
     6241 cggaacagga gagcgcacga gggagcttcc agggggaaac gcctggtatc tttatagtcc
     6301 tgtcgggttt cgccacctct gacttgagcg tcgatttttg tgatgctcgt caggggggcg
     6361 gagcctatgg aaaaacgcca gcaacgcggc ctttttacgg ttcctggcct tttgctggcc
     6421 ttttgctcac atgt
//
