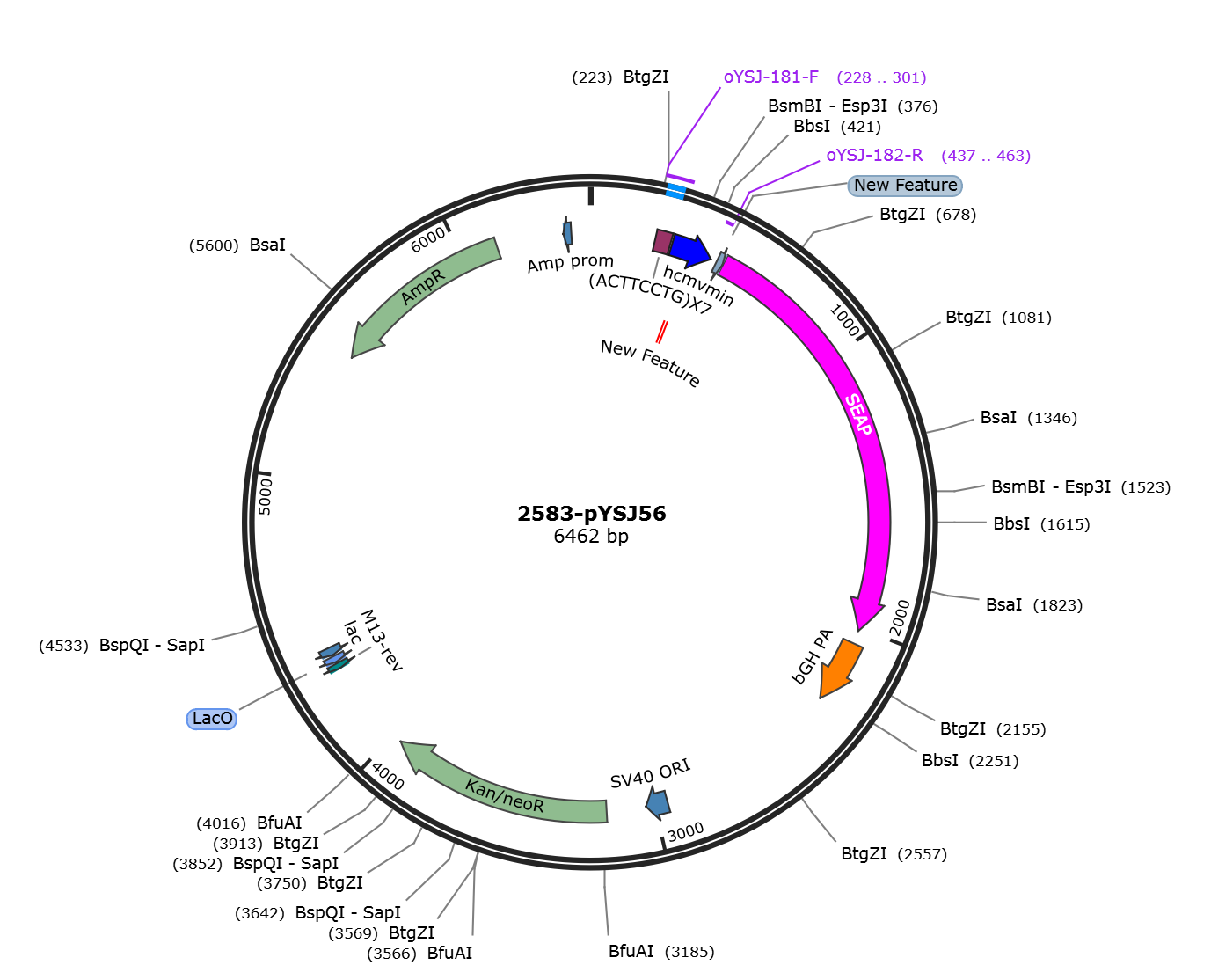

pYSJ56

LOCUS       pYSJ56              6462 bp DNA     circular SYN 06-FEB-2024
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6462)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 19, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6462
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     primer_bind     214..309
                     /label=oYSJ151-X1-F
     primer_bind     complement(214..309)
                     /label=oYSJ152-X1-R
     primer_bind     complement(214..233)
                     /label=oYSJ144-X1-R
     primer_bind     complement(214..233)
                     /label=oYSJ150-X1-R
     primer_bind     214..233
                     /label=oYSJ143-X1-F
     primer_bind     214..233
                     /label=oYSJ149-X1-F
     primer_bind     228..301
                     /label=oYSJ-181-F
     misc_feature    234..289
                     /label=(ACTTCCTG)X7
     primer_bind     complement(290..309)
                     /label=oYSJ144-X1-R
     primer_bind     complement(290..309)
                     /label=oYSJ150-X1-R
     primer_bind     290..309
                     /label=oYSJ143-X1-F
     primer_bind     290..309
                     /label=oYSJ149-X1-F
     misc_feature    296..443
                     /label=hcmvmin
     misc_feature    365..379
                     /label=New Feature
     primer_bind     complement(437..463)
                     /label=oYSJ-182-R
     misc_feature    466..489
                     /label=New Feature
     misc_feature    491..2011
                     /label=SEAP
     terminator      2059..2286
                     /label=bGH PA
     misc_feature    2954..3031
                     /label=SV40 ORI
     CDS             3173..3964
                     /label=Kan/neoR
     primer_bind     complement(4304..4324)
                     /label=M13-rev
     misc_binding    complement(4330..4352)
                     /label=LacO
     promoter        complement(4357..4386)
                     /label=lac
     CDS             complement(5469..6128)
                     /label=AmpR
     promoter        complement(6368..6396)
                     /label=Amp prom
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgtacttcct
      241 gacttcctga cttcctgact tcctgacttc ctgacttcct gacttcctgg ctagctcgag
      301 ctcggtaccc gggtcgagta ggcgtgtacg gtgggaggcc tatataagca gagctcgttt
      361 agtgaaccgt cagatcgcct ggagacgcca tccacgctgt tttgacctcc atagaagaca
      421 ccgggaccga tccagcctcc gcggccccga attcgagctc gcccggggat cctctagagt
      481 cagcttctgc atgctgctgc tgctgctgct gctgggcctg aggctacagc tctccctggg
      541 catcatccca gttgaggagg agaacccgga cttctggaac cgcgaggcag ccgaggccct
      601 gggtgccgcc aagaagctgc agcctgcaca gacagccgcc aagaacctca tcatcttcct
      661 gggcgatggg atgggggtgt ctacggtgac agctgccagg atcctaaaag ggcagaagaa
      721 ggacaaactg gggcctgaga tacccctggc catggaccgc ttcccatatg tggctctgtc
      781 caagacatac aatgtagaca aacatgtgcc agacagtgga gccacagcca cggcctacct
      841 gtgcggggtc aagggcaact tccagaccat tggcttgagt gcagccgccc gctttaacca
      901 gtgcaacacg acacgcggca acgaggtcat ctccgtgatg aatcgggcca agaaagcagg
      961 gaagtcagtg ggagtggtaa ccaccacacg agtgcagcac gcctcgccag ccggcaccta
     1021 cgcccacacg gtgaaccgca actggtactc ggacgccgac gtgcctgcct cggcccgcca
     1081 ggaggggtgc caggacatcg ctacgcagct catctccaac atggacattg acgtgatcct
     1141 aggtggaggc cgaaagtaca tgtttcccat gggaacccca gaccctgagt acccagatga
     1201 ctacagccaa ggtgggacca ggctggacgg gaagaatctg gtgcaggaat ggctggcgaa
     1261 gcgccagggt gcccggtatg tgtggaaccg cactgagctc atgcaggctt ccctggaccc
     1321 gtctgtgacc catctcatgg gtctctttga gcctggagac atgaaatacg agatccaccg
     1381 agactccaca ctggacccct ccctgatgga gatgacagag gctgccctgc gcctgctgag
     1441 caggaacccc cgcggcttct tcctcttcgt ggagggtggt cgcatcgacc atggtcatca
     1501 tgaaagcagg gcttaccggg cactgactga gacgatcatg ttcgacgacg ccattgagag
     1561 ggcgggccag ctcaccagcg aggaggacac gctgagcctc gtcactgccg accactccca
     1621 cgtcttctcc ttcggaggct accccctgcg agggagctcc atcttcgggc tggcccctgg
     1681 caaggcccgg gacaggaagg cctacacggt cctcctatac ggaaacggtc caggctatgt
     1741 gctcaaggac ggcgcccggc cggatgttac cgagagcgag agcgggagcc ccgagtatcg
     1801 gcagcagtca gcagtgcccc tggacgaaga gacccacgca ggcgaggacg tggcggtgtt
     1861 cgcgcgcggc ccgcaggcgc acctggttca cggcgtgcag gagcagacct tcatagcgca
     1921 cgtcatggcc ttcgccgcct gcctggagcc ctacaccgcc tgcgacctgg cgccccccgc
     1981 cggcaccacc gacgccgcgc acccgggtta agcggccgct cgagtctaga gggcccgttt
     2041 aaacccgctg atcagcctcg actgtgcctt ctagttgcca gccatctgtt gtttgcccct
     2101 cccccgtgcc ttccttgacc ctggaaggtg ccactcccac tgtcctttcc taataaaatg
     2161 aggaaattgc atcgcattgt ctgagtaggt gtcattctat tctggggggt ggggtggggc
     2221 aggacagcaa gggggaggat tgggaagaca atagcaggca tgctggggat gcggtgggct
     2281 ctatggcttc tgaggcggaa agaaccagct ggggctctag ggggtatccc cacgcgccct
     2341 gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc gctacacttg
     2401 ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc acgttcgccg
     2461 gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt agtgctttac
     2521 ggcacctcga ccccaaaaaa cttgattagg gtgatggttc acgtagtggg ccatcgccct
     2581 gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt ggactcttgt
     2641 tccaaactgg aacaacactc aaccctatct cggtctattc ttttgattta taagggattt
     2701 tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt aacgcgaatt
     2761 aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc cagcaggcag
     2821 aagtatgcaa agcatgcatc tcaattagtc agcaaccagg tgtggaaagt ccccaggctc
     2881 cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca tagtcccgcc
     2941 cctaactccg cccatcccgc ccctaactcc gcccagttcc gcccattctc cgccccatgg
     3001 ctgactaatt ttttttattt atgcagaggc cgaggccgcc tctgcctctg agctattcca
     3061 gaagtagtga ggaggctttt ttggaggcct aggcttttgc aaaaagctcc cgggagcttg
     3121 tatatccatt ttcggatctg atcaagagac aggatgagga tcgtttcgca tgattgaaca
     3181 agatggattg cacgcaggtt ctccggccgc ttgggtggag aggctattcg gctatgactg
     3241 ggcacaacag acaatcggct gctctgatgc cgccgtgttc cggctgtcag cgcaggggcg
     3301 cccggttctt tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc aggacgaggc
     3361 agcgcggcta tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc tcgacgttgt
     3421 cactgaagcg ggaagggact ggctgctatt gggcgaagtg ccggggcagg atctcctgtc
     3481 atctcacctt gctcctgccg agaaagtatc catcatggct gatgcaatgc ggcggctgca
     3541 tacgcttgat ccggctacct gcccattcga ccaccaagcg aaacatcgca tcgagcgagc
     3601 acgtactcgg atggaagccg gtcttgtcga tcaggatgat ctggacgaag agcatcaggg
     3661 gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc atgcccgacg gcgaggatct
     3721 cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg gtggaaaatg gccgcttttc
     3781 tggattcatc gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca tagcgttggc
     3841 tacccgtgat attgctgaag agcttggcgg cgaatgggct gaccgcttcc tcgtgcttta
     3901 cggtatcgcc gctcccgatt cgcagcgcat cgccttctat cgccttcttg acgagttctt
     3961 ctgagcggga ctctggggtt cgaaatgacc gaccaagcga cgcccaacct gccatcacga
     4021 gatttcgatt ccaccgccgc cttctatgaa aggttgggct tcggaatcgt tttccgggac
     4081 gccggctgga tgatcctcca gcgcggggat ctcatgctgg agttcttcgc ccaccccaac
     4141 ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa tttcacaaat
     4201 aaagcatttt tttcactgca ttctagttgt ggtttgtcca aactcatcaa tgtatcttat
     4261 catgtctgta taccgtcgac ctctagctag agcttggcgt aatcatggtc atagctgttt
     4321 cctgtgtgaa attgttatcc gctcacaatt ccacacaaca tacgagccgg aagcataaag
     4381 tgtaaagcct ggggtgccta atgagtgagc taactcacat taattgcgtt gcgctcactg
     4441 cccgctttcc agtcgggaaa cctgtcgtgc cagctgcatt aatgaatcgg ccaacgcgcg
     4501 gggagaggcg gtttgcgtat tgggcgctct tccgcttcct cgctcactga ctcgctgcgc
     4561 tcggtcgttc ggctgcggcg agcggtatca gctcactcaa aggcggtaat acggttatcc
     4621 acagaatcag gggataacgc aggaaagaac atgtgagcaa aaggccagca aaaggccagg
     4681 aaccgtaaaa aggccgcgtt gctggcgttt ttccataggc tccgcccccc tgacgagcat
     4741 cacaaaaatc gacgctcaag tcagaggtgg cgaaacccga caggactata aagataccag
     4801 gcgtttcccc ctggaagctc cctcgtgcgc tctcctgttc cgaccctgcc gcttaccgga
     4861 tacctgtccg cctttctccc ttcgggaagc gtggcgcttt ctcatagctc acgctgtagg
     4921 tatctcagtt cggtgtaggt cgttcgctcc aagctgggct gtgtgcacga accccccgtt
     4981 cagcccgacc gctgcgcctt atccggtaac tatcgtcttg agtccaaccc ggtaagacac
     5041 gacttatcgc cactggcagc agccactggt aacaggatta gcagagcgag gtatgtaggc
     5101 ggtgctacag agttcttgaa gtggtggcct aactacggct acactagaag aacagtattt
     5161 ggtatctgcg ctctgctgaa gccagttacc ttcggaaaaa gagttggtag ctcttgatcc
     5221 ggcaaacaaa ccaccgctgg tagcggtttt tttgtttgca agcagcagat tacgcgcaga
     5281 aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg ggtctgacgc tcagtggaac
     5341 gaaaactcac gttaagggat tttggtcatg agattatcaa aaaggatctt cacctagatc
     5401 cttttaaatt aaaaatgaag ttttaaatca atctaaagta tatatgagta aacttggtct
     5461 gacagttacc aatgcttaat cagtgaggca cctatctcag cgatctgtct atttcgttca
     5521 tccatagttg cctgactccc cgtcgtgtag ataactacga tacgggaggg cttaccatct
     5581 ggccccagtg ctgcaatgat accgcgagac ccacgctcac cggctccaga tttatcagca
     5641 ataaaccagc cagccggaag ggccgagcgc agaagtggtc ctgcaacttt atccgcctcc
     5701 atccagtcta ttaattgttg ccgggaagct agagtaagta gttcgccagt taatagtttg
     5761 cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac gctcgtcgtt tggtatggct
     5821 tcattcagct ccggttccca acgatcaagg cgagttacat gatcccccat gttgtgcaaa
     5881 aaagcggtta gctccttcgg tcctccgatc gttgtcagaa gtaagttggc cgcagtgtta
     5941 tcactcatgg ttatggcagc actgcataat tctcttactg tcatgccatc cgtaagatgc
     6001 ttttctgtga ctggtgagta ctcaaccaag tcattctgag aatagtgtat gcggcgaccg
     6061 agttgctctt gcccggcgtc aatacgggat aataccgcgc cacatagcag aactttaaaa
     6121 gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct caaggatctt accgctgttg
     6181 agatccagtt cgatgtaacc cactcgtgca cccaactgat cttcagcatc ttttactttc
     6241 accagcgttt ctgggtgagc aaaaacagga aggcaaaatg ccgcaaaaaa gggaataagg
     6301 gcgacacgga aatgttgaat actcatactc ttcctttttc aatattattg aagcatttat
     6361 cagggttatt gtctcatgag cggatacata tttgaatgta tttagaaaaa taaacaaata
     6421 ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg tc
//
