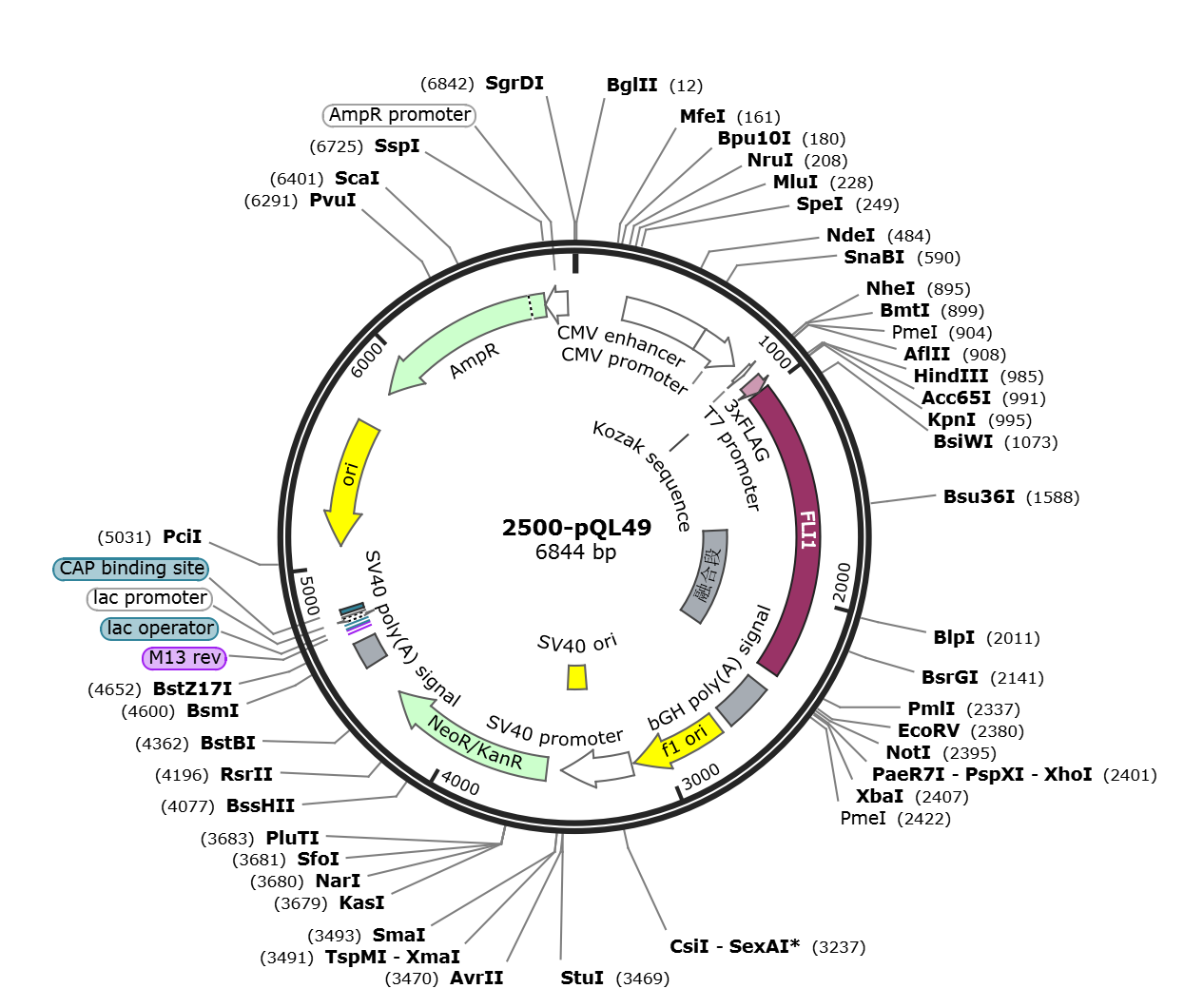

pQL49

LOCUS       pQL49             6844 bp DNA     circular SYN 04-APR-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6844)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 1, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6844
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     regulatory      913..922
                     /label=Kozak sequence
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
                     /regulatory_class="other"
     CDS             922..987
                     /codon_start=1
                     /product="three tandem FLAG(R) epitope tags, followed by an
                     enterokinase cleavage site"
                     /label=3xFLAG
                     /translation="DYKDHDGDYKDHDIDYKDDDDK"
     misc_feature    988..2367
                     /label=FLI1
     misc_feature    1663..2367
                     /label=融合段
     polyA_signal    2444..2668
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2714..3142
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3156..3485
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3336..3471
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3552..4346
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4520..4641
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4690..4706)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4714..4730
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4738..4768)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4783..4804
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5092..5677)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5848..6708)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6709..6813)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagccaccat ggactacaaa gaccatgacg gtgattataa agatcatgac
      961 atcgactaca aggatgacga tgacaagctt ggtaccgagc tcggatccat ggacgggact
     1021 attaaggagg ctctgtcggt ggtgagcgac gaccagtccc tctttgactc agcgtacgga
     1081 gcggcagccc atctccccaa ggccgacatg actgcctcgg ggagtcctga ctacgggcag
     1141 ccccacaaga tcaaccccct cccaccacag caggagtgga tcaatcagcc agtgagggtc
     1201 aacgtcaagc gggagtatga ccacatgaat ggatccaggg agtctccggt ggactgcagc
     1261 gttagcaaat gcagcaagct ggtgggcgga ggcgagtcca accccatgaa ctacaacagc
     1321 tatatggacg agaagaatgg cccccctcct cccaacatga ccaccaacga gaggagagtc
     1381 atcgtccccg cagaccccac actgtggaca caggagcatg tgaggcaatg gctggagtgg
     1441 gccataaagg agtacagctt gatggagatc gacacatcct ttttccagaa catggatggc
     1501 aaggaactgt gtaaaatgaa caaggaggac ttcctccgcg ccaccaccct ctacaacacg
     1561 gaagtgctgt tgtcacacct cagttacctc agggaaagtt cactgctggc ctataataca
     1621 acctcccaca ccgaccaatc ctcacgattg agtgtcaaag aagacccttc ttatgactca
     1681 gtcagaagag gagcttgggg caataacatg aattctggcc tcaacaaaag tcctcccctt
     1741 ggaggggcac aaacgatcag taagaataca gagcaacggc cccagccaga tccgtatcag
     1801 atcctgggcc cgaccagcag tcgcctagcc aaccctggaa gcgggcagat ccagctgtgg
     1861 caattcctcc tggagctgct ctccgacagc gccaacgcca gctgtatcac ctgggagggg
     1921 accaacgggg agttcaaaat gacggacccc gatgaggtgg ccaggcgctg gggcgagcgg
     1981 aaaagcaagc ccaacatgaa ttacgacaag ctgagccggg ccctccgtta ttactatgat
     2041 aaaaacatta tgaccaaagt gcacggcaaa agatatgctt acaaatttga cttccacggc
     2101 attgcccagg ctctgcagcc acatccgacc gagtcgtcca tgtacaagta cccttctgac
     2161 atctcctaca tgccttccta ccatgcccac cagcagaagg tgaactttgt ccctccccat
     2221 ccatcctcca tgcctgtcac ttcctccagc ttctttggag ccgcatcaca atactggacc
     2281 tcccccacgg ggggaatcta ccccaacccc aacgtccccc gccatcctaa cacccacgtg
     2341 ccttcacact taggcagcta ctactaggaa ttctgcagat atccagcaca gtggcggccg
     2401 ctcgagtcta gagggcccgt ttaaacccgc tgatcagcct cgactgtgcc ttctagttgc
     2461 cagccatctg ttgtttgccc ctcccccgtg ccttccttga ccctggaagg tgccactccc
     2521 actgtccttt cctaataaaa tgaggaaatt gcatcgcatt gtctgagtag gtgtcattct
     2581 attctggggg gtggggtggg gcaggacagc aagggggagg attgggaaga caatagcagg
     2641 catgctgggg atgcggtggg ctctatggct tctgaggcgg aaagaaccag ctggggctct
     2701 agggggtatc cccacgcgcc ctgtagcggc gcattaagcg cggcgggtgt ggtggttacg
     2761 cgcagcgtga ccgctacact tgccagcgcc ctagcgcccg ctcctttcgc tttcttccct
     2821 tcctttctcg ccacgttcgc cggctttccc cgtcaagctc taaatcgggg gctcccttta
     2881 gggttccgat ttagtgcttt acggcacctc gaccccaaaa aacttgatta gggtgatggt
     2941 tcacgtagtg ggccatcgcc ctgatagacg gtttttcgcc ctttgacgtt ggagtccacg
     3001 ttctttaata gtggactctt gttccaaact ggaacaacac tcaaccctat ctcggtctat
     3061 tcttttgatt tataagggat tttgccgatt tcggcctatt ggttaaaaaa tgagctgatt
     3121 taacaaaaat ttaacgcgaa ttaattctgt ggaatgtgtg tcagttaggg tgtggaaagt
     3181 ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca
     3241 ggtgtggaaa gtccccaggc tccccagcag gcagaagtat gcaaagcatg catctcaatt
     3301 agtcagcaac catagtcccg cccctaactc cgcccatccc gcccctaact ccgcccagtt
     3361 ccgcccattc tccgccccat ggctgactaa ttttttttat ttatgcagag gccgaggccg
     3421 cctctgcctc tgagctattc cagaagtagt gaggaggctt ttttggaggc ctaggctttt
     3481 gcaaaaagct cccgggagct tgtatatcca ttttcggatc tgatcaagag acaggatgag
     3541 gatcgtttcg catgattgaa caagatggat tgcacgcagg ttctccggcc gcttgggtgg
     3601 agaggctatt cggctatgac tgggcacaac agacaatcgg ctgctctgat gccgccgtgt
     3661 tccggctgtc agcgcagggg cgcccggttc tttttgtcaa gaccgacctg tccggtgccc
     3721 tgaatgaact gcaggacgag gcagcgcggc tatcgtggct ggccacgacg ggcgttcctt
     3781 gcgcagctgt gctcgacgtt gtcactgaag cgggaaggga ctggctgcta ttgggcgaag
     3841 tgccggggca ggatctcctg tcatctcacc ttgctcctgc cgagaaagta tccatcatgg
     3901 ctgatgcaat gcggcggctg catacgcttg atccggctac ctgcccattc gaccaccaag
     3961 cgaaacatcg catcgagcga gcacgtactc ggatggaagc cggtcttgtc gatcaggatg
     4021 atctggacga agagcatcag gggctcgcgc cagccgaact gttcgccagg ctcaaggcgc
     4081 gcatgcccga cggcgaggat ctcgtcgtga cccatggcga tgcctgcttg ccgaatatca
     4141 tggtggaaaa tggccgcttt tctggattca tcgactgtgg ccggctgggt gtggcggacc
     4201 gctatcagga catagcgttg gctacccgtg atattgctga agagcttggc ggcgaatggg
     4261 ctgaccgctt cctcgtgctt tacggtatcg ccgctcccga ttcgcagcgc atcgccttct
     4321 atcgccttct tgacgagttc ttctgagcgg gactctgggg ttcgaaatga ccgaccaagc
     4381 gacgcccaac ctgccatcac gagatttcga ttccaccgcc gccttctatg aaaggttggg
     4441 cttcggaatc gttttccggg acgccggctg gatgatcctc cagcgcgggg atctcatgct
     4501 ggagttcttc gcccacccca acttgtttat tgcagcttat aatggttaca aataaagcaa
     4561 tagcatcaca aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc
     4621 caaactcatc aatgtatctt atcatgtctg tataccgtcg acctctagct agagcttggc
     4681 gtaatcatgg tcatagctgt ttcctgtgtg aaattgttat ccgctcacaa ttccacacaa
     4741 catacgagcc ggaagcataa agtgtaaagc ctggggtgcc taatgagtga gctaactcac
     4801 attaattgcg ttgcgctcac tgcccgcttt ccagtcggga aacctgtcgt gccagctgca
     4861 ttaatgaatc ggccaacgcg cggggagagg cggtttgcgt attgggcgct cttccgcttc
     4921 ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat cagctcactc
     4981 aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga acatgtgagc
     5041 aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt ttttccatag
     5101 gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt ggcgaaaccc
     5161 gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc gctctcctgt
     5221 tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa gcgtggcgct
     5281 ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct ccaagctggg
     5341 ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta actatcgtct
     5401 tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg gtaacaggat
     5461 tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc ctaactacgg
     5521 ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta ccttcggaaa
     5581 aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtt tttttgtttg
     5641 caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga tcttttctac
     5701 ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca tgagattatc
     5761 aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat caatctaaag
     5821 tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg cacctatctc
     5881 agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt agataactac
     5941 gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag acccacgctc
     6001 accggctcca gatttatcag caataaacca gccagccgga agggccgagc gcagaagtgg
     6061 tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag ctagagtaag
     6121 tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca tcgtggtgtc
     6181 acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa ggcgagttac
     6241 atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga tcgttgtcag
     6301 aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata attctcttac
     6361 tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca agtcattctg
     6421 agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg ataataccgc
     6481 gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg ggcgaaaact
     6541 ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg cacccaactg
     6601 atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag gaaggcaaaa
     6661 tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac tcttcctttt
     6721 tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca tatttgaatg
     6781 tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag tgccacctga
     6841 cgtc
//
