pLYL110

LOCUS       pLYL110           6776 bp DNA     circular SYN 15-JUL-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6776)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Sep 14, 2026 from SnapGene 6.0.2
            https://www.biofeng.com

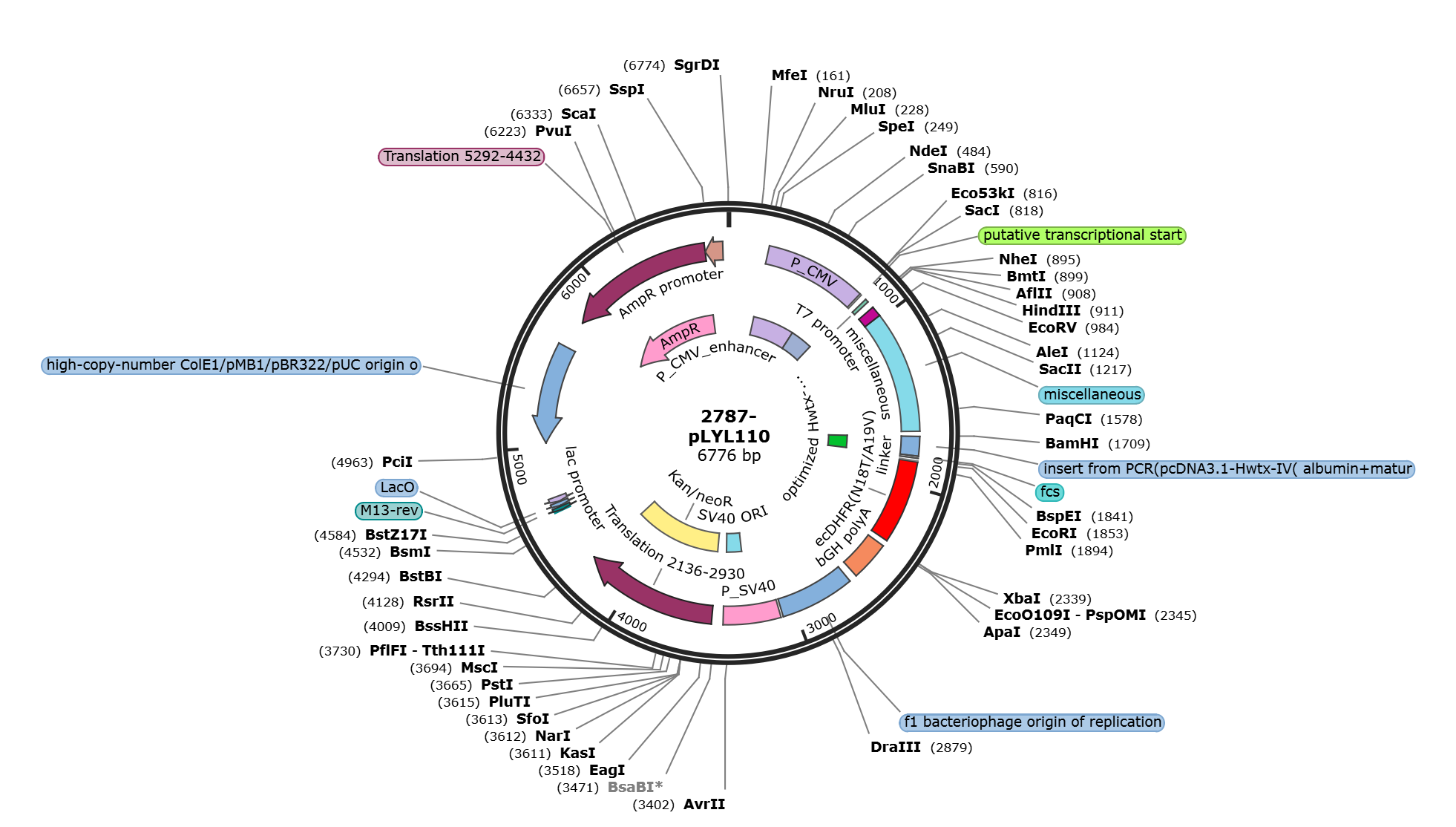

FEATURES             Location/Qualifiers
     source          1..6776
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    235..818
                     /label=P_CMV
                     /label=nonstandard type: promoter_const
     misc_feature    235..614
                     /label=P_CMV_enhancer
                     /label=nonstandard type: promoter_element
     misc_feature    615..818
                     /label=P_CMV_IE
                     /label=nonstandard type: promoter_element
     primer_bind     769..789
                     /label=oMHS-CMV-F
     misc_feature    829
                     /label=putative transcriptional start
     promoter        863..882
                     /label=T7 promoter
     primer_bind     897..941
                     /label=olyl337
     primer_bind     903..940
                     /label=OGT146-F
     primer_bind     917..938
                     /label=OGT147-F
     misc_feature    923..982
     primer_bind     982..1006
                     /label=Hwtx-F
     misc_feature    983..1684
     misc_feature    1714..1825
                     /label=insert from PCR(pcDNA3.1-Hwtx-IV( albumin+matur
                     /label=insert from PCR(pcDNA3.1-Hwtx-IV( albumin+mature
                     human optimized))
     misc_feature    1715..1825
                     /label=optimized Hwtx-IV(H)
     misc_feature    1726..1785
     primer_bind     complement(1803..1826)
                     /label=Hwtx-R
     primer_bind     complement(1806..1852)
                     /label=olyl338
     misc_feature    1826..1837
                     /label=fcs
     primer_bind     1833..1874
                     /label=olyl339
     primer_bind     1838..1876
                     /label=OGT149-3-F
     primer_bind     1838..1861
                     /label=olyl373
     CDS             1838..1852
                     /codon_start=1
                     /label=linker
                     /translation="GSGGG"
     misc_feature    1859..2337
                     /label=ecDHFR(N18T/A19V)
     primer_bind     complement(2313..2338)
                     /label=OGT146-R
     primer_bind     complement(2313..2338)
                     /label=OGT149-3-R
     primer_bind     complement(2314..2338)
                     /label=OGT147
     primer_bind     complement(2331..2358)
                     /label=olyl340
     terminator      2373..2600
                     /label=bGH polyA
     rep_origin      2646..3074
                     /label=f1 bacteriophage origin of replication
                     /label=f1 bacteriophage origin of replication; arrow _f1
                     ori
     misc_feature    3088..3417
                     /label=P_SV40
                     /label=nonstandard type: promoter_const
     rep_origin      3268..3403
                     /label=SV40 ORI
     misc_feature    3320..3369
                     /label=P_SV40 TSS-region
     CDS             3484..4278
                     /label=Translation 2136-2930
     misc_feature    3484..4275
                     /label=Kan/neoR
                     /label=nonstandard type: resistance
     primer_bind     4566..4582
                     /label=OGT146-R
     primer_bind     complement(4618..4638)
                     /label=M13-rev
     misc_binding    complement(4644..4666)
                     /label=LacO
     promoter        complement(4670..4700)
                     /label=lac promoter
     rep_origin      complement(5024..5609)
                     /direction=LEFT
                     /label=high-copy-number ColE1/pMB1/pBR322/pUC origin o
                     /label=high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     _ori
     CDS             complement(5780..6640)
                     /label=Translation 5292-4432
     misc_feature    complement(5783..6640)
                     /label=AmpR
                     /label=nonstandard type: resistance
     promoter        complement(6641..6745)
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttgcca ccatgtacag gatgcaactc ctgtcttgca ttgcactaag
      961 tcttgcactt gtcacgaact cgatatcggc catggttaga tctgacaaaa ctcacacatg
     1021 cccaccgtgc ccagcacctg aactcctggg gggaccgtca gtcttcctct tccccccaaa
     1081 acccaaggac accctcatga tctcccggac ccctgaggtc acatgcgtgg tggtggacgt
     1141 gagccacgaa gaccctgagg tcaagttcaa ctggtacgtg gacggcgtgg aggtgcataa
     1201 tgccaagaca aagccgcggg aggagcagta caacagcacg taccgtgtgg tcagcgtcct
     1261 caccgtcctg caccaggact ggctgaatgg caaggagtac aagtgcaagg tctccaacaa
     1321 agccctccca gcccccatcg agaaaaccat ctccaaagcc aaagggcagc cccgagaacc
     1381 acaggtgtac accctgcccc catcccggga ggagatgacc aagaaccagg tcagcctgac
     1441 ctgcctggtc aaaggcttct atcccagcga catcgccgtg gagtgggaga gcaatgggca
     1501 gccggagaac aactacaaga ccacgcctcc cgtgctggac tccgacggct ccttcttcct
     1561 ctacagcaag ctcaccgtgg acaagagcag gtggcagcag gggaacgtct tctcatgctc
     1621 cgtgatgcac gaggctctgc acaaccacta cacgcagaag agcctctccc tgtctccggg
     1681 taaagccagc ggaagtggcg gaggaggcgg atccggctgc ctgggcatct tcaaggcctg
     1741 caaccccagc aacgaccagt gctgcaagag cagcaagctc gtgtgcagca gaaagacccg
     1801 gtggtgcaag tggcagatcg gcaagaggat caagaggggt tccggaggtg gcgaattcat
     1861 gatcagcctg atcgccgccc tggccgtgga ccacgtgatc ggcatggaga ccgtgatgcc
     1921 ctggaacctg cccgccgacc tggcctggtt caagagaaac accctgaaca agcccgtgat
     1981 catgggcaga cacacctggg agagcatcgg cagacccctg cccggcagaa agaacatcat
     2041 cctgagcagc cagcccagca ccgacgacag agtgacctgg gtgaagagcg tggacgaggc
     2101 catcgccgcc tgcggcgacg tgcccgagat catggtgatc ggcggcggca gagtgtacga
     2161 gcagttcctg cccaaggccc agaagctgta cctgacccac atcgacgccg aggtggaggg
     2221 cgacacccac ttccccgact acgagcccga cgactgggag agcgtgttca gcgagttcca
     2281 cgacgccgac gcccagaaca gccacagcta ctgcttcgag atcctggaga gaagatagtc
     2341 tagagggccc gtttaaaccc gctgatcagc ctcgactgtg ccttctagtt gccagccatc
     2401 tgttgtttgc ccctcccccg tgccttcctt gaccctggaa ggtgccactc ccactgtcct
     2461 ttcctaataa aatgaggaaa ttgcatcgca ttgtctgagt aggtgtcatt ctattctggg
     2521 gggtggggtg gggcaggaca gcaaggggga ggattgggaa gacaatagca ggcatgctgg
     2581 ggatgcggtg ggctctatgg cttctgaggc ggaaagaacc agctggggct ctagggggta
     2641 tccccacgcg ccctgtagcg gcgcattaag cgcggcgggt gtggtggtta cgcgcagcgt
     2701 gaccgctaca cttgccagcg ccctagcgcc cgctcctttc gctttcttcc cttcctttct
     2761 cgccacgttc gccggctttc cccgtcaagc tctaaatcgg gggctccctt tagggttccg
     2821 atttagtgct ttacggcacc tcgaccccaa aaaacttgat tagggtgatg gttcacgtag
     2881 tgggccatcg ccctgataga cggtttttcg ccctttgacg ttggagtcca cgttctttaa
     2941 tagtggactc ttgttccaaa ctggaacaac actcaaccct atctcggtct attcttttga
     3001 tttataaggg attttgccga tttcggccta ttggttaaaa aatgagctga tttaacaaaa
     3061 atttaacgcg aattaattct gtggaatgtg tgtcagttag ggtgtggaaa gtccccaggc
     3121 tccccagcag gcagaagtat gcaaagcatg catctcaatt agtcagcaac caggtgtgga
     3181 aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa ttagtcagca
     3241 accatagtcc cgcccctaac tccgcccatc ccgcccctaa ctccgcccag ttccgcccat
     3301 tctccgcccc atggctgact aatttttttt atttatgcag aggccgaggc cgcctctgcc
     3361 tctgagctat tccagaagta gtgaggaggc ttttttggag gcctaggctt ttgcaaaaag
     3421 ctcccgggag cttgtatatc cattttcgga tctgatcaag agacaggatg aggatcgttt
     3481 cgcatgattg aacaagatgg attgcacgca ggttctccgg ccgcttgggt ggagaggcta
     3541 ttcggctatg actgggcaca acagacaatc ggctgctctg atgccgccgt gttccggctg
     3601 tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc tgtccggtgc cctgaatgaa
     3661 ctgcaggacg aggcagcgcg gctatcgtgg ctggccacga cgggcgttcc ttgcgcagct
     3721 gtgctcgacg ttgtcactga agcgggaagg gactggctgc tattgggcga agtgccgggg
     3781 caggatctcc tgtcatctca ccttgctcct gccgagaaag tatccatcat ggctgatgca
     3841 atgcggcggc tgcatacgct tgatccggct acctgcccat tcgaccacca agcgaaacat
     3901 cgcatcgagc gagcacgtac tcggatggaa gccggtcttg tcgatcagga tgatctggac
     3961 gaagagcatc aggggctcgc gccagccgaa ctgttcgcca ggctcaaggc gcgcatgccc
     4021 gacggcgagg atctcgtcgt gacccatggc gatgcctgct tgccgaatat catggtggaa
     4081 aatggccgct tttctggatt catcgactgt ggccggctgg gtgtggcgga ccgctatcag
     4141 gacatagcgt tggctacccg tgatattgct gaagagcttg gcggcgaatg ggctgaccgc
     4201 ttcctcgtgc tttacggtat cgccgctccc gattcgcagc gcatcgcctt ctatcgcctt
     4261 cttgacgagt tcttctgagc gggactctgg ggttcgaaat gaccgaccaa gcgacgccca
     4321 acctgccatc acgagatttc gattccaccg ccgccttcta tgaaaggttg ggcttcggaa
     4381 tcgttttccg ggacgccggc tggatgatcc tccagcgcgg ggatctcatg ctggagttct
     4441 tcgcccaccc caacttgttt attgcagctt ataatggtta caaataaagc aatagcatca
     4501 caaatttcac aaataaagca tttttttcac tgcattctag ttgtggtttg tccaaactca
     4561 tcaatgtatc ttatcatgtc tgtataccgt cgacctctag ctagagcttg gcgtaatcat
     4621 ggtcatagct gtttcctgtg tgaaattgtt atccgctcac aattccacac aacatacgag
     4681 ccggaagcat aaagtgtaaa gcctggggtg cctaatgagt gagctaactc acattaattg
     4741 cgttgcgctc actgcccgct ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa
     4801 tcggccaacg cgcggggaga ggcggtttgc gtattgggcg ctcttccgct tcctcgctca
     4861 ctgactcgct gcgctcggtc gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg
     4921 taatacggtt atccacagaa tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc
     4981 agcaaaaggc caggaaccgt aaaaaggccg cgttgctggc gtttttccat aggctccgcc
     5041 cccctgacga gcatcacaaa aatcgacgct caagtcagag gtggcgaaac ccgacaggac
     5101 tataaagata ccaggcgttt ccccctggaa gctccctcgt gcgctctcct gttccgaccc
     5161 tgccgcttac cggatacctg tccgcctttc tcccttcggg aagcgtggcg ctttctcata
     5221 gctcacgctg taggtatctc agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc
     5281 acgaaccccc cgttcagccc gaccgctgcg ccttatccgg taactatcgt cttgagtcca
     5341 acccggtaag acacgactta tcgccactgg cagcagccac tggtaacagg attagcagag
     5401 cgaggtatgt aggcggtgct acagagttct tgaagtggtg gcctaactac ggctacacta
     5461 gaagaacagt atttggtatc tgcgctctgc tgaagccagt taccttcgga aaaagagttg
     5521 gtagctcttg atccggcaaa caaaccaccg ctggtagcgg tttttttgtt tgcaagcagc
     5581 agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct acggggtctg
     5641 acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta tcaaaaagga
     5701 tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa agtatatatg
     5761 agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc tcagcgatct
     5821 gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact acgatacggg
     5881 agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc tcaccggctc
     5941 cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt ggtcctgcaa
     6001 ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta agtagttcgc
     6061 cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg tcacgctcgt
     6121 cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt acatgatccc
     6181 ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc agaagtaagt
     6241 tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt actgtcatgc
     6301 catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc tgagaatagt
     6361 gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc gcgccacata
     6421 gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa ctctcaagga
     6481 tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac tgatcttcag
     6541 catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa
     6601 aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt tttcaatatt
     6661 attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa tgtatttaga
     6721 aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct gacgtc
//
