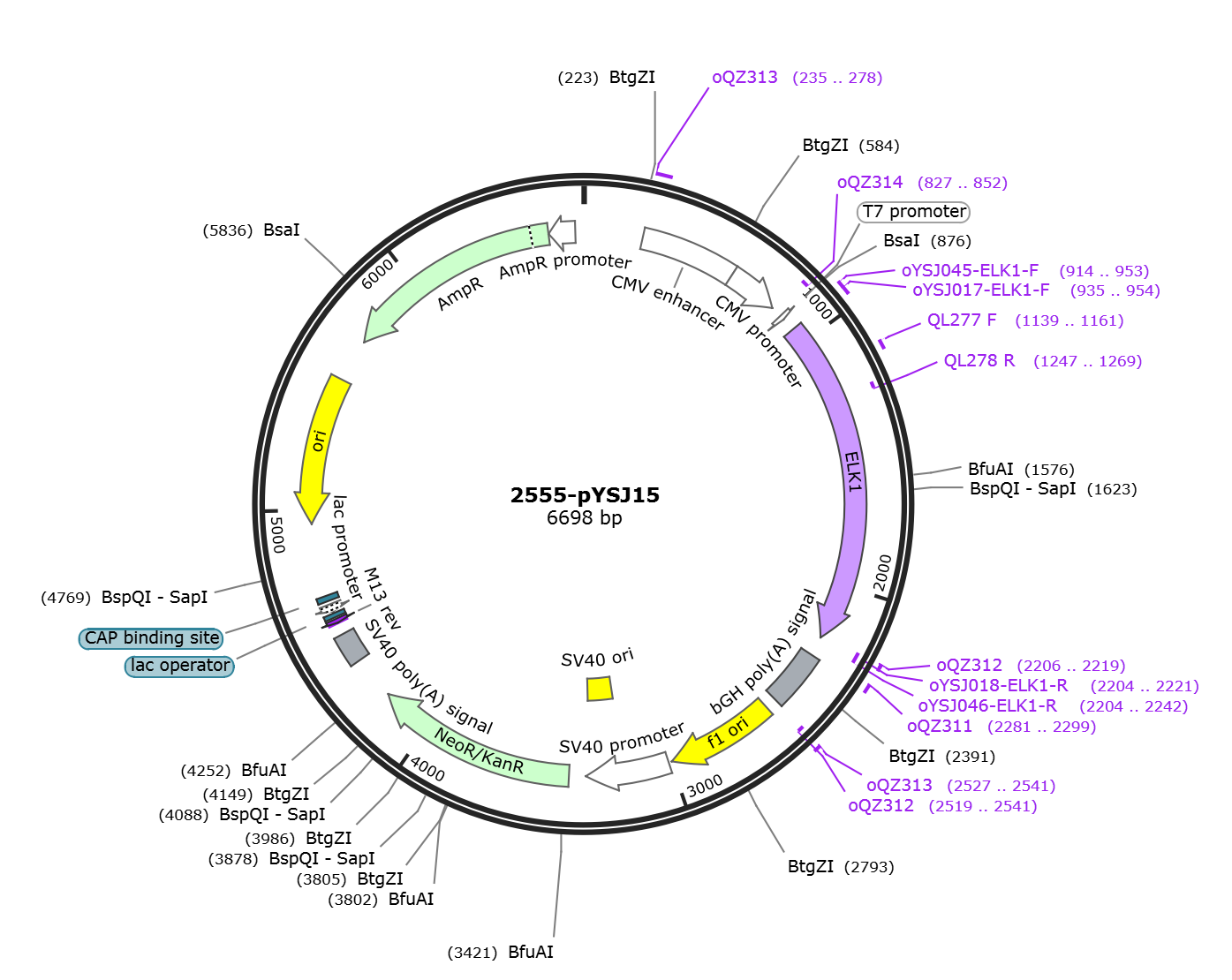

pYSJ15

LOCUS       pYSJ15             6698 bp DNA     circular SYN 19-OCT-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6698)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6698
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     primer_bind     235..278
                     /label=oQZ313
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(827..852)
                     /label=oQZ314
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     914..953
                     /label=oYSJ045-ELK1-F
     CDS             935..2221
                     /codon_start=1
                     /label=ELK1
                     /translation="MDPSVTLWQFLLQLLREQGNGHIISWTSRDGGEFKLVDAEEVARL
                     WGLRKNKTNMNYDKLSRALRYYYDKNIIRKVSGQKFVYKFVSYPEVAGCSTEDCPPQPE
                     VSVTSTMPNVAPAAIHAAPGDTVSGKPGTPKGAGMAGPGGVARSSRNEYMRSGLYSTFT
                     IQSLQPQPPPHPRPAVVLPSAAPAGAAAPPSGSRSTSPSPLEACLEAEEAGLPLQVILT
                     PPEAPNLKSEELNVEPGLGRALPPEVKVEGPKEELEVAGERGFVPETTKAEPEVPPQEG
                     VPARLPAVVMDTAGQAGGHAASSPEISQPQKGRKPRDLELPLSPSLLGGPGPERTPGSG
                     SGSGLQAPGPALTPSLLPTHTLTPVLLTPSSLPPSIHFWSTLSPIAPRSPAKLSFQFPS
                     SGSAQVHIPSISVDGLSTPVVLSPGPQKP"
     primer_bind     935..954
                     /label=oYSJ017-ELK1-F
     primer_bind     1139..1161
                     /label=QL277 F
     primer_bind     complement(1247..1269)
                     /label=QL278 R
     primer_bind     complement(2204..2242)
                     /label=oYSJ046-ELK1-R
     primer_bind     complement(2204..2221)
                     /label=oYSJ018-ELK1-R
     primer_bind     2206..2219
                     /label=oQZ312
     primer_bind     2281..2299
                     /label=oQZ311
     polyA_signal    2298..2522
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     primer_bind     complement(2519..2541)
                     /label=oQZ312
     primer_bind     2527..2541
                     /label=oQZ313
     rep_origin      2568..2996
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3010..3339
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3190..3325
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3406..4200
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4374..4495
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4544..4560)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4568..4584
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4592..4622)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4637..4658
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4946..5531)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5702..6562)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6563..6667)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatggac ccatctgtga cgctgtggca
      961 gtttctgctg cagctgctga gagagcaagg caatggccac atcatctcct ggacttcacg
     1021 ggatggtggt gaattcaagc tggtggatgc agaggaggtg gcccggctgt gggggctacg
     1081 caagaacaag accaacatga attacgacaa gctcagccgg gccttgcggt actactatga
     1141 caagaacatc atccgcaagg tgagcggcca gaagttcgtc tacaagtttg tgtcctaccc
     1201 tgaggtcgca gggtgctcca ctgaggactg cccgccccag ccagaggtgt ctgttacctc
     1261 caccatgcca aatgtggccc ctgctgctat acatgccgcc ccaggggaca ctgtctctgg
     1321 aaagccaggc acacccaagg gtgcaggaat ggcaggccca ggcggtgtgg cacgcagcag
     1381 ccggaacgag tacatgcgct cgggcctcta ttccaccttc accatccagt ctctgcagcc
     1441 gcagccaccc cctcatcctc ggcctgctgt ggtgctcccc agtgcagctc ctgcaggggc
     1501 agcagcgccc ccctcgggga gcaggagcac cagtccaagc cccttggagg cctgtctgga
     1561 ggctgaagag gccggcttgc ctctgcaggt catcctgacc ccgcccgagg ccccaaacct
     1621 gaaatcggaa gagcttaatg tggagccggg tttgggccgg gctttgcccc cagaagtgaa
     1681 agtagaaggg cccaaggaag agttggaagt tgcgggggag agagggtttg tgccagaaac
     1741 caccaaggcc gagccagaag tccctccaca ggagggcgtg ccagcccggc tgcccgcggt
     1801 tgttatggac accgcagggc aggcgggcgg ccatgcggct tccagccctg agatctccca
     1861 gccgcagaag ggccggaagc cccgggacct agagcttcca ctcagcccga gcctgctagg
     1921 tgggccggga cccgaacgga ccccaggatc gggaagtggc tccggcctcc aggctccggg
     1981 gccggcgctg accccatccc tgcttcctac gcatacattg accccggtgc tgctgacacc
     2041 cagctcgctg cctcctagca ttcacttctg gagcaccctg agtcccattg cgccccgtag
     2101 cccggccaag ctctccttcc agtttccatc cagtggcagc gcccaggtgc acatcccttc
     2161 tatcagcgtg gatggcctct cgacccccgt ggtgctctcc ccagggcccc agaagccatg
     2221 agaattctgc agatatccag cacagtggcg gccgctcgag tctagagggc ccgtttaaac
     2281 ccgctgatca gcctcgactg tgccttctag ttgccagcca tctgttgttt gcccctcccc
     2341 cgtgccttcc ttgaccctgg aaggtgccac tcccactgtc ctttcctaat aaaatgagga
     2401 aattgcatcg cattgtctga gtaggtgtca ttctattctg gggggtgggg tggggcagga
     2461 cagcaagggg gaggattggg aagacaatag caggcatgct ggggatgcgg tgggctctat
     2521 ggcttctgag gcggaaagaa ccagctgggg ctctaggggg tatccccacg cgccctgtag
     2581 cggcgcatta agcgcggcgg gtgtggtggt tacgcgcagc gtgaccgcta cacttgccag
     2641 cgccctagcg cccgctcctt tcgctttctt cccttccttt ctcgccacgt tcgccggctt
     2701 tccccgtcaa gctctaaatc gggggctccc tttagggttc cgatttagtg ctttacggca
     2761 cctcgacccc aaaaaacttg attagggtga tggttcacgt agtgggccat cgccctgata
     2821 gacggttttt cgccctttga cgttggagtc cacgttcttt aatagtggac tcttgttcca
     2881 aactggaaca acactcaacc ctatctcggt ctattctttt gatttataag ggattttgcc
     2941 gatttcggcc tattggttaa aaaatgagct gatttaacaa aaatttaacg cgaattaatt
     3001 ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag gctccccagc aggcagaagt
     3061 atgcaaagca tgcatctcaa ttagtcagca accaggtgtg gaaagtcccc aggctcccca
     3121 gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccatagt cccgccccta
     3181 actccgccca tcccgcccct aactccgccc agttccgccc attctccgcc ccatggctga
     3241 ctaatttttt ttatttatgc agaggccgag gccgcctctg cctctgagct attccagaag
     3301 tagtgaggag gcttttttgg aggcctaggc ttttgcaaaa agctcccggg agcttgtata
     3361 tccattttcg gatctgatca agagacagga tgaggatcgt ttcgcatgat tgaacaagat
     3421 ggattgcacg caggttctcc ggccgcttgg gtggagaggc tattcggcta tgactgggca
     3481 caacagacaa tcggctgctc tgatgccgcc gtgttccggc tgtcagcgca ggggcgcccg
     3541 gttctttttg tcaagaccga cctgtccggt gccctgaatg aactgcagga cgaggcagcg
     3601 cggctatcgt ggctggccac gacgggcgtt ccttgcgcag ctgtgctcga cgttgtcact
     3661 gaagcgggaa gggactggct gctattgggc gaagtgccgg ggcaggatct cctgtcatct
     3721 caccttgctc ctgccgagaa agtatccatc atggctgatg caatgcggcg gctgcatacg
     3781 cttgatccgg ctacctgccc attcgaccac caagcgaaac atcgcatcga gcgagcacgt
     3841 actcggatgg aagccggtct tgtcgatcag gatgatctgg acgaagagca tcaggggctc
     3901 gcgccagccg aactgttcgc caggctcaag gcgcgcatgc ccgacggcga ggatctcgtc
     3961 gtgacccatg gcgatgcctg cttgccgaat atcatggtgg aaaatggccg cttttctgga
     4021 ttcatcgact gtggccggct gggtgtggcg gaccgctatc aggacatagc gttggctacc
     4081 cgtgatattg ctgaagagct tggcggcgaa tgggctgacc gcttcctcgt gctttacggt
     4141 atcgccgctc ccgattcgca gcgcatcgcc ttctatcgcc ttcttgacga gttcttctga
     4201 gcgggactct ggggttcgaa atgaccgacc aagcgacgcc caacctgcca tcacgagatt
     4261 tcgattccac cgccgccttc tatgaaaggt tgggcttcgg aatcgttttc cgggacgccg
     4321 gctggatgat cctccagcgc ggggatctca tgctggagtt cttcgcccac cccaacttgt
     4381 ttattgcagc ttataatggt tacaaataaa gcaatagcat cacaaatttc acaaataaag
     4441 catttttttc actgcattct agttgtggtt tgtccaaact catcaatgta tcttatcatg
     4501 tctgtatacc gtcgacctct agctagagct tggcgtaatc atggtcatag ctgtttcctg
     4561 tgtgaaattg ttatccgctc acaattccac acaacatacg agccggaagc ataaagtgta
     4621 aagcctgggg tgcctaatga gtgagctaac tcacattaat tgcgttgcgc tcactgcccg
     4681 ctttccagtc gggaaacctg tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga
     4741 gaggcggttt gcgtattggg cgctcttccg cttcctcgct cactgactcg ctgcgctcgg
     4801 tcgttcggct gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg ttatccacag
     4861 aatcagggga taacgcagga aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc
     4921 gtaaaaaggc cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca
     4981 aaaatcgacg ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt
     5041 ttccccctgg aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc
     5101 tgtccgcctt tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc
     5161 tcagttcggt gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc
     5221 ccgaccgctg cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact
     5281 tatcgccact ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg
     5341 ctacagagtt cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta
     5401 tctgcgctct gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca
     5461 aacaaaccac cgctggtagc ggtttttttg tttgcaagca gcagattacg cgcagaaaaa
     5521 aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa
     5581 actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt
     5641 taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca
     5701 gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca
     5761 tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc
     5821 ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa
     5881 accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc
     5941 agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca
     6001 acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat
     6061 tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag
     6121 cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac
     6181 tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt
     6241 ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt
     6301 gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc
     6361 tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat
     6421 ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca
     6481 gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga
     6541 cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg
     6601 gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg
     6661 ttccgcgcac atttccccga aaagtgccac ctgacgtc
//
