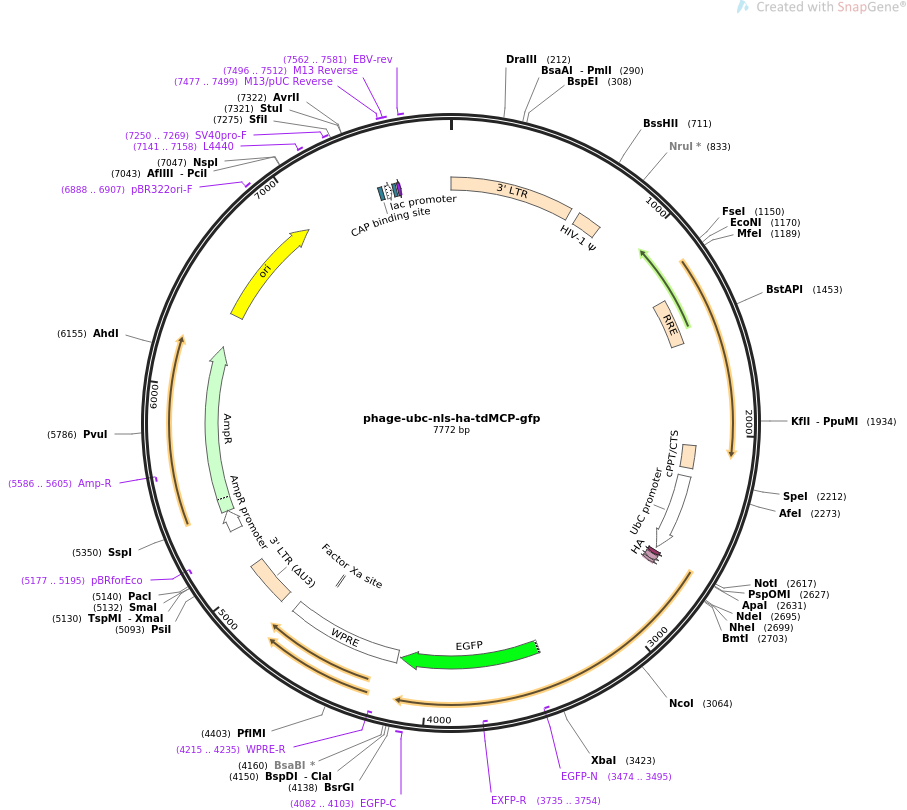

phage-ubc-nls-ha-tdMCP-gfp

LOCUS       phage-ubc-nls-ha-tdMCP-gfp                7772 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    phage-ubc-nls-ha-tdMCP-gfp
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7772)
  AUTHORS   Wu B, Chao JA, Singer RH
  TITLE     Fluorescence fluctuation spectroscopy enables quantitative imaging
            of single mRNAs in living cells.
  JOURNAL   Biophys J. 2012 Jun 20;102(12):2936-44. Epub 2012 Jun 19.
  PUBMED    22735544
REFERENCE   2  (bases 1 to 7772)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..7772
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     LTR             1..634
                     /label=3' LTR
                     /note="3' long terminal repeat (LTR) from HIV-1"
     misc_feature    681..806
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1303..1536
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    2058..2175
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2218..2616
                     /label=UbC promoter
                     /note="human ubiquitin C promoter"
     CDS             2631..2651
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     CDS             2655..2681
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             2682..2693
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     CDS             3429..4148
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(3474..3495)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(3735..3754)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     4082..4103
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     misc_feature    4162..4750
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(4215..4235)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(4633..4644)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4825..5058
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     primer_bind     complement(5177..5195)
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     promoter        5263..5367
                     /gene="bla"
                     /label=AmpR promoter
     CDS             5368..6228
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     complement(5586..5605)
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     rep_origin      6399..6987
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     6888..6907
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     primer_bind     7141..7158
                     /label=L4440
                     /note="L4440 vector, forward primer"
     primer_bind     7250..7269
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     protein_bind    7398..7419
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        7434..7464
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    7472..7488
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     7477..7499
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     primer_bind     7496..7512
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     7496..7512
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     7562..7581
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
ORIGIN
        1 tggaagggct aattcactcc caaagaagac aagatatcct tgatctgtgg atctaccaca
       61 cacaaggcta cttccctgat tagcagaact acacaccagg gccaggggtc agatatccac
      121 tgacctttgg atggtgctac aagctagtac cagttgagcc agataaggta gaagaggcca
      181 ataaaggaga gaacaccagc ttgttacacc ctgtgagcct gcatgggatg gatgacccgg
      241 agagagaagt gttagagtgg aggtttgaca gccgcctagc atttcatcac gtggcccgag
      301 agctgcatcc ggagtacttc aagaactgct gatatcgagc ttgctacaag ggactttccg
      361 ctggggactt tccagggagg cgtggcctgg gcgggactgg ggagtggcga gccctcagat
      421 cctgcatata agcagctgct ttttgcctgt actgggtctc tctggttaga ccagatctga
      481 gcctgggagc tctctggcta actagggaac ccactgctta agcctcaata aagcttgcct
      541 tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact ctggtaacta gagatccctc
      601 agaccctttt agtcagtgtg gaaaatctct agcagtggcg cccgaacagg gacttgaaag
      661 cgaaagggaa accagaggag ctctctcgac gcaggactcg gcttgctgaa gcgcgcacgg
      721 caagaggcga ggggcggcga ctggtgagta cgccaaaaat tttgactagc ggaggctaga
      781 aggagagaga tgggtgcgag agcgtcagta ttaagcgggg gagaattaga tcgcgatggg
      841 aaaaaattcg gttaaggcca gggggaaaga aaaaatataa attaaaacat atagtatggg
      901 caagcaggga gctagaacga ttcgcagtta atcctggcct gttagaaaca tcagaaggct
      961 gtagacaaat actgggacag ctacaaccat cccttcagac aggatcagaa gaacttagat
     1021 cattatataa tacagtagca accctctatt gtgtgcatca aaggatagag ataaaagaca
     1081 ccaaggaagc tttagacaag atagaggaag agcaaaacaa aagtaagacc accgcacagc
     1141 aagcggccgg ccgctgatct tcagacctgg aggaggagat atgagggaca attggagaag
     1201 tgaattatat aaatataaag tagtaaaaat tgaaccatta ggagtagcac ccaccaaggc
     1261 aaagagaaga gtggtgcaga gagaaaaaag agcagtggga ataggagctt tgttccttgg
     1321 gttcttggga gcagcaggaa gcactatggg cgcagcgtca atgacgctga cggtacaggc
     1381 cagacaatta ttgtctggta tagtgcagca gcagaacaat ttgctgaggg ctattgaggc
     1441 gcaacagcat ctgttgcaac tcacagtctg gggcatcaag cagctccagg caagaatcct
     1501 ggctgtggaa agatacctaa aggatcaaca gctcctgggg atttggggtt gctctggaaa
     1561 actcatttgc accactgctg tgccttggaa tgctagttgg agtaataaat ctctggaaca
     1621 gatttggaat cacacgacct ggatggagtg ggacagagaa attaacaatt acacaagctt
     1681 aatacactcc ttaattgaag aatcgcaaaa ccagcaagaa aagaatgaac aagaattatt
     1741 ggaattagat aaatgggcaa gtttgtggaa ttggtttaac ataacaaatt ggctgtggta
     1801 tataaaatta ttcataatga tagtaggagg cttggtaggt ttaagaatag tttttgctgt
     1861 actttctata gtgaatagag ttaggcaggg atattcacca ttatcgtttc agacccacct
     1921 cccaaccccg aggggacccg acaggcccga aggaatagaa gaagaaggtg gagagagaga
     1981 cagagacaga tccattcgat tagtgaacgg atctcgacgg tatcgccgaa ttcacaaatg
     2041 gcagtattca tccacaattt taaaagaaaa ggggggattg gggggtacag tgcaggggaa
     2101 agaatagtag acataatagc aacagacata caaactaaag aattacaaaa acaaattaca
     2161 aaaattcaaa attttcgggt ttattacagg gacagcagag atccagtttg gactagtggc
     2221 ctccgcgccg ggttttggcg cctcccgcgg gcgcccccct cctcacggcg agcgctgcca
     2281 cgtcagacga agggcgcagc gagcgtcctg atccttccgc ccggacgctc aggacagcgg
     2341 cccgctgctc ataagactcg gccttagaac cccagtatca gcagaaggac attttaggac
     2401 gggacttggg tgactctagg gcactggttt tctttccaga gagcggaaca ggcgaggaaa
     2461 agtagtccct tctcggcgat tctgcggagg gatctccgtg gggcggtgaa cgccgatgat
     2521 tatataagga cgcgccgggt gtggcacagc tagttccgtc gcagccggga tttgggtcgc
     2581 ggttcttgtt tgtggatcgc tgtgatcgtc acttggcggc cgcaatgggc ccaaaaaaga
     2641 aaagaaaagt tggctacccc tacgacgtgc ccgactacgc catcgaaggc cgccatatgc
     2701 tagccgttaa aatggcttct aactttactc agttcgttct cgtcgacaat ggcggaactg
     2761 gcgacgtgac tgtcgcccca agcaacttcg ctaacgggat cgctgaatgg atcagctcta
     2821 actcgcgttc acaggcttac aaagtaacct gtagcgttcg tcagagctct gcgcagaatc
     2881 gcaaatacac catcaaagtc gaggtgccta aaggcgcctg gcgttcgtac ttaaatatgg
     2941 aactaaccat tccaattttc gccacgaatt ccgactgcga gcttattgtt aaggcaatgc
     3001 aaggtctcct aaaagatgga aacccgattc cctcagcaat cgcagcaaac tccggcatct
     3061 acgccatggc ttctaacttt actcagttcg ttctcgtcga caatggcgga actggcgacg
     3121 tgactgtcgc cccaagcaac ttcgctaacg ggatcgctga atggatcagc tctaactcgc
     3181 gttcacaggc ttacaaagta acctgtagcg ttcgtcagag ctctgcgcag aatcgcaaat
     3241 acaccatcaa agtcgaggtg cctaaaggcg cctggcgttc gtacttaaat atggaactaa
     3301 ccattccaat tttcgccacg aattccgact gcgagcttat tgttaaggca atgcaaggtc
     3361 tcctaaaaga tggaaacccg attccctcag caatcgcagc aaactccggc atctacgcgg
     3421 attctagaat ggtgagcaag ggcgaggagc tgttcaccgg ggtggtgccc atcctggtcg
     3481 agctggacgg cgacgtaaac ggccacaagt tcagcgtgtc cggcgagggc gagggcgatg
     3541 ccacctacgg caagctgacc ctgaagttca tctgcaccac cggcaagctg cccgtgccct
     3601 ggcccaccct cgtgaccacc ctgacctacg gcgtgcagtg cttcagccgc taccccgacc
     3661 acatgaagca gcacgacttc ttcaagtccg ccatgcccga aggctacgtc caggagcgca
     3721 ccatcttctt caaggacgac ggcaactaca agacccgcgc cgaggtgaag ttcgagggcg
     3781 acaccctggt gaaccgcatc gagctgaagg gcatcgactt caaggaggac ggcaacatcc
     3841 tggggcacaa gctggagtac aactacaaca gccacaacgt ctatatcatg gccgacaagc
     3901 agaagaacgg catcaaggtg aacttcaaga tccgccacaa catcgaggac ggcagcgtgc
     3961 agctcgccga ccactaccag cagaacaccc ccatcggcga cggccccgtg ctgctgcccg
     4021 acaaccacta cctgagcacc cagtccgccc tgagcaaaga ccccaacgag aagcgcgatc
     4081 acatggtcct gctggagttc gtgaccgccg ccgggatcac tctcggcatg gacgagctgt
     4141 acaagtaaat cgatagatcc taatcaacct ctggattaca aaatttgtga aagattgact
     4201 ggtattctta actatgttgc tccttttacg ctatgtggat acgctgcttt aatgcctttg
     4261 tatcatgcta ttgcttcccg tatggctttc attttctcct ccttgtataa atcctggttg
     4321 ctgtctcttt atgaggagtt gtggcccgtt gtcaggcaac gtggcgtggt gtgcactgtg
     4381 tttgctgacg caacccccac tggttggggc attgccacca cctgtcagct cctttccggg
     4441 actttcgctt tccccctccc tattgccacg gcggaactca tcgccgcctg ccttgcccgc
     4501 tgctggacag gggctcggct gttgggcact gacaattccg tggtgttgtc ggggaaatca
     4561 tcgtcctttc cttggctgct cgcctgtgtt gccacctgga ttctgcgcgg gacgtccttc
     4621 tgctacgtcc cttcggccct caatccagcg gaccttcctt cccgcggcct gctgccggct
     4681 ctgcggcctc ttccgcgtct tcgccttcgc cctcagacga gtcggatctc cctttgggcc
     4741 gcctccccgc ctgagatcct ttaagaccaa tgacttacaa ggcagctgta gatcttagcc
     4801 actttttaaa agaaaagggg ggactggaag ggctaattca ctcccaacga agacaagatc
     4861 tgctttttgc ttgtactggg tctctctggt tagaccagat ctgagcctgg gagctctctg
     4921 gctaactagg gaacccactg cttaagcctc aataaagctt gccttgagtg cttcaagtag
     4981 tgtgtgcccg tctgttgtgt gactctggta actagagatc cctcagaccc ttttagtcag
     5041 tgtggaaaat ctctagcagt agtagttcat gtcatcttat tattcagtat ttataacttg
     5101 caaagaaatg aatatcagag agtgagaggc ccgggttaat taaggaaagg gctagatcat
     5161 tcttgaagac gaaagggcct cgtgatacgc ctatttttat aggttaatgt catgataata
     5221 atggtttctt agacgtcagg tggcactttt cggggaaatg tgcgcggaac ccctatttgt
     5281 ttatttttct aaatacattc aaatatgtat ccgctcatga gacaataacc ctgataaatg
     5341 cttcaataat attgaaaaag gaagagtatg agtattcaac atttccgtgt cgcccttatt
     5401 cccttttttg cggcattttg ccttcctgtt tttgctcacc cagaaacgct ggtgaaagta
     5461 aaagatgctg aagatcagtt gggtgcacga gtgggttaca tcgaactgga tctcaacagc
     5521 ggtaagatcc ttgagagttt tcgccccgaa gaacgttttc caatgatgag cacttttaaa
     5581 gttctgctat gtggcgcggt attatcccgt gttgacgccg ggcaagagca actcggtcgc
     5641 cgcatacact attctcagaa tgacttggtt gagtactcac cagtcacaga aaagcatctt
     5701 acggatggca tgacagtaag agaattatgc agtgctgcca taaccatgag tgataacact
     5761 gcggccaact tacttctgac aacgatcgga ggaccgaagg agctaaccgc ttttttgcac
     5821 aacatggggg atcatgtaac tcgccttgat cgttgggaac cggagctgaa tgaagccata
     5881 ccaaacgacg agcgtgacac cacgatgcct gtagcaatgg caacaacgtt gcgcaaacta
     5941 ttaactggcg aactacttac tctagcttcc cggcaacaat taatagactg gatggaggcg
     6001 gataaagttg caggaccact tctgcgctcg gcccttccgg ctggctggtt tattgctgat
     6061 aaatctggag ccggtgagcg tgggtctcgc ggtatcattg cagcactggg gccagatggt
     6121 aagccctccc gtatcgtagt tatctacacg acggggagtc aggcaactat ggatgaacga
     6181 aatagacaga tcgctgagat aggtgcctca ctgattaagc attggtaact gtcagaccaa
     6241 gtttactcat atatacttta gattgattta aaacttcatt tttaatttaa aaggatctag
     6301 gtgaagatcc tttttgataa tctcatgacc aaaatccctt aacgtgagtt ttcgttccac
     6361 tgagcgtcag accccgtaga aaagatcaaa ggatcttctt gagatccttt ttttctgcgc
     6421 gtaatctgct gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg tttgccggat
     6481 caagagctac caactctttt tccgaaggta actggcttca gcagagcgca gataccaaat
     6541 actgttcttc tagtgtagcc gtagttaggc caccacttca agaactctgt agcaccgcct
     6601 acatacctcg ctctgctaat cctgttacca gtggctgctg ccagtggcga taagtcgtgt
     6661 cttaccgggt tggactcaag acgatagtta ccggataagg cgcagcggtc gggctgaacg
     6721 gggggttcgt gcacacagcc cagcttggag cgaacgacct acaccgaact gagataccta
     6781 cagcgtgagc tatgagaaag cgccacgctt cccgaaggga gaaaggcgga caggtatccg
     6841 gtaagcggca gggtcggaac aggagagcgc acgagggagc ttccaggggg aaacgcctgg
     6901 tatctttata gtcctgtcgg gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc
     6961 tcgtcagggg ggcggagcct atggaaaaac gccagcaacg cggccttttt acggttcctg
     7021 gccttttgct ggccttttgc tcacatgttc tttcctgcgt tatcccctga ttctgtggat
     7081 aaccgtatta ccgcctttga gtgagctgat accgctcgcc gcagccgaac gaccgagcgc
     7141 agcgagtcag tgagcgagga agcggaagag cgcccaatac gcaaaccgcc tctccccgcg
     7201 cgttggccga ttcattaatg cagcaagctc atggctgact aatttttttt atttatgcag
     7261 aggccgaggc cgcctcggcc tctgagctat tccagaagta gtgaggaggc ttttttggag
     7321 gcctaggctt ttgcaaaaag ctccccgtgg cacgacaggt ttcccgactg gaaagcgggc
     7381 agtgagcgca acgcaattaa tgtgagttag ctcactcatt aggcacccca ggctttacac
     7441 tttatgcttc cggctcgtat gttgtgtgga attgtgagcg gataacaatt tcacacagga
     7501 aacagctatg acatgattac gaatttcaca aataaagcat ttttttcact gcattctagt
     7561 tgtggtttgt ccaaactcat caatgtatct tatcatgtct ggatcaactg gataactcaa
     7621 gctaaccaaa atcatcccaa acttcccacc ccatacccta ttaccactgc caattacctg
     7681 tggtttcatt tactctaaac ctgtgattcc tctgaattat tttcatttta aagaaattgt
     7741 atttgttaaa tatgtactac aaacttagta gt
//
