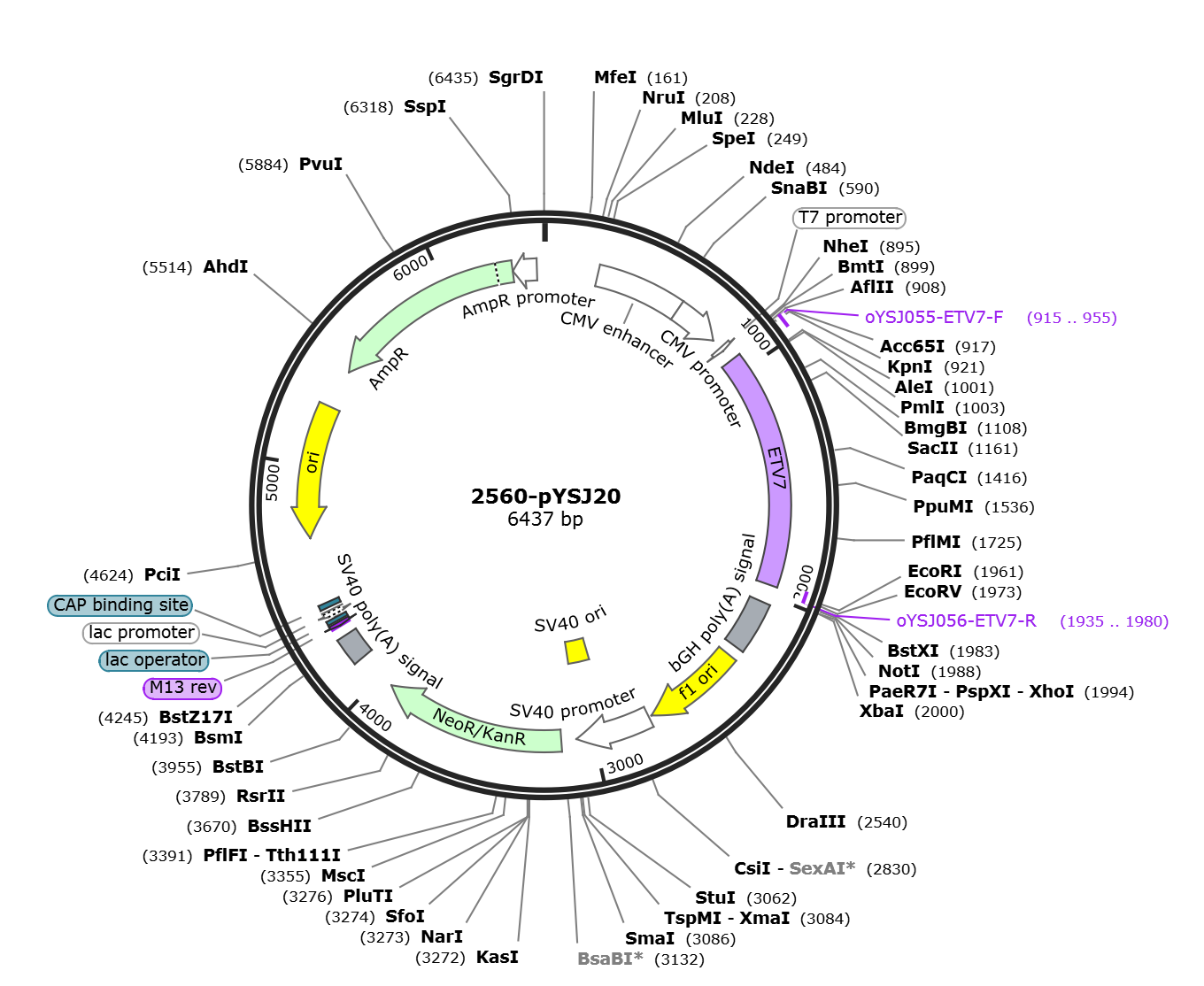

pYSJ20

LOCUS       pYSJ20              6437 bp DNA     circular SYN 16-JUL-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  recombinant plasmid
REFERENCE   1  (bases 1 to 6437)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 5, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..6437
                     /mol_type="other DNA"
                     /organism="recombinant plasmid"
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     915..955
                     /label=oYSJ055-ETV7-F
     misc_feature    935..1957
                     /label=ETV7
     primer_bind     complement(1935..1980)
                     /label=oYSJ056-ETV7-R
     polyA_signal    2037..2261
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      2307..2735
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        2749..3078
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2929..3064
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     CDS             3145..3939
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    4113..4234
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(4283..4299)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4307..4323
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4331..4361)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4376..4397
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(4685..5270)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5441..6301)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6302..6406)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttggta ccgagctcgg atccatgcag gagggagaat tggctatttc
      961 tcctataagc cctgtggcag ccatgcctcc cctaggcacc cacgtgcaag ccagatgtga
     1021 agctcaaatt aacctgctgg gtgaaggggg gatctgcaag ctgccaggaa gactccgcat
     1081 ccagcccgca ctgtggagca gggaggacgt gctgcactgg ctgcgctggg cagagcagga
     1141 gtactctctg ccatgcaccg cggagcacgg gttcgagatg aacggacgcg ccctctgcat
     1201 cctcaccaag gacgacttcc ggcaccgtgc gcccagctca ggtgacgtcc tgtatgagct
     1261 gctccagtac atcaagaccc agcggcgagc cctggtgtgt gggccctttt ttggagggat
     1321 cttcaggctg aagacgccca cccagcactc tccagtcccc ccggaagagg tgactggccc
     1381 ctctcagatg gacacccgaa ggggccacct gctgcagcca ccagacccag ggcttaccag
     1441 caacttcggc cacctggatg accctggcct ggcaaggtgg acccctggca aggaggagtc
     1501 cctcaactta tgtcactgtg cagagctcgg ctgcaggacc cagggggtct gttccttccc
     1561 cgcgatgccg caggccccca ttgacggcag gatcgctgac tgccgcctgc tgtgggatta
     1621 cgtgtatcag ctgctccttg atacccgata tgagccctac atcaagtggg aagacaagga
     1681 cgccaagatc ttccgagttg tggatccaaa tgggctcgcc agactctggg gaaatcacaa
     1741 gaaccgggtg aacatgacct acgagaagat gtctcgtgcc ctgcgccact attataagct
     1801 taatatcatt aagaaggaac cggggcagaa actcctgttc agatttctaa agactccggg
     1861 aaagatggtc caggacaagc acagccacct ggagccgctg gagagccagg agcaggacag
     1921 aatagagttc aaggacaaga ggccagaaat ctctccgtaa gaattctgca gatatccagc
     1981 acagtggcgg ccgctcgagt ctagagggcc cgtttaaacc cgctgatcag cctcgactgt
     2041 gccttctagt tgccagccat ctgttgtttg cccctccccc gtgccttcct tgaccctgga
     2101 aggtgccact cccactgtcc tttcctaata aaatgaggaa attgcatcgc attgtctgag
     2161 taggtgtcat tctattctgg ggggtggggt ggggcaggac agcaaggggg aggattggga
     2221 agacaatagc aggcatgctg gggatgcggt gggctctatg gcttctgagg cggaaagaac
     2281 cagctggggc tctagggggt atccccacgc gccctgtagc ggcgcattaa gcgcggcggg
     2341 tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc ccgctccttt
     2401 cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag ctctaaatcg
     2461 ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca aaaaacttga
     2521 ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc gccctttgac
     2581 gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa cactcaaccc
     2641 tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct attggttaaa
     2701 aaatgagctg atttaacaaa aatttaacgc gaattaattc tgtggaatgt gtgtcagtta
     2761 gggtgtggaa agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat
     2821 tagtcagcaa ccaggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     2881 atgcatctca attagtcagc aaccatagtc ccgcccctaa ctccgcccat cccgccccta
     2941 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     3001 gaggccgagg ccgcctctgc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     3061 ggcctaggct tttgcaaaaa gctcccggga gcttgtatat ccattttcgg atctgatcaa
     3121 gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc aggttctccg
     3181 gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat cggctgctct
     3241 gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt caagaccgac
     3301 ctgtccggtg ccctgaatga actgcaggac gaggcagcgc ggctatcgtg gctggccacg
     3361 acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag ggactggctg
     3421 ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc tgccgagaaa
     3481 gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc tacctgccca
     3541 ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga agccggtctt
     3601 gtcgatcagg atgatctgga cgaagagcat caggggctcg cgccagccga actgttcgcc
     3661 aggctcaagg cgcgcatgcc cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc
     3721 ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg tggccggctg
     3781 ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc tgaagagctt
     3841 ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc cgattcgcag
     3901 cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg gggttcgaaa
     3961 tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc gccgccttct
     4021 atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc ctccagcgcg
     4081 gggatctcat gctggagttc ttcgcccacc ccaacttgtt tattgcagct tataatggtt
     4141 acaaataaag caatagcatc acaaatttca caaataaagc atttttttca ctgcattcta
     4201 gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctgtataccg tcgacctcta
     4261 gctagagctt ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt tatccgctca
     4321 caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt gcctaatgag
     4381 tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt
     4441 cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc
     4501 gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg
     4561 tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa
     4621 agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg
     4681 cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga
     4741 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg
     4801 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg
     4861 gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc
     4921 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg
     4981 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca
     5041 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt
     5101 ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag
     5161 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg
     5221 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
     5281 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
     5341 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
     5401 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
     5461 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     5521 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     5581 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     5641 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     5701 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     5761 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     5821 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     5881 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     5941 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     6001 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     6061 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     6121 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     6181 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     6241 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     6301 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     6361 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     6421 aagtgccacc tgacgtc
//
