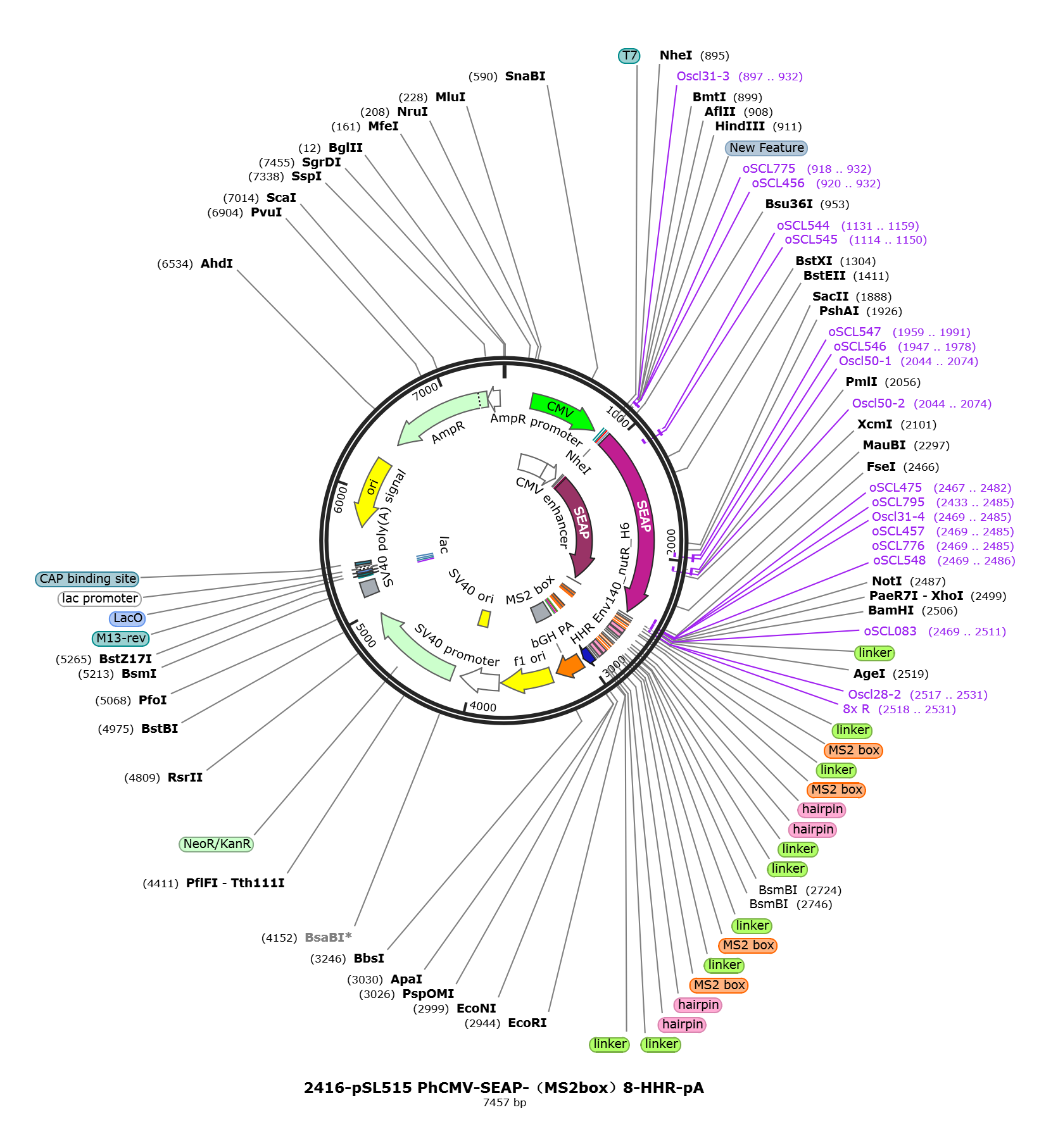

pSL515

LOCUS      pSL515            7457 bp DNA     circular SYN 05-MAR-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7457)
  AUTHORS   Westlake University
  TITLE     Direct Submission
  JOURNAL   Exported Aug 28, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7457
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    232..819
                     /label=CMV
     enhancer        235..614
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        615..818
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     863..882
                     /label=T7
     promoter        863..881
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     misc_feature    895..900
                     /label=NheI
     primer_bind     897..932
                     /label=Oscl31-3
     misc_feature    911..915
                     /label=New Feature
     misc_feature    911..915
                     /label=New Feature
     misc_feature    915
                     /label=EGFP
                     /note="note=""Fragment extracted from OWS233-Kpn1-EGFP-Xba1
                     [758  nt] : (KpnI[4] / XbaI[766])"
     primer_bind     918..932
                     /label=oSCL775
     primer_bind     920..932
                     /label=oSCL456
     misc_feature    926..2485
                     /label=SEAP
     CDS             926..2428
                     /codon_start=1
                     /product="secreted alkaline phosphatase from human
                     placenta"
                     /label=SEAP
                     /note="The natural enzyme has a C-terminal transmembrane
                     sequence that is replaced by a GPI anchor."
                     /translation="MLLLLLLLGLRLQLSLGIIPVEEENPDFWNREAAEALGAAKKLQP
                     AQTAAKNLIIFLGDGMGVSTVTAARILKGQKKDKLGPEIPLAMDRFPYVALSKTYNVDK
                     HVPDSGATATAYLCGVKGNFQTIGLSAAARFNQCNTTRGNEVISVMNRAKKAGKSVGVV
                     TTTRVQHASPAGTYAHTVNRNWYSDADVPASARQEGCQDIATQLISNMDIDVILGGGRK
                     YMFRMGTPDPEYPDDYSQGGTRLDGKNLVQEWLAKRQGARYVWNRTELMQASLDPSVTH
                     LMGLFEPGDMKYEIHRDSTLDPSLMEMTEAALRLLSRNPRGFFLFVEGGRIDHGHHESR
                     AYRALTETIMFDDAIERAGQLTSEEDTLSLVTADHSHVFSFGGYPLRGSSIFGLAPGKA
                     RDRKAYTVLLYGNGPGYVLKDGARPDVTESESGSPEYRQQSAVPLDEETHAGEDVAVFA
                     RGPQAHLVHGVQEQTFIAHVMAFAACLEPYTACDLAPPAGTTD"
     primer_bind     complement(1114..1150)
                     /label=oSCL545
     primer_bind     1131..1159
                     /label=oSCL544
     primer_bind     complement(1947..1978)
                     /label=oSCL546
     primer_bind     1959..1991
                     /label=oSCL547
     primer_bind     2044..2074
                     /label=Oscl50-1
     primer_bind     complement(2044..2074)
                     /label=Oscl50-2
     primer_bind     complement(2433..2485)
                     /label=oSCL795
     primer_bind     complement(2467..2482)
                     /label=oSCL475
     primer_bind     complement(2469..2511)
                     /label=oSCL083
     primer_bind     complement(2469..2486)
                     /label=oSCL548
     primer_bind     complement(2469..2485)
                     /label=Oscl31-4
     primer_bind     complement(2469..2485)
                     /label=oSCL457
     primer_bind     complement(2469..2485)
                     /label=oSCL776
     polyA_signal    2477..2485
                     /label=SV40 late polyA
     misc_feature    2512..2515
                     /label=linker
     primer_bind     complement(2517..2531)
                     /label=Oscl28-2
     primer_bind     complement(2518..2531)
                     /label=8x R
     misc_feature    2532..2544
                     /label=linker
     misc_feature    2550..2568
                     /label=MS2 box
     misc_feature    2574..2583
                     /label=linker
     misc_feature    2589..2607
                     /label=MS2 box
     misc_feature    2613..2622
                     /label=linker
     misc_feature    2613..2622
                     /label=linker
     misc_feature    2621..2651
                     /label=hairpin
     misc_feature    2627..2645
                     /label=MS2 box
     misc_feature    2650..2662
                     /label=linker
     misc_feature    2661..2691
                     /label=hairpin
     misc_feature    2667..2685
                     /label=MS2 box
     misc_feature    2695..2700
                     /label=linker
     misc_feature    2709..2724
                     /label=linker
     misc_feature    2751..2763
                     /label=linker
     misc_feature    2769..2787
                     /label=MS2 box
     misc_feature    2793..2802
                     /label=linker
     misc_feature    2808..2826
                     /label=MS2 box
     misc_feature    2832..2841
                     /label=linker
     misc_feature    2832..2841
                     /label=linker
     misc_feature    2840..2870
                     /label=hairpin
     misc_feature    2846..2864
                     /label=MS2 box
     misc_feature    2869..2881
                     /label=linker
     misc_feature    2880..2910
                     /label=hairpin
     misc_feature    2886..2904
                     /label=MS2 box
     misc_feature    2914..2919
                     /label=linker
     misc_feature    2928..2943
                     /label=linker
     misc_feature    2950..3025
                     /label=HHR Env140_nutR_H6
     misc_feature    complement(2958..2966)
                     /label=Stem III
     misc_feature    2969..2984
                     /label=Stem I
     terminator      2993..3007
                     /label=nutR-boxB
     misc_feature    3011..3019
                     /label=Stem III
     terminator      3054..3281
                     /label=bGH PA
     polyA_signal    3057..3281
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      3327..3755
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        3769..4098
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      3949..4084
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     misc_feature    3949..4026
                     /label=SV40 ORI
     CDS             4165..4959
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     polyA_signal    5133..5254
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(5299..5319)
                     /label=M13-rev
     primer_bind     complement(5303..5319)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     misc_binding    complement(5325..5347)
                     /label=LacO
     protein_bind    5327..5343
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5351..5381)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     promoter        complement(5352..5381)
                     /label=lac
     protein_bind    5396..5417
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5705..6290)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(6461..7321)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7322..7426)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg
       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg
      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc
      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt
      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata
      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc
      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc
      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt
      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt
      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca
      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg
      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc
      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg
      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca
      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc
      901 gtttaaactt aagcttagcg ccaccatgct gctgctgctg ctgctgctgg gcctgaggct
      961 acagctctcc ctgggcatca tcccagttga ggaggagaac ccggacttct ggaaccgcga
     1021 ggcagccgag gccctgggtg ccgccaagaa gctgcagcct gcacagacag ccgccaagaa
     1081 cctcatcatc ttcctgggcg atgggatggg ggtgtctacg gtgacagctg ccagaatcct
     1141 aaaagggcag aagaaggaca aactggggcc tgagataccc ctggccatgg accgcttccc
     1201 atatgtggct ctgtccaaga catacaatgt agacaaacat gtgccagaca gtggagccac
     1261 agccacggcc tacctgtgcg gggtcaaggg caacttccag accattggct tgagtgcagc
     1321 cgcccgcttt aaccagtgca acacgacacg cggcaacgag gtcatctccg tgatgaatcg
     1381 ggccaagaaa gcagggaagt cagtgggagt ggtaaccacc acacgagtgc agcacgcctc
     1441 gccagccggc acctacgccc acacggtgaa ccgcaactgg tactcggacg ccgacgtgcc
     1501 tgcctcggcc cgccaggagg ggtgccagga catcgctacg cagctcatct ccaacatgga
     1561 cattgacgtg atcctaggtg gaggccgaaa gtacatgttt cgcatgggaa ccccagaccc
     1621 tgagtaccca gatgactaca gccaaggtgg gaccaggctg gacgggaaga atctggtgca
     1681 ggaatggctg gcgaagcgcc agggtgcccg gtatgtgtgg aaccgcactg agctcatgca
     1741 ggcttccctg gacccgtctg tgacccatct catgggtctc tttgagcctg gagacatgaa
     1801 atacgagatc caccgagact ccacactgga cccctccctg atggagatga cagaggctgc
     1861 cctgcgcctg ctgagcagga acccccgcgg cttcttcctc ttcgtggagg gtggtcgcat
     1921 cgaccatggt catcatgaaa gcagggctta ccgggcactg actgagacca tcatgttcga
     1981 cgacgccatt gagagggcgg gccagctcac cagcgaggag gacacgctga gcctcgtcac
     2041 tgccgaccac tcccacgtgt tctccttcgg aggctacccc ctgcgaggga gctccatctt
     2101 cgggctggcc cctggcaagg cccgggacag gaaggcctac acggtcctcc tatacggaaa
     2161 cggtccaggc tatgtgctca aggacggcgc ccggccggat gttaccgaga gcgagagcgg
     2221 gagccccgag tatcggcagc agtcagcagt gcccctggac gaagagaccc acgcaggcga
     2281 ggacgtggcg gtgttcgcgc gcggcccgca ggcgcacctg gttcacggcg tgcaggagca
     2341 gaccttcata gcgcacgtca tggccttcgc cgcctgcctg gagccctaca ccgcctgcga
     2401 cctggcgccc cccgccggca ccaccgacgc cgcgcacccg ggttacagca gagtcggggc
     2461 ggccggccgc ttcgagcaga catgagcggc cgctcaatct cgaggggatc caacttgaac
     2521 cggtaagaat tgcaacaaac aaatcaccac cgtgaggatc acccacggtg gtgaaagcct
     2581 tagcctagcc gtgaggatca cccacggtag gcacaagaaa ttctacccgt gaggatcacc
     2641 cacgggtaga atcacaaaga ctacagccgt gaggatcacc cacggctgta gactcaaact
     2701 taaaaaggat atcttcagca aactgatcgg agacgagtcc gtctcaaatt gcaacaaaca
     2761 aatcaccacc gtgaggatca cccacggtgg tgaaagcctt agcctagccg tgaggatcac
     2821 ccacggtagg cacaagaaat tctacccgtg aggatcaccc acgggtagaa tcacaaagac
     2881 tacagccgtg aggatcaccc acggctgtag actcaaactt aaaaaggata tcttcagcaa
     2941 actgaattcg tttaaaccct cctcgtccgg ggctgtgtcg ccccgctgac gagccctgaa
     3001 aaagggcgaa acgaggagga ctagtgggcc cgtttaaacc cgctgatcag cctcgactgt
     3061 gccttctagt tgccagccat ctgttgtttg cccctccccc gtgccttcct tgaccctgga
     3121 aggtgccact cccactgtcc tttcctaata aaatgaggaa attgcatcgc attgtctgag
     3181 taggtgtcat tctattctgg ggggtggggt ggggcaggac agcaaggggg aggattggga
     3241 agacaatagc aggcatgctg gggatgcggt gggctctatg gcttctgagg cggaaagaac
     3301 cagctggggc tctagggggt atccccacgc gccctgtagc ggcgcattaa gcgcggcggg
     3361 tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc ccgctccttt
     3421 cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag ctctaaatcg
     3481 ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca aaaaacttga
     3541 ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc gccctttgac
     3601 gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa cactcaaccc
     3661 tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct attggttaaa
     3721 aaatgagctg atttaacaaa aatttaacgc gaattaattc tgtggaatgt gtgtcagtta
     3781 gggtgtggaa agtccccagg ctccccagca ggcagaagta tgcaaagcat gcatctcaat
     3841 tagtcagcaa ccaggtgtgg aaagtcccca ggctccccag caggcagaag tatgcaaagc
     3901 atgcatctca attagtcagc aaccatagtc ccgcccctaa ctccgcccat cccgccccta
     3961 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     4021 gaggccgagg ccgcctctgc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     4081 ggcctaggct tttgcaaaaa gctcccggga gcttgtatat ccattttcgg atctgatcaa
     4141 gagacaggat gaggatcgtt tcgcatgatt gaacaagatg gattgcacgc aggttctccg
     4201 gccgcttggg tggagaggct attcggctat gactgggcac aacagacaat cggctgctct
     4261 gatgccgccg tgttccggct gtcagcgcag gggcgcccgg ttctttttgt caagaccgac
     4321 ctgtccggtg ccctgaatga actgcaggac gaggcagcgc ggctatcgtg gctggccacg
     4381 acgggcgttc cttgcgcagc tgtgctcgac gttgtcactg aagcgggaag ggactggctg
     4441 ctattgggcg aagtgccggg gcaggatctc ctgtcatctc accttgctcc tgccgagaaa
     4501 gtatccatca tggctgatgc aatgcggcgg ctgcatacgc ttgatccggc tacctgccca
     4561 ttcgaccacc aagcgaaaca tcgcatcgag cgagcacgta ctcggatgga agccggtctt
     4621 gtcgatcagg atgatctgga cgaagagcat caggggctcg cgccagccga actgttcgcc
     4681 aggctcaagg cgcgcatgcc cgacggcgag gatctcgtcg tgacccatgg cgatgcctgc
     4741 ttgccgaata tcatggtgga aaatggccgc ttttctggat tcatcgactg tggccggctg
     4801 ggtgtggcgg accgctatca ggacatagcg ttggctaccc gtgatattgc tgaagagctt
     4861 ggcggcgaat gggctgaccg cttcctcgtg ctttacggta tcgccgctcc cgattcgcag
     4921 cgcatcgcct tctatcgcct tcttgacgag ttcttctgag cgggactctg gggttcgaaa
     4981 tgaccgacca agcgacgccc aacctgccat cacgagattt cgattccacc gccgccttct
     5041 atgaaaggtt gggcttcgga atcgttttcc gggacgccgg ctggatgatc ctccagcgcg
     5101 gggatctcat gctggagttc ttcgcccacc ccaacttgtt tattgcagct tataatggtt
     5161 acaaataaag caatagcatc acaaatttca caaataaagc atttttttca ctgcattcta
     5221 gttgtggttt gtccaaactc atcaatgtat cttatcatgt ctgtataccg tcgacctcta
     5281 gctagagctt ggcgtaatca tggtcatagc tgtttcctgt gtgaaattgt tatccgctca
     5341 caattccaca caacatacga gccggaagca taaagtgtaa agcctggggt gcctaatgag
     5401 tgagctaact cacattaatt gcgttgcgct cactgcccgc tttccagtcg ggaaacctgt
     5461 cgtgccagct gcattaatga atcggccaac gcgcggggag aggcggtttg cgtattgggc
     5521 gctcttccgc ttcctcgctc actgactcgc tgcgctcggt cgttcggctg cggcgagcgg
     5581 tatcagctca ctcaaaggcg gtaatacggt tatccacaga atcaggggat aacgcaggaa
     5641 agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg taaaaaggcc gcgttgctgg
     5701 cgtttttcca taggctccgc ccccctgacg agcatcacaa aaatcgacgc tcaagtcaga
     5761 ggtggcgaaa cccgacagga ctataaagat accaggcgtt tccccctgga agctccctcg
     5821 tgcgctctcc tgttccgacc ctgccgctta ccggatacct gtccgccttt ctcccttcgg
     5881 gaagcgtggc gctttctcat agctcacgct gtaggtatct cagttcggtg taggtcgttc
     5941 gctccaagct gggctgtgtg cacgaacccc ccgttcagcc cgaccgctgc gccttatccg
     6001 gtaactatcg tcttgagtcc aacccggtaa gacacgactt atcgccactg gcagcagcca
     6061 ctggtaacag gattagcaga gcgaggtatg taggcggtgc tacagagttc ttgaagtggt
     6121 ggcctaacta cggctacact agaagaacag tatttggtat ctgcgctctg ctgaagccag
     6181 ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa acaaaccacc gctggtagcg
     6241 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
     6301 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
     6361 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
     6421 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
     6481 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     6541 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     6601 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     6661 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     6721 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     6781 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     6841 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     6901 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     6961 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     7021 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     7081 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     7141 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     7201 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     7261 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     7321 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     7381 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     7441 aagtgccacc tgacgtc
//
