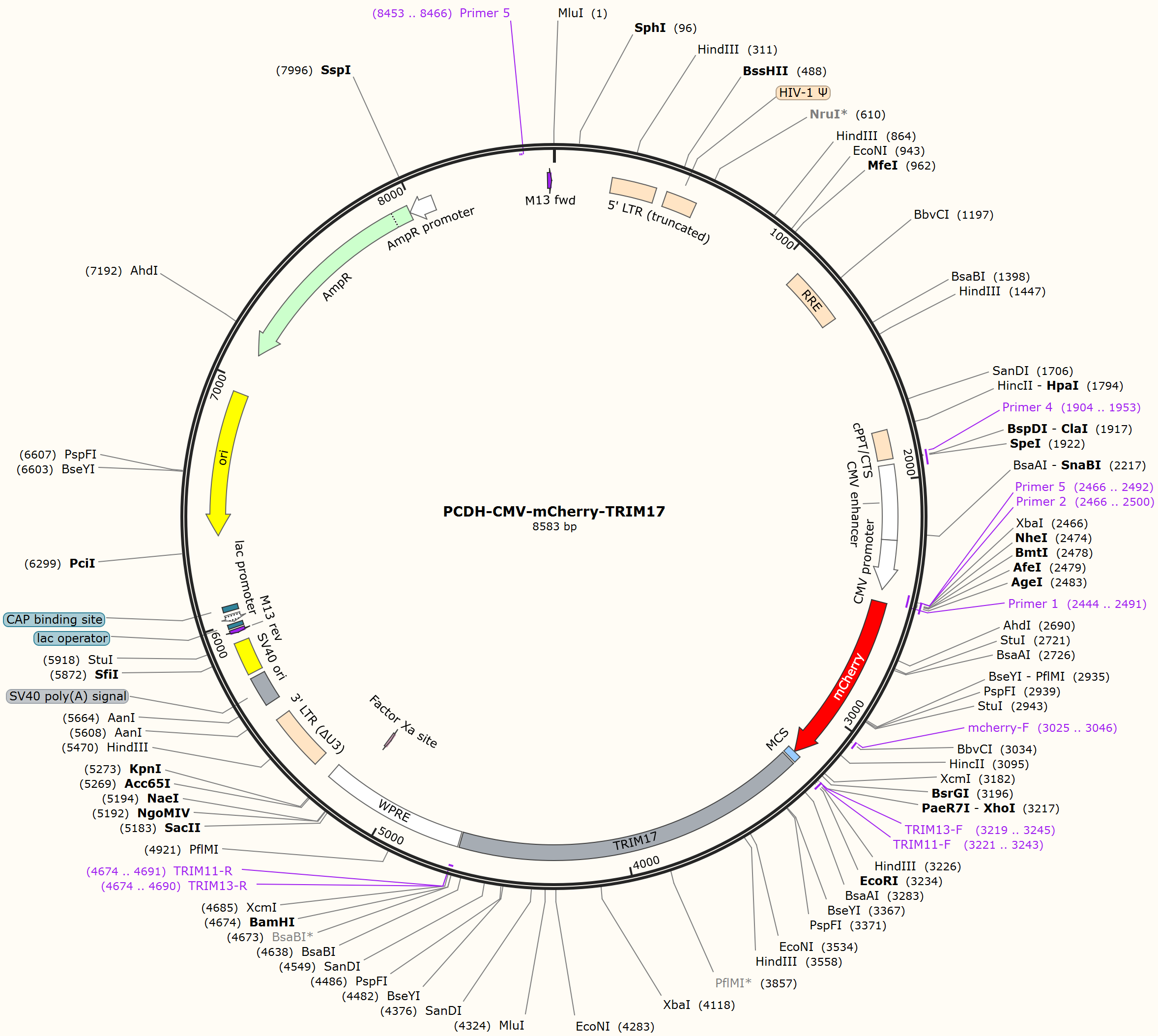

PCDH-CMV-mCherry-TRIM17

LOCUS      PCDH-CMV-mCherry-TRIM17              8583 bp DNA     circular SYN 04-JUL-2025
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 8583)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 7, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..8583
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     complement(2444..2491)
                     /label=Primer 1
     primer_bind     2466..2500
                     /label=Primer 2
     primer_bind     2466..2492
                     /label=Primer 5
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3025..3046
                     /label=mcherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     primer_bind     3219..3245
                     /label=TRIM13-F
     primer_bind     3221..3243
                     /label=TRIM11-F
     misc_feature    3240..4673
                     /label=TRIM17
     primer_bind     complement(4674..4691)
                     /label=TRIM11-R
     primer_bind     complement(4674..4690)
                     /label=TRIM13-R
     misc_feature    4680..5267
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5151..5162)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5340..5573
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    5645..5766
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      5785..5920
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5958..5974)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    5982..5998
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6006..6036)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6051..6072
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6360..6948)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7119..7979)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(7980..8084)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(8453..8466)
                     /label=Primer 5
     primer_bind     8558..8574
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tggaggctgt ggaactcgcc agaaaactgc aggaggaagc tacgtgctcc atctgtctgg
     3301 attacttcac agaccctgtg atgaccacct gtggccacaa cttctgccga gcctgcatcc
     3361 agctgagctg ggaaaaggcg aggggcaaga aggggaggcg gaagcggaag ggctccttcc
     3421 cctgccccga gtgcagagag atgtccccgc agaggaacct gctgcccaac cggctgctga
     3481 ccaaggtggc cgagatggcg cagcagcatc ctggtctgca gaagcaagac ctgtgccagg
     3541 agcaccacga gcccctcaag cttttctgcc agaaggacca gagccccatc tgtgtggtgt
     3601 gcagggagtc ccgggagcac cggctgcaca gggtgctgcc cgccgaggag gcagtgcagg
     3661 ggtacaagtt gaagctggag gaggacatgg agtaccttcg ggagcagatc accaggacag
     3721 ggaatctgca ggccagggag gagcagagct tagccgagtg gcagggcaag gtgaaggagc
     3781 ggagagaacg cattgtgctg gagtttgaga agatgaacct ctacctggtg gaagaagagc
     3841 agaggctcct ccaggctctg gagacggaag aagaggagac tgccagcagg ctccgggaga
     3901 gcgtggcctg cctggaccgg cagggtcact ctctggagct gctgctgctg cagctggagg
     3961 agcggagcac acaggggccc ctccagatgc tgcaggacat gaaggaaccc ctgagcagga
     4021 agaacaacgt gagtgtgcag tgcccagagg ttgccccccc aaccagaccc aggactgtgt
     4081 gcagagttcc cggacagatt gaagtgctaa gaggctttct agaggatgtg gtgcctgatg
     4141 ccacctccgc gtacccctac ctcctcctgt atgagagccg ccagaggcgc tacctcggct
     4201 cttcgccgga gggcagtggg ttctgcagca aggaccgatt tgtggcttac ccctgtgctg
     4261 tgggccagac ggccttctcc tctgggaggc actactggga ggtgggcatg aacatcaccg
     4321 gggacgcgtt gtgggccctg ggtgtgtgca gggacaacgt gagccggaaa gacagggtcc
     4381 ccaagtgccc cgaaaacggc ttctgggtgg tgcagctgtc caaggggacc aagtacttat
     4441 ccaccttctc tgccctaacc ccggtcatgc tgatggagcc tcccagccac atgggcatct
     4501 tcctggactt cgaagccggg gaagtgtcct tctacagtgt aagcgatggg tcccacctgc
     4561 acacctactc ccaggccacc ttcccaggcc ccctgcagcc tttcttctgc ctgggggctc
     4621 cgaagtctgg tcagatggtc atctccacag tgaccatgtg ggtgaaagga tagggatcca
     4681 atcaacctct ggattacaaa atttgtgaaa gattgactgg tattcttaac tatgttgctc
     4741 cttttacgct atgtggatac gctgctttaa tgcctttgta tcatgctatt gcttcccgta
     4801 tggctttcat tttctcctcc ttgtataaat cctggttgct gtctctttat gaggagttgt
     4861 ggcccgttgt caggcaacgt ggcgtggtgt gcactgtgtt tgctgacgca acccccactg
     4921 gttggggcat tgccaccacc tgtcagctcc tttccgggac tttcgctttc cccctcccta
     4981 ttgccacggc ggaactcatc gccgcctgcc ttgcccgctg ctggacaggg gctcggctgt
     5041 tgggcactga caattccgtg gtgttgtcgg ggaagctgac gtcctttcca tggctgctcg
     5101 cctgtgttgc cacctggatt ctgcgcggga cgtccttctg ctacgtccct tcggccctca
     5161 atccagcgga ccttccttcc cgcggcctgc tgccggctct gcggcctctt ccgcgtctcc
     5221 gccttcgccc tcagacgagt cggatctccc tttggccgcc tccccgccgg tacctttaag
     5281 accaatgact tacaaggcag ctgtagatct tagccacttt ttaaaagaaa aggggggact
     5341 ggaagggcta attcactccc aacgaaaata agatctgctt tttgcttgta ctgggtctct
     5401 ctggttagac cagatctgag cctgggagct ctctggctaa ctagggaacc cactgcttaa
     5461 gcctcaataa agcttgcctt gagtgcttca agtagtgtgt gcccgtctgt tgtgtgactc
     5521 tggtaactag agatccctca gaccctttta gtcagtgtgg aaaatctcta gcagtagtag
     5581 ttcatgtcat cttattattc agtatttata acttgcaaag aaatgaatat cagagagtga
     5641 gaggaacttg tttattgcag cttataatgg ttacaaataa agcaatagca tcacaaattt
     5701 cacaaataaa gcattttttt cactgcattc tagttgtggt ttgtccaaac tcatcaatgt
     5761 atcttatcat gtctggctct agctatcccg cccctaactc cgcccagttc cgcccattct
     5821 ccgccccatg gctgactaat tttttttatt tatgcagagg ccgaggccgc ctcggcctct
     5881 gagctattcc agaagtagtg aggaggcttt tttggaggcc tagacttttg cagagacggc
     5941 ccaaattcgt aatcatggtc atagctgttt cctgtgtgaa attgttatcc gctcacaatt
     6001 ccacacaaca tacgagccgg aagcataaag tgtaaagcct ggggtgccta atgagtgagc
     6061 taactcacat taattgcgtt gcgctcactg cccgctttcc agtcgggaaa cctgtcgtgc
     6121 cagctgcatt aatgaatcgg ccaacgcgcg gggagaggcg gtttgcgtat tgggcgctct
     6181 tccgcttcct cgctcactga ctcgctgcgc tcggtcgttc ggctgcggcg agcggtatca
     6241 gctcactcaa aggcggtaat acggttatcc acagaatcag gggataacgc aggaaagaac
     6301 atgtgagcaa aaggccagca aaaggccagg aaccgtaaaa aggccgcgtt gctggcgttt
     6361 ttccataggc tccgcccccc tgacgagcat cacaaaaatc gacgctcaag tcagaggtgg
     6421 cgaaacccga caggactata aagataccag gcgtttcccc ctggaagctc cctcgtgcgc
     6481 tctcctgttc cgaccctgcc gcttaccgga tacctgtccg cctttctccc ttcgggaagc
     6541 gtggcgcttt ctcatagctc acgctgtagg tatctcagtt cggtgtaggt cgttcgctcc
     6601 aagctgggct gtgtgcacga accccccgtt cagcccgacc gctgcgcctt atccggtaac
     6661 tatcgtcttg agtccaaccc ggtaagacac gacttatcgc cactggcagc agccactggt
     6721 aacaggatta gcagagcgag gtatgtaggc ggtgctacag agttcttgaa gtggtggcct
     6781 aactacggct acactagaag gacagtattt ggtatctgcg ctctgctgaa gccagttacc
     6841 ttcggaaaaa gagttggtag ctcttgatcc ggcaaacaaa ccaccgctgg tagcggtggt
     6901 ttttttgttt gcaagcagca gattacgcgc agaaaaaaag gatctcaaga agatcctttg
     6961 atcttttcta cggggtctga cgctcagtgg aacgaaaact cacgttaagg gattttggtc
     7021 atgagattat caaaaaggat cttcacctag atccttttaa attaaaaatg aagttttaaa
     7081 tcaatctaaa gtatatatga gtaaacttgg tctgacagtt accaatgctt aatcagtgag
     7141 gcacctatct cagcgatctg tctatttcgt tcatccatag ttgcctgact ccccgtcgtg
     7201 tagataacta cgatacggga gggcttacca tctggcccca gtgctgcaat gataccgcga
     7261 gacccacgct caccggctcc agatttatca gcaataaacc agccagccgg aagggccgag
     7321 cgcagaagtg gtcctgcaac tttatccgcc tccatccagt ctattaattg ttgccgggaa
     7381 gctagagtaa gtagttcgcc agttaatagt ttgcgcaacg ttgttgccat tgctacaggc
     7441 atcgtggtgt cacgctcgtc gtttggtatg gcttcattca gctccggttc ccaacgatca
     7501 aggcgagtta catgatcccc catgttgtgc aaaaaagcgg ttagctcctt cggtcctccg
     7561 atcgttgtca gaagtaagtt ggccgcagtg ttatcactca tggttatggc agcactgcat
     7621 aattctctta ctgtcatgcc atccgtaaga tgcttttctg tgactggtga gtactcaacc
     7681 aagtcattct gagaatagtg tatgcggcga ccgagttgct cttgcccggc gtcaatacgg
     7741 gataataccg cgccacatag cagaacttta aaagtgctca tcattggaaa acgttcttcg
     7801 gggcgaaaac tctcaaggat cttaccgctg ttgagatcca gttcgatgta acccactcgt
     7861 gcacccaact gatcttcagc atcttttact ttcaccagcg tttctgggtg agcaaaaaca
     7921 ggaaggcaaa atgccgcaaa aaagggaata agggcgacac ggaaatgttg aatactcata
     7981 ctcttccttt ttcaatatta ttgaagcatt tatcagggtt attgtctcat gagcggatac
     8041 atatttgaat gtatttagaa aaataaacaa ataggggttc cgcgcacatt tccccgaaaa
     8101 gtgccacctg acgtctaaga aaccattatt atcatgacat taacctataa aaataggcgt
     8161 atcacgaggc cctttcgtct cgcgcgtttc ggtgatgacg gtgaaaacct ctgacacatg
     8221 cagctcccgg agacggtcac agcttgtctg taagcggatg ccgggagcag acaagcccgt
     8281 cagggcgcgt cagcgggtgt tggcgggtgt cggggctggc ttaactatgc ggcatcagag
     8341 cagattgtac tgagagtgca ccatatgcgg tgtgaaatac cgcacagatg cgtaaggaga
     8401 aaataccgca tcaggcgcca ttcgccattc aggctgcgca actgttggga agggcgatcg
     8461 gtgcgggcct cttcgctatt acgccagctg gcgaaagggg gatgtgctgc aaggcgatta
     8521 agttgggtaa cgccagggtt ttcccagtca cgacgttgta aaacgacggc cagtgccaag
     8581 ctg
//
