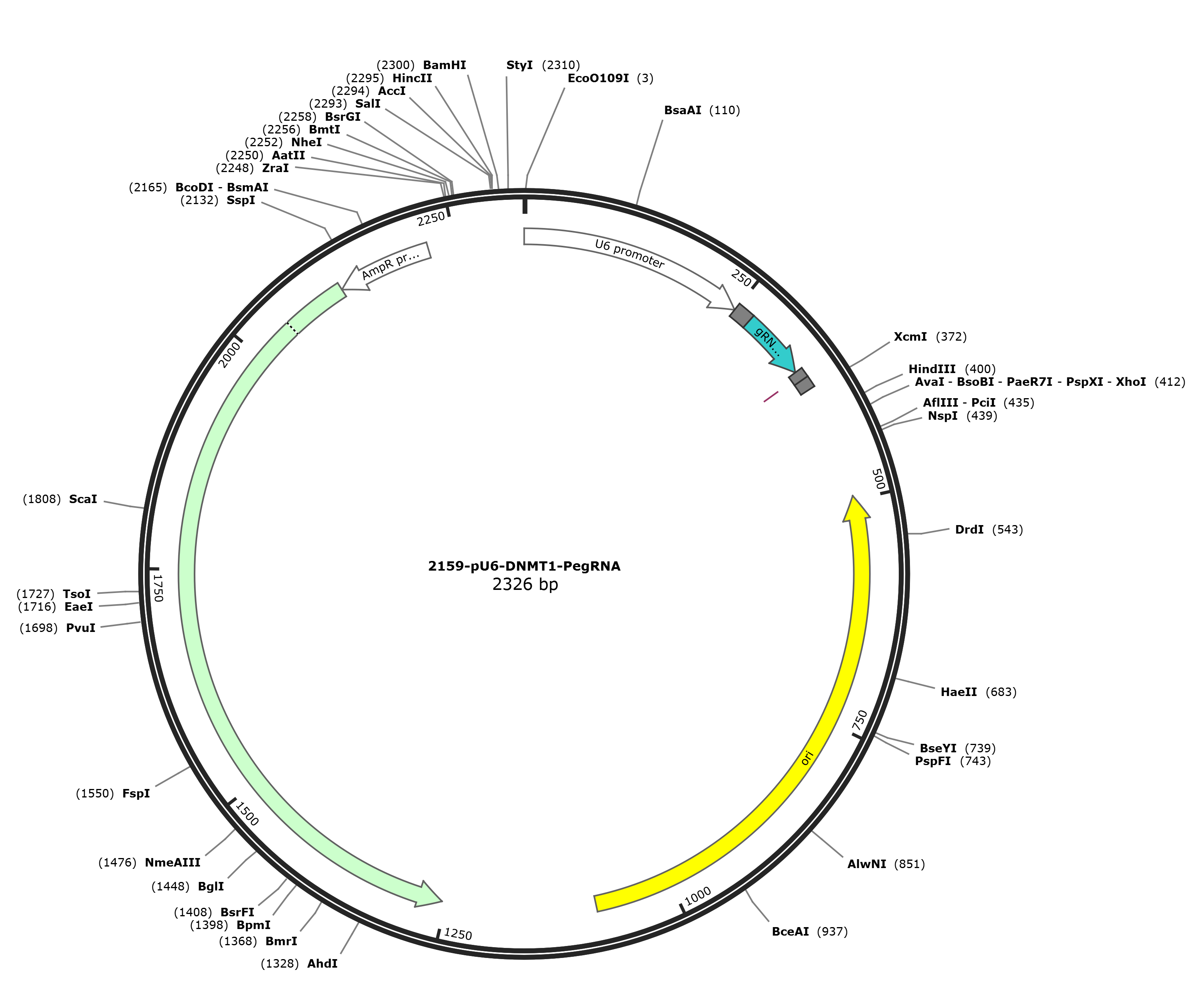

pU6-DNMT1-PegRNA

LOCUS       pU6-DNMT1-PegRNA               2326 bp DNA     circular SYN 12-MAR-2026
DEFINITION  Prime editing in mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2326)
  TITLE     Liu Lab plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 2326)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 19, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName:
            "Unpublished"
FEATURES             Location/Qualifiers
     source          1..2326
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        1..249
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     1..21
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     172..191
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     primer_bind     247..272
                     /label=OL2770
     misc_feature    250..269
                     /label=DNMT1 spacer
     misc_RNA        270..345
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     misc_feature    346..356
                     /label=RT template
     primer_bind     complement(350..369)
                     /label=OL2771
     misc_feature    352
                     /label=C352A
     misc_feature    357..369
                     /label=PBS
     rep_origin      complement(496..1084)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(576..595)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(1255..2115)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     1878..1897
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(2116..2220)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
       61 ataattagaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
      121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
      181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
      241 cgaaacaccg attcctggtg ccagaaacag ttttagagct agaaatagca agttaaaata
      301 aggctagtcc gttatcaact tgaaaaagtg gcaccgagtc ggtgcgtcac cactgtttct
      361 ggcaccaggg tcggcatggc cccattcgca cgttttttta agcttgggcc gctcgaggta
      421 cctctctaca tatgacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc
      481 cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca aaaatcgacg
      541 ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt ttccccctgg
      601 aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc tgtccgcctt
      661 tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc tcagttcggt
      721 gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg
      781 cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact tatcgccact
      841 ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg ctacagagtt
      901 cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta tctgcgctct
      961 gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca aacaaaccac
     1021 cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc
     1081 tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg
     1141 ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta
     1201 aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca
     1261 atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc
     1321 ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc
     1381 tgcaatgata ccgcgagatc cacgctcacc ggctccagat ttatcagcaa taaaccagcc
     1441 agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat
     1501 taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt
     1561 tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc
     1621 cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag
     1681 ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt
     1741 tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac
     1801 tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg
     1861 cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat
     1921 tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc
     1981 gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc
     2041 tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa
     2101 atgttgaata ctcatactct tcctttttca atattattga agcatttatc agggttattg
     2161 tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg
     2221 cacatttccc cgaaaagtgc cacctgacgt cgctagctgt acaaaaaagc aggctttaaa
     2281 ggaaccaatt cagtcgactg gatccggtac caaggtcggg caggaa
//
