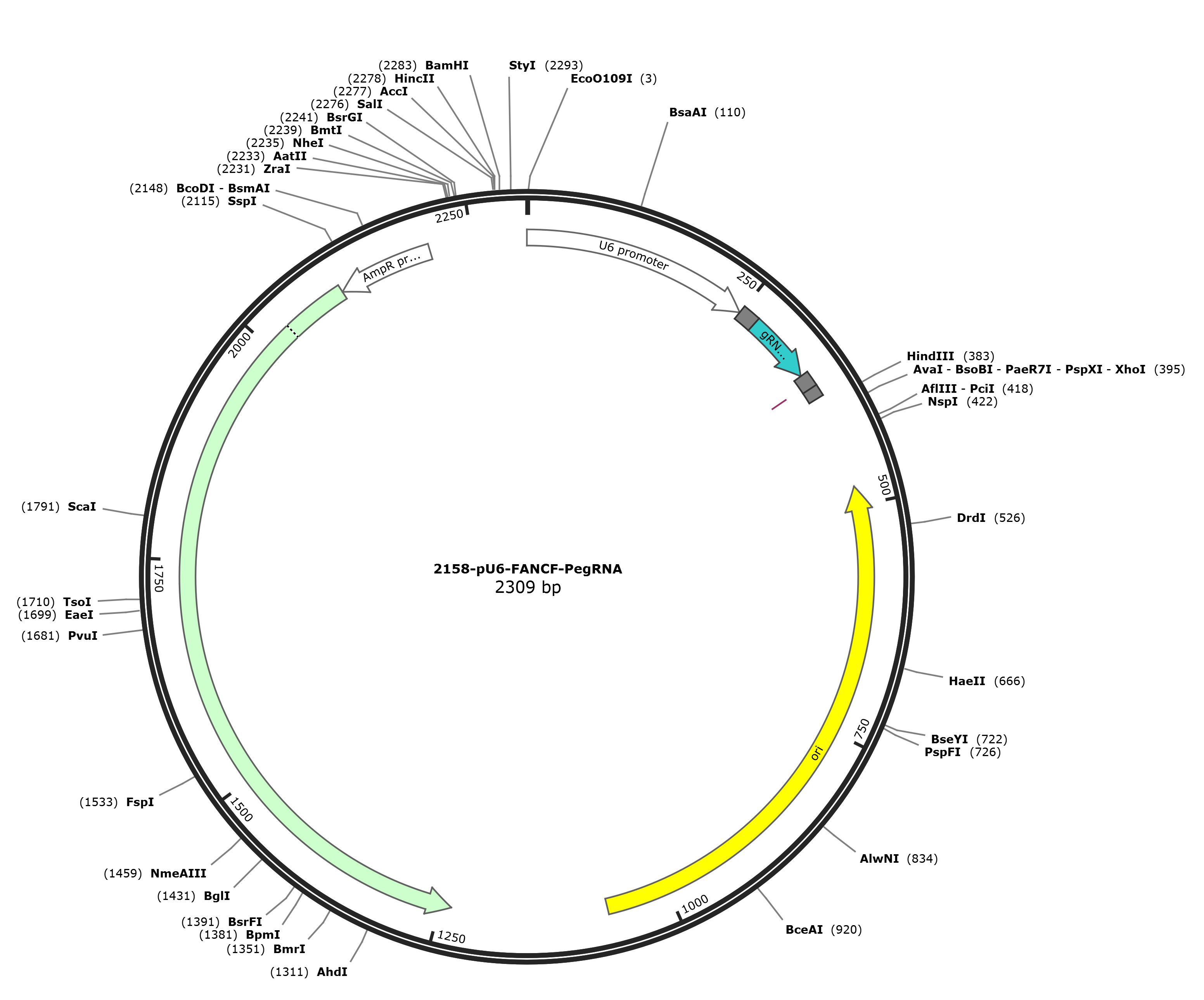

pU6-FANCF-PegRNA

LOCUS       pU6-FANCF-PegRNA              2309 bp DNA     circular SYN 12-MAR-2026
DEFINITION  Prime editing in mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 2309)
  TITLE     Liu Lab plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 2309)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 19, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
COMMENT     SGRef: number: 1; type: "Journal Article"; journalName:
            "Unpublished"
FEATURES             Location/Qualifiers
     source          1..2309
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     promoter        1..249
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     1..21
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     172..191
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_feature    250..269
                     /label=FANCF spacer
     misc_RNA        270..345
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     misc_feature    346..362
                     /label=RT template
     misc_feature    358
                     /label=G to T
     misc_feature    363..375
                     /label=PBS
     rep_origin      complement(479..1067)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(559..578)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(1238..2098)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     1861..1880
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(2099..2203)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gagggcctat ttcccatgat tccttcatat ttgcatatac gatacaaggc tgttagagag
       61 ataattagaa ttaatttgac tgtaaacaca aagatattag tacaaaatac gtgacgtaga
      121 aagtaataat ttcttgggta gtttgcagtt ttaaaattat gttttaaaat ggactatcat
      181 atgcttaccg taacttgaaa gtatttcgat ttcttggctt tatatatctt gtggaaagga
      241 cgaaacaccg gaatcccttc tgcagcaccg ttttagagct agaaatagca agttaaaata
      301 aggctagtcc gttatcaact tgaaaaagtg gcaccgagtc ggtgcggaaa agcgatcaag
      361 gtgctgcaga agggattttt ttaagcttgg gccgctcgag gtacctctct acatatgaca
      421 tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg ctggcgtttt
      481 tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt cagaggtggc
      541 gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc ctcgtgcgct
      601 ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct tcgggaagcg
      661 tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc gttcgctcca
      721 agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta tccggtaact
      781 atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca gccactggta
      841 acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag tggtggccta
      901 actacggcta cactagaaga acagtatttg gtatctgcgc tctgctgaag ccagttacct
      961 tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt agcggtggtt
     1021 tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa gatcctttga
     1081 tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg attttggtca
     1141 tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga agttttaaat
     1201 caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta atcagtgagg
     1261 cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc cccgtcgtgt
     1321 agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg ataccgcgag
     1381 atccacgctc accggctcca gatttatcag caataaacca gccagccgga agggccgagc
     1441 gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt tgccgggaag
     1501 ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt gctacaggca
     1561 tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc caacgatcaa
     1621 ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc ggtcctccga
     1681 tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca gcactgcata
     1741 attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag tactcaacca
     1801 agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg tcaatacggg
     1861 ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa cgttcttcgg
     1921 ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa cccactcgtg
     1981 cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga gcaaaaacag
     2041 gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga atactcatac
     2101 tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg agcggataca
     2161 tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt ccccgaaaag
     2221 tgccacctga cgtcgctagc tgtacaaaaa agcaggcttt aaaggaacca attcagtcga
     2281 ctggatccgg taccaaggtc gggcaggaa
//
