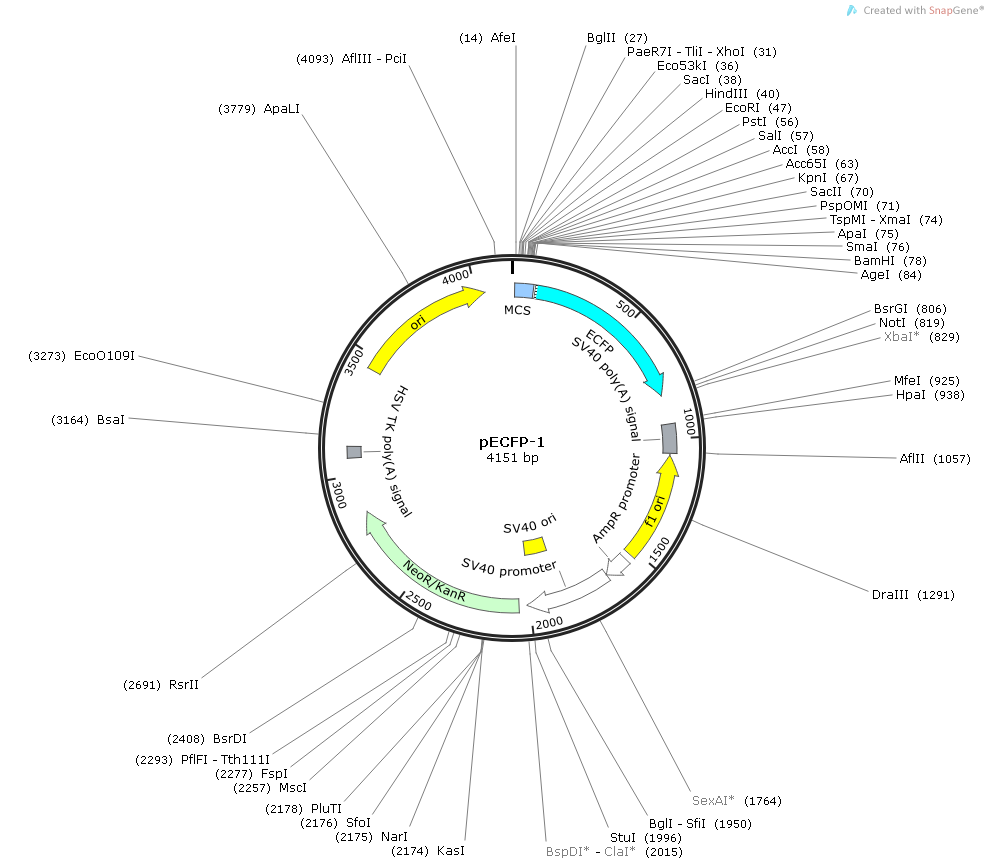

pECFP-1

LOCUS       pECFP-1               4151 bp ds-DNA    circular SYN 04-1-2013
DEFINITION  Promoterless ECFP reporter vector.
ACCESSION   .
VERSION     .
KEYWORDS    pECFP-1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4151)
  AUTHORS   Clontech
  TITLE     Direct Submission
  JOURNAL   Exported 2017/2/28 from SnapGene 2.3.2
            http://www.snapgene.com
COMMENT     Can be used to monitor transcription from a promoter inserted into
            the MCS.
FEATURES             Location/Qualifiers
     source          1..4151
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     misc_feature    12..89
                     /note="MCS"
                     /note="multiple cloning site of fluorescent protein
                     plasmids"
     CDS             97..816
                     /codon_start=1
                     /product="enhanced CFP"
                     /note="ECFP"
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTWGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYISHNVYITADKQKNGIK
                     ANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     polyA_signal    939..1060
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     rep_origin      complement(1067..1522)
                     /direction=LEFT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        1549..1653
                     /gene="bla"
                     /note="AmpR promoter"
     promoter        1655..2012
                     /note="SV40 promoter"
                     /note="SV40 enhancer and early promoter"
     rep_origin      1863..1998
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     CDS             2047..2841
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /note="NeoR/KanR"
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin)"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     misc_feature    3073..3120
                     /note="HSV TK poly(A) signal"
                     /note="herpesvirus thymidine kinase polyadenylation signal"
     rep_origin      3449..4037
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
ORIGIN
        1 tagttattac tagcgctacc ggactcagat ctcgagctca agcttcgaat tctgcagtcg
       61 acggtaccgc gggcccggga tccaccggtc gccaccatgg tgagcaaggg cgaggagctg
      121 ttcaccgggg tggtgcccat cctggtcgag ctggacggcg acgtaaacgg ccacaagttc
      181 agcgtgtccg gcgagggcga gggcgatgcc acctacggca agctgaccct gaagttcatc
      241 tgcaccaccg gcaagctgcc cgtgccctgg cccaccctcg tgaccaccct gacctggggc
      301 gtgcagtgct tcagccgcta ccccgaccac atgaagcagc acgacttctt caagtccgcc
      361 atgcccgaag gctacgtcca ggagcgcacc atcttcttca aggacgacgg caactacaag
      421 acccgcgccg aggtgaagtt cgagggcgac accctggtga accgcatcga gctgaagggc
      481 atcgacttca aggaggacgg caacatcctg gggcacaagc tggagtacaa ctacatcagc
      541 cacaacgtct atatcaccgc cgacaagcag aagaacggca tcaaggccaa cttcaagatc
      601 cgccacaaca tcgaggacgg cagcgtgcag ctcgccgacc actaccagca gaacaccccc
      661 atcggcgacg gccccgtgct gctgcccgac aaccactacc tgagcaccca gtccgccctg
      721 agcaaagacc ccaacgagaa gcgcgatcac atggtcctgc tggagttcgt gaccgccgcc
      781 gggatcactc tcggcatgga cgagctgtac aagtaaagcg gccgcgactc tagatcataa
      841 tcagccatac cacatttgta gaggttttac ttgctttaaa aaacctccca cacctccccc
      901 tgaacctgaa acataaaatg aatgcaattg ttgttgttaa cttgtttatt gcagcttata
      961 atggttacaa ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc
     1021 attctagttg tggtttgtcc aaactcatca atgtatctta aggcgtaaat tgtaagcgtt
     1081 aatattttgt taaaattcgc gttaaatttt tgttaaatca gctcattttt taaccaatag
     1141 gccgaaatcg gcaaaatccc ttataaatca aaagaataga ccgagatagg gttgagtgtt
     1201 gttccagttt ggaacaagag tccactatta aagaacgtgg actccaacgt caaagggcga
     1261 aaaaccgtct atcagggcga tggcccacta cgtgaaccat caccctaatc aagttttttg
     1321 gggtcgaggt gccgtaaagc actaaatcgg aaccctaaag ggagcccccg atttagagct
     1381 tgacggggaa agccggcgaa cgtggcgaga aaggaaggga agaaagcgaa aggagcgggc
     1441 gctagggcgc tggcaagtgt agcggtcacg ctgcgcgtaa ccaccacacc cgccgcgctt
     1501 aatgcgccgc tacagggcgc gtcaggtggc acttttcggg gaaatgtgcg cggaacccct
     1561 atttgtttat ttttctaaat acattcaaat atgtatccgc tcatgagaca ataaccctga
     1621 taaatgcttc aataatattg aaaaaggaag agtcctgagg cggaaagaac cagctgtgga
     1681 atgtgtgtca gttagggtgt ggaaagtccc caggctcccc agcaggcaga agtatgcaaa
     1741 gcatgcatct caattagtca gcaaccaggt gtggaaagtc cccaggctcc ccagcaggca
     1801 gaagtatgca aagcatgcat ctcaattagt cagcaaccat agtcccgccc ctaactccgc
     1861 ccatcccgcc cctaactccg cccagttccg cccattctcc gccccatggc tgactaattt
     1921 tttttattta tgcagaggcc gaggccgcct cggcctctga gctattccag aagtagtgag
     1981 gaggcttttt tggaggccta ggcttttgca aagatcgatc aagagacagg atgaggatcg
     2041 tttcgcatga ttgaacaaga tggattgcac gcaggttctc cggccgcttg ggtggagagg
     2101 ctattcggct atgactgggc acaacagaca atcggctgct ctgatgccgc cgtgttccgg
     2161 ctgtcagcgc aggggcgccc ggttcttttt gtcaagaccg acctgtccgg tgccctgaat
     2221 gaactgcaag acgaggcagc gcggctatcg tggctggcca cgacgggcgt tccttgcgca
     2281 gctgtgctcg acgttgtcac tgaagcggga agggactggc tgctattggg cgaagtgccg
     2341 gggcaggatc tcctgtcatc tcaccttgct cctgccgaga aagtatccat catggctgat
     2401 gcaatgcggc ggctgcatac gcttgatccg gctacctgcc cattcgacca ccaagcgaaa
     2461 catcgcatcg agcgagcacg tactcggatg gaagccggtc ttgtcgatca ggatgatctg
     2521 gacgaagagc atcaggggct cgcgccagcc gaactgttcg ccaggctcaa ggcgagcatg
     2581 cccgacggcg aggatctcgt cgtgacccat ggcgatgcct gcttgccgaa tatcatggtg
     2641 gaaaatggcc gcttttctgg attcatcgac tgtggccggc tgggtgtggc ggaccgctat
     2701 caggacatag cgttggctac ccgtgatatt gctgaagagc ttggcggcga atgggctgac
     2761 cgcttcctcg tgctttacgg tatcgccgct cccgattcgc agcgcatcgc cttctatcgc
     2821 cttcttgacg agttcttctg agcgggactc tggggttcga aatgaccgac caagcgacgc
     2881 ccaacctgcc atcacgagat ttcgattcca ccgccgcctt ctatgaaagg ttgggcttcg
     2941 gaatcgtttt ccgggacgcc ggctggatga tcctccagcg cggggatctc atgctggagt
     3001 tcttcgccca ccctaggggg aggctaactg aaacacggaa ggagacaata ccggaaggaa
     3061 cccgcgctat gacggcaata aaaagacaga ataaaacgca cggtgttggg tcgtttgttc
     3121 ataaacgcgg ggttcggtcc cagggctggc actctgtcga taccccaccg agaccccatt
     3181 ggggccaata cgcccgcgtt tcttcctttt ccccacccca ccccccaagt tcgggtgaag
     3241 gcccagggct cgcagccaac gtcggggcgg caggccctgc catagcctca ggttactcat
     3301 atatacttta gattgattta aaacttcatt tttaatttaa aaggatctag gtgaagatcc
     3361 tttttgataa tctcatgacc aaaatccctt aacgtgagtt ttcgttccac tgagcgtcag
     3421 accccgtaga aaagatcaaa ggatcttctt gagatccttt ttttctgcgc gtaatctgct
     3481 gcttgcaaac aaaaaaacca ccgctaccag cggtggtttg tttgccggat caagagctac
     3541 caactctttt tccgaaggta actggcttca gcagagcgca gataccaaat actgtccttc
     3601 tagtgtagcc gtagttaggc caccacttca agaactctgt agcaccgcct acatacctcg
     3661 ctctgctaat cctgttacca gtggctgctg ccagtggcga taagtcgtgt cttaccgggt
     3721 tggactcaag acgatagtta ccggataagg cgcagcggtc gggctgaacg gggggttcgt
     3781 gcacacagcc cagcttggag cgaacgacct acaccgaact gagataccta cagcgtgagc
     3841 tatgagaaag cgccacgctt cccgaaggga gaaaggcgga caggtatccg gtaagcggca
     3901 gggtcggaac aggagagcgc acgagggagc ttccaggggg aaacgcctgg tatctttata
     3961 gtcctgtcgg gtttcgccac ctctgacttg agcgtcgatt tttgtgatgc tcgtcagggg
     4021 ggcggagcct atggaaaaac gccagcaacg cggccttttt acggttcctg gccttttgct
     4081 ggccttttgc tcacatgttc tttcctgcgt tatcccctga ttctgtggat aaccgtatta
     4141 ccgccatgca t
//
